Toyota Sequoia
2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States
Discontinued model
Data version 2008-05

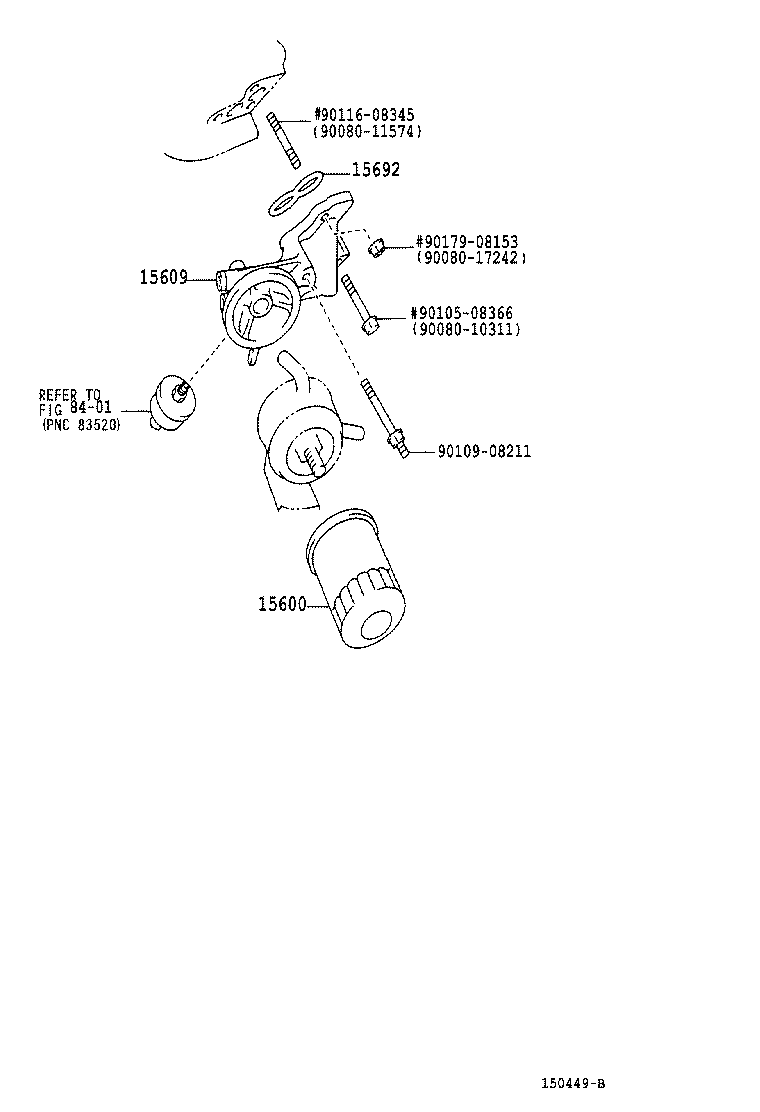

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 15600 — Filter Assy, Oil | ||||
| 90915-20004 |
Filter Assy, Oil
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 90915-20004 |
Filter Assy, Oil
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 15609 — Bracket Sub-assy, Oil Filter | ||||
| 15609-50110 |
Bracket Sub-assy, Oil Filter
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 15609-50110 |
Bracket Sub-assy, Oil Filter
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 15692 — Gasket, Oil Filter Bracket | ||||
| 15692-50020 |
Gasket, Oil Filter Bracket
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 15692-50020 |
Gasket, Oil Filter Bracket
2004-08 → —
|
2UZFE UCK35,45 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
