Toyota Sequoia
2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States
Discontinued model
Data version 2008-05

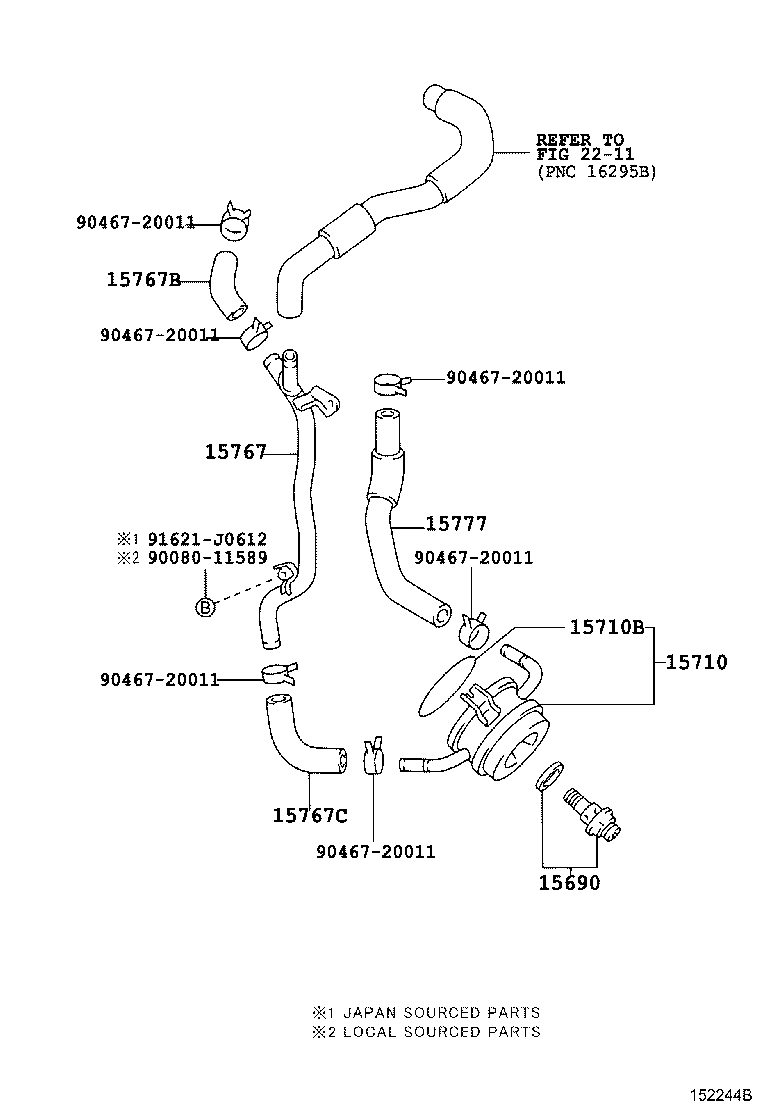

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 15690 — Valve Assy, Oil Cooler Relief | ||||
| 15695-50010 |
Valve Assy, Oil Cooler Relief
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 15695-50010 |
Valve Assy, Oil Cooler Relief
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 15710 — Cooler Assy, Oil | ||||
| 15710-50030 |
Cooler Assy, Oil
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 15710-50030 |
Cooler Assy, Oil
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 15710B — Ring, O(FOR OIL COOLER) | ||||
| 90301-67004 |
Ring, O(FOR OIL COOLER)
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 90301-67004 |
Ring, O(FOR OIL COOLER)
2004-08 → 2007-11
ended
|
2UZFE UCK35,45 | — | |
| 15767 — Pipe, Oil Cooler | ||||
| 15767-0F010 note |
Pipe, Oil Cooler
2003-07 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 15767-50070 |
Pipe, Oil Cooler
2000-09 → 2002-08
ended
|
2UZFE UCK35,45 | — | |
| 15767-50110 note |
Pipe, Oil Cooler
2002-08 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 15767-0F011 note |
Pipe, Oil Cooler
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 15767-50111 note |
Pipe, Oil Cooler
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 15767B — Hose, Water By-pass, NO.4 | ||||
| 16281-0F010 note |
Hose, Water By-pass, NO.4
2003-07 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 16281-50030 note |
Hose, Water By-pass, NO.4
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 16281-0F010 note |
Hose, Water By-pass, NO.4
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 16281-50030 note |
Hose, Water By-pass, NO.4
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 15767C — Hose, Water By-pass, NO.5 | ||||
| 16282-50070 note |
Hose, Water By-pass, NO.5
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 16282-0F010 note |
Hose, Water By-pass, NO.5
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 16282-50070 note |
Hose, Water By-pass, NO.5
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 15777 — Hose, Oil Cooler | ||||
| 15777-50060 |
Hose, Oil Cooler
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 15777-50060 |
Hose, Oil Cooler
2004-08 → —
|
2UZFE UCK35,45 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
