Toyota Sequoia
2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States
Discontinued model
Data version 2008-05

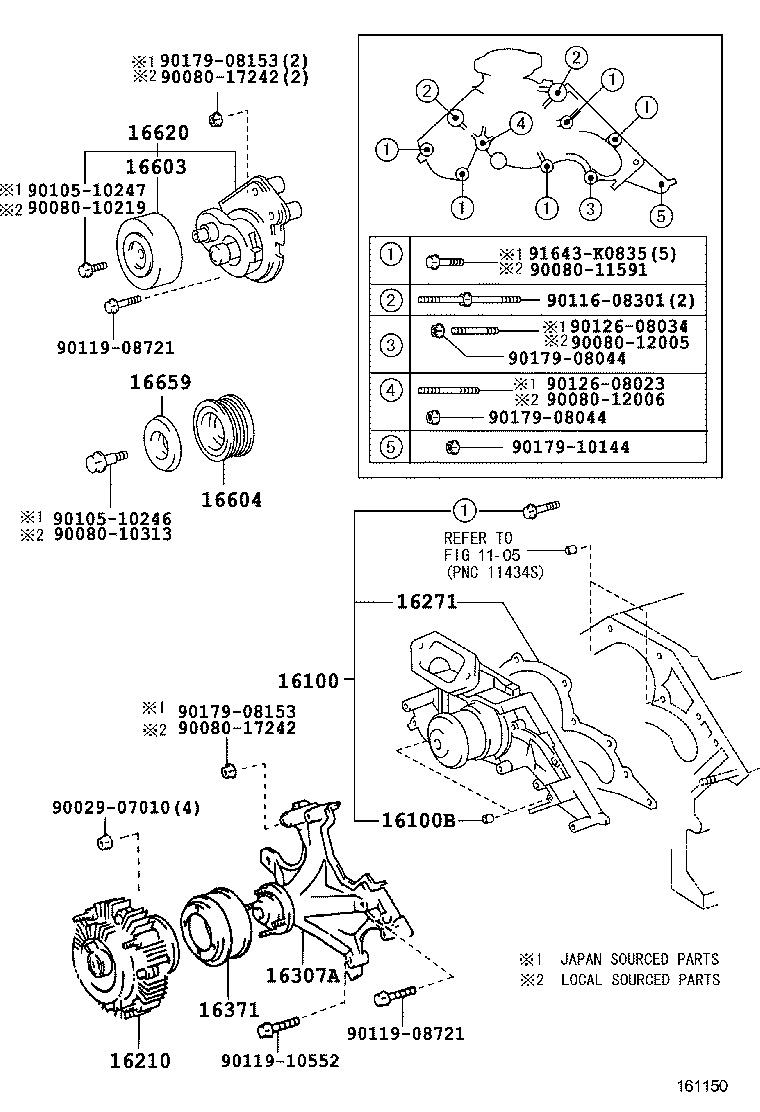

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16100 — Pump Assy, Engine Water | ||||
| 16100-59275 |
Pump Assy, Engine Water
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 16100-59275 |
Pump Assy, Engine Water
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 16100B — Pin, Ring(FOR WATER PUMP SET) | ||||
| 90253-11021 |
Pin, Ring(FOR WATER PUMP SET)
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 90253-11021 |
Pin, Ring(FOR WATER PUMP SET)
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 16210 — Coupling Assy, Fluid | ||||
| 16210-50090 |
Coupling Assy, Fluid
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 16210-0F010 |
Coupling Assy, Fluid
2004-08 → 2004-11
ended
|
2UZFE UCK35,45 | — | |
| 16210-50100 note |
Coupling Assy, Fluid
2004-08 → 2005-08
ended
|
2UZFE UCK35,45 | — | |
| 16210-50100 |
Coupling Assy, Fluid
2004-11 → 2005-08
ended
|
2UZFE UCK35,45 | — | |
| 16210-50101 |
Coupling Assy, Fluid
2005-08 → —
|
2UZFE UCK35,45 | — | |
| 16271 — Gasket, Water Pump | ||||
| 16271-50010 note |
Gasket, Water Pump
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 16271-0F010 note |
Gasket, Water Pump
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 16271-50010 note |
Gasket, Water Pump
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 16307A — Bracket Sub-assy, Fan | ||||
| 16307-50012 note |
Bracket Sub-assy, Fan
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 16307-0F010 note |
Bracket Sub-assy, Fan
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 16307-50012 note |
Bracket Sub-assy, Fan
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 16371 — Pulley, Fan | ||||
| 16371-50040 note |
Pulley, Fan
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 16371-0F010 note |
Pulley, Fan
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 16371-50040 note |
Pulley, Fan
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 16603 — Pulley Sub-assy, Idler, NO.1 | ||||
| 16603-0W010 note |
Pulley Sub-assy, Idler, NO.1
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 16603-0W030 note |
Pulley Sub-assy, Idler, NO.1
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 16603-0W010 note |
Pulley Sub-assy, Idler, NO.1
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 16603-0W030 note |
Pulley Sub-assy, Idler, NO.1
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 16604 — Pulley Sub-assy, Idler, NO.2 | ||||
| 16604-50030 note |
Pulley Sub-assy, Idler, NO.2
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 16604-0F010 note |
Pulley Sub-assy, Idler, NO.2
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 16604-50030 note |
Pulley Sub-assy, Idler, NO.2
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 16620 — Tensioner Assy, V-ribbed Belt | ||||
| 16620-0W100 |
Tensioner Assy, V-ribbed Belt
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 16620-0W100 |
Tensioner Assy, V-ribbed Belt
2004-08 → 2006-09
ended
|
2UZFE UCK35,45 | — | |
| 16620-0W101 |
Tensioner Assy, V-ribbed Belt
2006-09 → —
|
2UZFE UCK35,45 | — | |
| 16659 — Plate, Idler Pulley Cover, NO.2 | ||||
| 16659-50022 |
Plate, Idler Pulley Cover, NO.2
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 16659-50022 |
Plate, Idler Pulley Cover, NO.2
2004-08 → —
|
2UZFE UCK35,45 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
