Toyota Sequoia
2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States
Discontinued model
Data version 2008-05

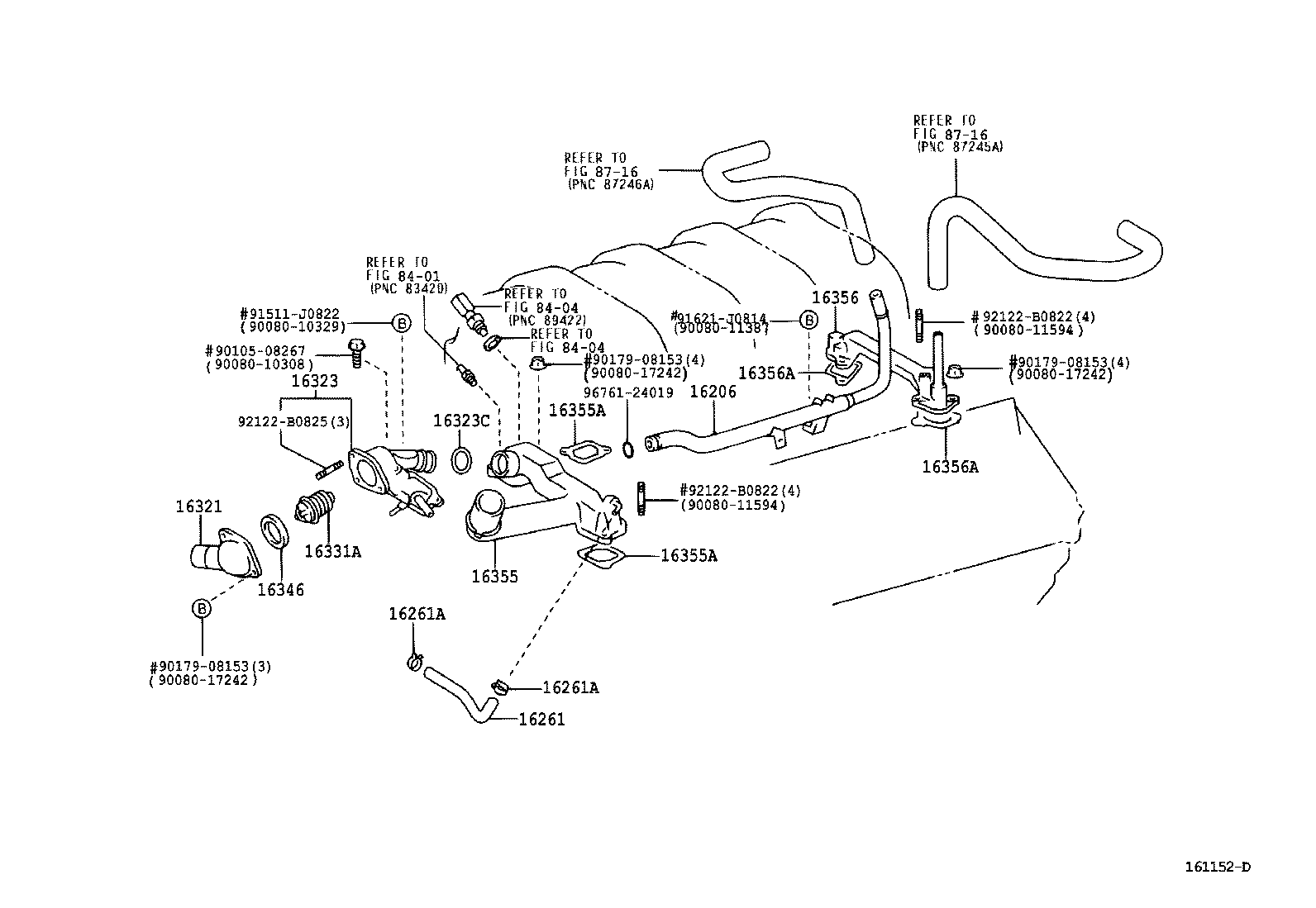

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16206 — Pipe Sub-assy, Water By-pass | ||||
| 16206-50120 |
Pipe Sub-assy, Water By-pass
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 16206-0F010 note |
Pipe Sub-assy, Water By-pass
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 16206-50170 note |
Pipe Sub-assy, Water By-pass
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 16261 — Hose, Water By-pass | ||||
| 16261-50090 |
Hose, Water By-pass
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 16261-50140 |
Hose, Water By-pass
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 16261A — Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) | ||||
| 90467-13059 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 96135-51300 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2004-08 → 2005-01
ended
|
2UZFE UCK35,45 | — | |
| 96137-41501 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2005-01 → —
|
2UZFE UCK35,45 | — | |
| 16321 — Inlet, Water | ||||
| 16321-50020 note |
Inlet, Water
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 16321-0F010 note |
Inlet, Water
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 16321-50020 note |
Inlet, Water
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 16323 — Housing, Water Inlet | ||||
| 16032-50110 note |
Housing, Water Inlet
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 16032-0F010 note |
Housing, Water Inlet
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 16032-50110 note |
Housing, Water Inlet
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 16323C — Ring, O(FOR WATER INLET HOUSING) | ||||
| 96761-35035 |
Ring, O(FOR WATER INLET HOUSING)
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 96761-35035 |
Ring, O(FOR WATER INLET HOUSING)
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 16331A — Thermostat | ||||
| 90916-03100 note |
Thermostat
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 90916-03100 note |
Thermostat
2004-08 → 2006-07
ended
|
2UZFE UCK35,45 | — | |
| 90916-03138 note |
Thermostat
2006-07 → —
|
2UZFE UCK35,45 | — | |
| 16346 — Gasket, Thermostat | ||||
| 16346-50010 |
Gasket, Thermostat
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 16346-50010 |
Gasket, Thermostat
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 16355 — Joint, Water By-pass, Front | ||||
| 16355-50080 note |
Joint, Water By-pass, Front
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 16355-0F020 note |
Joint, Water By-pass, Front
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 16355-50110 note |
Joint, Water By-pass, Front
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 16355A — Gasket(FOR WATER BY-PASS JOINT FRONT) | ||||
| 16341-50020 |
Gasket(FOR WATER BY-PASS JOINT FRONT)
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 16341-50020 |
Gasket(FOR WATER BY-PASS JOINT FRONT)
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 16356 — Joint, Water By-pass, Rear | ||||
| 16356-50120 |
Joint, Water By-pass, Rear
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 16356-50130 |
Joint, Water By-pass, Rear
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 16356A — Gasket(WATER BY-PASS JOINT, REAR) | ||||
| 16341-50020 |
Gasket(WATER BY-PASS JOINT, REAR)
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 16341-50020 |
Gasket(WATER BY-PASS JOINT, REAR)
2004-08 → —
|
2UZFE UCK35,45 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
