Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

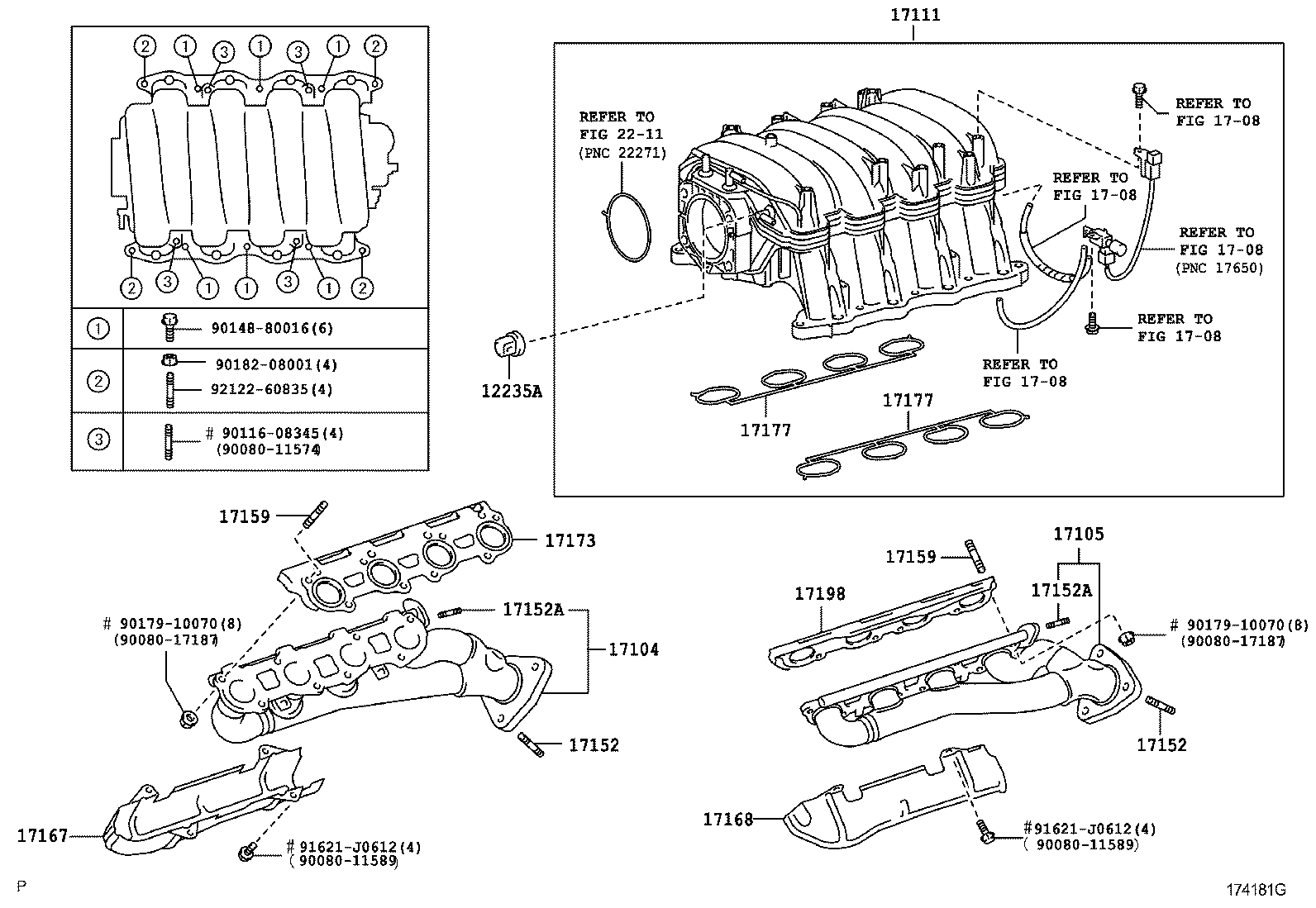

Exploded illustration 174181G 17111 — MANIFOLD, INTAKE (4 parts) 17173 — GASKET, EXHAUST MANIFOLD TO HEAD (2 parts) 17159 — BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) (3 parts) 17177 — GASKET, INTAKE MANIFOLD TO HEAD, NO.1 (2 parts) 17177 — GASKET, INTAKE MANIFOLD TO HEAD, NO.1 (2 parts) 17167 — INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 (2 parts) 17104 — MANIFOLD SUB-ASSY, EXHAUST, RH (2 parts) 17152 — BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) (2 parts) 17198 — GASKET, EXHAUST MANIFOLD, NO.2 (1 parts) 17105 — MANIFOLD SUB-ASSY, EXHAUST, LH (2 parts) 17159 — BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) (3 parts) 17168 — INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 (2 parts) 17152 — BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) (2 parts) 17152A — BOLT,STUD(FOR MANIFOLD TO EXHAUST PIPE) (2 parts) 17152A — BOLT,STUD(FOR MANIFOLD TO EXHAUST PIPE) (2 parts) 9014880016 — not listed in this catalogue 9212260835 — not listed in this catalogue 9018208001 — not listed in this catalogue 91621J0612 — not listed in this catalogue 9011608345 — not listed in this catalogue 9008011574 — not listed in this catalogue 91621J0612 — not listed in this catalogue 9017910070 — not listed in this catalogue 9008017187 — not listed in this catalogue 9017910070 — not listed in this catalogue 9008017187 — not listed in this catalogue 9008011589 — not listed in this catalogue 9008011589 — not listed in this catalogue 12235A — CAP, VENTILATION (1 parts) 1708 — not listed in this catalogue 1708 — not listed in this catalogue 1708 — not listed in this catalogue 1708 — not listed in this catalogue 1708 — not listed in this catalogue 2211 — not listed in this catalogue
174181G · 16 callouts, 19 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
25 parts on this figure
Part number Description Fitment Price
12235A — Cap, Ventilation
12235-50020 Cap, Ventilation
2004-08 → —
2UZFE UCK35,45 —
17104 — Manifold Sub-assy, Exhaust, RH
17104-50151 Manifold Sub-assy, Exhaust, RH
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
17104-50200 Manifold Sub-assy, Exhaust, RH
2004-08 → —
2UZFE UCK35,45 —
17105 — Manifold Sub-assy, Exhaust, LH
17105-50151 Manifold Sub-assy, Exhaust, LH
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
17105-50190 Manifold Sub-assy, Exhaust, LH
2004-08 → —
2UZFE UCK35,45 —
17111 — Manifold, Intake
17101-50020 Manifold, Intake
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
17120-50010 Manifold, Intake
2004-08 → 2004-12 ended
2UZFE UCK35,45 —
17120-50011 Manifold, Intake
2004-12 → 2006-07 ended
2UZFE UCK35,45 —
17120-50020 Manifold, Intake
2006-07 → —
2UZFE UCK35,45 —
17152 — Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
90126-10006 note Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
90080-12007 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
2004-08 → —
2UZFE UCK35,45 —
17152A — Bolt,Stud(FOR MANIFOLD TO EXHAUST PIPE)
90126-10006 Bolt,Stud(FOR MANIFOLD TO EXHAUST PIPE)
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
90126-06029 Bolt,Stud(FOR MANIFOLD TO EXHAUST PIPE)
2004-08 → —
2UZFE UCK35,45 —
17159 — Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
90126-10015 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
90080-12008 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2004-08 → —
2UZFE UCK35,45 —
90126-10015 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2004-08 → —
2UZFE UCK35,45 —
17167 — Insulator, Exhaust Manifold Heat, NO.1
17167-50110 Insulator, Exhaust Manifold Heat, NO.1
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
17167-50170 Insulator, Exhaust Manifold Heat, NO.1
2004-08 → —
2UZFE UCK35,45 —
17168 — Insulator, Exhaust Manifold Heat, NO.2
17168-50100 Insulator, Exhaust Manifold Heat, NO.2
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
17168-50160 Insulator, Exhaust Manifold Heat, NO.2
2004-08 → —
2UZFE UCK35,45 —
17173 — Gasket, Exhaust Manifold TO Head
17173-50021 Gasket, Exhaust Manifold TO Head
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
17173-50030 Gasket, Exhaust Manifold TO Head
2004-08 → —
2UZFE UCK35,45 —
17177 — Gasket, Intake Manifold TO Head, NO.1
17171-50020 Gasket, Intake Manifold TO Head, NO.1
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
17171-50030 Gasket, Intake Manifold TO Head, NO.1
2004-08 → —
2UZFE UCK35,45 —
17198 — Gasket, Exhaust Manifold, NO.2
17198-50010 Gasket, Exhaust Manifold, NO.2
2004-08 → —
2UZFE UCK35,45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
