Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

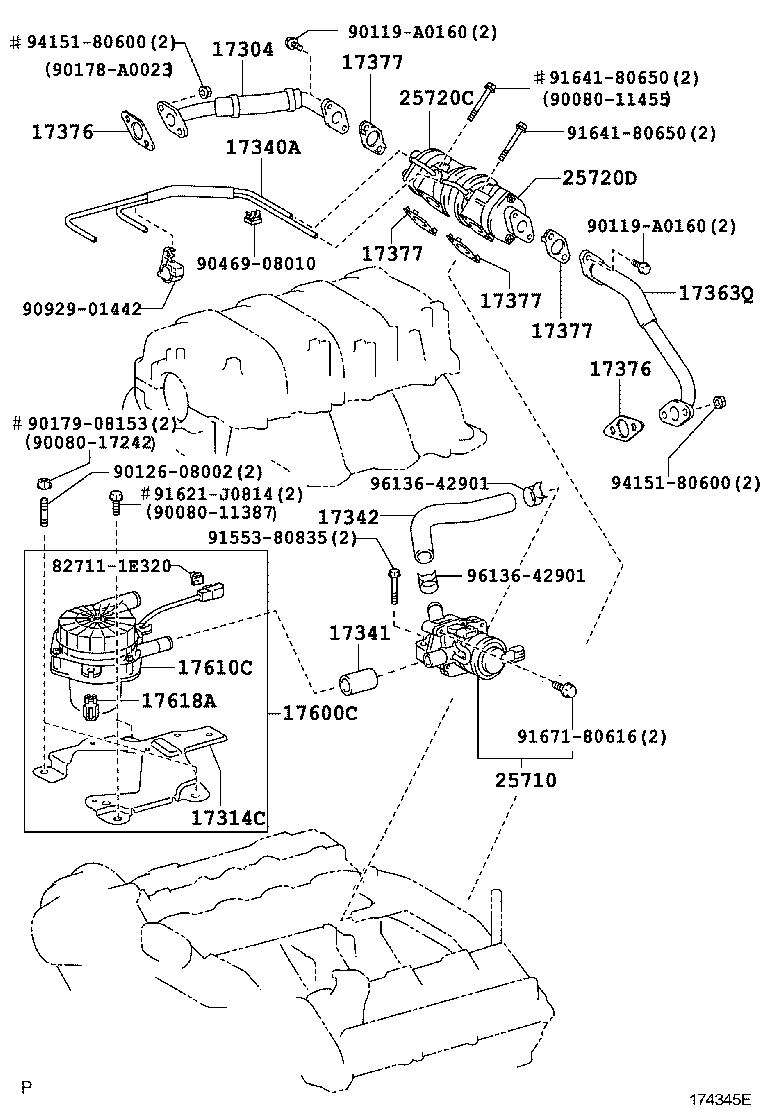

Exploded illustration 174345F 17341 — HOSE, NO.1(FOR AIR INJECTION SYSTEM) (1 parts) 17342 — HOSE, NO.2(FOR AIR INJECTION SYSTEM) (1 parts) 17340A — HOSE ASSY, VACUUM SWITCHING VALVE (3 parts) 17304 — TUBE SUB-ASSY, AIR, RH (1 parts) 17363Q — TUBE, AIR, NO.3 (1 parts) 17376 — GASKET, AIR TUBE, NO.1 (1 parts) 17376 — GASKET, AIR TUBE, NO.1 (1 parts) 17377 — GASKET, AIR TUBE, NO.2 (1 parts) 17377 — GASKET, AIR TUBE, NO.2 (1 parts) 17377 — GASKET, AIR TUBE, NO.2 (1 parts) 17377 — GASKET, AIR TUBE, NO.2 (1 parts) 17600C — PUMP ASSY, AIR (1 parts) 17610C — PUMP ASSY, AIR (1 parts) 17618A — INSULATOR, AIR PUMP (1 parts) 17314C — BRACKET, AIR PUMP (1 parts) 9092901442 — not listed in this catalogue 9046908010 — not listed in this catalogue 9155380835 — not listed in this catalogue 827111E320 — not listed in this catalogue 91621J0814 — not listed in this catalogue 9613642901 — not listed in this catalogue 9613642901 — not listed in this catalogue 9164180650 — not listed in this catalogue 9164180650 — not listed in this catalogue 90119A0160 — not listed in this catalogue 9415180600 — not listed in this catalogue 9415180600 — not listed in this catalogue 90178A0023 — not listed in this catalogue 9008011455 — not listed in this catalogue 9008011387 — not listed in this catalogue 9008017242 — not listed in this catalogue 25720D — VALVE ASSY, AIR SWITCHING, NO.2 (1 parts) 25720C — VALVE ASSY, AIR SWITCHING, NO.1 (2 parts) 9017908153 — not listed in this catalogue 9012608002 — not listed in this catalogue 9167180616 — not listed in this catalogue 25710 — VALVE ASSY, AIR SWITCHING (1 parts) 90119A0160 — not listed in this catalogue
174345F · 18 callouts, 20 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
17 parts on this figure
Part number Description Fitment Price
17304 — Tube Sub-assy, Air, RH
17304-50010 Tube Sub-assy, Air, RH
2004-08 → —
2UZFE UCK35,45 —
17314C — Bracket, Air Pump
17314-0F010 Bracket, Air Pump
2004-08 → —
2UZFE UCK35,45 —
17340A — Hose Assy, Vacuum Switching Valve
17340-50010 Hose Assy, Vacuum Switching Valve
2004-08 → 2004-11 ended
2UZFE UCK35,45 —
17340-50020 Hose Assy, Vacuum Switching Valve
2004-11 → 2006-11 ended
2UZFE UCK35,45 —
17340-50030 Hose Assy, Vacuum Switching Valve
2006-11 → —
2UZFE UCK35,45 —
17341 — Hose, NO.1(FOR AIR INJECTION SYSTEM)
17341-50180 Hose, NO.1(FOR AIR INJECTION SYSTEM)
2004-08 → —
2UZFE UCK35,45 —
17342 — Hose, NO.2(FOR AIR INJECTION SYSTEM)
17342-50180 Hose, NO.2(FOR AIR INJECTION SYSTEM)
2004-08 → —
2UZFE UCK35,45 —
17363Q — Tube, Air, NO.3
17363-50020 Tube, Air, NO.3
2004-08 → —
2UZFE UCK35,45 —
17376 — Gasket, Air Tube, NO.1
17376-50010 Gasket, Air Tube, NO.1
2004-08 → —
2UZFE UCK35,45 —
17377 — Gasket, Air Tube, NO.2
17377-50010 Gasket, Air Tube, NO.2
2004-08 → —
2UZFE UCK35,45 —
17600C — Pump Assy, Air
17600-0F010 Pump Assy, Air
2004-08 → —
2UZFE UCK35,45 —
17610C — Pump Assy, Air
17610-0C010 Pump Assy, Air
2004-08 → —
2UZFE UCK35,45 —
17618A — Insulator, Air Pump
17618-0F010 Insulator, Air Pump
2004-08 → —
2UZFE UCK35,45 —
25710 — Valve Assy, Air Switching
25710-50020 Valve Assy, Air Switching
2004-08 → —
2UZFE UCK35,45 —
25720C — Valve Assy, Air Switching, NO.1
25720-50010 Valve Assy, Air Switching, NO.1
2004-08 → 2006-11 ended
2UZFE UCK35,45 —
25720-50011 Valve Assy, Air Switching, NO.1
2006-11 → —
2UZFE UCK35,45 —
25720D — Valve Assy, Air Switching, NO.2
25720-50020 Valve Assy, Air Switching, NO.2
2004-08 → —
2UZFE UCK35,45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
