Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

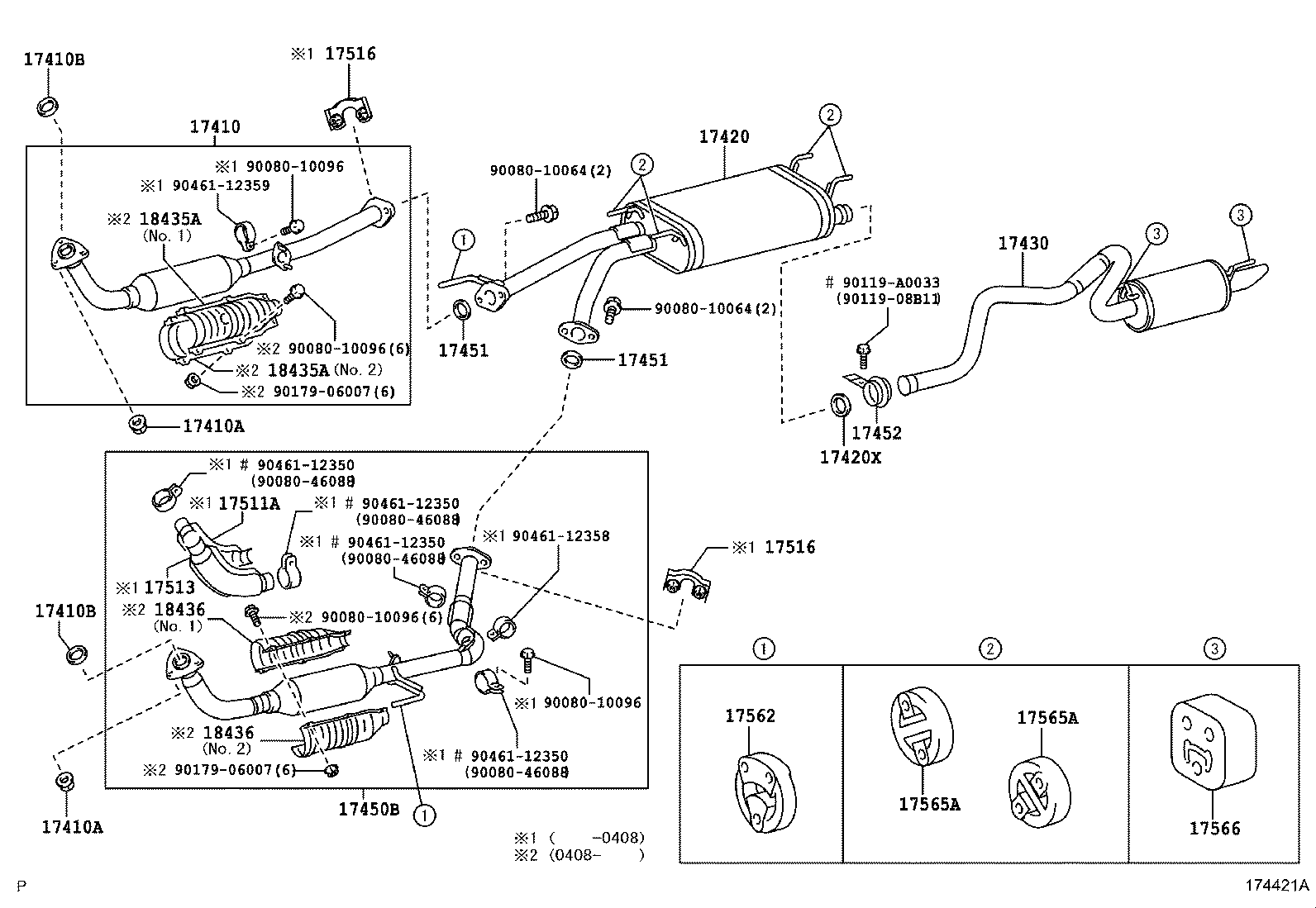

Exploded illustration 174421A 90119A0033 — not listed in this catalogue 9011908B11 — not listed in this catalogue 9046112350 — not listed in this catalogue 9008046088 — not listed in this catalogue 9046112350 — not listed in this catalogue 9008046088 — not listed in this catalogue 9046112350 — not listed in this catalogue 9008046088 — not listed in this catalogue 9046112350 — not listed in this catalogue 9008046088 — not listed in this catalogue 17410B — GASKET, EXHAUST PIPE (3 parts) 17410B — GASKET, EXHAUST PIPE (3 parts) 17450B — PIPE ASSY, EXHAUST, FRONT NO.2 (2 parts) 17410 — PIPE ASSY, EXHAUST, FRONT (2 parts) 17420 — PIPE ASSY, EXHAUST, CENTER (2 parts) 17410A — NUT, EXHAUST PIPE SET STUD BOLT (2 parts) 18435A — PROTECTOR, MONOLITHIC CONVERTER (2 parts) 18436 — PROTECTOR, MONOLITHIC CONVERTER, NO.1 (2 parts) 18435A — PROTECTOR, MONOLITHIC CONVERTER (2 parts) 18436 — PROTECTOR, MONOLITHIC CONVERTER, NO.1 (2 parts) 17410A — NUT, EXHAUST PIPE SET STUD BOLT (2 parts) 17562 — SUPPORT, EXHAUST PIPE, NO.2 (2 parts) 17451 — GASKET, EXHAUST PIPE (3 parts) 17451 — GASKET, EXHAUST PIPE (3 parts) 17516 — RETAINER, EXHAUST PIPE, NO.2 (1 parts) 17516 — RETAINER, EXHAUST PIPE, NO.2 (1 parts) 17430 — PIPE ASSY, EXHAUST, TAIL (2 parts) 17420X — GASKET, EXHAUST PIPE, CENTER (2 parts) 17452 — CLAMP, EXHAUST PIPE (2 parts) 9008010064 — not listed in this catalogue 9008010064 — not listed in this catalogue 9008010096 — not listed in this catalogue 9046112358 — not listed in this catalogue 9046112359 — not listed in this catalogue 9017906007 — not listed in this catalogue 9017906007 — not listed in this catalogue 9008010096 — not listed in this catalogue 9008010096 — not listed in this catalogue 17565A — SUPPORT, EXHAUST PIPE, NO.4 (2 parts) 17566 — BRACKET, TAILPIPE, REAR (2 parts) 17565A — SUPPORT, EXHAUST PIPE, NO.4 (2 parts) 17513 — INSULATOR, EXHAUST PIPE, LOWER NO.1 (1 parts) 17511A — INSULATOR, EXHAUST PIPE, UPPER NO.1 (1 parts) 9008010096 — not listed in this catalogue
174421A · 24 callouts, 20 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
33 parts on this figure
Part number Description Fitment Price
17410 — Pipe Assy, Exhaust, Front
17410-0F020 Pipe Assy, Exhaust, Front
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
17410-0F040 Pipe Assy, Exhaust, Front
2004-08 → —
2UZFE UCK35,45 —
17410A — Nut, Exhaust Pipe Set Stud Bolt
90179-10070 Nut, Exhaust Pipe Set Stud Bolt
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
90179-10070 Nut, Exhaust Pipe Set Stud Bolt
2004-08 → —
2UZFE UCK35,45 —
17410B — Gasket, Exhaust Pipe
90080-43036 Gasket, Exhaust Pipe
2002-08 → 2004-08 ended
2UZFE UCK35,45 —
90917-06065 Gasket, Exhaust Pipe
2000-09 → 2002-08 ended
2UZFE UCK35,45 4HC —
90080-43036 Gasket, Exhaust Pipe
2004-08 → —
2UZFE UCK35,45 —
17420 — Pipe Assy, Exhaust, Center
17403-0F030 Pipe Assy, Exhaust, Center
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
17403-0F030 Pipe Assy, Exhaust, Center
2004-08 → —
2UZFE UCK35,45 —
17420X — Gasket, Exhaust Pipe, Center
90917-06085 Gasket, Exhaust Pipe, Center
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
90917-06085 Gasket, Exhaust Pipe, Center
2004-08 → —
2UZFE UCK35,45 —
17430 — Pipe Assy, Exhaust, Tail
17405-0F030 Pipe Assy, Exhaust, Tail
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
17405-0F030 Pipe Assy, Exhaust, Tail
2004-08 → —
2UZFE UCK35,45 —
17450B — Pipe Assy, Exhaust, Front NO.2
17450-0F030 Pipe Assy, Exhaust, Front NO.2
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
17450-0F060 Pipe Assy, Exhaust, Front NO.2
2004-08 → —
2UZFE UCK35,45 —
17451 — Gasket, Exhaust Pipe
90080-43034 Gasket, Exhaust Pipe
2000-09 → 2002-08 ended
2UZFE UCK35,45 4HC —
90917-06083 Gasket, Exhaust Pipe
2002-08 → 2004-08 ended
2UZFE UCK35,45 —
90917-06083 Gasket, Exhaust Pipe
2004-08 → —
2UZFE UCK35,45 —
17452 — Clamp, Exhaust Pipe
90080-46263 Clamp, Exhaust Pipe
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
90080-46263 Clamp, Exhaust Pipe
2004-08 → —
2UZFE UCK35,45 —
17511A — Insulator, Exhaust Pipe, Upper NO.1
17511-0F010 Insulator, Exhaust Pipe, Upper NO.1
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
17513 — Insulator, Exhaust Pipe, Lower NO.1
17513-0F010 Insulator, Exhaust Pipe, Lower NO.1
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
17516 — Retainer, Exhaust Pipe, NO.2
18495-38020 Retainer, Exhaust Pipe, NO.2
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
17562 — Support, Exhaust Pipe, NO.2
17565-0A100 Support, Exhaust Pipe, NO.2
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
17565-0A100 Support, Exhaust Pipe, NO.2
2004-08 → —
2UZFE UCK35,45 —
17565A — Support, Exhaust Pipe, NO.4
17565-55050 Support, Exhaust Pipe, NO.4
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
17565-55050 Support, Exhaust Pipe, NO.4
2004-08 → —
2UZFE UCK35,45 —
17566 — Bracket, Tailpipe, Rear
17566-50040 Bracket, Tailpipe, Rear
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
17566-50040 Bracket, Tailpipe, Rear
2004-08 → —
2UZFE UCK35,45 —
18435A — Protector, Monolithic Converter
18435-0F040 note Protector, Monolithic Converter
2004-08 → —
2UZFE UCK35,45 —
18445-0F020 note Protector, Monolithic Converter
2004-08 → —
2UZFE UCK35,45 —
18436 — Protector, Monolithic Converter, NO.1
18435-0F040 note Protector, Monolithic Converter, NO.1
2004-08 → —
2UZFE UCK35,45 —
18446-0F010 note Protector, Monolithic Converter, NO.1
2004-08 → —
2UZFE UCK35,45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
