Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

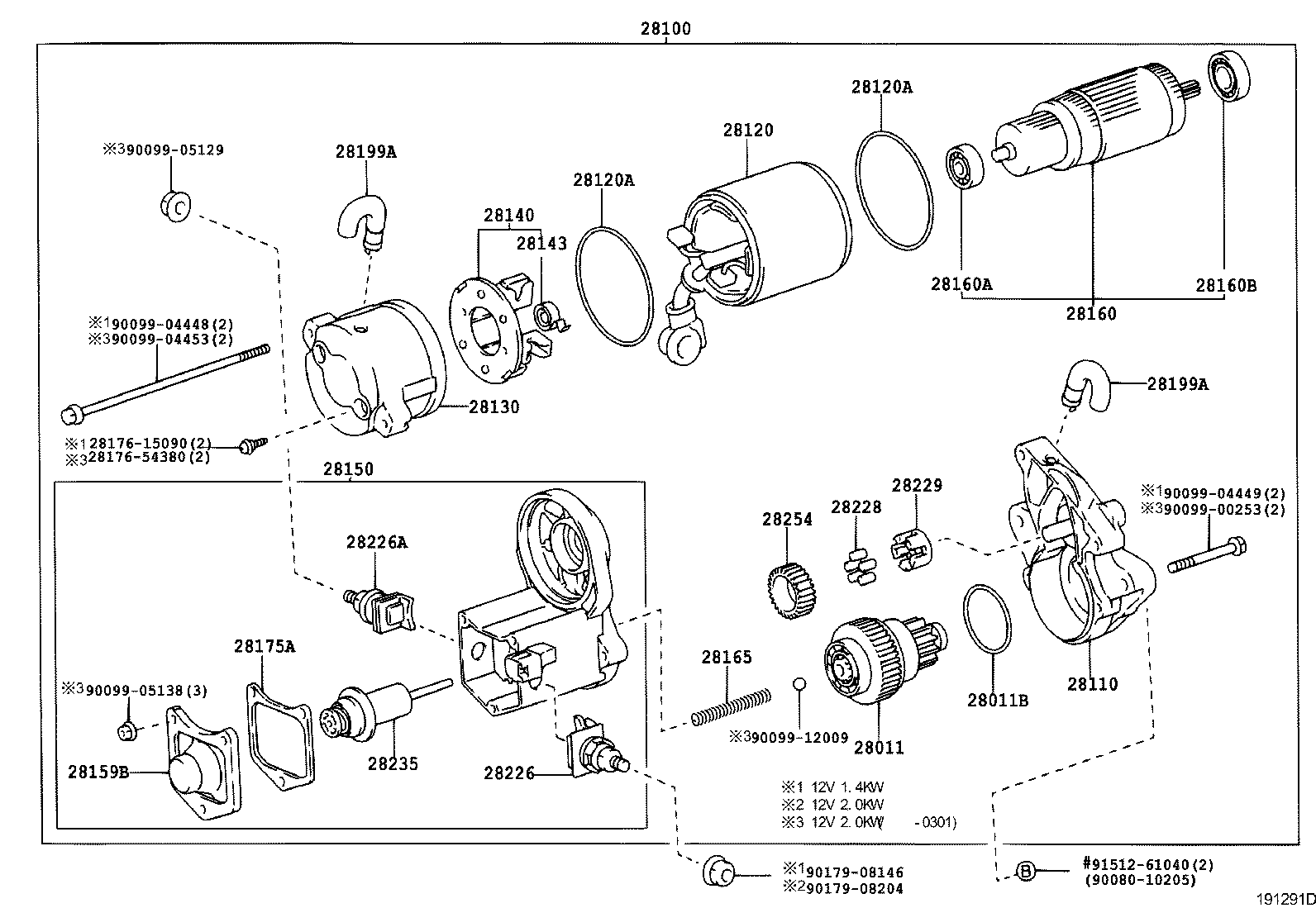

Exploded illustration 191291D 9009905129 — not listed in this catalogue 9009904453 — not listed in this catalogue 28199A — PROTECTOR, DUST STARTER (1 parts) 28140 — HOLDER ASSY, STARTER BRUSH (4 parts) 28143 — SPRING, STARTER BRUSH (2 parts) 28120A — RING, O(FOR STARTER YOKE) (1 parts) 28130 — FRAME ASSY, STARTER COMMUTATOR END (2 parts) 28150 — SWITCH ASSY, MAGNET STARTER (5 parts) 2817654380 — not listed in this catalogue 28120 — YOKE ASSY, STARTER (3 parts) 28160A — BEARING, STARTER ARMATURE (2 parts) 28100 — STARTER ASSY (4 parts) 28120A — RING, O(FOR STARTER YOKE) (1 parts) 28160B — BEARING, STARTER ARMATURE, NO.2 (2 parts) 28160 — ARMATURE ASSY, STARTER (3 parts) 28199A — PROTECTOR, DUST STARTER (1 parts) 9009900253 — not listed in this catalogue 28110 — HOUSING ASSY, STARTER DRIVE (2 parts) 28229 — RETAINER, STARTER IDLE GEAR (1 parts) 28011 — CLUTCH SUB-ASSY, STARTER (5 parts) 9009912009 — not listed in this catalogue 9017908146 — not listed in this catalogue 28165 — SPRING, STARTER MAGNET SWITCH RETURN (1 parts) 28228 — ROLLER, STARTER IDLE GEAR CLUTCH (1 parts) 28254 — PINION, STARTER IDLE GEAR (2 parts) 28226 — STARTER KIT, BATTERY TERMINAL (1 parts) 28235 — PLUNGER, MAGNET SWITCH (1 parts) 28226A — STARTER KIT, MOTOR TERMINAL (1 parts) 28175A — GASKET, MAGNET SWITCH COVER (1 parts) 28159B — COVER, MAGNET SWITCH (1 parts) 9151261040 — not listed in this catalogue 9009905138 — not listed in this catalogue 9009904448 — not listed in this catalogue 2817615090 — not listed in this catalogue 9009904449 — not listed in this catalogue 28011B — RING, O(FOR STARTER CLUTCH) (1 parts) 9008010205 — not listed in this catalogue 9017908204 — not listed in this catalogue
191291D · 25 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
47 parts on this figure
Part number Description Fitment Price
28011 — Clutch Sub-assy, Starter
28011-50050 note Clutch Sub-assy, Starter
2000-09 → 2001-08 ended
2UZFE UCK35,45 —
28011-50060 note Clutch Sub-assy, Starter
2000-09 → 2004-02 ended
2UZFE UCK35,45 —
28011-50060 note Clutch Sub-assy, Starter
2004-03 → 2004-08 ended
2UZFE UCK35,45 —
28011-50060 Clutch Sub-assy, Starter
2004-08 → 2004-10 ended
2UZFE UCK35,45 —
28011-50100 Clutch Sub-assy, Starter
2004-10 → —
2UZFE UCK35,45 —
28011B — Ring, O(FOR STARTER CLUTCH)
96711-24040 Ring, O(FOR STARTER CLUTCH)
2000-09 → 2004-03 ended
2UZFE UCK35,45 —
28100 — Starter Assy
28100-50090 note Starter Assy
2000-09 → 2001-08 ended
2UZFE UCK35,45 —
28100-50100 note Starter Assy
2000-09 → 2004-03 ended
2UZFE UCK35,45 —
28100-50101 note Starter Assy
2004-03 → 2004-08 ended
2UZFE UCK35,45 —
28100-50101 note Starter Assy
2004-08 → —
2UZFE UCK35,45 —
28110 — Housing Assy, Starter Drive
28110-50040 note Housing Assy, Starter Drive
2000-09 → 2001-08 ended
2UZFE UCK35,45 —
28110-50070 note Housing Assy, Starter Drive
2000-09 → 2004-03 ended
2UZFE UCK35,45 —
28120 — Yoke Assy, Starter
28120-50040 note Yoke Assy, Starter
2000-09 → 2001-08 ended
2UZFE UCK35,45 —
28120-50070 note Yoke Assy, Starter
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
28120-50070 Yoke Assy, Starter
2004-08 → —
2UZFE UCK35,45 —
28120A — Ring, O(FOR STARTER YOKE)
90099-14064 Ring, O(FOR STARTER YOKE)
2000-09 → 2004-03 ended
2UZFE UCK35,45 —
28130 — Frame Assy, Starter Commutator End
28130-50040 note Frame Assy, Starter Commutator End
2000-09 → 2001-08 ended
2UZFE UCK35,45 —
28130-50070 note Frame Assy, Starter Commutator End
2000-09 → 2004-03 ended
2UZFE UCK35,45 —
28140 — Holder Assy, Starter Brush
28140-54380 note Holder Assy, Starter Brush
2000-09 → 2004-03 ended
2UZFE UCK35,45 —
28140-54380 note Holder Assy, Starter Brush
2004-03 → 2004-08 ended
2UZFE UCK35,45 —
28140-76070 note Holder Assy, Starter Brush
2000-09 → 2001-08 ended
2UZFE UCK35,45 —
28140-54380 Holder Assy, Starter Brush
2004-08 → —
2UZFE UCK35,45 —
28143 — Spring, Starter Brush
28143-54380 note Spring, Starter Brush
2000-09 → 2004-03 ended
2UZFE UCK35,45 —
90099-17112 note Spring, Starter Brush
2000-09 → 2001-08 ended
2UZFE UCK35,45 —
28150 — Switch Assy, Magnet Starter
28150-50080 note Switch Assy, Magnet Starter
2000-09 → 2001-08 ended
2UZFE UCK35,45 —
28150-50100 note Switch Assy, Magnet Starter
2000-09 → 2004-03 ended
2UZFE UCK35,45 —
28150-50100 note Switch Assy, Magnet Starter
2004-03 → 2004-08 ended
2UZFE UCK35,45 —
28150-50100 Switch Assy, Magnet Starter
2004-08 → 2004-10 ended
2UZFE UCK35,45 —
28150-50110 Switch Assy, Magnet Starter
2004-10 → —
2UZFE UCK35,45 —
28159B — Cover, Magnet Switch
28159-50080 Cover, Magnet Switch
2000-09 → 2004-03 ended
2UZFE UCK35,45 —
28160 — Armature Assy, Starter
28160-74070 note Armature Assy, Starter
2000-09 → 2001-08 ended
2UZFE UCK35,45 —
28160-75120 note Armature Assy, Starter
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
28160-75120 Armature Assy, Starter
2004-08 → —
2UZFE UCK35,45 —
28160A — Bearing, Starter Armature
90099-10196 note Bearing, Starter Armature
2000-09 → 2001-08 ended
2UZFE UCK35,45 —
90099-10197 note Bearing, Starter Armature
2000-09 → 2004-03 ended
2UZFE UCK35,45 —
28160B — Bearing, Starter Armature, NO.2
90099-10197 note Bearing, Starter Armature, NO.2
2000-09 → 2001-08 ended
2UZFE UCK35,45 —
90099-10208 note Bearing, Starter Armature, NO.2
2000-09 → 2004-03 ended
2UZFE UCK35,45 —
28165 — Spring, Starter Magnet Switch Return
28165-76070 Spring, Starter Magnet Switch Return
2000-09 → 2004-03 ended
2UZFE UCK35,45 —
28175A — Gasket, Magnet Switch Cover
28175-50080 Gasket, Magnet Switch Cover
2000-09 → 2004-03 ended
2UZFE UCK35,45 —
28199A — Protector, Dust Starter
28199-50040 Protector, Dust Starter
2000-09 → 2004-03 ended
2UZFE UCK35,45 —
28226 — Starter Kit, Battery Terminal
28226-50070 Starter Kit, Battery Terminal
2000-09 → 2004-03 ended
2UZFE UCK35,45 —
28226A — Starter Kit, Motor Terminal
28226-50080 Starter Kit, Motor Terminal
2000-09 → 2004-03 ended
2UZFE UCK35,45 —
28228 — Roller, Starter Idle Gear Clutch
28228-26040 Roller, Starter Idle Gear Clutch
2000-09 → 2004-03 ended
2UZFE UCK35,45 —
28229 — Retainer, Starter Idle Gear
28229-74070 Retainer, Starter Idle Gear
2000-09 → 2004-03 ended
2UZFE UCK35,45 —
28235 — Plunger, Magnet Switch
28235-54380 Plunger, Magnet Switch
2000-09 → 2004-03 ended
2UZFE UCK35,45 —
28254 — Pinion, Starter Idle Gear
28254-64130 note Pinion, Starter Idle Gear
2000-09 → 2004-03 ended
2UZFE UCK35,45 —
28254-74070 note Pinion, Starter Idle Gear
2000-09 → 2001-08 ended
2UZFE UCK35,45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
