Toyota Sequoia
2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States
Discontinued model
Data version 2008-05

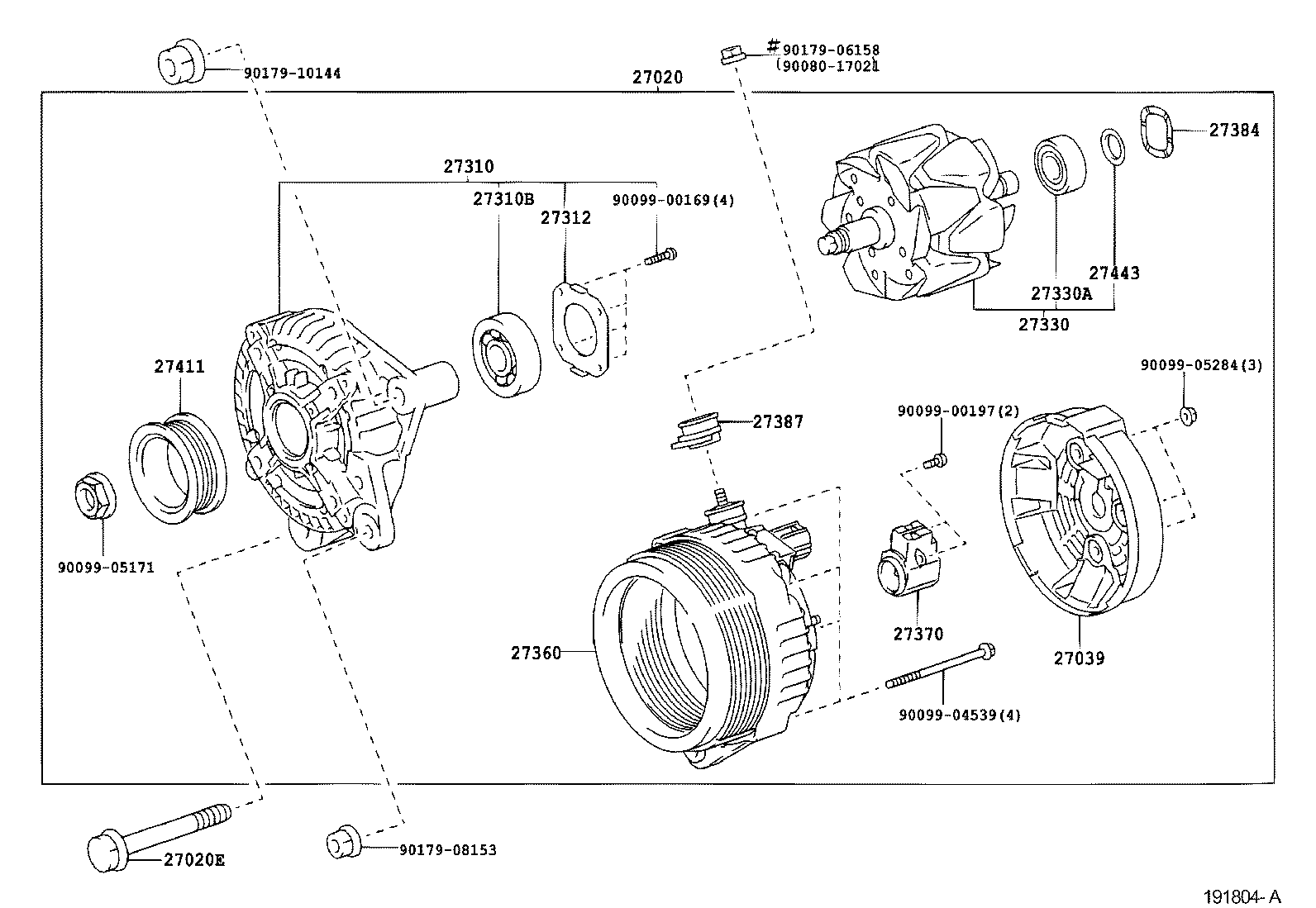

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 27020 — Alternator Assy | ||||
| 27060-0F020 note |
Alternator Assy
2000-09 → 2002-09
ended
|
2UZFE UCK35,45 4HC | — | |
| 27060-0F040 note |
Alternator Assy
2002-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 27060-0F050 note |
Alternator Assy
2002-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 27060-0F040 note |
Alternator Assy
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 27060-0F050 note |
Alternator Assy
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 27020E — Bolt(FOR ALTERNATOR) | ||||
| 90119-10791 |
Bolt(FOR ALTERNATOR)
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 90119-10791 |
Bolt(FOR ALTERNATOR)
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 27039 — Cover, Alternator Rear End | ||||
| 27039-0F020 |
Cover, Alternator Rear End
2000-09 → 2002-09
ended
|
2UZFE UCK35,45 4HC | — | |
| 27039-0F060 |
Cover, Alternator Rear End
2003-07 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 27039-50370 note |
Cover, Alternator Rear End
2002-09 → 2003-07
ended
|
2UZFE UCK35,45 4HC | — | |
| 27039-58460 note |
Cover, Alternator Rear End
2002-09 → 2003-07
ended
|
2UZFE UCK35,45 4HC | — | |
| 27039-0F060 |
Cover, Alternator Rear End
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 27310 — Frame Assy, Drive End, Alternator | ||||
| 27310-0F020 |
Frame Assy, Drive End, Alternator
2000-09 → 2002-09
ended
|
2UZFE UCK35,45 4HC | — | |
| 27310-0F060 |
Frame Assy, Drive End, Alternator
2003-07 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 27310-50310 |
Frame Assy, Drive End, Alternator
2002-09 → 2003-07
ended
|
2UZFE UCK35,45 4HC | — | |
| 27310-0F060 |
Frame Assy, Drive End, Alternator
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 27310B — Bearing(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90068-10142 |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
2003-07 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 90099-10142 |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
2002-09 → 2003-07
ended
|
2UZFE UCK35,45 4HC | — | |
| 90099-10192 |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
2000-09 → 2002-09
ended
|
2UZFE UCK35,45 4HC | — | |
| 90068-10033 |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
2007-05 → 2007-11
ended
|
2UZFE UCK35,45 | — | |
| 90068-10140 note |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
2004-08 → 2006-03
ended
|
2UZFE UCK35,45 | — | |
| 90068-10142 note |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
2004-08 → 2007-05
ended
|
2UZFE UCK35,45 | — | |
| 90068-10142 note |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
2006-03 → 2007-05
ended
|
2UZFE UCK35,45 | — | |
| 27312 — Plate, Retainer | ||||
| 27312-42010 |
Plate, Retainer
2000-09 → 2002-09
ended
|
2UZFE UCK35,45 4HC | — | |
| 27312-72100 |
Plate, Retainer
2002-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 27312-72100 |
Plate, Retainer
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 27330 — Rotor Assy, Alternator | ||||
| 27330-0A100 note |
Rotor Assy, Alternator
2003-07 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 27330-0A110 note |
Rotor Assy, Alternator
2003-07 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 27330-50070 |
Rotor Assy, Alternator
2000-09 → 2002-09
ended
|
2UZFE UCK35,45 4HC | — | |
| 27330-50370 note |
Rotor Assy, Alternator
2002-09 → 2003-07
ended
|
2UZFE UCK35,45 4HC | — | |
| 27330-58460 note |
Rotor Assy, Alternator
2002-09 → 2003-07
ended
|
2UZFE UCK35,45 4HC | — | |
| 27330-0A100 note |
Rotor Assy, Alternator
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 27330-0A110 note |
Rotor Assy, Alternator
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 27330A — Bearing(FOR ALTERNATOR ROTOR) | ||||
| 90068-10222 note |
Bearing(FOR ALTERNATOR ROTOR)
2003-07 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 90099-10140 note |
Bearing(FOR ALTERNATOR ROTOR)
2002-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 90099-10194 |
Bearing(FOR ALTERNATOR ROTOR)
2000-09 → 2002-09
ended
|
2UZFE UCK35,45 4HC | — | |
| 90099-10222 note |
Bearing(FOR ALTERNATOR ROTOR)
2002-09 → 2003-07
ended
|
2UZFE UCK35,45 4HC | — | |
| 90068-10140 note |
Bearing(FOR ALTERNATOR ROTOR)
2005-02 → 2007-11
ended
|
2UZFE UCK35,45 | — | |
| 90068-10222 note |
Bearing(FOR ALTERNATOR ROTOR)
2004-08 → 2005-09
ended
|
2UZFE UCK35,45 | — | |
| 90099-10140 note |
Bearing(FOR ALTERNATOR ROTOR)
2004-08 → 2005-02
ended
|
2UZFE UCK35,45 | — | |
| 27360 — Coil Assy, Alternator | ||||
| 27360-0F040 note |
Coil Assy, Alternator
2003-07 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 27360-50370 note |
Coil Assy, Alternator
2002-09 → 2003-07
ended
|
2UZFE UCK35,45 | — | |
| 27360-0F040 note |
Coil Assy, Alternator
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 27360-0F050 note |
Coil Assy, Alternator
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 27370 — Holder Assy, Alternator Brush | ||||
| 27370-0F060 |
Holder Assy, Alternator Brush
2003-07 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 27370-50370 note |
Holder Assy, Alternator Brush
2002-09 → 2003-07
ended
|
2UZFE UCK35,45 4HC | — | |
| 27370-58460 note |
Holder Assy, Alternator Brush
2002-09 → 2003-07
ended
|
2UZFE UCK35,45 4HC | — | |
| 27370-75060 |
Holder Assy, Alternator Brush
2000-09 → 2002-09
ended
|
2UZFE UCK35,45 4HC | — | |
| 27370-0F060 |
Holder Assy, Alternator Brush
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 27384 — Washer | ||||
| 27384-0A020 |
Washer
2000-09 → 2002-09
ended
|
2UZFE UCK35,45 4HC | — | |
| 27384-0A020 |
Washer
2003-07 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 27384-50030 |
Washer
2002-09 → 2003-07
ended
|
2UZFE UCK35,45 4HC | — | |
| 27384-0A020 |
Washer
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 27387 — Insulator, Terminal | ||||
| 27387-20130 |
Insulator, Terminal
2002-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 27387-42021 |
Insulator, Terminal
2000-09 → 2002-09
ended
|
2UZFE UCK35,45 4HC | — | |
| 27387-20130 |
Insulator, Terminal
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 27411 — Pulley, Alternator | ||||
| 27411-0A050 |
Pulley, Alternator
2000-09 → 2002-09
ended
|
2UZFE UCK35,45 4HC | — | |
| 27411-0A050 note |
Pulley, Alternator
2003-07 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 27411-46080 |
Pulley, Alternator
2002-09 → 2003-07
ended
|
2UZFE UCK35,45 4HC | — | |
| 27411-46080 note |
Pulley, Alternator
2003-07 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 27411-0A050 |
Pulley, Alternator
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 27443 — Cover, Alternator Bearing | ||||
| 27443-0A020 |
Cover, Alternator Bearing
2000-09 → 2002-09
ended
|
2UZFE UCK35,45 4HC | — | |
| 27443-0A020 |
Cover, Alternator Bearing
2003-07 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 27443-63020 |
Cover, Alternator Bearing
2002-09 → 2003-07
ended
|
2UZFE UCK35,45 4HC | — | |
| 27443-0A020 |
Cover, Alternator Bearing
2004-08 → —
|
2UZFE UCK35,45 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
