Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05

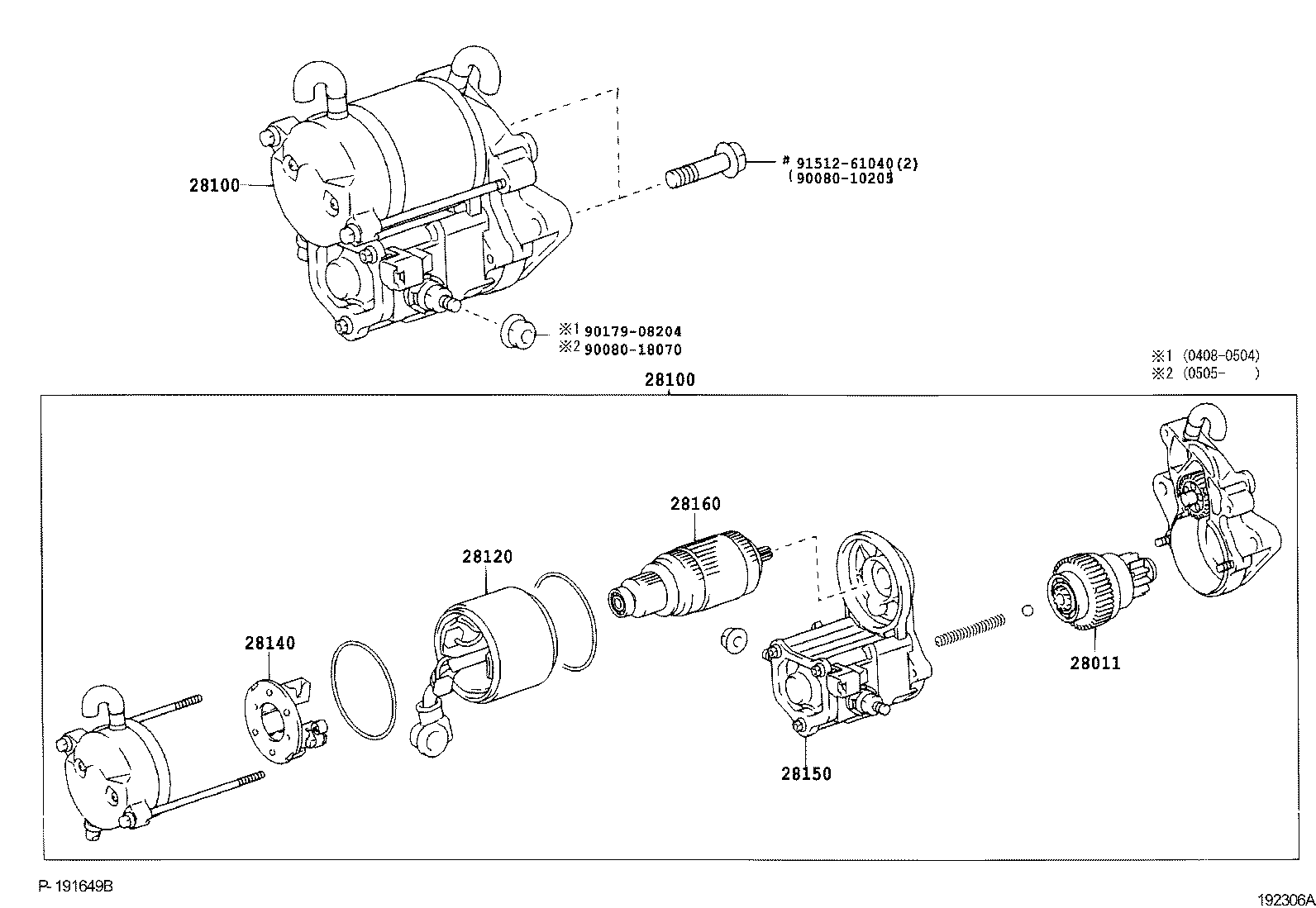

192306A · 7 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
24 parts on this figure
Part number Description Fitment Price
28011 — Clutch Sub-assy, Starter
28011-50050 note Clutch Sub-assy, Starter
2000-09 → 2001-08 ended
2UZFE UCK35,45 —
28011-50060 note Clutch Sub-assy, Starter
2000-09 → 2004-02 ended
2UZFE UCK35,45 —
28011-50060 note Clutch Sub-assy, Starter
2004-03 → 2004-08 ended
2UZFE UCK35,45 —
28011-50060 Clutch Sub-assy, Starter
2004-08 → 2004-10 ended
2UZFE UCK35,45 —
28011-50100 Clutch Sub-assy, Starter
2004-10 → —
2UZFE UCK35,45 —
28100 — Starter Assy
28100-50090 note Starter Assy
2000-09 → 2001-08 ended
2UZFE UCK35,45 —
28100-50100 note Starter Assy
2000-09 → 2004-03 ended
2UZFE UCK35,45 —
28100-50101 note Starter Assy
2004-03 → 2004-08 ended
2UZFE UCK35,45 —
28100-50101 note Starter Assy
2004-08 → —
2UZFE UCK35,45 —
28120 — Yoke Assy, Starter
28120-50040 note Yoke Assy, Starter
2000-09 → 2001-08 ended
2UZFE UCK35,45 —
28120-50070 note Yoke Assy, Starter
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
28120-50070 Yoke Assy, Starter
2004-08 → —
2UZFE UCK35,45 —
28140 — Holder Assy, Starter Brush
28140-54380 note Holder Assy, Starter Brush
2000-09 → 2004-03 ended
2UZFE UCK35,45 —
28140-54380 note Holder Assy, Starter Brush
2004-03 → 2004-08 ended
2UZFE UCK35,45 —
28140-76070 note Holder Assy, Starter Brush
2000-09 → 2001-08 ended
2UZFE UCK35,45 —
28140-54380 Holder Assy, Starter Brush
2004-08 → —
2UZFE UCK35,45 —
28150 — Switch Assy, Magnet Starter
28150-50080 note Switch Assy, Magnet Starter
2000-09 → 2001-08 ended
2UZFE UCK35,45 —
28150-50100 note Switch Assy, Magnet Starter
2000-09 → 2004-03 ended
2UZFE UCK35,45 —
28150-50100 note Switch Assy, Magnet Starter
2004-03 → 2004-08 ended
2UZFE UCK35,45 —
28150-50100 Switch Assy, Magnet Starter
2004-08 → 2004-10 ended
2UZFE UCK35,45 —
28150-50110 Switch Assy, Magnet Starter
2004-10 → —
2UZFE UCK35,45 —
28160 — Armature Assy, Starter
28160-74070 note Armature Assy, Starter
2000-09 → 2001-08 ended
2UZFE UCK35,45 —
28160-75120 note Armature Assy, Starter
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
28160-75120 Armature Assy, Starter
2004-08 → —
2UZFE UCK35,45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
