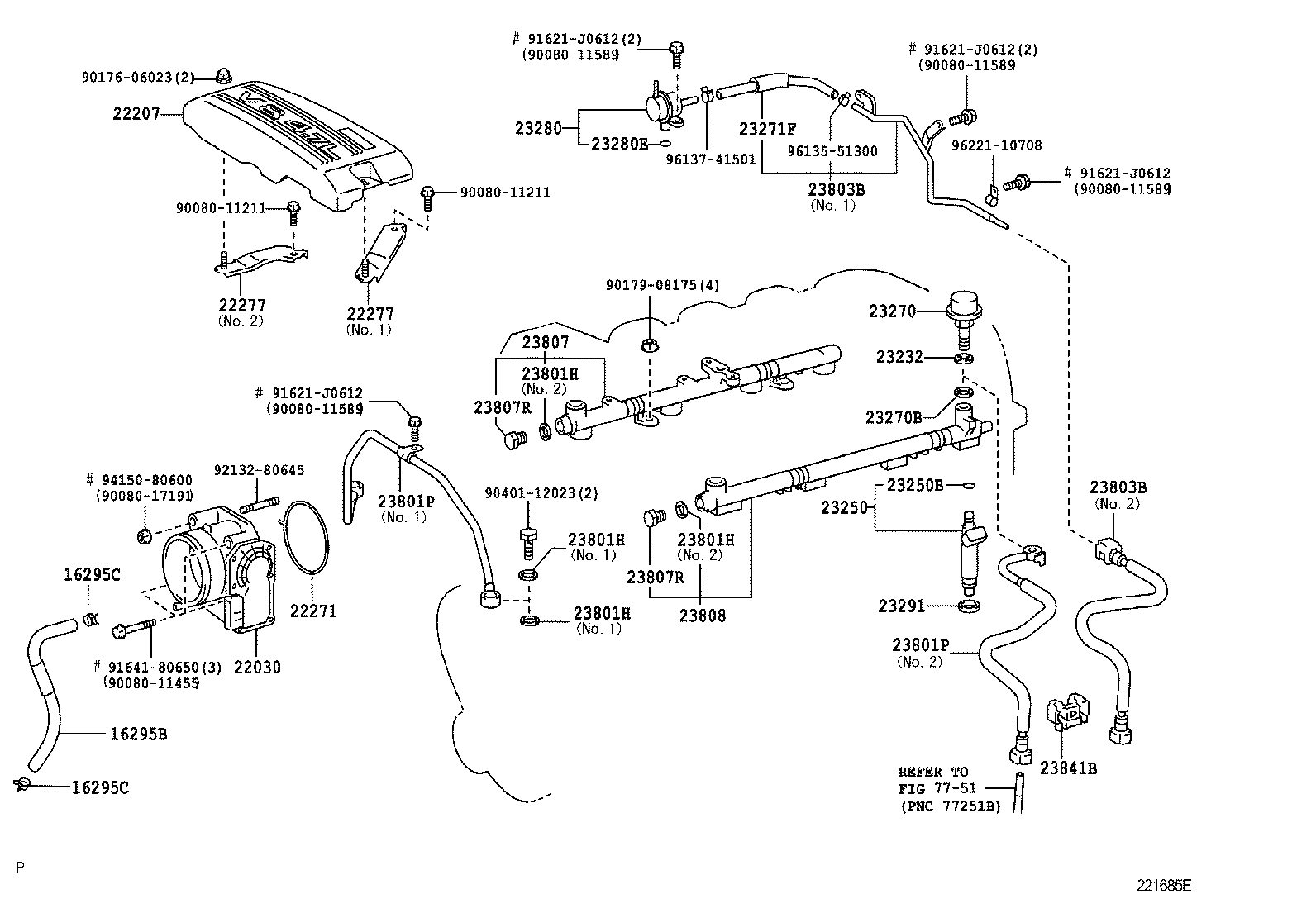

Exploded illustration 221685E 7751 — not listed in this catalogue 91621J0612 — not listed in this catalogue 9008011589 — not listed in this catalogue 91621J0612 — not listed in this catalogue 9008011589 — not listed in this catalogue 9415080600 — not listed in this catalogue 9008017191 — not listed in this catalogue 9164180650 — not listed in this catalogue 9008011455 — not listed in this catalogue 91621J0612 — not listed in this catalogue 9008011589 — not listed in this catalogue 9213280645 — not listed in this catalogue 9008011211 — not listed in this catalogue 9008011211 — not listed in this catalogue 22030 — BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR (4 parts) 16295B — HOSE, WATER BY-PASS, NO.7 (3 parts) 23801P — PIPE SUB-ASSY, FUEL, NO.1 (7 parts) 9017606023 — not listed in this catalogue 22207 — COVER SUB-ASSY, THROTTLE BODY (3 parts) 22271 — GASKET, THROTTLE BODY (3 parts) 22277 — BRACKET, THROTTLE BODY COVER (8 parts) 22277 — BRACKET, THROTTLE BODY COVER (8 parts) 23807 — PIPE SUB-ASSY, FUEL DELIVERY (5 parts) 9017908175 — not listed in this catalogue 91621J0612 — not listed in this catalogue 9008011589 — not listed in this catalogue 23280 — REGULATOR ASSY, FUEL PRESSURE (2 parts) 23803B — PIPE SUB-ASSY, FUEL, NO.3 (4 parts) 9613551300 — not listed in this catalogue 23271F — HOSE, FUEL (3 parts) 9613741501 — not listed in this catalogue 23808 — PIPE SUB-ASSY, FUEL DELIVERY, NO.2 (5 parts) 23801H — GASKET(FOR FUEL PIPE) (4 parts) 23801H — GASKET(FOR FUEL PIPE) (4 parts) 9040112023 — not listed in this catalogue 23801P — PIPE SUB-ASSY, FUEL, NO.1 (7 parts) 23803B — PIPE SUB-ASSY, FUEL, NO.3 (4 parts) 23801H — GASKET(FOR FUEL PIPE) (4 parts) 23801H — GASKET(FOR FUEL PIPE) (4 parts) 23291 — INSULATOR, INJECTOR VIBRATION (2 parts) 23270B — GASKET(FOR PULSATION DAMPER HOSE) (2 parts) 23232 — GASKET(FOR FUEL PUMP HOSE) (2 parts) 23270 — DAMPER ASSY, FUEL PRESSURE PULSATION (2 parts) 23250B — RING, O(FOR FUEL INJECTOR) (3 parts) 23250 — INJECTOR ASSY, FUEL (3 parts) 9622110708 — not listed in this catalogue 23841B — CLAMP, FUEL PIPE, NO.1(FOR EFI) (1 parts) 16295C — CLIP(FOR WATER BY-PASS HOSE NO.7) (4 parts) 16295C — CLIP(FOR WATER BY-PASS HOSE NO.7) (4 parts) 23807R — PLUG, FUEL DELIVARY PIPE (2 parts) 23807R — PLUG, FUEL DELIVARY PIPE (2 parts) 23280E — RING, O(FOR FUEL PRESSURE REGULATOR) (2 parts)
221685E · 30 callouts, 22 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
74 parts on this figure
Part number Description Fitment Price
16295B — Hose, Water By-pass, NO.7
16295-50060 Hose, Water By-pass, NO.7
2000-09 → 2002-08 ended
2UZFE UCK35,45 —
16295-50070 Hose, Water By-pass, NO.7
2002-08 → 2004-08 ended
2UZFE UCK35,45 —
16295-50110 Hose, Water By-pass, NO.7
2004-08 → —
2UZFE UCK35,45 —
16295C — Clip(FOR WATER BY-PASS HOSE NO.7)
90467-20011 Clip(FOR WATER BY-PASS HOSE NO.7)
2000-09 → 2002-08 ended
2UZFE UCK35,45 —
96135-51300 Clip(FOR WATER BY-PASS HOSE NO.7)
2005-05 → —
2UZFE UCK35,45 —
96135-51300 Clip(FOR WATER BY-PASS HOSE NO.7)
2004-08 → 2005-01 ended
2UZFE UCK35,45 —
96137-41501 Clip(FOR WATER BY-PASS HOSE NO.7)
2005-01 → 2005-05 ended
2UZFE UCK35,45 —
22030 — Body Assy, Throttle W/Throttle Position Sensor
22030-50142 Body Assy, Throttle W/Throttle Position Sensor
2000-09 → 2002-08 ended
2UZFE UCK35,45 —
22030-50170 Body Assy, Throttle W/Throttle Position Sensor
2002-08 → 2004-08 ended
2UZFE UCK35,45 —
22030-0F010 note Body Assy, Throttle W/Throttle Position Sensor
2004-08 → —
2UZFE UCK35,45 —
22030-50200 note Body Assy, Throttle W/Throttle Position Sensor
2004-08 → —
2UZFE UCK35,45 —
22207 — Cover Sub-assy, Throttle Body
22266-50030 Cover Sub-assy, Throttle Body
2000-09 → 2002-09 ended
2UZFE UCK35,45 —
22266-50040 Cover Sub-assy, Throttle Body
2002-09 → 2004-08 ended
2UZFE UCK35,45 —
22266-50040 Cover Sub-assy, Throttle Body
2004-08 → —
2UZFE UCK35,45 —
22271 — Gasket, Throttle Body
22271-50042 Gasket, Throttle Body
2000-09 → 2002-08 ended
2UZFE UCK35,45 —
22271-50042 Gasket, Throttle Body
2002-08 → 2004-08 ended
2UZFE UCK35,45 —
22271-50050 Gasket, Throttle Body
2004-08 → —
2UZFE UCK35,45 —
22277 — Bracket, Throttle Body Cover
22277-50010 note Bracket, Throttle Body Cover
2000-09 → 2002-09 ended
2UZFE UCK35,45 —
22277-50020 note Bracket, Throttle Body Cover
2000-09 → 2002-09 ended
2UZFE UCK35,45 —
22277-50040 note Bracket, Throttle Body Cover
2002-09 → 2004-08 ended
2UZFE UCK35,45 —
22277-50050 note Bracket, Throttle Body Cover
2002-09 → 2004-08 ended
2UZFE UCK35,45 —
22277-50030 note Bracket, Throttle Body Cover
2004-08 → 2005-11 ended
2UZFE UCK35,45 —
22277-50031 note Bracket, Throttle Body Cover
2005-11 → —
2UZFE UCK35,45 —
22277-50060 note Bracket, Throttle Body Cover
2004-08 → 2004-11 ended
2UZFE UCK35,45 —
22277-50061 note Bracket, Throttle Body Cover
2004-11 → —
2UZFE UCK35,45 —
23232 — Gasket(FOR FUEL PUMP HOSE)
23232-41081 Gasket(FOR FUEL PUMP HOSE)
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
23232-41081 Gasket(FOR FUEL PUMP HOSE)
2004-08 → —
2UZFE UCK35,45 —
23250 — Injector Assy, Fuel
23209-50040 Injector Assy, Fuel
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
23209-0F020 note Injector Assy, Fuel
2004-08 → —
2UZFE UCK35,45 —
23209-50080 note Injector Assy, Fuel
2004-08 → —
2UZFE UCK35,45 —
23250B — Ring, O(FOR FUEL INJECTOR)
90301-07024 Ring, O(FOR FUEL INJECTOR)
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
90301-07024 Ring, O(FOR FUEL INJECTOR)
2004-08 → 2006-07 ended
2UZFE UCK35,45 —
90301-07037 Ring, O(FOR FUEL INJECTOR)
2006-07 → —
2UZFE UCK35,45 —
23270 — Damper Assy, Fuel Pressure Pulsation
23270-50010 Damper Assy, Fuel Pressure Pulsation
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
23270-50010 Damper Assy, Fuel Pressure Pulsation
2004-08 → —
2UZFE UCK35,45 —
23270B — Gasket(FOR PULSATION DAMPER HOSE)
90430-12026 Gasket(FOR PULSATION DAMPER HOSE)
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
90430-12026 Gasket(FOR PULSATION DAMPER HOSE)
2004-08 → —
2UZFE UCK35,45 —
23271F — Hose, Fuel
23271-50160 Hose, Fuel
2000-09 → 2002-08 ended
2UZFE UCK35,45 —
95337-08009 Hose, Fuel
2002-08 → 2004-08 ended
2UZFE UCK35,45 —
95337-08009 Hose, Fuel
2004-08 → —
2UZFE UCK35,45 —
23280 — Regulator Assy, Fuel Pressure
23280-50050 Regulator Assy, Fuel Pressure
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
23280-50050 Regulator Assy, Fuel Pressure
2004-08 → —
2UZFE UCK35,45 —
23280E — Ring, O(FOR FUEL PRESSURE REGULATOR)
90301-07037 Ring, O(FOR FUEL PRESSURE REGULATOR)
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
90301-07037 Ring, O(FOR FUEL PRESSURE REGULATOR)
2004-08 → 2007-11 ended
2UZFE UCK35,45 —
23291 — Insulator, Injector Vibration
23291-41010 Insulator, Injector Vibration
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
23291-41010 Insulator, Injector Vibration
2004-08 → —
2UZFE UCK35,45 —
23801H — Gasket(FOR FUEL PIPE)
90430-12026 note Gasket(FOR FUEL PIPE)
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
90430-14008 note Gasket(FOR FUEL PIPE)
2003-06 → 2004-08 ended
2UZFE UCK35,45 —
90430-12026 note Gasket(FOR FUEL PIPE)
2004-08 → —
2UZFE UCK35,45 —
90430-14008 note Gasket(FOR FUEL PIPE)
2004-08 → —
2UZFE UCK35,45 —
23801P — Pipe Sub-assy, Fuel, NO.1
23801-50020 note Pipe Sub-assy, Fuel, NO.1
2000-09 → 2002-08 ended
2UZFE UCK35,45 —
23801-50021 note Pipe Sub-assy, Fuel, NO.1
2002-08 → 2004-08 ended
2UZFE UCK35,45 —
23801-50050 note Pipe Sub-assy, Fuel, NO.1
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
23801-0F020 note Pipe Sub-assy, Fuel, NO.1
2004-08 → —
2UZFE UCK35,45 —
23801-50030 note Pipe Sub-assy, Fuel, NO.1
2004-08 → —
2UZFE UCK35,45 —
23801-50070 note Pipe Sub-assy, Fuel, NO.1
2004-08 → 2006-06 ended
2UZFE UCK35,45 —
23801-50071 note Pipe Sub-assy, Fuel, NO.1
2006-06 → —
2UZFE UCK35,45 —
23803B — Pipe Sub-assy, Fuel, NO.3
23803-50100 Pipe Sub-assy, Fuel, NO.3
2000-09 → 2002-08 ended
2UZFE UCK35,45 —
23803-50120 Pipe Sub-assy, Fuel, NO.3
2002-08 → 2004-08 ended
2UZFE UCK35,45 —
23803-0F020 note Pipe Sub-assy, Fuel, NO.3
2004-08 → —
2UZFE UCK35,45 —
23803-50130 note Pipe Sub-assy, Fuel, NO.3
2004-08 → —
2UZFE UCK35,45 —
23807 — Pipe Sub-assy, Fuel Delivery
23807-50050 Pipe Sub-assy, Fuel Delivery
2000-09 → 2002-08 ended
2UZFE UCK35,45 —
23807-50051 Pipe Sub-assy, Fuel Delivery
2002-08 → 2003-06 ended
2UZFE UCK35,45 —
23807-50052 Pipe Sub-assy, Fuel Delivery
2003-06 → 2004-08 ended
2UZFE UCK35,45 —
23807-0F020 note Pipe Sub-assy, Fuel Delivery
2004-08 → —
2UZFE UCK35,45 —
23807-50080 note Pipe Sub-assy, Fuel Delivery
2004-08 → —
2UZFE UCK35,45 —
23807R — Plug, Fuel Delivary Pipe
90341-14032 Plug, Fuel Delivary Pipe
2003-06 → 2004-08 ended
2UZFE UCK35,45 —
90341-14032 Plug, Fuel Delivary Pipe
2004-08 → 2007-11 ended
2UZFE UCK35,45 —
23808 — Pipe Sub-assy, Fuel Delivery, NO.2
23808-50040 Pipe Sub-assy, Fuel Delivery, NO.2
2000-09 → 2002-08 ended
2UZFE UCK35,45 —
23808-50041 Pipe Sub-assy, Fuel Delivery, NO.2
2002-08 → 2003-06 ended
2UZFE UCK35,45 —
23808-50042 Pipe Sub-assy, Fuel Delivery, NO.2
2003-06 → 2004-08 ended
2UZFE UCK35,45 —
23808-0F020 note Pipe Sub-assy, Fuel Delivery, NO.2
2004-08 → —
2UZFE UCK35,45 —
23808-50070 note Pipe Sub-assy, Fuel Delivery, NO.2
2004-08 → —
2UZFE UCK35,45 —
23841B — Clamp, Fuel Pipe, NO.1(FOR EFI)
23841-0F010 Clamp, Fuel Pipe, NO.1(FOR EFI)
2004-08 → —
2UZFE UCK35,45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
