Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

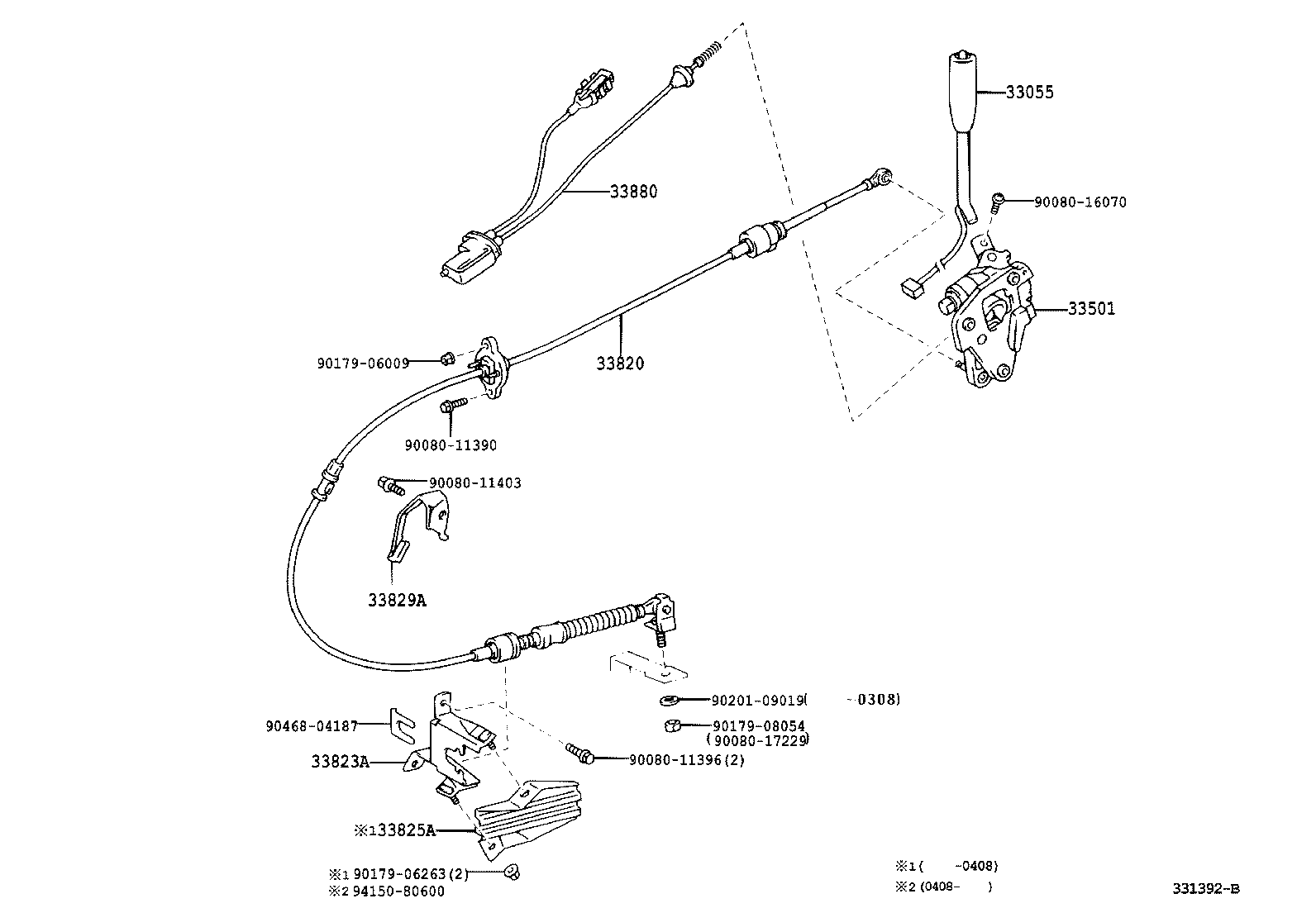

14 parts on this figure

Part number	Description	Fitment	Price
33055 — Lever Sub-assy, Column Shift
33055-0C020	Lever Sub-assy, Column Shift 2000-09 → 2004-08 ended	UCK35,45	—
33055-0C020	Lever Sub-assy, Column Shift 2004-08 → —	UCK35,45	—
33501 — Shaft Sub-assy, Control (FOR COLUMN SHIFT)
33501-0C020	Shaft Sub-assy, Control (FOR COLUMN SHIFT) 2000-09 → 2004-08 ended	UCK35,45	—
33501-0C020	Shaft Sub-assy, Control (FOR COLUMN SHIFT) 2004-08 → —	UCK35,45	—
33820 — Cable Assy, Transmission Control (FOR COLUMN SHIFT)
33820-0C030	Cable Assy, Transmission Control (FOR COLUMN SHIFT) 2000-09 → 2004-08 ended	UCK35,45	—
33820-0C040	Cable Assy, Transmission Control (FOR COLUMN SHIFT) 2004-08 → —	UCK35,45	—
33823A — Bracket, Transmission Control Cable
33823-34020	Bracket, Transmission Control Cable 2000-09 → 2004-08 ended	UCK35,45	—
33823-0C030	Bracket, Transmission Control Cable 2004-08 → —	UCK35,45	—
33825A — Insulator, Transmission Control Cable
33825-34010	Insulator, Transmission Control Cable 2000-09 → 2004-08 ended	UCK35,45	—
33829A — Support, Transmission Control Cable
33829-0C020	Support, Transmission Control Cable 2003-09 → 2004-08 ended	UCK35,45	—
33829-34020	Support, Transmission Control Cable 2000-09 → 2003-09 ended	UCK35,45 4HC	—
33829-0C020	Support, Transmission Control Cable 2004-08 → —	UCK35,45	—
33880 — Cable Assy, Parking Lock (FOR COLUMN SHIFT)
33880-0C020	Cable Assy, Parking Lock (FOR COLUMN SHIFT) 2000-09 → 2004-08 ended	UCK35,45	—
33880-0C020	Cable Assy, Parking Lock (FOR COLUMN SHIFT) 2004-08 → —	UCK35,45	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
