Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

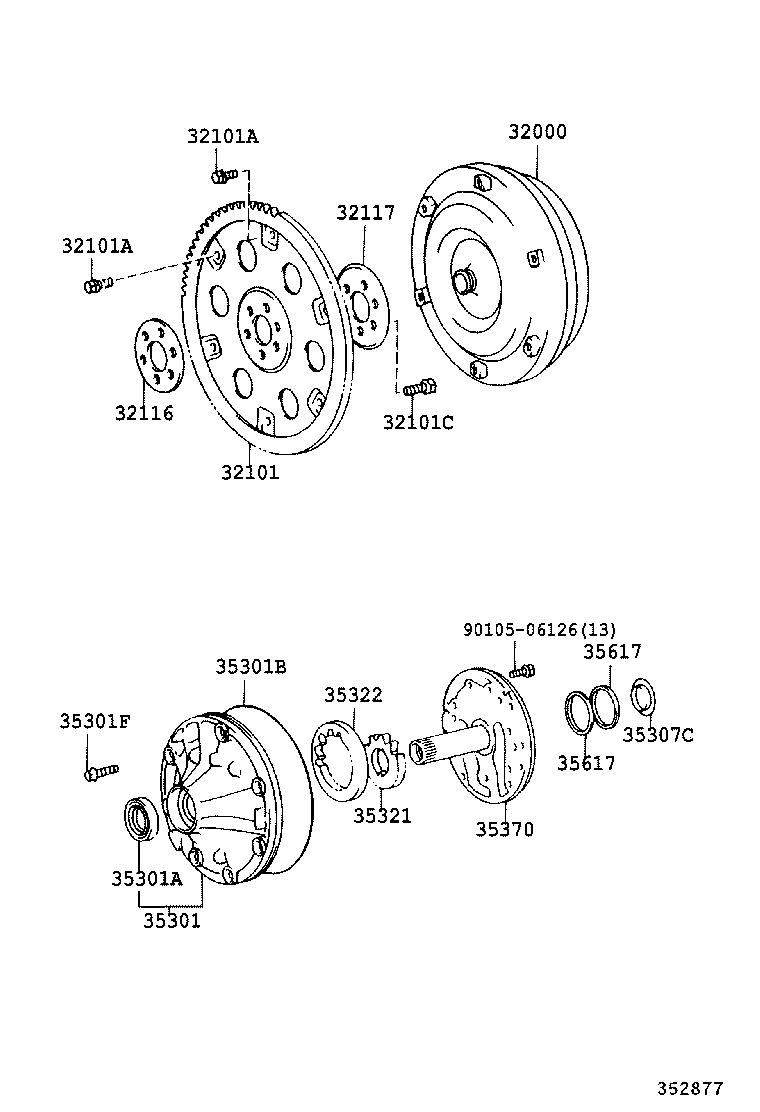

64 parts on this figure

Part number	Description	Fitment	Price
32000 — Converter Assy, Torque
32000-34010	Converter Assy, Torque 2002-09 → 2004-08 ended	UCK35,45	—
32000-60120	Converter Assy, Torque 2000-09 → 2002-09 ended	UCK35,45	—
32000-0C010	Converter Assy, Torque 2004-08 → —	UCK35,45	—
32101 — Gear Sub-assy, Drive Plate & Ring
32101-0C010 note	Gear Sub-assy, Drive Plate & Ring 2003-10 → 2004-08 ended	UCK35,45	—
32101-50010	Gear Sub-assy, Drive Plate & Ring 2000-09 → 2003-10 ended	UCK35,45 4HC	—
32101-50010 note	Gear Sub-assy, Drive Plate & Ring 2003-10 → 2004-08 ended	UCK35,45	—
32101-0C010 note	Gear Sub-assy, Drive Plate & Ring 2004-08 → —	UCK35,45	—
32101-50010 note	Gear Sub-assy, Drive Plate & Ring 2004-08 → —	UCK35,45	—
32101A — Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90080-11738 note	Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) 2002-09 → 2004-08 ended	UCK35,45	—
90080-11739 note	Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) 2002-12 → 2004-08 ended	UCK35,45	—
90119-09026 note	Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) 2000-09 → 2002-09 ended	UCK35,45 4HC	—
90119-09027 note	Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) 2000-09 → 2002-12 ended	UCK35,45 4HC	—
90080-11738 note	Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) 2004-08 → —	UCK35,45	—
90080-11739 note	Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) 2004-08 → —	UCK35,45	—
32101C — Bolt, Hexagon(FOR DRIVE PLATE SETTING)
90910-02129 note	Bolt, Hexagon(FOR DRIVE PLATE SETTING) 2000-09 → 2003-02 ended	UCK35,45 4HC	—
90910-02129 note	Bolt, Hexagon(FOR DRIVE PLATE SETTING) 2003-10 → 2004-08 ended	UCK35,45	—
90910-A2002 note	Bolt, Hexagon(FOR DRIVE PLATE SETTING) 2003-02 → 2004-08 ended	UCK35,45	—
90910-02129 note	Bolt, Hexagon(FOR DRIVE PLATE SETTING) 2004-08 → —	UCK35,45	—
90910-A2002 note	Bolt, Hexagon(FOR DRIVE PLATE SETTING) 2004-08 → —	UCK35,45	—
32116 — Spacer, Drive Plate, Front
32116-50010	Spacer, Drive Plate, Front 2000-09 → 2004-08 ended	UCK35,45	—
32116-50010	Spacer, Drive Plate, Front 2004-08 → —	UCK35,45	—
32117 — Spacer, Drive Plate, Rear
32117-50010	Spacer, Drive Plate, Rear 2000-09 → 2004-08 ended	UCK35,45	—
32117-50010	Spacer, Drive Plate, Rear 2004-08 → —	UCK35,45	—
35301 — Body Sub-assy, Front Oil Pump
35301-35010	Body Sub-assy, Front Oil Pump 2000-09 → 2004-08 ended	UCK35,45	—
35301-0C010	Body Sub-assy, Front Oil Pump 2004-08 → —	UCK35,45	—
35301A — Seal, Oil (FOR FRONT OIL PUMP)
90311-38029	Seal, Oil (FOR FRONT OIL PUMP) 2000-09 → 2002-10 ended	UCK35,45	—
90311-38087	Seal, Oil (FOR FRONT OIL PUMP) 2002-10 → 2004-08 ended	UCK35,45	—
90311-38083	Seal, Oil (FOR FRONT OIL PUMP) 2004-08 → —	UCK35,45	—
35301B — Ring, O (FOR FRONT OIL PUMP BODY)
90301-99033	Ring, O (FOR FRONT OIL PUMP BODY) 2000-09 → 2004-08 ended	UCK35,45	—
90301-99139 note	Ring, O (FOR FRONT OIL PUMP BODY) 2004-08 → —	UCK35,45	—
90301-99148 note	Ring, O (FOR FRONT OIL PUMP BODY) 2004-08 → —	UCK35,45	—
35301F — Bolt (FOR FRONT OIL PUMP SETTING)
90105-08091 note	Bolt (FOR FRONT OIL PUMP SETTING) 2000-09 → 2004-08 ended	UCK35,45	—
90105-08451 note	Bolt (FOR FRONT OIL PUMP SETTING) 2006-11 → —	UCK35,45	—
91511-K0840 note	Bolt (FOR FRONT OIL PUMP SETTING) 2004-08 → 2006-11 ended	UCK35,45	—
35307C — Race, Thrust Bearing (FOR STATOR SHAFT)
35789-30340 note	Race, Thrust Bearing (FOR STATOR SHAFT) 2000-09 → 2004-08 ended	UCK35,45	—
35321 — Gear, Front Oil Pump Drive
35321-12020 note	Gear, Front Oil Pump Drive 2000-09 → 2004-08 ended	UCK35,45	—
35321-12030 note	Gear, Front Oil Pump Drive 2000-09 → 2004-08 ended	UCK35,45	—
35321-12040 note	Gear, Front Oil Pump Drive 2000-09 → 2004-08 ended	UCK35,45	—
35321-12050 note	Gear, Front Oil Pump Drive 2000-09 → 2004-08 ended	UCK35,45	—
35321-12060 note	Gear, Front Oil Pump Drive 2000-09 → 2004-08 ended	UCK35,45	—
35321-0C010 note	Gear, Front Oil Pump Drive 2004-08 → —	UCK35,45	—
35321-0C020 note	Gear, Front Oil Pump Drive 2004-08 → —	UCK35,45	—
35321-0C030 note	Gear, Front Oil Pump Drive 2004-08 → —	UCK35,45	—
35321-0C040 note	Gear, Front Oil Pump Drive 2004-08 → —	UCK35,45	—
35321-0C050 note	Gear, Front Oil Pump Drive 2004-08 → —	UCK35,45	—
35321-0C060 note	Gear, Front Oil Pump Drive 2004-08 → —	UCK35,45	—
35321-0C070 note	Gear, Front Oil Pump Drive 2004-08 → —	UCK35,45	—
35322 — Gear, Front Oil Pump Driven
35322-12010 note	Gear, Front Oil Pump Driven 2000-09 → 2004-08 ended	UCK35,45	—
35322-12020 note	Gear, Front Oil Pump Driven 2000-09 → 2004-08 ended	UCK35,45	—
35322-12030 note	Gear, Front Oil Pump Driven 2000-09 → 2004-08 ended	UCK35,45	—
35322-12040 note	Gear, Front Oil Pump Driven 2000-09 → 2004-08 ended	UCK35,45	—
35322-12050 note	Gear, Front Oil Pump Driven 2000-09 → 2004-08 ended	UCK35,45	—
35322-0C010 note	Gear, Front Oil Pump Driven 2004-08 → —	UCK35,45	—
35322-0C020 note	Gear, Front Oil Pump Driven 2004-08 → —	UCK35,45	—
35322-0C030 note	Gear, Front Oil Pump Driven 2004-08 → —	UCK35,45	—
35322-0C040 note	Gear, Front Oil Pump Driven 2004-08 → —	UCK35,45	—
35322-0C050 note	Gear, Front Oil Pump Driven 2004-08 → —	UCK35,45	—
35322-0C060 note	Gear, Front Oil Pump Driven 2004-08 → —	UCK35,45	—
35322-0C070 note	Gear, Front Oil Pump Driven 2004-08 → —	UCK35,45	—
35370 — Shaft Assy, Stator
35370-50010	Shaft Assy, Stator 2000-09 → 2004-08 ended	UCK35,45	—
35370-0C010	Shaft Assy, Stator 2004-08 → —	UCK35,45	—
35617 — Ring, Clutch Drum Oil Seal
35617-30020	Ring, Clutch Drum Oil Seal 2000-09 → 2004-08 ended	UCK35,45	—
35617-50030	Ring, Clutch Drum Oil Seal 2007-08 → —	UCK35,45	—
35617-60020	Ring, Clutch Drum Oil Seal 2004-08 → 2007-07 ended	UCK35,45	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
