Toyota Sequoia
2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States
Discontinued model
Data version 2008-05

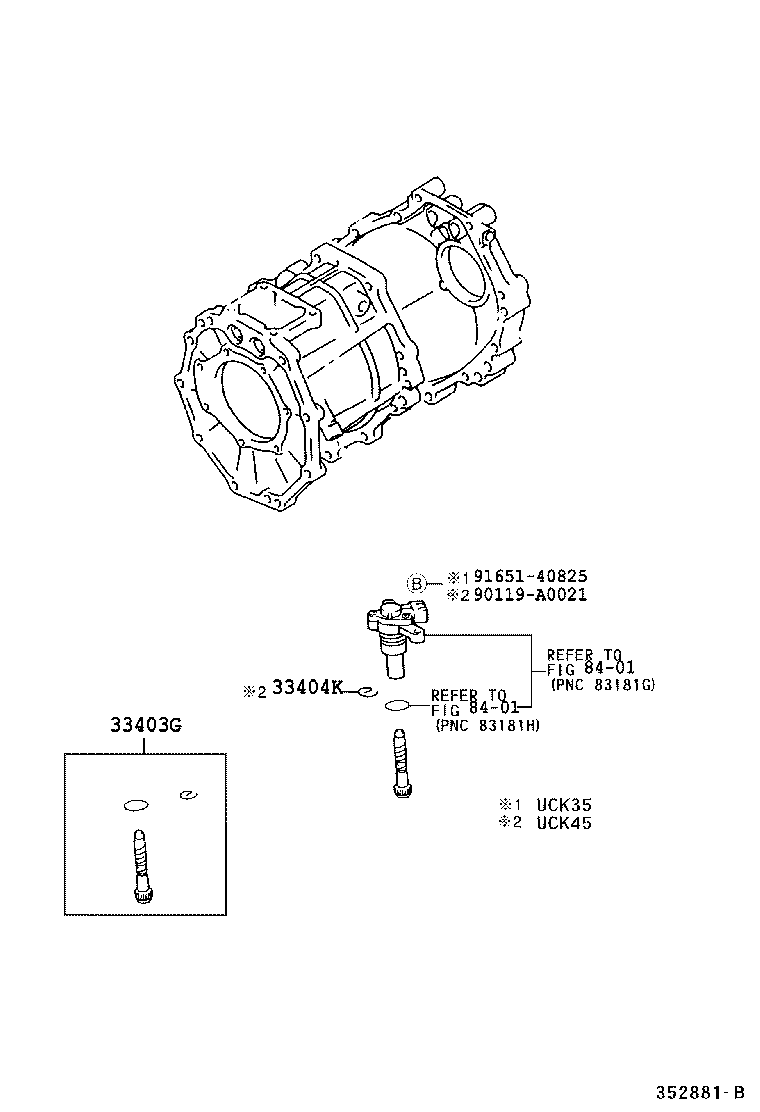

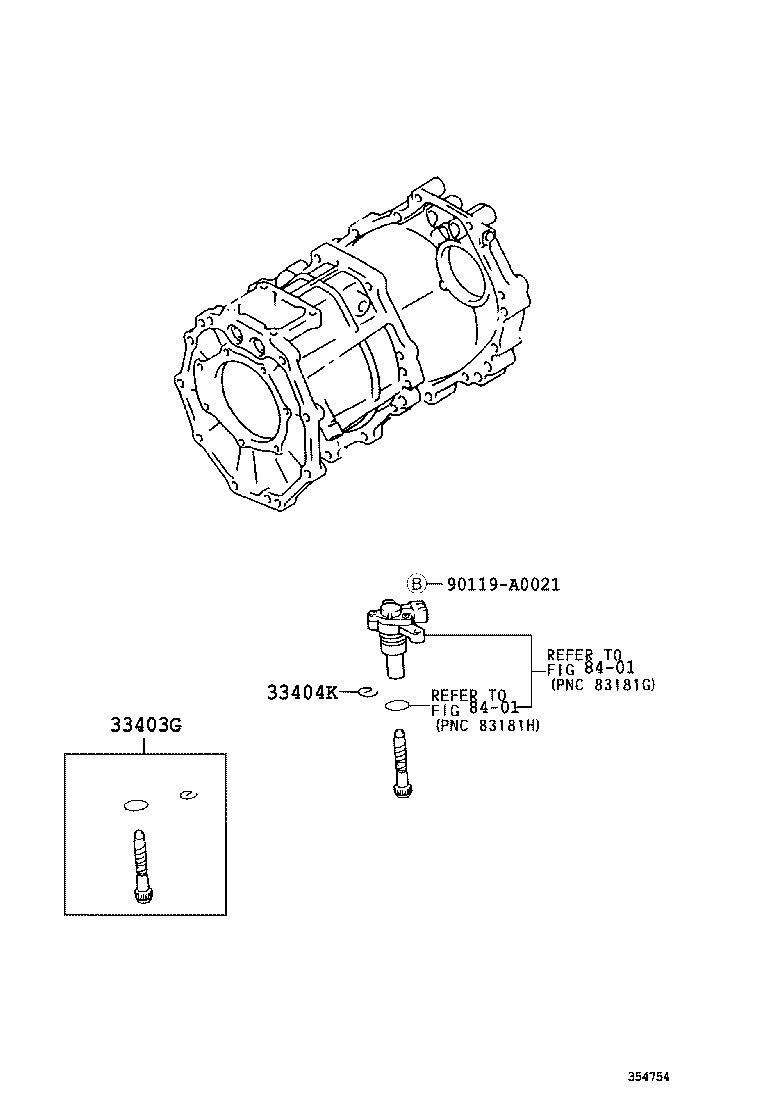

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 33403G — Gear Sub-assy, Speedometer Driven (ATM) | ||||
| 33403-39365 note |
Gear Sub-assy, Speedometer Driven (ATM)
2000-09 → 2004-08
ended
|
UCK45 | — | |
| 33482-59015 note |
Gear Sub-assy, Speedometer Driven (ATM)
2000-09 → 2004-08
ended
|
UCK35 | — | |
| 33403-39365 note |
Gear Sub-assy, Speedometer Driven (ATM)
2004-08 → —
|
UCK45 | — | |
| 33482-39865 note |
Gear Sub-assy, Speedometer Driven (ATM)
2004-08 → —
|
UCK35 | — | |
| 33404K — Clip (FOR ATM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90468-12005 |
Clip (FOR ATM SPEEDOMETER SHAFT SLEEVE)
2000-09 → 2004-08
ended
|
UCK45 | — | |
| 90468-12005 |
Clip (FOR ATM SPEEDOMETER SHAFT SLEEVE)
2004-08 → —
|
UCK45 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
