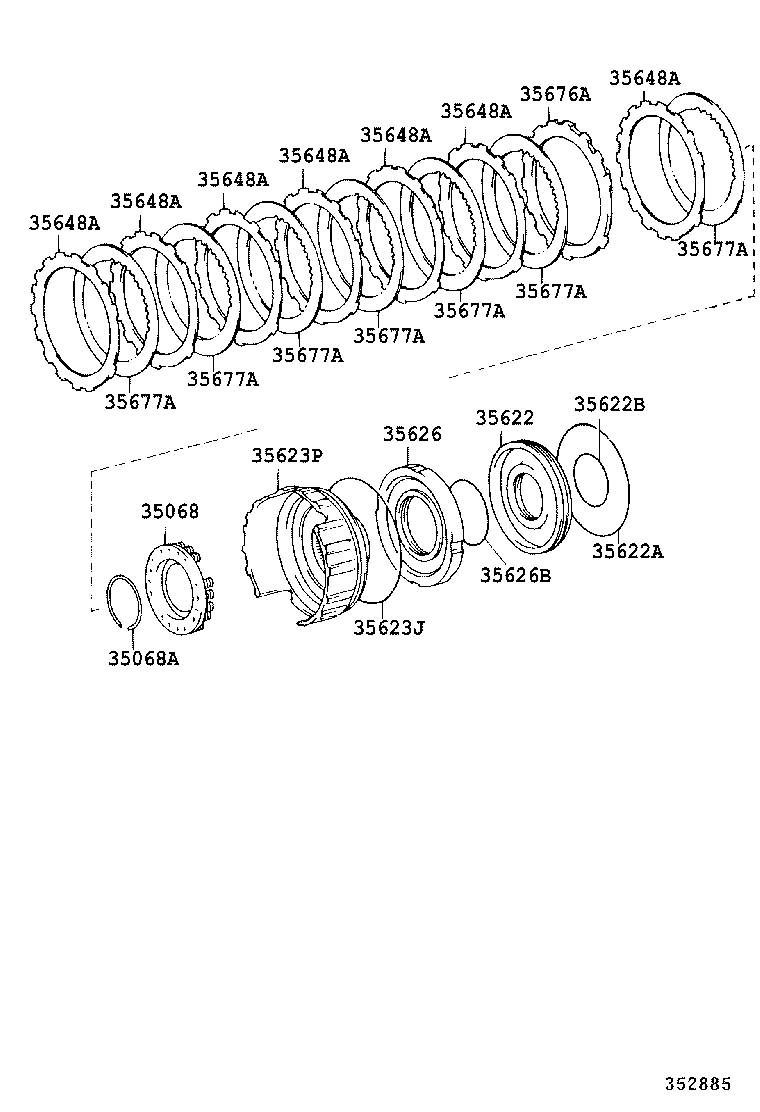

Toyota Sequoia
2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States
Discontinued model
Data version 2008-05
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 35068 — Spring Sub-assy, 1ST & Reverse Brake Return | ||||
| 35068-50010 |
Spring Sub-assy, 1ST & Reverse Brake Return
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 35068-0C010 |
Spring Sub-assy, 1ST & Reverse Brake Return
2004-08 → —
|
UCK35,45 | — | |
| 35068A — Ring, Shaft Snap (FOR 1ST & REVERSE BRAKE RETURN SPRING) | ||||
| 90520-52262 |
Ring, Shaft Snap (FOR 1ST & REVERSE BRAKE RETURN SPRING)
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 90520-61001 |
Ring, Shaft Snap (FOR 1ST & REVERSE BRAKE RETURN SPRING)
2004-08 → —
|
UCK35,45 | — | |
| 35622 — Piston, Brake, NO.2 | ||||
| 35622-30010 |
Piston, Brake, NO.2
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 35622A — Ring (FOR BRAKE PISTON OUTER) | ||||
| 90301-99084 |
Ring (FOR BRAKE PISTON OUTER)
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 35622B — Ring (FOR BRAKE PISTON INNER) | ||||
| 90301-56007 |
Ring (FOR BRAKE PISTON INNER)
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 35623J — Ring, O (FOR 1ST & REVERSE BRAKE) | ||||
| 90301-99192 |
Ring, O (FOR 1ST & REVERSE BRAKE)
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 90301-99087 |
Ring, O (FOR 1ST & REVERSE BRAKE)
2004-08 → —
|
UCK35,45 | — | |
| 35623P — Piston, 1ST & Reverse Brake, NO.2 | ||||
| 35623-14011 |
Piston, 1ST & Reverse Brake, NO.2
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 35626 — Sleeve, Brake Reaction | ||||
| 35626-30020 |
Sleeve, Brake Reaction
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 35626-60010 |
Sleeve, Brake Reaction
2004-08 → —
|
UCK35,45 | — | |
| 35626B — Ring (FOR BRAKE REACTION SLEEVE INNER) | ||||
| 90301-67005 |
Ring (FOR BRAKE REACTION SLEEVE INNER)
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 90301-79003 |
Ring (FOR BRAKE REACTION SLEEVE INNER)
2004-08 → —
|
UCK35,45 | — | |
| 35648A — Plate, Clutch (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
Plate, Clutch (FOR 1ST & REVERSE BRAKE)
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 35676A — Flange, Brake (FOR 1ST & REVERSE BRAKE) | ||||
| 35676-30100 note |
Flange, Brake (FOR 1ST & REVERSE BRAKE)
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 35676-30110 note |
Flange, Brake (FOR 1ST & REVERSE BRAKE)
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 35676-50010 note |
Flange, Brake (FOR 1ST & REVERSE BRAKE)
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 35676-50020 note |
Flange, Brake (FOR 1ST & REVERSE BRAKE)
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 35676-50030 note |
Flange, Brake (FOR 1ST & REVERSE BRAKE)
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 35676-50040 note |
Flange, Brake (FOR 1ST & REVERSE BRAKE)
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 35676-50050 note |
Flange, Brake (FOR 1ST & REVERSE BRAKE)
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 35676-50060 note |
Flange, Brake (FOR 1ST & REVERSE BRAKE)
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 35677A — Disc, Clutch (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30180 |
Disc, Clutch (FOR 1ST & REVERSE BRAKE)
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
