Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

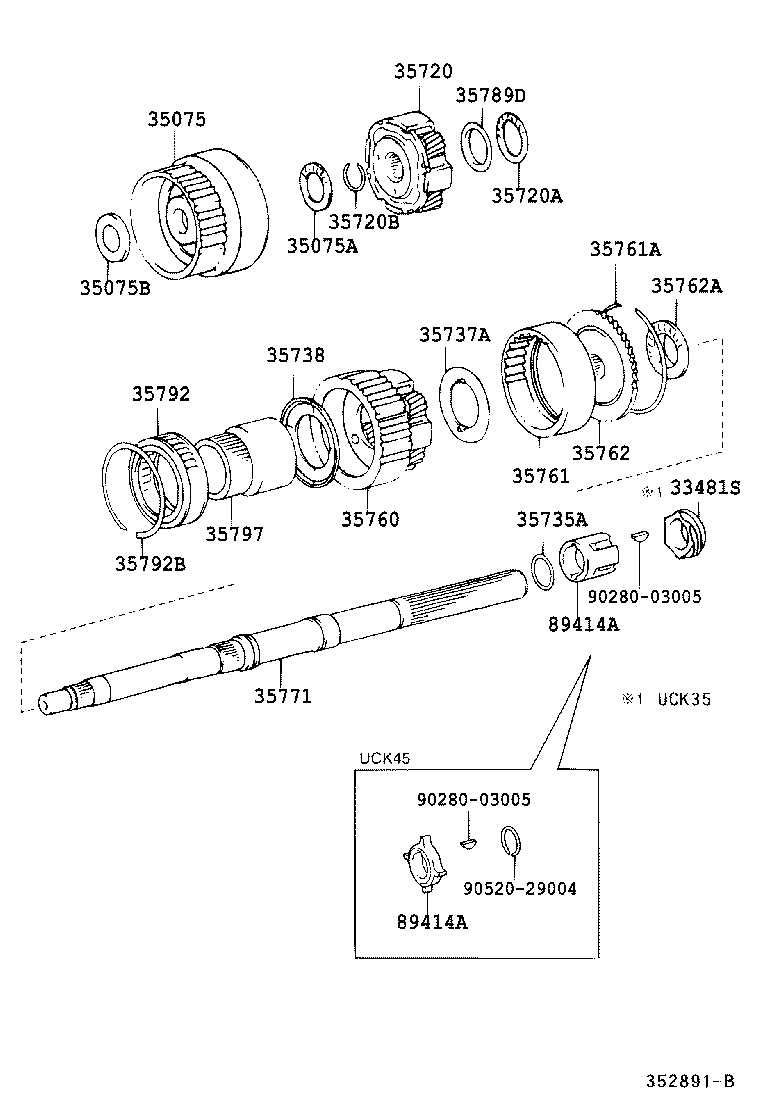

Exploded illustration 352891B 35075 — GEAR SUB-ASSY, FRONT PLANETARY RING (1 parts) 35075B — RACE, THRUST BEARING (FOR FRONT PLANETARY RING GEAR FRONT) (1 parts) 35792 — CLUTCH, 1 WAY, NO.2 (1 parts) 35792B — RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2) (1 parts) 35797 — RACE, 1 WAY CLUTCH INNER (1 parts) 35771 — SHAFT, OUTPUT (2 parts) 9028003005 — not listed in this catalogue 89414A — ROTOR, SENSOR (3 parts) 35760 — GEAR ASSY, REAR PLANETARY (5 parts) 9028003005 — not listed in this catalogue 35735A — RING, PLANETARY OUTPUT SHAFT OIL SEAL (1 parts) 35761 — GEAR, REAR PLANETARY RING (2 parts) 33481S — GEAR, SPEEDOMETER DRIVE (ATM) (2 parts) 35762 — FLANGE, REAR PLANETARY RING GEAR (1 parts) 35762A — BEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANGE) (2 parts) 35761A — RING, HOLE SNAP (FOR REAR PLANETARY RING GEAR) (2 parts) 35720A — BEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR) (1 parts) 35720B — RING, SHAFT SNAP (FOR FRONT PLANETARY GEAR) (1 parts) 35075A — BEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY RING) (1 parts) 35738 — WASHER, PLANETARY CARRIER THRUST, NO.2 (2 parts) 35737A — WASHER, PLANETARY CARRIER THRUST, NO.1 (2 parts) 35789D — RACE, THRUST BEARING (FOR FRONT PLANETARY GEAR REAR) (1 parts) 35720 — GEAR ASSY, FRONT PLANETARY (3 parts) 9052029004 — not listed in this catalogue 89414A — ROTOR, SENSOR (3 parts)
352891B · 22 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
36 parts on this figure
Part number Description Fitment Price
33481S — Gear, Speedometer Drive (ATM)
33481-24010 note Gear, Speedometer Drive (ATM)
2000-09 → 2003-06 ended
UCK35 —
33481-34010 note Gear, Speedometer Drive (ATM)
2003-06 → 2004-08 ended
UCK35 —
35075 — Gear Sub-assy, Front Planetary Ring
35075-60010 Gear Sub-assy, Front Planetary Ring
2000-09 → 2004-08 ended
UCK35,45 —
35075A — Bearing, Thrust Needle Roller (FOR FRONT PLANETARY RING)
90374-49004 Bearing, Thrust Needle Roller (FOR FRONT PLANETARY RING)
2000-09 → 2004-08 ended
UCK35,45 —
35075B — Race, Thrust Bearing (FOR FRONT PLANETARY RING GEAR FRONT)
35789-30210 Race, Thrust Bearing (FOR FRONT PLANETARY RING GEAR FRONT)
2000-09 → 2004-08 ended
UCK35,45 —
35720 — Gear Assy, Front Planetary
35720-30100 Gear Assy, Front Planetary
2000-09 → 2004-08 ended
UCK35,45 —
35720-60070 Gear Assy, Front Planetary
2004-08 → 2007-08 ended
UCK35,45 —
35720-60070 Gear Assy, Front Planetary
2007-08 → —
UCK35,45 —
35720A — Bearing, Thrust Needle Roller (FOR FRONT PLANETARY GEAR)
90374-35005 Bearing, Thrust Needle Roller (FOR FRONT PLANETARY GEAR)
2000-09 → 2004-08 ended
UCK35,45 —
35720B — Ring, Shaft Snap (FOR FRONT PLANETARY GEAR)
90520-24026 Ring, Shaft Snap (FOR FRONT PLANETARY GEAR)
2000-09 → 2004-08 ended
UCK35,45 —
35735A — Ring, Planetary Output Shaft Oil Seal
35735-30020 Ring, Planetary Output Shaft Oil Seal
2000-09 → 2004-08 ended
UCK35,45 —
35737A — Washer, Planetary Carrier Thrust, NO.1
35737-60020 Washer, Planetary Carrier Thrust, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
35737-60030 Washer, Planetary Carrier Thrust, NO.1
2004-08 → —
UCK35,45 —
35738 — Washer, Planetary Carrier Thrust, NO.2
35739-60010 Washer, Planetary Carrier Thrust, NO.2
2000-09 → 2004-08 ended
UCK35,45 —
35738-60030 Washer, Planetary Carrier Thrust, NO.2
2004-08 → —
UCK35,45 —
35760 — Gear Assy, Rear Planetary
35705-60010 Gear Assy, Rear Planetary
2000-09 → 2004-08 ended
UCK35,45 —
35760-0C010 Gear Assy, Rear Planetary
2004-08 → 2006-04 ended
UCK45 —
35760-0C011 Gear Assy, Rear Planetary
2006-05 → —
UCK45 —
35760-0C020 Gear Assy, Rear Planetary
2004-08 → 2006-04 ended
UCK35 —
35760-0C021 Gear Assy, Rear Planetary
2006-05 → —
UCK35 —
35761 — Gear, Rear Planetary Ring
35761-30020 Gear, Rear Planetary Ring
2000-09 → 2004-08 ended
UCK35,45 —
35761-0C010 Gear, Rear Planetary Ring
2004-08 → —
UCK35,45 —
35761A — Ring, Hole Snap (FOR REAR PLANETARY RING GEAR)
90521-99024 Ring, Hole Snap (FOR REAR PLANETARY RING GEAR)
2000-09 → 2004-08 ended
UCK35,45 —
90520-99073 Ring, Hole Snap (FOR REAR PLANETARY RING GEAR)
2004-08 → —
UCK35,45 —
35762 — Flange, Rear Planetary Ring Gear
35762-30040 Flange, Rear Planetary Ring Gear
2000-09 → 2004-08 ended
UCK35,45 —
35762A — Bearing, Thrust Needle Roller (FOR REAR PLANETARY FLANGE)
90374-38003 Bearing, Thrust Needle Roller (FOR REAR PLANETARY FLANGE)
2000-09 → 2004-08 ended
UCK35,45 —
90374-A0010 Bearing, Thrust Needle Roller (FOR REAR PLANETARY FLANGE)
2004-08 → —
UCK35 —
35771 — Shaft, Output
35073-34010 Shaft, Output
2000-09 → 2004-08 ended
UCK45 —
35771-34010 Shaft, Output
2000-09 → 2004-08 ended
UCK35 —
35789D — Race, Thrust Bearing (FOR FRONT PLANETARY GEAR REAR)
35789-30200 Race, Thrust Bearing (FOR FRONT PLANETARY GEAR REAR)
2000-09 → 2004-08 ended
UCK35,45 —
35792 — Clutch, 1 Way, NO.2
35792-14020 Clutch, 1 Way, NO.2
2000-09 → 2004-08 ended
UCK35,45 —
35792B — Ring, Hole Snap (FOR 1 WAY CLUTCH NO.2)
90521-87001 Ring, Hole Snap (FOR 1 WAY CLUTCH NO.2)
2000-09 → 2004-08 ended
UCK35,45 —
35797 — Race, 1 Way Clutch Inner
35797-50010 Race, 1 Way Clutch Inner
2000-09 → 2004-08 ended
UCK35,45 —
89414A — Rotor, Sensor
35736-34010 Rotor, Sensor
2002-08 → 2004-08 ended
UCK45 —
89414-22010 Rotor, Sensor
2000-09 → 2004-08 ended
UCK35 —
89414-35020 Rotor, Sensor
2000-09 → 2002-03 ended
UCK45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
