Toyota Sequoia
2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States
Discontinued model
Data version 2008-05

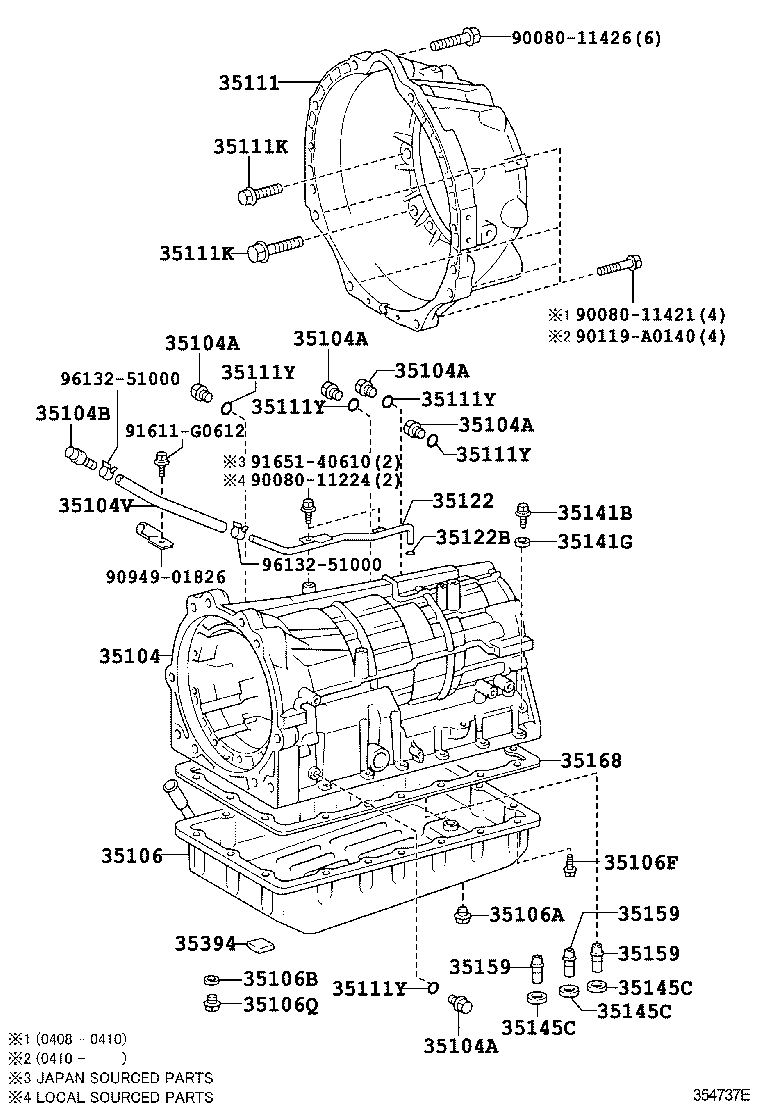

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 35104 — Case Sub-assy, Automatic Transmission | ||||
| 35104-22070 |
Case Sub-assy, Automatic Transmission
2000-09 → 2004-08
ended
|
UCK35 | — | |
| 35104-30190 |
Case Sub-assy, Automatic Transmission
2000-09 → 2004-08
ended
|
UCK45 | — | |
| 35104-0C010 |
Case Sub-assy, Automatic Transmission
2004-08 → —
|
UCK35,45 | — | |
| 35104A — Plug, Automatic Transmission Case | ||||
| 90341-08001 |
Plug, Automatic Transmission Case
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 90341-A0001 |
Plug, Automatic Transmission Case
2004-08 → —
|
UCK35,45 | — | |
| 35104B — Plug, Breather, NO.1 (ATM) | ||||
| 90930-03098 note |
Plug, Breather, NO.1 (ATM)
2000-09 → 2004-08
ended
|
UCK45 | — | |
| 90930-03099 note |
Plug, Breather, NO.1 (ATM)
2000-09 → 2000-12
ended
|
UCK45 | — | |
| 90930-03108 |
Plug, Breather, NO.1 (ATM)
2000-09 → 2004-08
ended
|
UCK35 | — | |
| 90930-03168 note |
Plug, Breather, NO.1 (ATM)
2000-12 → 2004-08
ended
|
UCK45 | — | |
| 90930-03168 |
Plug, Breather, NO.1 (ATM)
2004-08 → —
|
UCK35,45 | — | |
| 35104V — Hose (FOR BREATHER PLUG) | ||||
| 90445-10020 |
Hose (FOR BREATHER PLUG)
2000-12 → 2004-08
ended
|
UCK45 | — | |
| 90445-11118 |
Hose (FOR BREATHER PLUG)
2000-09 → 2000-12
ended
|
UCK45 | — | |
| 90445-10020 |
Hose (FOR BREATHER PLUG)
2004-08 → —
|
UCK35,45 | — | |
| 35106 — Pan Sub-assy, Automatic Transmission Oil | ||||
| 35106-34040 |
Pan Sub-assy, Automatic Transmission Oil
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 35106-0C010 |
Pan Sub-assy, Automatic Transmission Oil
2004-08 → —
|
UCK35,45 | — | |
| 35106A — Plug Sub-assy, Drain (ATM) | ||||
| 90341-10006 |
Plug Sub-assy, Drain (ATM)
2000-09 → 2002-09
ended
|
UCK35,45 | — | |
| 90341-10011 |
Plug Sub-assy, Drain (ATM)
2002-09 → 2004-08
ended
|
UCK35,45 | — | |
| 90341-10011 |
Plug Sub-assy, Drain (ATM)
2004-08 → —
|
UCK35,45 | — | |
| 35106B — Gasket, Drain Plug (ATM) | ||||
| 35178-30010 |
Gasket, Drain Plug (ATM)
2000-09 → 2002-09
ended
|
UCK35,45 | — | |
| 35178-30010 |
Gasket, Drain Plug (ATM)
2003-04 → 2004-08
ended
|
UCK35,45 | — | |
| 35178-50010 |
Gasket, Drain Plug (ATM)
2002-09 → 2003-04
ended
|
UCK35,45 | — | |
| 35178-30010 |
Gasket, Drain Plug (ATM)
2004-08 → —
|
UCK35,45 | — | |
| 35106F — Bolt (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90119-06513 |
Bolt (FOR AUTOMATIC TRANSMISSION OIL PAN)
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 90119-A0164 |
Bolt (FOR AUTOMATIC TRANSMISSION OIL PAN)
2004-08 → —
|
UCK35,45 | — | |
| 35106Q — Plug (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90341-10021 |
Plug (FOR AUTOMATIC TRANSMISSION OIL PAN)
2004-08 → —
|
UCK35,45 | — | |
| 35111 — Housing, Automatic Transmission | ||||
| 35111-60100 |
Housing, Automatic Transmission
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 35111-0C010 |
Housing, Automatic Transmission
2004-08 → —
|
UCK35,45 | — | |
| 35111K — Bolt (FOR TRANSMISSION HOUSING & CASE SETTING) | ||||
| 90119-10232 note |
Bolt (FOR TRANSMISSION HOUSING & CASE SETTING)
2004-08 → 2006-04
ended
|
UCK35,45 | — | |
| 90119-10947 note |
Bolt (FOR TRANSMISSION HOUSING & CASE SETTING)
2004-08 → —
|
UCK35,45 | — | |
| 90119-12378 note |
Bolt (FOR TRANSMISSION HOUSING & CASE SETTING)
2004-08 → —
|
UCK35,45 | — | |
| 90119-A0272 note |
Bolt (FOR TRANSMISSION HOUSING & CASE SETTING)
2006-05 → —
|
UCK35,45 | — | |
| 35111Y — Ring, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 90301-06196 |
Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
2004-08 → —
|
UCK35,45 | — | |
| 35122 — Tube, Breather (FOR AUTOMATIC TRANSAXLE) | ||||
| 35122-34010 |
Tube, Breather (FOR AUTOMATIC TRANSAXLE)
2004-08 → —
|
UCK35,45 | — | |
| 35122B — Ring, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION) | ||||
| 90301-04014 |
Ring, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION)
2004-08 → —
|
UCK35,45 | — | |
| 35141B — Plug (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90341-14011 |
Plug (FOR AUTOMATIC TRANSMISSION CASE)
2004-08 → —
|
UCK35,45 | — | |
| 35141G — Ring, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-11006 |
Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
2004-08 → —
|
UCK35,45 | — | |
| 35145C — Gasket, Transaxle Case | ||||
| 35145-60020 |
Gasket, Transaxle Case
2004-08 → —
|
UCK35,45 | — | |
| 35159 — Gasket, Brake Drum | ||||
| 35159-30010 |
Gasket, Brake Drum
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 35159-0C010 |
Gasket, Brake Drum
2004-08 → —
|
UCK35,45 | — | |
| 35168 — Gasket, Automatic Transmission Oil Pan | ||||
| 35168-60010 |
Gasket, Automatic Transmission Oil Pan
2004-08 → —
|
UCK35,45 | — | |
| 35394 — Magnet, Oil Cleaner (FOR TRANSMISSION) | ||||
| 35394-30011 |
Magnet, Oil Cleaner (FOR TRANSMISSION)
2000-09 → 2004-08
ended
|
UCK35 | — | |
| 35394-30011 |
Magnet, Oil Cleaner (FOR TRANSMISSION)
2000-09 → 2004-08
ended
|
UCK45 | — | |
| 35394-30011 |
Magnet, Oil Cleaner (FOR TRANSMISSION)
2004-08 → —
|
UCK35,45 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
