Toyota Sequoia
2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States
Discontinued model
Data version 2008-05

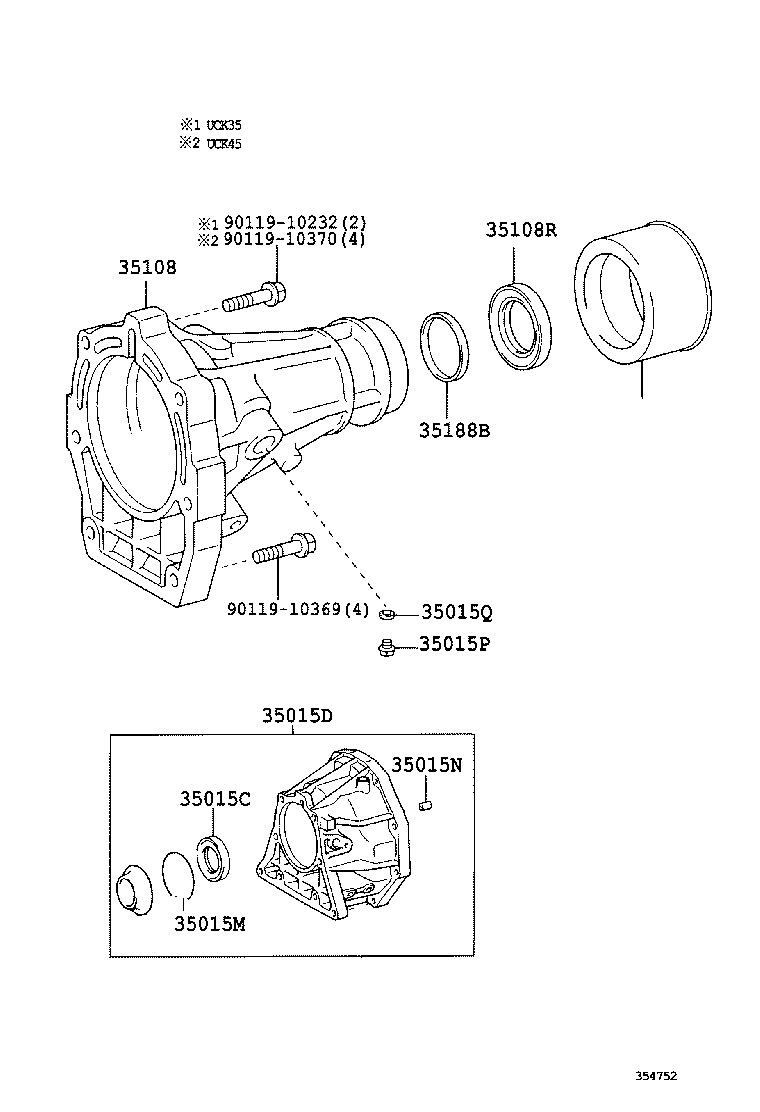

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 35015C — Seal, Oil(FOR TRANSMISSION CASE ADAPTER) | ||||
| 90311-43007 |
Seal, Oil(FOR TRANSMISSION CASE ADAPTER)
2004-08 → —
|
UCK45 | — | |
| 35015D — Adapter Sub-assy, Transmission Case | ||||
| 35015-0C010 |
Adapter Sub-assy, Transmission Case
2004-08 → —
|
UCK45 | — | |
| 35015M — Ring, Hole Snap(FOR TRANSMISSION CASE ADAPTER) | ||||
| 90521-72001 |
Ring, Hole Snap(FOR TRANSMISSION CASE ADAPTER)
2004-08 → —
|
UCK45 | — | |
| 35015N — Pin, Straight(FOR TRANSMISSION CASE ADAPTER) | ||||
| 90250-11003 |
Pin, Straight(FOR TRANSMISSION CASE ADAPTER)
2004-08 → —
|
UCK45 | — | |
| 35015P — Plug, W/Head Straight Screw(FOR TRANSMISSION CASE ADAPTER) | ||||
| 90341-18059 |
Plug, W/Head Straight Screw(FOR TRANSMISSION CASE ADAPTER)
2004-08 → —
|
UCK35,45 | — | |
| 35015Q — Ring, O(FOR TRANSMISSION CASE ADAPTER PLUG) | ||||
| 90301-15004 |
Ring, O(FOR TRANSMISSION CASE ADAPTER PLUG)
2004-08 → —
|
UCK35,45 | — | |
| 35108 — Housing Sub-assy, Extension (ATM) | ||||
| 35108-35050 |
Housing Sub-assy, Extension (ATM)
2000-09 → 2004-08
ended
|
UCK35 | — | |
| 35180-0C010 |
Housing Sub-assy, Extension (ATM)
2004-08 → —
|
UCK35 | — | |
| 35108R — Seal, Oil (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING) | ||||
| 90311-40001 |
Seal, Oil (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)
2000-09 → 2004-08
ended
|
UCK35 | — | |
| 90311-40001 |
Seal, Oil (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)
2004-08 → —
|
UCK35 | — | |
| 35188B — Retainer, Extension Housing Bush | ||||
| 35188-35010 |
Retainer, Extension Housing Bush
2004-08 → —
|
UCK35 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
