Toyota Sequoia
2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States
Discontinued model
Data version 2008-05

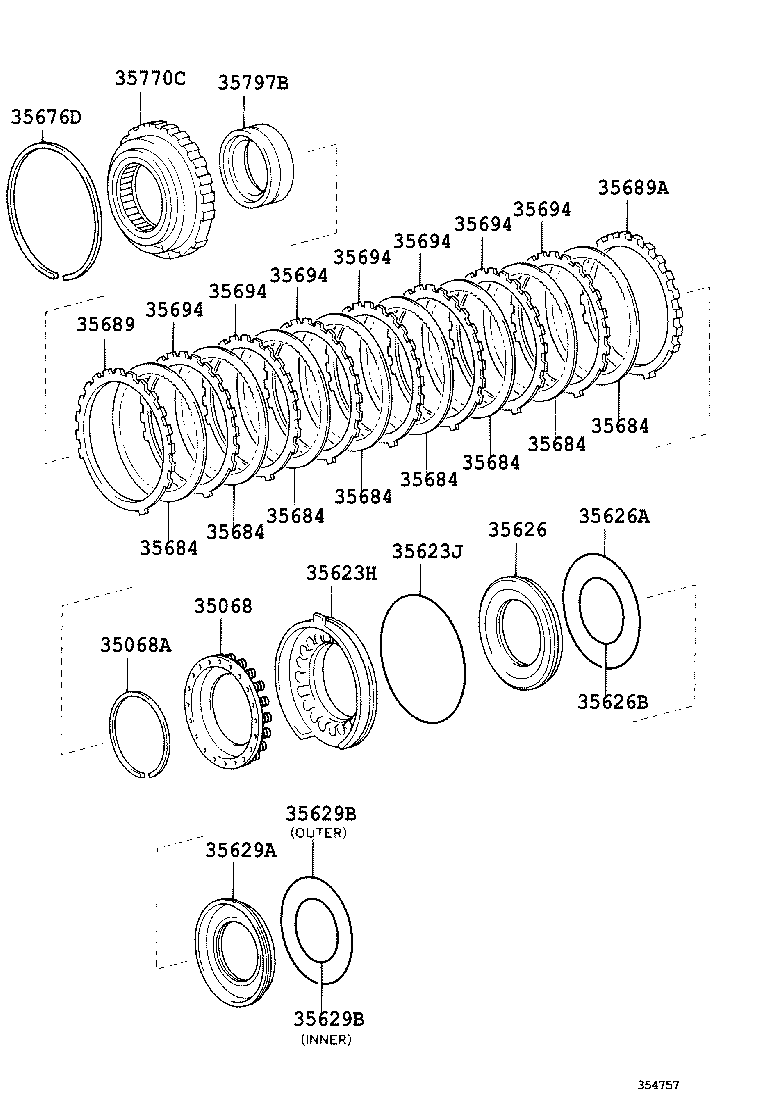

| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 35068 — Spring Sub-assy, 1ST & Reverse Brake Return | ||||
| 35068-50010 |
Spring Sub-assy, 1ST & Reverse Brake Return
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 35068-0C010 |
Spring Sub-assy, 1ST & Reverse Brake Return
2004-08 → —
|
UCK35,45 | — | |
| 35068A — Ring, Shaft Snap (FOR 1ST & REVERSE BRAKE RETURN SPRING) | ||||
| 90520-52262 |
Ring, Shaft Snap (FOR 1ST & REVERSE BRAKE RETURN SPRING)
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 90520-61001 |
Ring, Shaft Snap (FOR 1ST & REVERSE BRAKE RETURN SPRING)
2004-08 → —
|
UCK35,45 | — | |
| 35623H — Piston, 1ST & Reverse Brake | ||||
| 35623-60050 |
Piston, 1ST & Reverse Brake
2004-08 → 2006-11
ended
|
UCK35,45 | — | |
| 35623-60060 |
Piston, 1ST & Reverse Brake
2006-11 → —
|
UCK35,45 | — | |
| 35623J — Ring, O (FOR 1ST & REVERSE BRAKE) | ||||
| 90301-99192 |
Ring, O (FOR 1ST & REVERSE BRAKE)
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 90301-99087 |
Ring, O (FOR 1ST & REVERSE BRAKE)
2004-08 → —
|
UCK35,45 | — | |
| 35626 — Sleeve, Brake Reaction | ||||
| 35626-30020 |
Sleeve, Brake Reaction
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 35626-60010 |
Sleeve, Brake Reaction
2004-08 → —
|
UCK35,45 | — | |
| 35626A — Ring (FOR BRAKE REACTION SLEEVE OUTER) | ||||
| 90301-99143 |
Ring (FOR BRAKE REACTION SLEEVE OUTER)
2004-08 → —
|
UCK35,45 | — | |
| 35626B — Ring (FOR BRAKE REACTION SLEEVE INNER) | ||||
| 90301-67005 |
Ring (FOR BRAKE REACTION SLEEVE INNER)
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 90301-79003 |
Ring (FOR BRAKE REACTION SLEEVE INNER)
2004-08 → —
|
UCK35,45 | — | |
| 35629A — Piston, Brake, NO.4 | ||||
| 35629-0C010 |
Piston, Brake, NO.4
2004-08 → 2007-07
ended
|
UCK35,45 | — | |
| 35629-60010 |
Piston, Brake, NO.4
2007-08 → —
|
UCK35,45 | — | |
| 35629B — Ring, O (FOR BRAKE PISTON NO.4) | ||||
| 90301-67006 note |
Ring, O (FOR BRAKE PISTON NO.4)
2004-08 → —
|
UCK35,45 | — | |
| 90301-99151 note |
Ring, O (FOR BRAKE PISTON NO.4)
2004-08 → —
|
UCK35,45 | — | |
| 35676D — Ring, Hole Snap (FOR 1ST & REVERSE BRAKE FLANGE) | ||||
| 90521-99131 |
Ring, Hole Snap (FOR 1ST & REVERSE BRAKE FLANGE)
2004-08 → —
|
UCK35,45 | — | |
| 35684 — Disc, Brake, NO.4 | ||||
| 35684-0C010 |
Disc, Brake, NO.4
2004-08 → —
|
UCK35,45 | — | |
| 35689 — Flange, Brake, NO.4 | ||||
| 35689-0C010 note |
Flange, Brake, NO.4
2004-08 → —
|
UCK35,45 | — | |
| 35689-0C020 note |
Flange, Brake, NO.4
2004-08 → —
|
UCK35,45 | — | |
| 35689-0C030 note |
Flange, Brake, NO.4
2004-08 → —
|
UCK35,45 | — | |
| 35689-0C040 note |
Flange, Brake, NO.4
2004-08 → —
|
UCK35,45 | — | |
| 35689-0C050 note |
Flange, Brake, NO.4
2004-08 → —
|
UCK35,45 | — | |
| 35689-0C060 note |
Flange, Brake, NO.4
2004-08 → —
|
UCK35,45 | — | |
| 35689-0C070 note |
Flange, Brake, NO.4
2004-08 → —
|
UCK35,45 | — | |
| 35689-0C080 note |
Flange, Brake, NO.4
2004-08 → —
|
UCK35,45 | — | |
| 35689A — Flange, Brake, NO.4 | ||||
| 35689-60090 |
Flange, Brake, NO.4
2004-08 → —
|
UCK35,45 | — | |
| 35694 — Plate, Brake, NO.4 | ||||
| 35694-0C010 |
Plate, Brake, NO.4
2004-08 → —
|
UCK35,45 | — | |
| 35770C — Clutch Assy, 1Way NO.3 | ||||
| 35770-0C010 |
Clutch Assy, 1Way NO.3
2004-08 → —
|
UCK35,45 | — | |
| 35797B — Race, 1 Way Clutch, Inner | ||||
| 35797-60020 |
Race, 1 Way Clutch, Inner
2004-08 → —
|
UCK35,45 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
