Toyota Sequoia
2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States
Discontinued model
Data version 2008-05
Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|

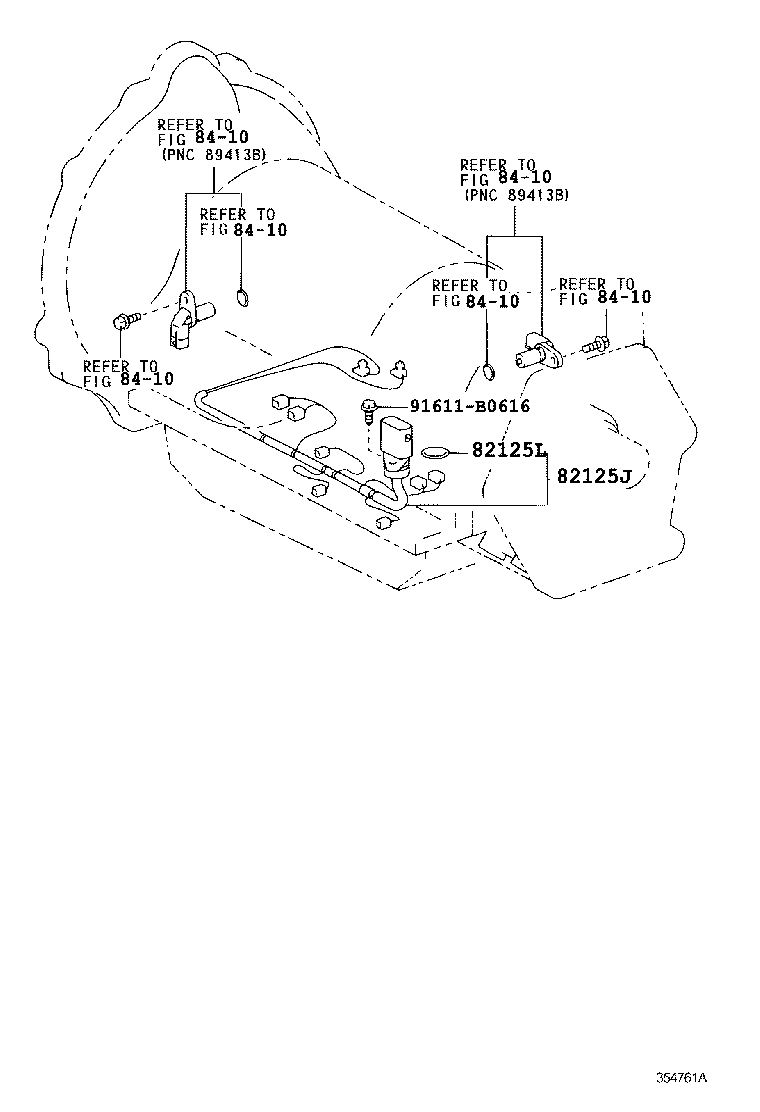

| 82125J — Wire, Transmission | ||||
| 82125-60310 |
Wire, Transmission
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 82125-35150 |
Wire, Transmission
2004-08 → 2007-05
ended
|
UCK35,45 | — | |
| 82125-60650 |
Wire, Transmission
2007-06 → —
|
UCK35,45 | — | |
| 82125L — Ring, O(FOR TRANSMISSION WIRE) | ||||
| 96721-24018 |
Ring, O(FOR TRANSMISSION WIRE)
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 90301-21009 |
Ring, O(FOR TRANSMISSION WIRE)
2004-08 → —
|
UCK35,45 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
