Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

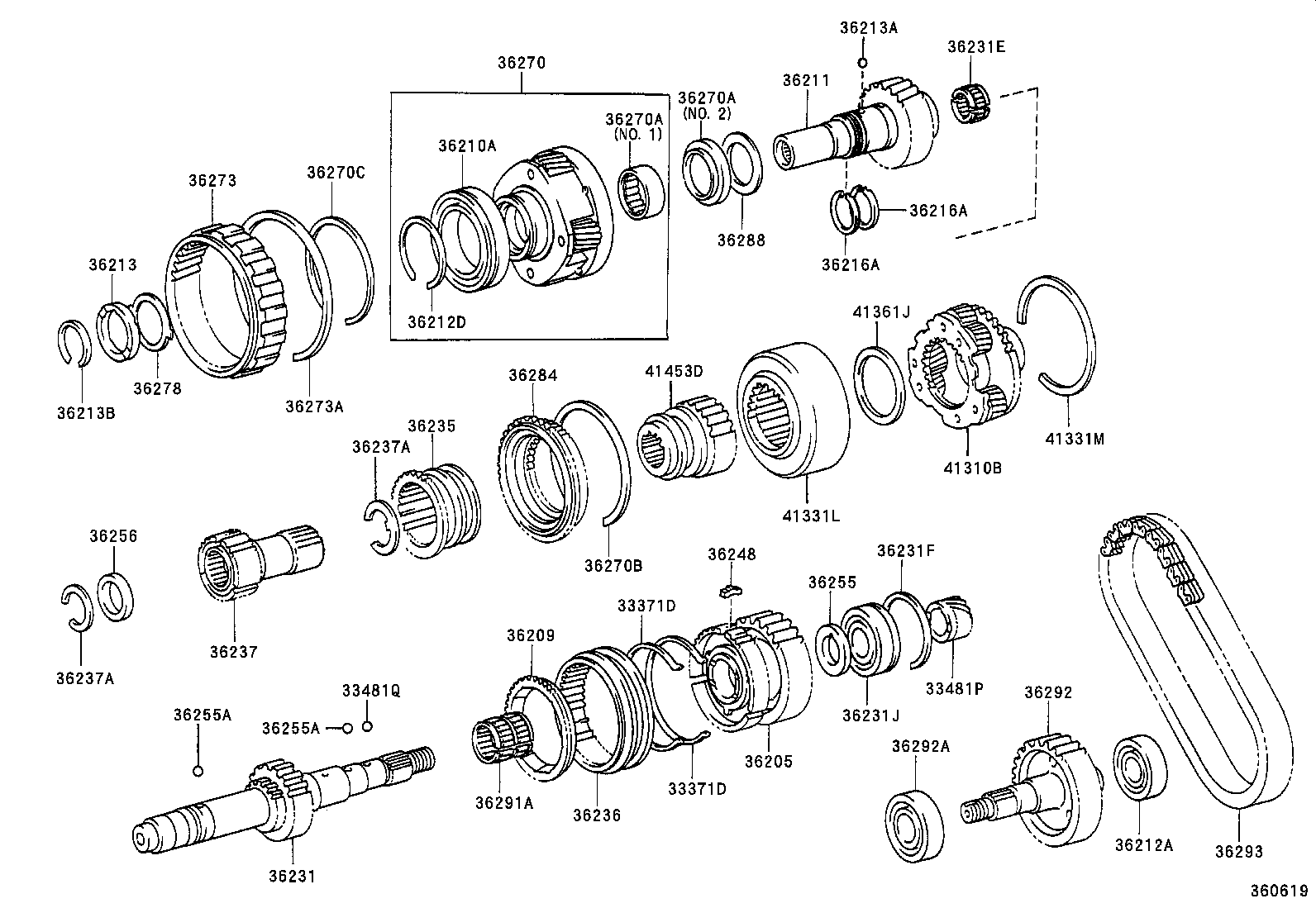

Exploded illustration 360619 36213A — BALL (FOR TRANSFER INPUT GEAR STOPPER) (2 parts) 36231E — BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT) (3 parts) 36270 — GEAR ASSY, TRANSFER LOW PLANETARY (2 parts) 36211 — SHAFT, TRANSFER INPUT (2 parts) 36270A — BEARING (FOR TRANSFER LOW PLANETARY GEAR) (4 parts) 36270A — BEARING (FOR TRANSFER LOW PLANETARY GEAR) (4 parts) 36210A — BEARING (FOR TRANSFER INPUT SHAFT) (2 parts) 36270C — RING, SHAFT SNAP(FOR TRANSFER LOW PLANETARY GEAR BEARING) (3 parts) 36273 — GEAR, TRANSFER LOW PLANETARY RING (2 parts) 36216A — RING, TRANSFER INPUT SHAFT SEAL, NO.1 (2 parts) 36288 — RACE, TRANSFER THRUST BEARING, NO.1 (2 parts) 36213 — STOPPER, TRANSFER INPUT GEAR (2 parts) 36216A — RING, TRANSFER INPUT SHAFT SEAL, NO.1 (2 parts) 41361J — WASHER, CENTER DIFFERENTIAL PLANETARY CARRIER, NO.1 (1 parts) 36212D — RING, SHAFT SNAP (FOR TRANSFER INPUT BEARING) (10 parts) 41453D — SLEEVE, CENTER DIFFERENTIAL LOCK (1 parts) 36284 — PIECE, TRANSFER LOW PLANETARY GEAR SPLINE (2 parts) 36278 — WASHER, MANUAL TRANSFER PLANETARY CARRIER (3 parts) 36273A — RING, HOLE SNAP (FOR TRANSFER LOW PLANETARY RING GEAR) (3 parts) 36213B — RING, SHAFT SNAP (FOR TRANSFER INPUT GEAR STOPPER) (38 parts) 36235 — SLEEVE, TRANSFER HIGH & LOW CLUTCH (2 parts) 41331M — RING, HOLE SNAP(FOR CENTER DIFFERENTIAL PLANETARY RING GEAR) (2 parts) 36237A — RING, SHAFT SNAP (FOR TRANSFER CLUTCH HUB) (1 parts) 41310B — GEAR ASSY, CENTER DIFFERENTIAL PLANETARY (1 parts) 41331L — GEAR, CENTER DIFFERENTIAL PLANETARY RING (1 parts) 36256 — SPACER, TRANSFER OUTPUT SHAFT, NO.2 (2 parts) 36231F — RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT) (2 parts) 36248 — KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.1 (2 parts) 36270B — RING, SHAFT SNAP (FOR TRANSFER LOW PLANETARY GEAR) (2 parts) 36255 — SPACER, TRANSFER OUTPUT SHAFT, NO.1 (2 parts) 33371D — SPRING, SYNCHROMESH SHIFTING KEY, NO.1 (FOR TRANSFER) (2 parts) 36209 — RING SET, TRANSFER SYNCHRONIZER (2 parts) 36237 — HUB, TRANSFER CLUTCH (2 parts) 36237A — RING, SHAFT SNAP (FOR TRANSFER CLUTCH HUB) (1 parts) 33481P — GEAR, SPEEDOMETER DRIVE (FOR TRANSFER) (2 parts) 33481Q — KEY OR BALL, SPEEDOMETER DRIVE GEAR (FOR TRANSFER) (1 parts) 36292 — SPROCKET, TRANSFER DRIVEN (3 parts) 36255A — BALL (FOR TRANSFER OUTPUT SHAFT SPACER) (2 parts) 36231J — BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR) (2 parts) 36255A — BALL (FOR TRANSFER OUTPUT SHAFT SPACER) (2 parts) 36292A — BEARING (FOR TRANSFER DRIVEN SPROCKET) (2 parts) 36205 — SPROCKET SUB-ASSY, TRANSFER DRIVE (2 parts) 33371D — SPRING, SYNCHROMESH SHIFTING KEY, NO.1 (FOR TRANSFER) (2 parts) 36291A — BEARING (FOR TRANSFER DRIVE SPROCKET) (3 parts) 36236 — SLEEVE, FRONT DRIVE CLUTCH (2 parts) 36212A — BEARING, RADIAL BALL (FOR TRANSFER INPUT GEAR) (2 parts) 36293 — CHAIN, TRANSFER FRONT DRIVE (3 parts) 36231 — SHAFT, TRANSFER OUTPUT, REAR (2 parts)
360619 · 48 callouts Full size ↗
133 parts on this figure
Part number Description Fitment Price
33371D — Spring, Synchromesh Shifting Key, NO.1 (FOR TRANSFER)
33371-36030 Spring, Synchromesh Shifting Key, NO.1 (FOR TRANSFER)
2000-09 → 2004-08 ended
UCK45 —
33371-35030 Spring, Synchromesh Shifting Key, NO.1 (FOR TRANSFER)
2004-08 → —
UCK45 —
33481P — Gear, Speedometer Drive (FOR TRANSFER)
33481-35200 note Gear, Speedometer Drive (FOR TRANSFER)
2000-09 → 2004-08 ended
UCK45 —
33481-60130 note Gear, Speedometer Drive (FOR TRANSFER)
2004-08 → —
UCK45 —
33481Q — Key OR Ball, Speedometer Drive Gear (FOR TRANSFER)
90360-05012 Key OR Ball, Speedometer Drive Gear (FOR TRANSFER)
2000-09 → 2004-08 ended
UCK45 —
36205 — Sprocket Sub-assy, Transfer Drive
36205-35080 Sprocket Sub-assy, Transfer Drive
2000-09 → 2004-08 ended
UCK45 —
36205-35100 Sprocket Sub-assy, Transfer Drive
2004-08 → —
UCK45 —
36209 — Ring Set, Transfer Synchronizer
36209-35021 Ring Set, Transfer Synchronizer
2000-09 → 2004-08 ended
UCK45 —
36209-35030 Ring Set, Transfer Synchronizer
2004-08 → —
UCK45 —
36210A — Bearing (FOR TRANSFER INPUT SHAFT)
90363-75001 Bearing (FOR TRANSFER INPUT SHAFT)
2000-09 → 2004-08 ended
UCK45 —
90363-75001 Bearing (FOR TRANSFER INPUT SHAFT)
2004-08 → —
UCK45 —
36211 — Shaft, Transfer Input
36201-35061 Shaft, Transfer Input
2000-09 → 2004-08 ended
UCK45 —
36201-35120 Shaft, Transfer Input
2004-08 → —
UCK45 —
36212A — Bearing, Radial Ball (FOR TRANSFER INPUT GEAR)
90363-28004 Bearing, Radial Ball (FOR TRANSFER INPUT GEAR)
2000-09 → 2004-08 ended
UCK45 —
90363-28013 Bearing, Radial Ball (FOR TRANSFER INPUT GEAR)
2004-08 → —
UCK45 —
36212D — Ring, Shaft Snap (FOR TRANSFER INPUT BEARING)
90520-72001 note Ring, Shaft Snap (FOR TRANSFER INPUT BEARING)
2000-09 → 2004-08 ended
UCK45 —
90520-72002 note Ring, Shaft Snap (FOR TRANSFER INPUT BEARING)
2000-09 → 2004-08 ended
UCK45 —
90520-72003 note Ring, Shaft Snap (FOR TRANSFER INPUT BEARING)
2000-09 → 2004-08 ended
UCK45 —
90520-72004 note Ring, Shaft Snap (FOR TRANSFER INPUT BEARING)
2000-09 → 2004-08 ended
UCK45 —
90520-72005 note Ring, Shaft Snap (FOR TRANSFER INPUT BEARING)
2000-09 → 2004-08 ended
UCK45 —
90520-72001 note Ring, Shaft Snap (FOR TRANSFER INPUT BEARING)
2004-08 → —
UCK45 —
90520-72002 note Ring, Shaft Snap (FOR TRANSFER INPUT BEARING)
2004-08 → —
UCK45 —
90520-72003 note Ring, Shaft Snap (FOR TRANSFER INPUT BEARING)
2004-08 → —
UCK45 —
90520-72004 note Ring, Shaft Snap (FOR TRANSFER INPUT BEARING)
2004-08 → —
UCK45 —
90520-72005 note Ring, Shaft Snap (FOR TRANSFER INPUT BEARING)
2004-08 → —
UCK45 —
36213 — Stopper, Transfer Input Gear
36213-35020 Stopper, Transfer Input Gear
2000-09 → 2004-08 ended
UCK45 —
36213-35020 Stopper, Transfer Input Gear
2004-08 → —
UCK45 —
36213A — Ball (FOR TRANSFER INPUT GEAR STOPPER)
90360-05012 Ball (FOR TRANSFER INPUT GEAR STOPPER)
2000-09 → 2004-08 ended
UCK45 —
90360-05012 Ball (FOR TRANSFER INPUT GEAR STOPPER)
2004-08 → —
UCK45 —
36213B — Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
90520-44003 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2000-09 → 2004-08 ended
UCK45 —
90520-44004 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2000-09 → 2004-08 ended
UCK45 —
90520-44005 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2000-09 → 2004-08 ended
UCK45 —
90520-44006 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2000-09 → 2004-08 ended
UCK45 —
90520-44007 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2000-09 → 2004-08 ended
UCK45 —
90520-44008 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2000-09 → 2004-08 ended
UCK45 —
90520-44009 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2000-09 → 2004-08 ended
UCK45 —
90520-44010 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2000-09 → 2004-08 ended
UCK45 —
90520-44011 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2000-09 → 2004-08 ended
UCK45 —
90520-44012 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2000-09 → 2004-08 ended
UCK45 —
90520-44013 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2000-09 → 2004-08 ended
UCK45 —
90520-44014 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2000-09 → 2004-08 ended
UCK45 —
90520-44015 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2000-09 → 2004-08 ended
UCK45 —
90520-44016 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2000-09 → 2004-08 ended
UCK45 —
90520-44017 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2000-09 → 2004-08 ended
UCK45 —
90520-44018 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2000-09 → 2004-08 ended
UCK45 —
90520-44019 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2000-09 → 2004-08 ended
UCK45 —
90520-44020 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2000-09 → 2004-08 ended
UCK45 —
90520-44021 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2000-09 → 2004-08 ended
UCK45 —
90520-44003 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2004-08 → —
UCK45 —
90520-44004 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2004-08 → —
UCK45 —
90520-44005 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2004-08 → —
UCK45 —
90520-44006 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2004-08 → —
UCK45 —
90520-44007 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2004-08 → —
UCK45 —
90520-44008 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2004-08 → —
UCK45 —
90520-44009 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2004-08 → —
UCK45 —
90520-44010 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2004-08 → —
UCK45 —
90520-44011 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2004-08 → —
UCK45 —
90520-44012 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2004-08 → —
UCK45 —
90520-44013 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2004-08 → —
UCK45 —
90520-44014 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2004-08 → —
UCK45 —
90520-44015 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2004-08 → —
UCK45 —
90520-44016 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2004-08 → —
UCK45 —
90520-44017 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2004-08 → —
UCK45 —
90520-44018 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2004-08 → —
UCK45 —
90520-44019 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2004-08 → —
UCK45 —
90520-44020 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2004-08 → —
UCK45 —
90520-44021 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2004-08 → —
UCK45 —
36216A — Ring, Transfer Input Shaft Seal, NO.1
36216-35011 Ring, Transfer Input Shaft Seal, NO.1
2000-09 → 2004-08 ended
UCK45 —
36216-35011 Ring, Transfer Input Shaft Seal, NO.1
2004-08 → —
UCK45 —
36231 — Shaft, Transfer Output, Rear
36231-60090 Shaft, Transfer Output, Rear
2000-09 → 2004-08 ended
UCK45 —
36231-35050 Shaft, Transfer Output, Rear
2004-08 → —
UCK45 —
36231E — Bearing, Needle Roller (FOR TRANSFER OUTPUT SHAFT FRONT)
90364-28004 Bearing, Needle Roller (FOR TRANSFER OUTPUT SHAFT FRONT)
2000-09 → 2004-08 ended
UCK45 —
90364-28004 note Bearing, Needle Roller (FOR TRANSFER OUTPUT SHAFT FRONT)
2004-08 → —
UCK45 —
90364-35009 note Bearing, Needle Roller (FOR TRANSFER OUTPUT SHAFT FRONT)
2004-08 → —
UCK45 —
36231F — Ring, Shaft Snap (FOR TRANSFER OUTPUT SHAFT)
90520-71221 note Ring, Shaft Snap (FOR TRANSFER OUTPUT SHAFT)
2000-09 → 2004-08 ended
UCK45 —
90520-82001 note Ring, Shaft Snap (FOR TRANSFER OUTPUT SHAFT)
2004-08 → —
UCK45 —
36231J — Bearing, Radial Ball (FOR TRANSFER OUTPUT SHAFT REAR)
90363-32006 Bearing, Radial Ball (FOR TRANSFER OUTPUT SHAFT REAR)
2000-09 → 2004-08 ended
UCK45 —
90363-32040 Bearing, Radial Ball (FOR TRANSFER OUTPUT SHAFT REAR)
2004-08 → —
UCK45 —
36235 — Sleeve, Transfer High & Low Clutch
36235-35021 Sleeve, Transfer High & Low Clutch
2000-09 → 2004-08 ended
UCK45 —
36235-35030 Sleeve, Transfer High & Low Clutch
2004-08 → —
UCK45 —
36236 — Sleeve, Front Drive Clutch
36236-35050 Sleeve, Front Drive Clutch
2000-09 → 2004-08 ended
UCK45 —
36236-35060 Sleeve, Front Drive Clutch
2004-08 → —
UCK45 —
36237 — Hub, Transfer Clutch
36203-35010 Hub, Transfer Clutch
2000-09 → 2004-08 ended
UCK45 —
36203-35020 Hub, Transfer Clutch
2004-08 → —
UCK45 —
36237A — Ring, Shaft Snap (FOR TRANSFER CLUTCH HUB)
90520-38008 note Ring, Shaft Snap (FOR TRANSFER CLUTCH HUB)
2000-09 → 2004-08 ended
UCK45 —
36248 — Key, Synchromesh Shifting, Transfer Drive, NO.1
36248-35030 Key, Synchromesh Shifting, Transfer Drive, NO.1
2000-09 → 2004-08 ended
UCK45 —
36248-35040 Key, Synchromesh Shifting, Transfer Drive, NO.1
2004-08 → —
UCK45 —
36255 — Spacer, Transfer Output Shaft, NO.1
36255-35020 Spacer, Transfer Output Shaft, NO.1
2000-09 → 2004-08 ended
UCK45 —
36255-35030 Spacer, Transfer Output Shaft, NO.1
2004-08 → —
UCK45 —
36255A — Ball (FOR TRANSFER OUTPUT SHAFT SPACER)
90360-05012 Ball (FOR TRANSFER OUTPUT SHAFT SPACER)
2000-09 → 2004-08 ended
UCK45 —
90360-05012 Ball (FOR TRANSFER OUTPUT SHAFT SPACER)
2004-08 → —
UCK45 —
36256 — Spacer, Transfer Output Shaft, NO.2
36256-35020 Spacer, Transfer Output Shaft, NO.2
2000-09 → 2004-08 ended
UCK45 —
36256-35030 Spacer, Transfer Output Shaft, NO.2
2004-08 → —
UCK45 —
36270 — Gear Assy, Transfer Low Planetary
36270-35900 Gear Assy, Transfer Low Planetary
2000-09 → 2004-08 ended
UCK45 —
36270-35040 Gear Assy, Transfer Low Planetary
2004-08 → —
UCK45 —
36270A — Bearing (FOR TRANSFER LOW PLANETARY GEAR)
90364-47001 note Bearing (FOR TRANSFER LOW PLANETARY GEAR)
2000-09 → 2004-08 ended
UCK45 —
90374-49001 note Bearing (FOR TRANSFER LOW PLANETARY GEAR)
2000-09 → 2004-08 ended
UCK45 —
90364-47001 note Bearing (FOR TRANSFER LOW PLANETARY GEAR)
2004-08 → —
UCK45 —
90374-49001 note Bearing (FOR TRANSFER LOW PLANETARY GEAR)
2004-08 → —
UCK45 —
36270B — Ring, Shaft Snap (FOR TRANSFER LOW PLANETARY GEAR)
90521-99056 note Ring, Shaft Snap (FOR TRANSFER LOW PLANETARY GEAR)
2000-09 → 2004-08 ended
UCK45 —
90520-99078 note Ring, Shaft Snap (FOR TRANSFER LOW PLANETARY GEAR)
2004-08 → —
UCK45 —
36270C — Ring, Shaft Snap(FOR TRANSFER LOW PLANETARY GEAR BEARING)
90520-99001 Ring, Shaft Snap(FOR TRANSFER LOW PLANETARY GEAR BEARING)
2000-09 → 2002-08 ended
UCK45 —
90520-99072 Ring, Shaft Snap(FOR TRANSFER LOW PLANETARY GEAR BEARING)
2002-08 → 2004-08 ended
UCK45 —
90520-99072 Ring, Shaft Snap(FOR TRANSFER LOW PLANETARY GEAR BEARING)
2004-08 → —
UCK45 —
36273 — Gear, Transfer Low Planetary Ring
36273-35030 Gear, Transfer Low Planetary Ring
2000-09 → 2004-08 ended
UCK45 —
36273-35030 Gear, Transfer Low Planetary Ring
2004-08 → —
UCK45 —
36273A — Ring, Hole Snap (FOR TRANSFER LOW PLANETARY RING GEAR)
90520-99078 Ring, Hole Snap (FOR TRANSFER LOW PLANETARY RING GEAR)
2002-08 → 2004-08 ended
UCK45 —
90521-99052 Ring, Hole Snap (FOR TRANSFER LOW PLANETARY RING GEAR)
2000-09 → 2002-08 ended
UCK45 —
90520-29052 Ring, Hole Snap (FOR TRANSFER LOW PLANETARY RING GEAR)
2004-08 → —
UCK45 —
36278 — Washer, Manual Transfer Planetary Carrier
36278-35010 note Washer, Manual Transfer Planetary Carrier
2000-09 → 2002-08 ended
UCK45 —
36278-35020 note Washer, Manual Transfer Planetary Carrier
2002-08 → 2004-08 ended
UCK45 —
36278-35020 note Washer, Manual Transfer Planetary Carrier
2004-08 → —
UCK45 —
36284 — Piece, Transfer Low Planetary Gear Spline
36284-35021 Piece, Transfer Low Planetary Gear Spline
2000-09 → 2004-08 ended
UCK45 —
36284-35030 Piece, Transfer Low Planetary Gear Spline
2004-08 → —
UCK45 —
36288 — Race, Transfer Thrust Bearing, NO.1
36288-28010 Race, Transfer Thrust Bearing, NO.1
2000-09 → 2004-08 ended
UCK45 —
36288-28010 Race, Transfer Thrust Bearing, NO.1
2004-08 → —
UCK45 —
36291A — Bearing (FOR TRANSFER DRIVE SPROCKET)
90364-37009 Bearing (FOR TRANSFER DRIVE SPROCKET)
2000-09 → 2002-08 ended
UCK45 —
90364-37013 Bearing (FOR TRANSFER DRIVE SPROCKET)
2002-08 → 2004-08 ended
UCK45 —
90364-37013 Bearing (FOR TRANSFER DRIVE SPROCKET)
2004-08 → —
UCK45 —
36292 — Sprocket, Transfer Driven
36292-35030 Sprocket, Transfer Driven
2000-09 → 2002-04 ended
UCK45 —
36292-35050 Sprocket, Transfer Driven
2002-04 → 2004-08 ended
UCK45 —
36292-35050 Sprocket, Transfer Driven
2004-08 → —
UCK45 —
36292A — Bearing (FOR TRANSFER DRIVEN SPROCKET)
90363-32037 Bearing (FOR TRANSFER DRIVEN SPROCKET)
2000-09 → 2004-08 ended
UCK45 —
90363-32037 Bearing (FOR TRANSFER DRIVEN SPROCKET)
2004-08 → —
UCK45 —
36293 — Chain, Transfer Front Drive
36293-35031 Chain, Transfer Front Drive
2000-09 → 2002-12 ended
UCK45 —
36293-35040 Chain, Transfer Front Drive
2002-12 → 2004-08 ended
UCK45 —
36293-35040 Chain, Transfer Front Drive
2004-08 → —
UCK45 —
41310B — Gear Assy, Center Differential Planetary
41310-35062 Gear Assy, Center Differential Planetary
2000-09 → 2004-08 ended
UCK45 —
41331L — Gear, Center Differential Planetary Ring
41331-35060 Gear, Center Differential Planetary Ring
2000-09 → 2004-08 ended
UCK45 —
41331M — Ring, Hole Snap(FOR CENTER DIFFERENTIAL PLANETARY RING GEAR)
90521-99116 Ring, Hole Snap(FOR CENTER DIFFERENTIAL PLANETARY RING GEAR)
2000-09 → 2004-08 ended
UCK45 —
90520-99079 Ring, Hole Snap(FOR CENTER DIFFERENTIAL PLANETARY RING GEAR)
2004-08 → —
UCK45 —
41361J — Washer, Center Differential Planetary Carrier, NO.1
41361-35300 Washer, Center Differential Planetary Carrier, NO.1
2000-09 → 2004-08 ended
UCK45 —
41453D — Sleeve, Center Differential Lock
41453-35010 Sleeve, Center Differential Lock
2000-09 → 2004-08 ended
UCK45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
