Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

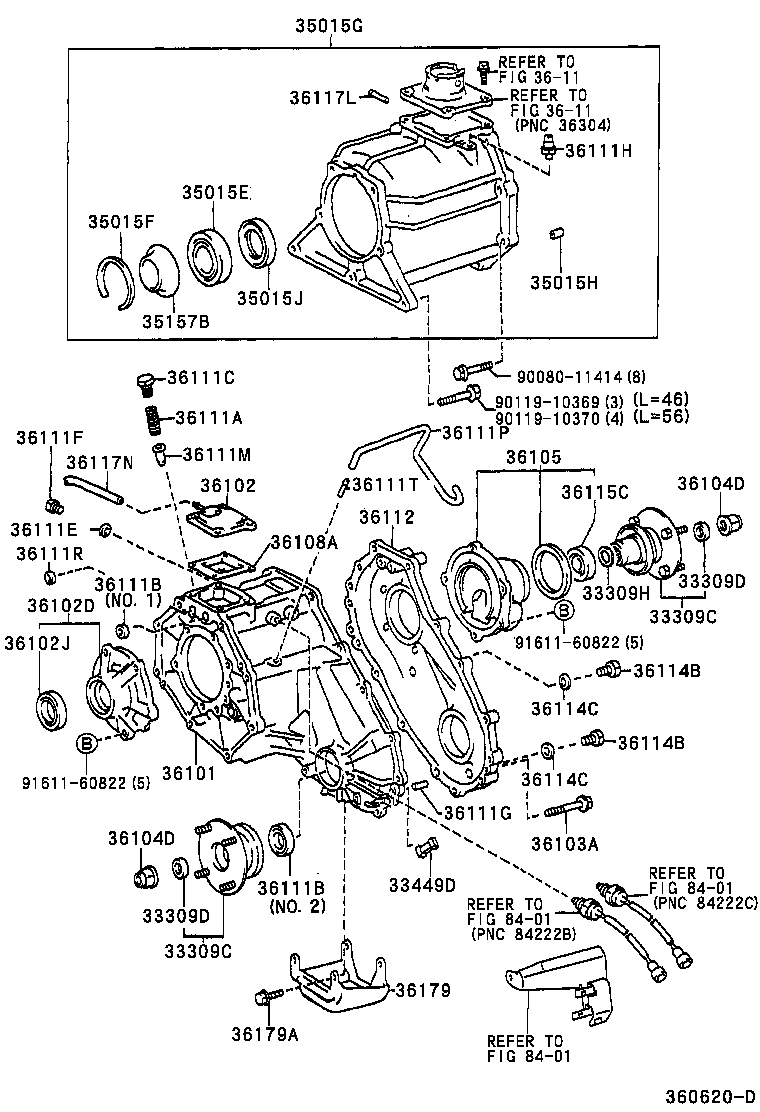

Exploded illustration 360620D 35015G — ADAPTER, TRANSFER, REAR (1 parts) 3611 — not listed in this catalogue 36117L — TUBE(FOR TRANSFER ADAPTER) (1 parts) 3611 — not listed in this catalogue 36111H — PLUG, BREATHER (FOR TRANSFER CASE) (1 parts) 35015E — BEARING, RADIAL BALL(FOR TRANSFER CASE ADAPTER) (1 parts) 35015F — RING, HOLE SNAP(FOR TRANSFER ADAPTER) (1 parts) 35015H — PIN, RING(FOR TRANSFER CASE) (2 parts) 35015J — SEAL, OIL(FOR TRANSFER CASE ADAPTER REAR) (1 parts) 35157B — RECEIVER, TRANSFER CASE REAR ADAPTER OIL (3 parts) 36111C — PLUG (FOR TRANSFER CASE) (2 parts) 9008011414 — not listed in this catalogue 9011910369 — not listed in this catalogue 36111A — SPRING, COMPRESSION (FOR TRANSFER CASE) (2 parts) 9011910370 — not listed in this catalogue 36111P — HOSE, BREATHER (FOR TRANSFER CASE) (1 parts) 36111F — PLUG (FOR TRANSFER CASE) (1 parts) 36111M — PIN, SLOTTED SPRING (FOR TRANSFER CASE) (1 parts) 36105 — HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT (2 parts) 36117N — HOSE(FOR TRANSFER ADAPTER) (1 parts) 36104D — NUT (FOR TRANSFER OUTPUT SHAFT) (2 parts) 36111T — TUBE (FOR TRANSFER CASE) (2 parts) 36102 — COVER SUB-ASSY, TRANSFER CASE (2 parts) 36115C — SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING) (1 parts) 36112 — CASE, TRANSFER, REAR (2 parts) 36111E — GASKET (FOR TRANSFER CASE) (1 parts) 36108A — DEFLECTOR SUB-ASSY, BREATHER OIL (2 parts) 36111R — PLUG, TIGHT (FOR TRANSFER CASE) (1 parts) 33309D — SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) (2 parts) 36111B — SEAL, OIL (FOR TRANSFER CASE) (6 parts) 33309H — WASHER, TRANSFER OUTPUT SHAFT (2 parts) 36102D — RETAINER SUB-ASSY, TRANSFER RH BEARING (3 parts) 33309C — FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION (3 parts) 36102J — SEAL, TYPE T OIL (FOR TRANSFER COVER) (2 parts) 9161160822 — not listed in this catalogue 36114B — PLUG, NO.1 (FOR TRANSFER CASE) (2 parts) 36114C — GASKET, NO.1 (FOR TRANSFER CASE) (2 parts) 36114B — PLUG, NO.1 (FOR TRANSFER CASE) (2 parts) 36101 — CASE SUB-ASSY, TRANSFER (1 parts) 36114C — GASKET, NO.1 (FOR TRANSFER CASE) (2 parts) 9161160822 — not listed in this catalogue 36111G — PIN, STRAIGHT (FOR TRANSFER CASE) (2 parts) 36104D — NUT (FOR TRANSFER OUTPUT SHAFT) (2 parts) 36103A — BOLT (FOR TRANSFER CASE) (2 parts) 33449D — MAGNET (FOR TRANSFER CASE) (2 parts) 36111B — SEAL, OIL (FOR TRANSFER CASE) (6 parts) 8401 — not listed in this catalogue 33309D — SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) (2 parts) 8401 — not listed in this catalogue 33309C — FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION (3 parts) 36179 — PROTECTOR, TRANSFER CASE LOWER (2 parts) 36179A — BOLT (FOR TRANSFER CASE LOWER PROTECTOR) (6 parts) 8401 — not listed in this catalogue
360620D · 43 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
71 parts on this figure
Part number Description Fitment Price
33309C — Flange Sub-assy, Output Shaft Companion
33309-35091 note Flange Sub-assy, Output Shaft Companion
2000-09 → 2004-08 ended
UCK45 —
33309-35100 note Flange Sub-assy, Output Shaft Companion
2000-09 → 2004-08 ended
UCK45 —
33309-35120 Flange Sub-assy, Output Shaft Companion
2004-08 → —
UCK45 —
33309D — Seal, Oil(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
90312-23001 Seal, Oil(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
2000-09 → 2004-08 ended
UCK45 —
90312-23001 Seal, Oil(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
2004-08 → —
UCK45 —
33309H — Washer, Transfer Output Shaft
36275-35010 note Washer, Transfer Output Shaft
2000-09 → 2004-08 ended
UCK45 —
36275-35030 note Washer, Transfer Output Shaft
2004-08 → —
UCK45 —
33449D — Magnet (FOR TRANSFER CASE)
33449-32020 Magnet (FOR TRANSFER CASE)
2000-09 → 2004-08 ended
UCK45 —
33449-32020 Magnet (FOR TRANSFER CASE)
2004-08 → —
UCK45 —
35015E — Bearing, Radial Ball(FOR TRANSFER CASE ADAPTER)
90363-37001 Bearing, Radial Ball(FOR TRANSFER CASE ADAPTER)
2000-09 → 2004-08 ended
UCK45 —
35015F — Ring, Hole Snap(FOR TRANSFER ADAPTER)
90521-72001 Ring, Hole Snap(FOR TRANSFER ADAPTER)
2000-09 → 2004-08 ended
UCK45 —
35015G — Adapter, Transfer, Rear
35015-35051 Adapter, Transfer, Rear
2000-09 → 2004-08 ended
UCK45 —
35015H — Pin, Ring(FOR TRANSFER CASE)
90253-11001 Pin, Ring(FOR TRANSFER CASE)
2000-09 → 2004-08 ended
UCK45 —
90250-11003 Pin, Ring(FOR TRANSFER CASE)
2004-08 → —
UCK45 —
35015J — Seal, Oil(FOR TRANSFER CASE ADAPTER REAR)
90311-40007 Seal, Oil(FOR TRANSFER CASE ADAPTER REAR)
2000-09 → 2004-08 ended
UCK45 —
35157B — Receiver, Transfer Case Rear Adapter Oil
35157-35010 Receiver, Transfer Case Rear Adapter Oil
2000-09 → 2002-09 ended
UCK45 —
35157-60010 Receiver, Transfer Case Rear Adapter Oil
2002-09 → 2004-08 ended
UCK45 —
35157-60010 Receiver, Transfer Case Rear Adapter Oil
2004-08 → —
UCK45 —
36101 — Case Sub-assy, Transfer
36111-35070 Case Sub-assy, Transfer
2000-09 → 2004-08 ended
UCK45 —
36102 — Cover Sub-assy, Transfer Case
36102-35040 Cover Sub-assy, Transfer Case
2000-09 → 2004-08 ended
UCK45 —
36102-35040 Cover Sub-assy, Transfer Case
2004-08 → —
UCK45 —
36102D — Retainer Sub-assy, Transfer RH Bearing
36102-35031 Retainer Sub-assy, Transfer RH Bearing
2000-09 → 2001-06 ended
UCK45 —
36102-35032 Retainer Sub-assy, Transfer RH Bearing
2001-06 → 2004-08 ended
UCK45 —
36102-35060 Retainer Sub-assy, Transfer RH Bearing
2004-08 → —
UCK45 —
36102J — Seal, Type T Oil (FOR TRANSFER COVER)
90311-40021 Seal, Type T Oil (FOR TRANSFER COVER)
2000-09 → 2004-08 ended
UCK45 —
90311-43008 Seal, Type T Oil (FOR TRANSFER COVER)
2004-08 → —
UCK45 —
36103A — Bolt (FOR TRANSFER CASE)
90119-08A28 note Bolt (FOR TRANSFER CASE)
2000-09 → 2004-08 ended
UCK45 —
90119-08A28 note Bolt (FOR TRANSFER CASE)
2004-08 → —
UCK45 —
36104D — Nut (FOR TRANSFER OUTPUT SHAFT)
90179-22016 Nut (FOR TRANSFER OUTPUT SHAFT)
2000-09 → 2004-08 ended
UCK45 —
90179-22016 Nut (FOR TRANSFER OUTPUT SHAFT)
2004-08 → —
UCK45 —
36105 — Housing Sub-assy, Transfer Extension, Front
36105-35040 Housing Sub-assy, Transfer Extension, Front
2000-09 → 2004-08 ended
UCK45 —
36105-60040 Housing Sub-assy, Transfer Extension, Front
2004-08 → —
UCK45 —
36108A — Deflector Sub-assy, Breather Oil
36108-35031 Deflector Sub-assy, Breather Oil
2000-09 → 2002-08 ended
UCK45 —
36128-35060 Deflector Sub-assy, Breather Oil
2002-08 → 2004-08 ended
UCK45 —
36111A — Spring, Compression (FOR TRANSFER CASE)
90501-20091 Spring, Compression (FOR TRANSFER CASE)
2000-09 → 2004-08 ended
UCK45 —
90501-20091 Spring, Compression (FOR TRANSFER CASE)
2004-08 → —
UCK45 —
36111B — Seal, Oil (FOR TRANSFER CASE)
90311-15008 note Seal, Oil (FOR TRANSFER CASE)
2000-09 → 2004-08 ended
UCK45 —
90311-41008 note Seal, Oil (FOR TRANSFER CASE)
2000-09 → 2002-07 ended
UCK45 —
90311-41010 note Seal, Oil (FOR TRANSFER CASE)
2002-09 → 2004-08 ended
UCK45 —
90311-41011 note Seal, Oil (FOR TRANSFER CASE)
2002-07 → 2002-09 ended
UCK45 —
90311-41010 Seal, Oil (FOR TRANSFER CASE)
2004-08 → 2006-08 ended
UCK45 —
90311-41012 Seal, Oil (FOR TRANSFER CASE)
2006-09 → —
UCK45 —
36111C — Plug (FOR TRANSFER CASE)
90341-14012 Plug (FOR TRANSFER CASE)
2000-09 → 2004-08 ended
UCK45 —
90341-14012 Plug (FOR TRANSFER CASE)
2004-08 → —
UCK45 —
36111E — Gasket (FOR TRANSFER CASE)
90430-18008 Gasket (FOR TRANSFER CASE)
2000-09 → 2004-08 ended
UCK45 —
36111F — Plug (FOR TRANSFER CASE)
90341-18006 Plug (FOR TRANSFER CASE)
2000-09 → 2004-08 ended
UCK45 —
36111G — Pin, Straight (FOR TRANSFER CASE)
90250-10214 note Pin, Straight (FOR TRANSFER CASE)
2000-09 → 2004-08 ended
UCK45 —
90250-10214 note Pin, Straight (FOR TRANSFER CASE)
2004-08 → —
UCK45 —
36111H — Plug, Breather (FOR TRANSFER CASE)
90930-03085 Plug, Breather (FOR TRANSFER CASE)
2000-09 → 2004-08 ended
UCK45 —
36111M — Pin, Slotted Spring (FOR TRANSFER CASE)
90241-07003 Pin, Slotted Spring (FOR TRANSFER CASE)
2000-09 → 2004-08 ended
UCK45 —
36111P — Hose, Breather (FOR TRANSFER CASE)
90447-08119 note Hose, Breather (FOR TRANSFER CASE)
2000-09 → 2004-08 ended
UCK45 —
36111R — Plug, Tight (FOR TRANSFER CASE)
90331-25005 Plug, Tight (FOR TRANSFER CASE)
2000-09 → 2004-08 ended
UCK45 —
36111T — Tube (FOR TRANSFER CASE)
90441-05001 Tube (FOR TRANSFER CASE)
2000-09 → 2004-08 ended
UCK45 —
90441-05001 Tube (FOR TRANSFER CASE)
2004-08 → —
UCK45 —
36112 — Case, Transfer, Rear
36112-35060 Case, Transfer, Rear
2000-09 → 2004-08 ended
UCK45 —
36112-35090 Case, Transfer, Rear
2004-08 → —
UCK45 —
36114B — Plug, NO.1 (FOR TRANSFER CASE)
90341-18006 Plug, NO.1 (FOR TRANSFER CASE)
2000-09 → 2004-08 ended
UCK45 —
90341-18006 Plug, NO.1 (FOR TRANSFER CASE)
2004-08 → —
UCK45 —
36114C — Gasket, NO.1 (FOR TRANSFER CASE)
90430-18008 Gasket, NO.1 (FOR TRANSFER CASE)
2000-09 → 2004-08 ended
UCK45 —
90430-18008 Gasket, NO.1 (FOR TRANSFER CASE)
2004-08 → —
UCK45 —
36115C — Seal, Type T Oil (FOR TRANSFER EXTENSION HOUSING)
90311-41007 Seal, Type T Oil (FOR TRANSFER EXTENSION HOUSING)
2000-09 → 2004-08 ended
UCK45 —
36117L — Tube(FOR TRANSFER ADAPTER)
90441-05001 Tube(FOR TRANSFER ADAPTER)
2000-09 → 2004-08 ended
UCK45 —
36117N — Hose(FOR TRANSFER ADAPTER)
90904-45005 Hose(FOR TRANSFER ADAPTER)
2000-09 → 2004-08 ended
UCK45 —
36179 — Protector, Transfer Case Lower
36179-04010 Protector, Transfer Case Lower
2000-09 → 2004-08 ended
UCK45 —
36179-35020 Protector, Transfer Case Lower
2004-08 → —
UCK45 —
36179A — Bolt (FOR TRANSFER CASE LOWER PROTECTOR)
90080-11039 Bolt (FOR TRANSFER CASE LOWER PROTECTOR)
2004-04 → 2004-08 ended
UCK45 —
90080-11251 note Bolt (FOR TRANSFER CASE LOWER PROTECTOR)
2000-09 → 2002-11 ended
UCK45 —
90080-11251 Bolt (FOR TRANSFER CASE LOWER PROTECTOR)
2002-11 → 2004-03 ended
UCK45 —
91611-G0820 note Bolt (FOR TRANSFER CASE LOWER PROTECTOR)
2000-09 → 2002-11 ended
UCK45 —
91611-G0820 Bolt (FOR TRANSFER CASE LOWER PROTECTOR)
2004-03 → 2004-04 ended
UCK45 —
90080-11039 Bolt (FOR TRANSFER CASE LOWER PROTECTOR)
2004-08 → —
UCK45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
