Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

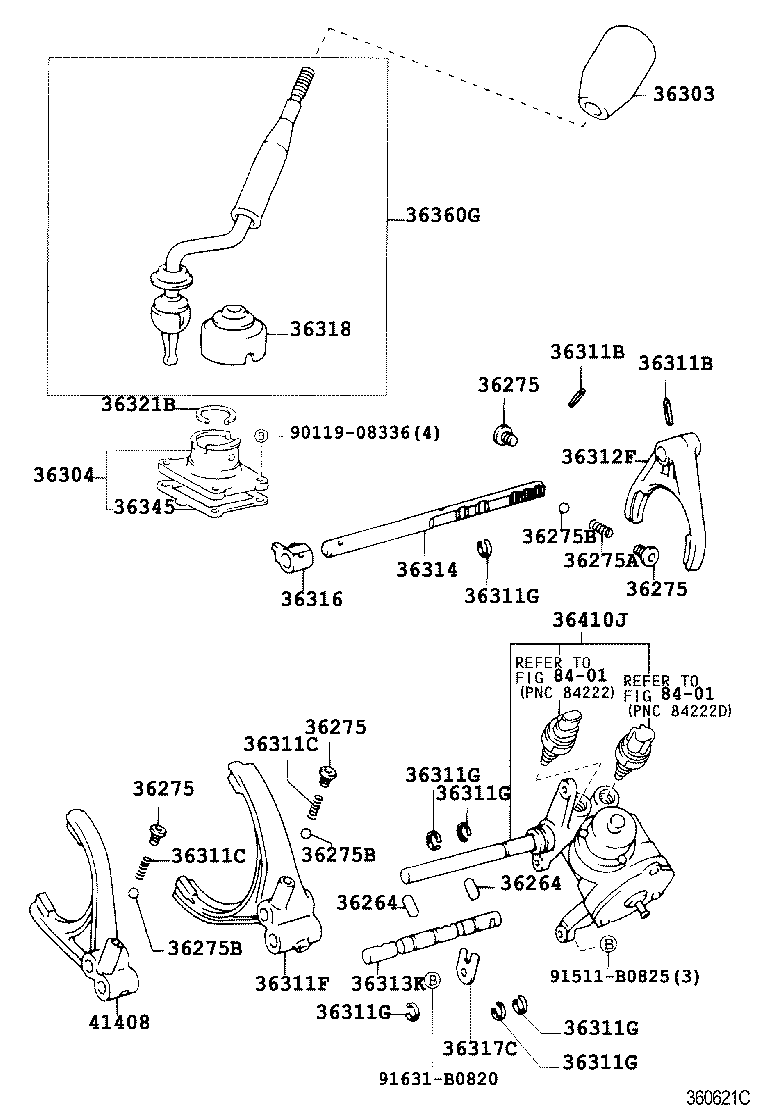

Exploded illustration 360621C 36360G — LEVER ASSY, TRANSFER HIGH & LOW SHIFT (1 parts) 36318 — BOOT, TRANSFER FRONT DRIVE SHIFT (1 parts) 36304 — RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER (1 parts) 36303 — KNOB SUB-ASSY, SHIFT LEVER (1 parts) 36313K — SHAFT, TRANSFER GEAR SHIFT FORK (2 parts) 9011908336 — not listed in this catalogue 36275 — PLUG, SHIFT DETENT BALL SPRING (1 parts) 36275 — PLUG, SHIFT DETENT BALL SPRING (1 parts) 36311B — PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) (1 parts) 36311B — PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) (1 parts) 36311F — FORK, TRANSFER GEAR SHIFT, NO.1 (2 parts) 36312F — FORK, TRANSFER GEAR SHIFT, NO.2 (2 parts) 36275B — BALL, SHIFT DETENT (1 parts) 36311C — SPRING, COMPRESION (FOR SHIFT FORK) (1 parts) 41408 — FORK SUB-ASSY, CENTER DIFFERENTIAL LOCK (1 parts) 36275B — BALL, SHIFT DETENT (1 parts) 36321B — RING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER) (1 parts) 36345 — GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER (1 parts) 36275A — SPRING, COMPRESSION (FOR SHIFT DETENT BALL) (1 parts) 36275 — PLUG, SHIFT DETENT BALL SPRING (1 parts) 36314 — SHAFT, TRANSFER HIGH AND LOW SHIFT FORK (1 parts) 36311G — RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) (2 parts) 36316 — HEAD, TRANSFER GEAR SHIFT, NO.2 (1 parts) 91511B0825 — not listed in this catalogue 36410J — ACTUATOR ASSY, TRANSFER SHIFT (4 parts) 36264 — PIN OR ROLLER, SHIFT INTER-LOCK (2 parts) 36311G — RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) (2 parts) 36275 — PLUG, SHIFT DETENT BALL SPRING (1 parts) 36311C — SPRING, COMPRESION (FOR SHIFT FORK) (1 parts) 36275B — BALL, SHIFT DETENT (1 parts) 36311G — RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) (2 parts) 36264 — PIN OR ROLLER, SHIFT INTER-LOCK (2 parts) 36317C — STOPPER, TRANSFER SHIFT SHAFT (2 parts) 36311G — RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) (2 parts) 36311G — RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) (2 parts) 36311G — RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) (2 parts) 91631B0820 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue
360621C · 34 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
30 parts on this figure
Part number Description Fitment Price
36264 — Pin OR Roller, Shift Inter-lock
90250-06007 note Pin OR Roller, Shift Inter-lock
2000-09 → 2004-08 ended
UCK45 —
90250-06007 note Pin OR Roller, Shift Inter-lock
2004-08 → —
UCK45 —
36275 — Plug, Shift Detent Ball Spring
90341-12014 Plug, Shift Detent Ball Spring
2000-09 → 2004-08 ended
UCK45 —
36275A — Spring, Compression (FOR SHIFT DETENT BALL)
90501-16116 note Spring, Compression (FOR SHIFT DETENT BALL)
2000-09 → 2004-08 ended
UCK45 —
36275B — Ball, Shift Detent
90360-10003 note Ball, Shift Detent
2000-09 → 2004-08 ended
UCK45 —
36303 — Knob Sub-assy, Shift Lever
36303-34030 Knob Sub-assy, Shift Lever
2000-09 → 2004-08 ended
UCK45 —
36304 — Retainer Sub-assy, Transfer Control Shift Lever
36304-35051 Retainer Sub-assy, Transfer Control Shift Lever
2000-09 → 2004-08 ended
UCK45 —
36311B — Pin, Slotted Spring (FOR TRANSFER SHIFT FORK)
90254-05001 note Pin, Slotted Spring (FOR TRANSFER SHIFT FORK)
2000-09 → 2004-08 ended
UCK45 —
36311C — Spring, Compresion (FOR SHIFT FORK)
90501-18091 Spring, Compresion (FOR SHIFT FORK)
2000-09 → 2004-08 ended
UCK45 —
36311F — Fork, Transfer Gear Shift, NO.1
36311-35060 Fork, Transfer Gear Shift, NO.1
2000-09 → 2004-08 ended
UCK45 —
36301-35010 Fork, Transfer Gear Shift, NO.1
2004-08 → —
UCK45 —
36311G — Ring, Shaft Snap (FOR TRANSFER GEAR SHIFT FORK)
90520-13002 Ring, Shaft Snap (FOR TRANSFER GEAR SHIFT FORK)
2000-09 → 2004-08 ended
UCK45 —
90520-13002 Ring, Shaft Snap (FOR TRANSFER GEAR SHIFT FORK)
2004-08 → —
UCK45 —
36312F — Fork, Transfer Gear Shift, NO.2
36312-35040 Fork, Transfer Gear Shift, NO.2
2000-09 → 2004-08 ended
UCK45 —
36302-35011 Fork, Transfer Gear Shift, NO.2
2004-08 → —
UCK45 —
36313K — Shaft, Transfer Gear Shift Fork
36313-35090 Shaft, Transfer Gear Shift Fork
2000-09 → 2001-04 ended
UCK45 —
36313-35091 Shaft, Transfer Gear Shift Fork
2001-04 → 2004-08 ended
UCK45 —
36314 — Shaft, Transfer High And Low Shift Fork
36314-35160 Shaft, Transfer High And Low Shift Fork
2000-09 → 2004-08 ended
UCK45 —
36316 — Head, Transfer Gear Shift, NO.2
36316-35040 Head, Transfer Gear Shift, NO.2
2000-09 → 2004-08 ended
UCK45 —
36317C — Stopper, Transfer Shift Shaft
36317-35041 Stopper, Transfer Shift Shaft
2000-09 → 2004-08 ended
UCK45 —
36317-35041 Stopper, Transfer Shift Shaft
2004-08 → —
UCK45 —
36318 — Boot, Transfer Front Drive Shift
33555-35190 Boot, Transfer Front Drive Shift
2000-09 → 2004-08 ended
UCK45 —
36321B — Ring, Hole Snap (FOR TRANSFER FRONT DRIVE SHIFT LEVER)
90520-45009 Ring, Hole Snap (FOR TRANSFER FRONT DRIVE SHIFT LEVER)
2000-09 → 2004-08 ended
UCK45 —
36345 — Gasket, Transfer Control Shift Lever Retainer
36345-35040 Gasket, Transfer Control Shift Lever Retainer
2000-09 → 2004-08 ended
UCK45 —
36360G — Lever Assy, Transfer High & Low Shift
36360-34050 Lever Assy, Transfer High & Low Shift
2000-09 → 2004-08 ended
UCK45 —
36410J — Actuator Assy, Transfer Shift
36410-34021 Actuator Assy, Transfer Shift
2000-09 → 2001-02 ended
UCK45 —
36410-34022 Actuator Assy, Transfer Shift
2001-02 → 2004-08 ended
UCK45 —
36410-35091 Actuator Assy, Transfer Shift
2004-08 → 2004-11 ended
UCK45 —
36410-35092 Actuator Assy, Transfer Shift
2004-11 → —
UCK45 —
41408 — Fork Sub-assy, Center Differential Lock
41408-35010 Fork Sub-assy, Center Differential Lock
2000-09 → 2004-08 ended
UCK45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
