Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

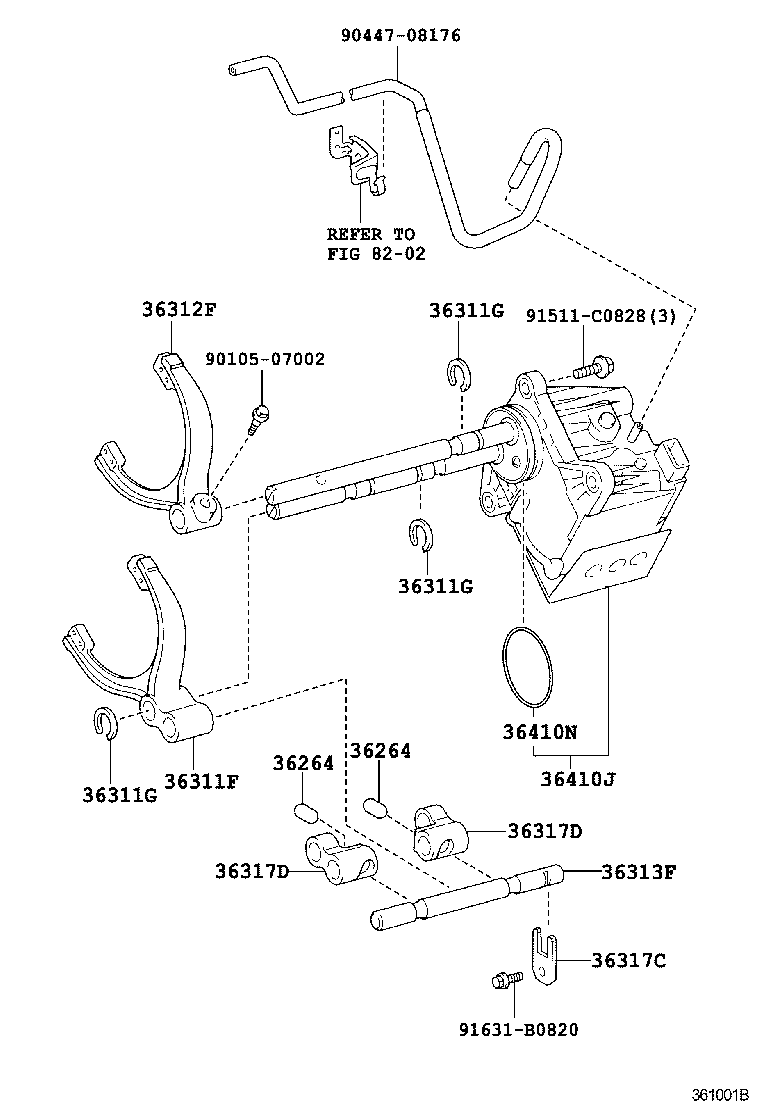

Exploded illustration 361001B 9044708176 — not listed in this catalogue 91511C0828 — not listed in this catalogue 36311G — RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) (2 parts) 36311G — RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) (2 parts) 36410J — ACTUATOR ASSY, TRANSFER SHIFT (4 parts) 36264 — PIN OR ROLLER, SHIFT INTER-LOCK (2 parts) 36317D — STOPPER, NO.2, TRANSFER SHIFT SHAFT (1 parts) 36313F — SHAFT, TRANSFER FRONT DRIVE SHIFT FORK (1 parts) 91631B0820 — not listed in this catalogue 36317D — STOPPER, NO.2, TRANSFER SHIFT SHAFT (1 parts) 36264 — PIN OR ROLLER, SHIFT INTER-LOCK (2 parts) 36311F — FORK, TRANSFER GEAR SHIFT, NO.1 (2 parts) 36311G — RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) (2 parts) 36312F — FORK, TRANSFER GEAR SHIFT, NO.2 (2 parts) 9010507002 — not listed in this catalogue 36317C — STOPPER, TRANSFER SHIFT SHAFT (2 parts) 36410N — RING, O (FOR TRANSFER SHIFT ACTUATOR) (1 parts) 8202 — not listed in this catalogue
361001B · 13 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
17 parts on this figure
Part number Description Fitment Price
36264 — Pin OR Roller, Shift Inter-lock
90250-06007 note Pin OR Roller, Shift Inter-lock
2000-09 → 2004-08 ended
UCK45 —
90250-06007 note Pin OR Roller, Shift Inter-lock
2004-08 → —
UCK45 —
36311F — Fork, Transfer Gear Shift, NO.1
36311-35060 Fork, Transfer Gear Shift, NO.1
2000-09 → 2004-08 ended
UCK45 —
36301-35010 Fork, Transfer Gear Shift, NO.1
2004-08 → —
UCK45 —
36311G — Ring, Shaft Snap (FOR TRANSFER GEAR SHIFT FORK)
90520-13002 Ring, Shaft Snap (FOR TRANSFER GEAR SHIFT FORK)
2000-09 → 2004-08 ended
UCK45 —
90520-13002 Ring, Shaft Snap (FOR TRANSFER GEAR SHIFT FORK)
2004-08 → —
UCK45 —
36312F — Fork, Transfer Gear Shift, NO.2
36312-35040 Fork, Transfer Gear Shift, NO.2
2000-09 → 2004-08 ended
UCK45 —
36302-35011 Fork, Transfer Gear Shift, NO.2
2004-08 → —
UCK45 —
36313F — Shaft, Transfer Front Drive Shift Fork
36313-35130 Shaft, Transfer Front Drive Shift Fork
2004-08 → —
UCK45 —
36317C — Stopper, Transfer Shift Shaft
36317-35041 Stopper, Transfer Shift Shaft
2000-09 → 2004-08 ended
UCK45 —
36317-35041 Stopper, Transfer Shift Shaft
2004-08 → —
UCK45 —
36317D — Stopper, NO.2, Transfer Shift Shaft
36317-35060 Stopper, NO.2, Transfer Shift Shaft
2004-08 → —
UCK45 —
36410J — Actuator Assy, Transfer Shift
36410-34021 Actuator Assy, Transfer Shift
2000-09 → 2001-02 ended
UCK45 —
36410-34022 Actuator Assy, Transfer Shift
2001-02 → 2004-08 ended
UCK45 —
36410-35091 Actuator Assy, Transfer Shift
2004-08 → 2004-11 ended
UCK45 —
36410-35092 Actuator Assy, Transfer Shift
2004-11 → —
UCK45 —
36410N — Ring, O (FOR TRANSFER SHIFT ACTUATOR)
90301-56009 Ring, O (FOR TRANSFER SHIFT ACTUATOR)
2004-08 → 2007-11 ended
UCK45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
