Toyota Sequoia
2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States
Discontinued model
Data version 2008-05

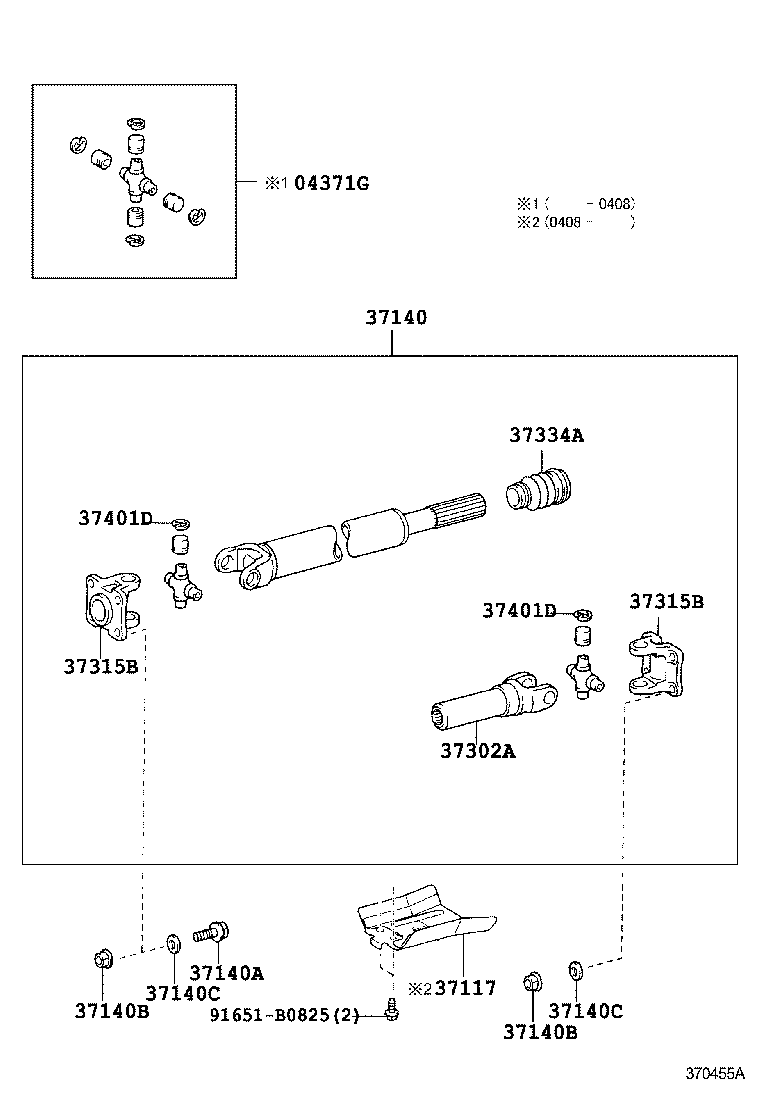

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04371G — Spider Kit, Front Propeller Shaft Universal Joint | ||||
| 04371-0C010 |
Spider Kit, Front Propeller Shaft Universal Joint
2000-09 → 2004-08
ended
|
UCK45 | — | |
| 37117 — Insulator, Propeller Shaft Heat | ||||
| 37117-34010 |
Insulator, Propeller Shaft Heat
2004-08 → —
|
UCK45 | — | |
| 37140 — Shaft Assy, Propeller, Front | ||||
| 37140-0C040 |
Shaft Assy, Propeller, Front
2000-09 → 2004-08
ended
|
UCK45 | — | |
| 37140-0C050 |
Shaft Assy, Propeller, Front
2004-08 → 2004-10
ended
|
UCK45 | — | |
| 37140-0C051 |
Shaft Assy, Propeller, Front
2004-10 → —
|
UCK45 | — | |
| 37140A — Bolt (F0R FRONT PROPELLER SHAFT) | ||||
| 90080-10294 |
Bolt (F0R FRONT PROPELLER SHAFT)
2003-01 → 2004-08
ended
|
UCK45 | — | |
| 90105-10085 |
Bolt (F0R FRONT PROPELLER SHAFT)
2000-09 → 2003-01
ended
|
UCK45 4HC | — | |
| 90080-10294 |
Bolt (F0R FRONT PROPELLER SHAFT)
2004-08 → —
|
UCK45 | — | |
| 37140B — Nut (F0R FRONT PROPELLER SHAFT) | ||||
| 90178-10013 |
Nut (F0R FRONT PROPELLER SHAFT)
2000-09 → 2004-08
ended
|
UCK45 | — | |
| 90178-10013 |
Nut (F0R FRONT PROPELLER SHAFT)
2004-08 → —
|
UCK45 | — | |
| 37140C — Washer (F0R FRONT PROPELLER SHAFT) | ||||
| 90560-10107 |
Washer (F0R FRONT PROPELLER SHAFT)
2000-09 → 2004-08
ended
|
UCK45 | — | |
| 90560-10107 |
Washer (F0R FRONT PROPELLER SHAFT)
2004-08 → —
|
UCK45 | — | |
| 37302A — Yoke Sub-assy, FR Propeller Shaft Universal J0INT Sleeve | ||||
| 37302-0C010 |
Yoke Sub-assy, FR Propeller Shaft Universal J0INT Sleeve
2000-09 → 2004-08
ended
|
UCK45 | — | |
| 37315B — Y0KE, Front Propeller Shaft Universal J0INT Flange | ||||
| 37315-04030 |
Y0KE, Front Propeller Shaft Universal J0INT Flange
2000-09 → 2004-08
ended
|
UCK45 | — | |
| 37334A — Boot, Sliding Shaft | ||||
| 37334-0C010 |
Boot, Sliding Shaft
2000-09 → 2004-08
ended
|
UCK45 | — | |
| 37401D — Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING) | ||||
| 90080-52038 note |
Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
2000-09 → 2004-08
ended
|
UCK45 | — | |
| 90080-52039 note |
Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
2000-09 → 2004-08
ended
|
UCK45 | — | |
| 90080-52040 note |
Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
2000-09 → 2004-08
ended
|
UCK45 | — | |
| 90080-52041 note |
Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
2000-09 → 2004-08
ended
|
UCK45 | — | |
| 90080-52042 note |
Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
2000-09 → 2004-08
ended
|
UCK45 | — | |
| 90080-52043 note |
Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
2000-09 → 2004-08
ended
|
UCK45 | — | |
| 90080-52044 note |
Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
2000-09 → 2004-08
ended
|
UCK45 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
