Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

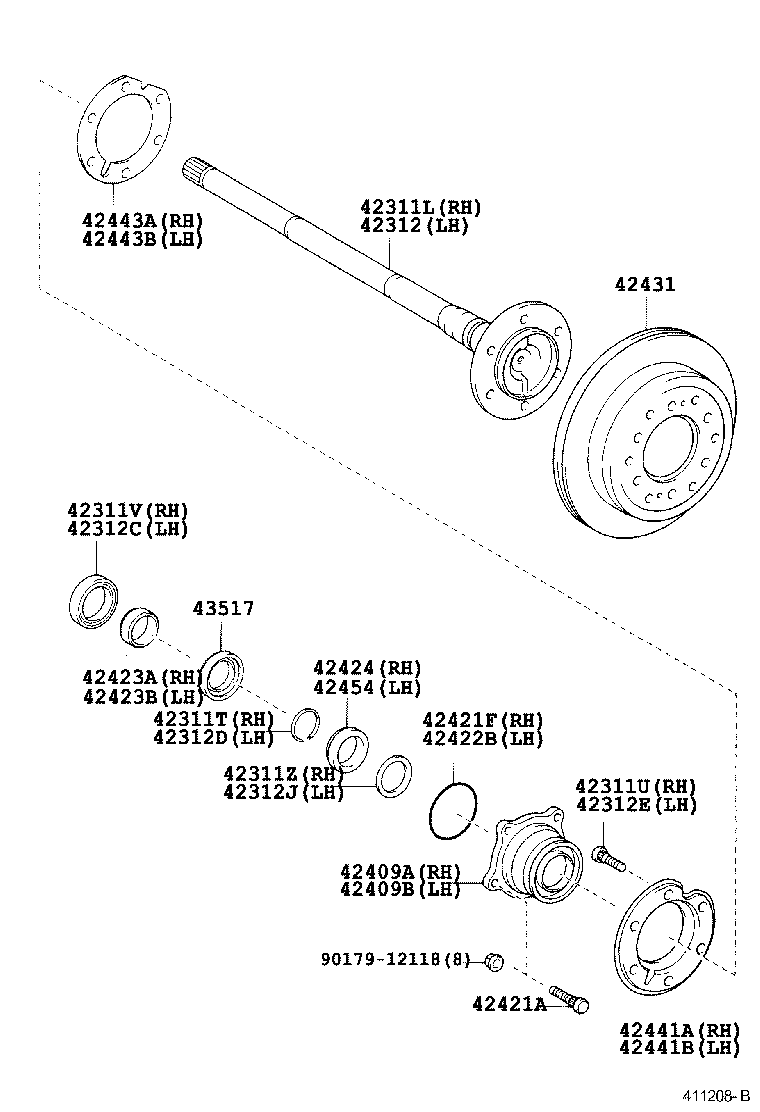

Exploded illustration 411208B 42311V — SEAL, OIL(FOR REAR AXLE SHAFT RH) (3 parts) 42312C — SEAL, OIL(FOR REAR AXLE SHAFT LH) (3 parts) 42311L — SHAFT, REAR AXLE, RH (2 parts) 42312 — SHAFT, REAR AXLE, LH (2 parts) 42312J — WASHER(FOR REAR AXLE SHAFT LH) (2 parts) 42311Z — WASHER(FOR REAR AXLE SHAFT RH) (2 parts) 42311T — RING, SNAP(FOR REAR AXLE SHAFT RH) (2 parts) 42312D — RING, SNAP(FOR REAR AXLE SHAFT LH) (2 parts) 42312E — BOLT, HUB(FOR REAR AXLE LH) (2 parts) 42311U — BOLT, HUB(FOR REAR AXLE RH) (2 parts) 42424 — RETAINER, REAR AXLE BEARING, OUTER, RH (2 parts) 42454 — RETAINER, REAR AXLE BEARING, OUTER, LH (2 parts) 42421F — RING, O (FOR REAR AXLE BEARING CASE RH) (2 parts) 42422B — RING, O (FOR REAR AXLE BEARING CASE LH) (2 parts) 42409B — BEARING SUB-ASSY, REAR AXLE, LH (2 parts) 42409A — BEARING SUB-ASSY, REAR AXLE, RH (2 parts) 42441A — DEFLECTOR, BRAKE DRUM OIL RH (2 parts) 42441B — DEFLECTOR, BRAKE DRUM OIL LH (2 parts) 42423B — RETAINER, REAR AXLE BEARING, INNER LH (2 parts) 42423A — RETAINER, REAR AXLE BEARING, INNER RH (2 parts) 43517 — ROTOR, SKID CONTROL, REAR (2 parts) 9017912118 — not listed in this catalogue 42443A — GASKET, BRAKE DRUM OIL DEFLECTOR, RH (2 parts) 42443B — GASKET, BRAKE DRUM OIL DEFLECTOR, LH (2 parts) 42431 — DISC, REAR (3 parts) 42421A — BOLT (FOR REAR AXLE BEARING CASE) (2 parts)
411208B · 25 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
53 parts on this figure
Part number Description Fitment Price
42311L — Shaft, Rear Axle, RH
42311-34050 Shaft, Rear Axle, RH
2000-09 → 2004-08 ended
UCK35,45 —
42311-34070 Shaft, Rear Axle, RH
2004-08 → —
UCK35,45 —
42311T — Ring, Snap(FOR REAR AXLE SHAFT RH)
90520-44038 Ring, Snap(FOR REAR AXLE SHAFT RH)
2000-09 → 2004-08 ended
UCK35,45 —
90520-44038 Ring, Snap(FOR REAR AXLE SHAFT RH)
2004-08 → —
UCK35,45 —
42311U — Bolt, Hub(FOR REAR AXLE RH)
90942-02052 Bolt, Hub(FOR REAR AXLE RH)
2000-09 → 2004-08 ended
UCK35,45 —
90942-02052 Bolt, Hub(FOR REAR AXLE RH)
2004-08 → —
UCK35,45 —
42311V — Seal, Oil(FOR REAR AXLE SHAFT RH)
90310-56001 Seal, Oil(FOR REAR AXLE SHAFT RH)
2000-09 → 2002-06 ended
UCK35,45 4HC —
90310-56002 Seal, Oil(FOR REAR AXLE SHAFT RH)
2002-06 → 2004-08 ended
UCK35,45 —
90310-56002 Seal, Oil(FOR REAR AXLE SHAFT RH)
2004-08 → —
UCK35,45 —
42311Z — Washer(FOR REAR AXLE SHAFT RH)
90208-48002 Washer(FOR REAR AXLE SHAFT RH)
2000-09 → 2004-08 ended
UCK35,45 —
90208-48002 Washer(FOR REAR AXLE SHAFT RH)
2004-08 → —
UCK35,45 —
42312 — Shaft, Rear Axle, LH
42311-34050 Shaft, Rear Axle, LH
2000-09 → 2004-08 ended
UCK35,45 —
42311-34070 Shaft, Rear Axle, LH
2004-08 → —
UCK35,45 —
42312C — Seal, Oil(FOR REAR AXLE SHAFT LH)
90310-56001 Seal, Oil(FOR REAR AXLE SHAFT LH)
2000-09 → 2002-06 ended
UCK35,45 4HC —
90310-56002 Seal, Oil(FOR REAR AXLE SHAFT LH)
2002-06 → 2004-08 ended
UCK35,45 —
90310-56002 Seal, Oil(FOR REAR AXLE SHAFT LH)
2004-08 → —
UCK35,45 —
42312D — Ring, Snap(FOR REAR AXLE SHAFT LH)
90520-44038 Ring, Snap(FOR REAR AXLE SHAFT LH)
2000-09 → 2004-08 ended
UCK35,45 —
90520-44038 Ring, Snap(FOR REAR AXLE SHAFT LH)
2004-08 → —
UCK35,45 —
42312E — Bolt, Hub(FOR REAR AXLE LH)
90942-02052 Bolt, Hub(FOR REAR AXLE LH)
2000-09 → 2004-08 ended
UCK35,45 —
90942-02052 Bolt, Hub(FOR REAR AXLE LH)
2004-08 → —
UCK35,45 —
42312J — Washer(FOR REAR AXLE SHAFT LH)
90208-48002 Washer(FOR REAR AXLE SHAFT LH)
2000-09 → 2004-08 ended
UCK35,45 —
90208-48002 Washer(FOR REAR AXLE SHAFT LH)
2004-08 → —
UCK35,45 —
42409A — Bearing Sub-assy, Rear Axle, RH
42409-34010 Bearing Sub-assy, Rear Axle, RH
2000-09 → 2004-08 ended
UCK35,45 —
42409-34010 Bearing Sub-assy, Rear Axle, RH
2004-08 → —
UCK35,45 —
42409B — Bearing Sub-assy, Rear Axle, LH
42409-34010 Bearing Sub-assy, Rear Axle, LH
2000-09 → 2004-08 ended
UCK35,45 —
42409-34010 Bearing Sub-assy, Rear Axle, LH
2004-08 → —
UCK35,45 —
42421A — Bolt (FOR REAR AXLE BEARING CASE)
90114-12023 Bolt (FOR REAR AXLE BEARING CASE)
2000-09 → 2004-08 ended
UCK35,45 —
90114-12023 Bolt (FOR REAR AXLE BEARING CASE)
2004-08 → —
UCK35,45 —
42421F — Ring, O (FOR REAR AXLE BEARING CASE RH)
96711-31080 Ring, O (FOR REAR AXLE BEARING CASE RH)
2000-09 → 2004-08 ended
UCK35,45 —
96711-31080 Ring, O (FOR REAR AXLE BEARING CASE RH)
2004-08 → —
UCK35,45 —
42422B — Ring, O (FOR REAR AXLE BEARING CASE LH)
96711-31080 Ring, O (FOR REAR AXLE BEARING CASE LH)
2000-09 → 2004-08 ended
UCK35,45 —
96711-31080 Ring, O (FOR REAR AXLE BEARING CASE LH)
2004-08 → —
UCK35,45 —
42423A — Retainer, Rear Axle Bearing, Inner RH
42423-34020 Retainer, Rear Axle Bearing, Inner RH
2000-09 → 2004-08 ended
UCK35,45 —
42423-34020 Retainer, Rear Axle Bearing, Inner RH
2004-08 → —
UCK35,45 —
42423B — Retainer, Rear Axle Bearing, Inner LH
42423-34020 Retainer, Rear Axle Bearing, Inner LH
2000-09 → 2004-08 ended
UCK35,45 —
42423-34020 Retainer, Rear Axle Bearing, Inner LH
2004-08 → —
UCK35,45 —
42424 — Retainer, Rear Axle Bearing, Outer, RH
42423-34010 Retainer, Rear Axle Bearing, Outer, RH
2000-09 → 2004-08 ended
UCK35,45 —
42423-34010 Retainer, Rear Axle Bearing, Outer, RH
2004-08 → —
UCK35,45 —
42431 — Disc, Rear
42431-60200 Disc, Rear
2000-09 → 2004-08 ended
UCK35,45 —
42431-60200 Disc, Rear
2004-08 → 2005-10 ended
UCK35,45 —
42431-60201 Disc, Rear
2005-10 → —
UCK35,45 —
42441A — Deflector, Brake Drum Oil RH
42441-34010 Deflector, Brake Drum Oil RH
2000-09 → 2004-08 ended
UCK35,45 —
42441-34010 Deflector, Brake Drum Oil RH
2004-08 → —
UCK35,45 —
42441B — Deflector, Brake Drum Oil LH
42441-34010 Deflector, Brake Drum Oil LH
2000-09 → 2004-08 ended
UCK35,45 —
42441-34010 Deflector, Brake Drum Oil LH
2004-08 → —
UCK35,45 —
42443A — Gasket, Brake Drum Oil Deflector, RH
42443-60010 Gasket, Brake Drum Oil Deflector, RH
2000-09 → 2004-08 ended
UCK35,45 —
42443-60010 Gasket, Brake Drum Oil Deflector, RH
2004-08 → —
UCK35,45 —
42443B — Gasket, Brake Drum Oil Deflector, LH
42443-60010 Gasket, Brake Drum Oil Deflector, LH
2000-09 → 2004-08 ended
UCK35,45 —
42443-60010 Gasket, Brake Drum Oil Deflector, LH
2004-08 → —
UCK35,45 —
42454 — Retainer, Rear Axle Bearing, Outer, LH
42423-34010 Retainer, Rear Axle Bearing, Outer, LH
2000-09 → 2004-08 ended
UCK35,45 —
42423-34010 Retainer, Rear Axle Bearing, Outer, LH
2004-08 → —
UCK35,45 —
43517 — Rotor, Skid Control, Rear
43517-34010 Rotor, Skid Control, Rear
2000-09 → 2004-08 ended
UCK35,45 —
43517-34010 Rotor, Skid Control, Rear
2004-08 → —
UCK35,45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
