Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

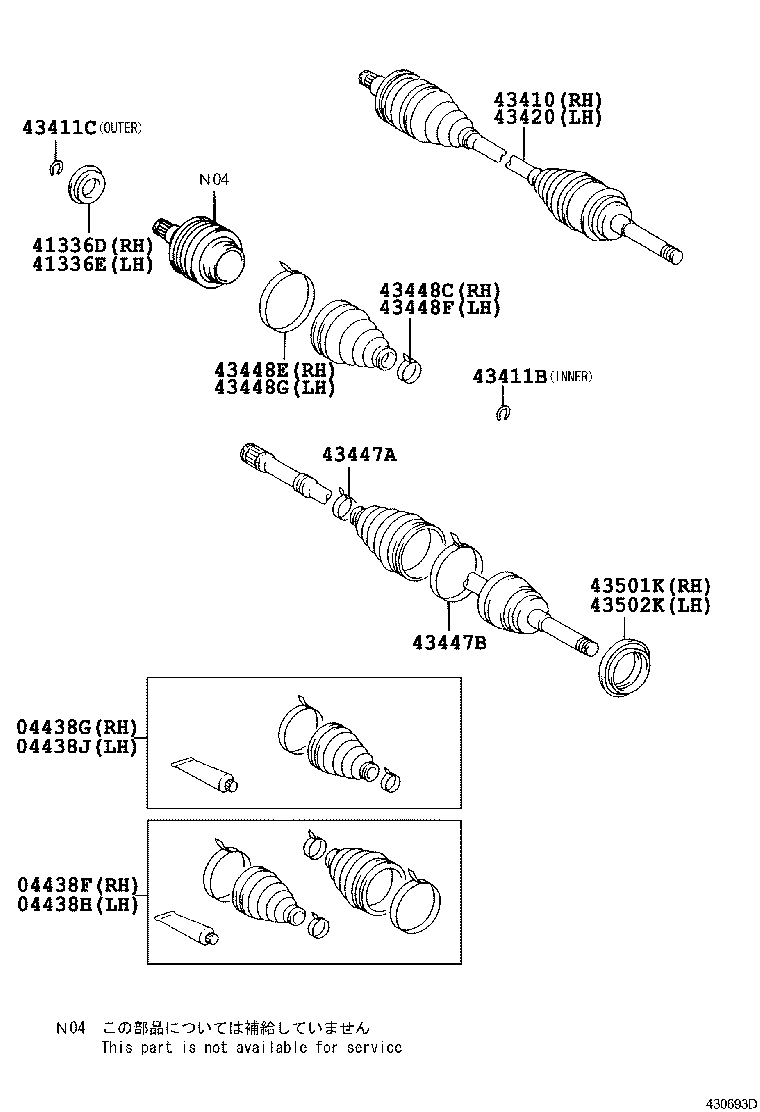

Exploded illustration 430693D 41336D — COVER, FRONT DRIVE SHAFT DUST, RH (2 parts) 41336E — COVER, FRONT DRIVE SHAFT DUST, LH (2 parts) 43410 — SHAFT ASSY, FRONT DRIVE, RH (2 parts) 43420 — SHAFT ASSY, FRONT DRIVE, LH (2 parts) 43411C — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT OUTER) (2 parts) 43447A — CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING) (2 parts) 43447B — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING) (2 parts) 43448C — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) (2 parts) 43448F — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) (2 parts) 43448E — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) (2 parts) 43448G — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) (2 parts) 43501K — SEAL, DUST (FOR FRONT AXLE HUB RH) (2 parts) 43502K — SEAL, DUST (FOR FRONT AXLE HUB LH) (2 parts) 43411B — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER) (1 parts) 04438G — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH (2 parts) 04438J — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH (2 parts) 04438F — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH (2 parts) 04438H — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH (2 parts)
430693D · 18 callouts Full size ↗
35 parts on this figure
Part number Description Fitment Price
04438F — Boot Kit, Front Drive Shaft, IN & Outboard, RH
04438-0C020 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2000-09 → 2004-08 ended
UCK45 —
04438-0C020 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2004-08 → 2007-11 ended
UCK45 —
04438G — Boot Kit, Front Drive Shaft Inboard Joint, RH
04438-0C010 Boot Kit, Front Drive Shaft Inboard Joint, RH
2000-09 → 2004-08 ended
UCK45 —
04437-0C010 Boot Kit, Front Drive Shaft Inboard Joint, RH
2004-08 → 2007-11 ended
UCK45 —
04438H — Boot Kit, Front Drive Shaft, IN & Outboard, LH
04438-0C020 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2000-09 → 2004-08 ended
UCK45 —
04438-0C020 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2004-08 → 2007-11 ended
UCK45 —
04438J — Boot Kit, Front Drive Shaft Inboard Joint, LH
04438-0C010 Boot Kit, Front Drive Shaft Inboard Joint, LH
2000-09 → 2004-08 ended
UCK45 —
04438-0C010 Boot Kit, Front Drive Shaft Inboard Joint, LH
2004-08 → 2007-11 ended
UCK45 —
41336D — Cover, Front Drive Shaft Dust, RH
41336-04010 Cover, Front Drive Shaft Dust, RH
2000-09 → 2004-08 ended
UCK45 —
41336-04010 Cover, Front Drive Shaft Dust, RH
2004-08 → —
UCK45 —
41336E — Cover, Front Drive Shaft Dust, LH
41336-04010 Cover, Front Drive Shaft Dust, LH
2000-09 → 2004-08 ended
UCK45 —
41336-04010 Cover, Front Drive Shaft Dust, LH
2004-08 → —
UCK45 —
43410 — Shaft Assy, Front Drive, RH
43430-0C010 Shaft Assy, Front Drive, RH
2000-09 → 2004-08 ended
UCK45 —
43430-0C010 Shaft Assy, Front Drive, RH
2004-08 → —
UCK45 —
43411B — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER)
43425-04010 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER)
2004-08 → —
UCK45 —
43411C — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT OUTER)
43425-04020 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT OUTER)
2000-09 → 2004-08 ended
UCK45 —
43425-04020 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT OUTER)
2004-08 → —
UCK45 —
43420 — Shaft Assy, Front Drive, LH
43430-0C010 Shaft Assy, Front Drive, LH
2000-09 → 2004-08 ended
UCK45 —
43430-0C010 Shaft Assy, Front Drive, LH
2004-08 → —
UCK45 —
43447A — Clamp, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
42345-04030 Clamp, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
2000-09 → 2004-08 ended
UCK45 —
42345-04030 Clamp, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
2004-08 → —
UCK45 —
43447B — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
42345-04040 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
2000-09 → 2004-08 ended
UCK45 —
42345-04040 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
2004-08 → —
UCK45 —
43448C — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-0C020 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2000-09 → 2004-08 ended
UCK45 —
42345-0C020 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2004-08 → —
UCK45 —
43448E — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-0C010 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2000-09 → 2004-08 ended
UCK45 —
42345-0C010 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2004-08 → —
UCK45 —
43448F — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-0C020 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2000-09 → 2004-08 ended
UCK45 —
42345-0C020 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2004-08 → —
UCK45 —
43448G — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-0C010 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2000-09 → 2004-08 ended
UCK45 —
42345-0C010 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2004-08 → —
UCK45 —
43501K — Seal, Dust (FOR FRONT AXLE HUB RH)
90080-30028 Seal, Dust (FOR FRONT AXLE HUB RH)
2003-05 → 2004-08 ended
UCK45 —
90080-30028 Seal, Dust (FOR FRONT AXLE HUB RH)
2004-08 → —
UCK45 —
43502K — Seal, Dust (FOR FRONT AXLE HUB LH)
90080-30028 Seal, Dust (FOR FRONT AXLE HUB LH)
2003-05 → 2004-08 ended
UCK45 —
90080-30028 Seal, Dust (FOR FRONT AXLE HUB LH)
2004-08 → —
UCK45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
