Toyota Sequoia
2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States
Discontinued model
Data version 2008-05

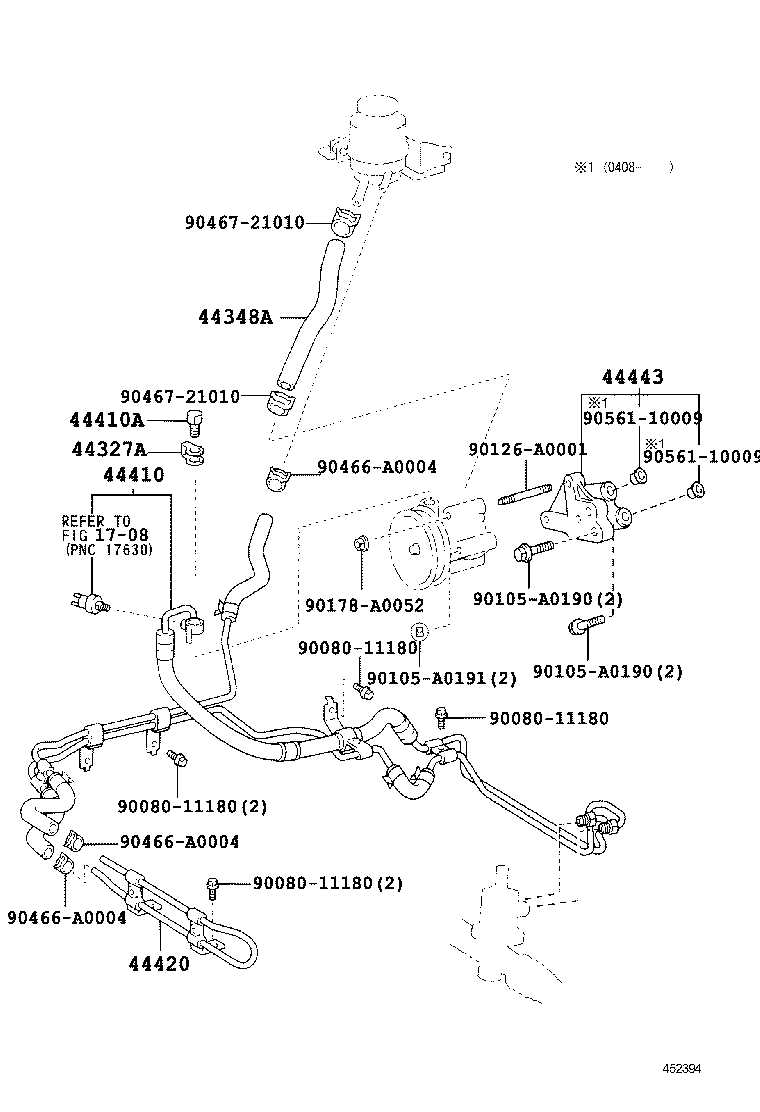

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44327A — Gasket, Pressure Port, NO.1 | ||||
| 44327-30040 |
Gasket, Pressure Port, NO.1
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 44327-30040 |
Gasket, Pressure Port, NO.1
2004-08 → —
|
UCK35,45 | — | |
| 44348A — Hose, Oil Reservoir TO Pump, NO.1 | ||||
| 44348-0C010 |
Hose, Oil Reservoir TO Pump, NO.1
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 44348-0C010 |
Hose, Oil Reservoir TO Pump, NO.1
2004-08 → —
|
UCK35,45 | — | |
| 44410 — Tube Assy, Pressure Feed | ||||
| 44410-0C030 |
Tube Assy, Pressure Feed
2000-09 → 2004-04
ended
|
UCK35,45 | — | |
| 44410-0C070 |
Tube Assy, Pressure Feed
2004-04 → 2004-08
ended
|
UCK35,45 | — | |
| 44410-0C070 |
Tube Assy, Pressure Feed
2004-08 → 2004-10
ended
|
UCK35,45 | — | |
| 44410-0C071 |
Tube Assy, Pressure Feed
2004-11 → 2005-11
ended
|
UCK35,45 | — | |
| 44410-0C072 |
Tube Assy, Pressure Feed
2005-12 → —
|
UCK35,45 | — | |
| 44410A — Bolt, Union(FOR PRESSURE FEED TUBE) | ||||
| 90401-16034 |
Bolt, Union(FOR PRESSURE FEED TUBE)
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 90401-16034 |
Bolt, Union(FOR PRESSURE FEED TUBE)
2004-08 → —
|
UCK35,45 | — | |
| 44420 — Cooler Assy, Oil | ||||
| 44420-0C010 |
Cooler Assy, Oil
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 44420-0C010 |
Cooler Assy, Oil
2004-08 → 2005-11
ended
|
UCK35,45 | — | |
| 44420-0C011 |
Cooler Assy, Oil
2005-12 → —
|
UCK35,45 | — | |
| 44443 — Bracket, Pump | ||||
| 44443-0C010 note |
Bracket, Pump
2002-09 → 2004-08
ended
|
UCK35,45 | — | |
| 44443-60100 note |
Bracket, Pump
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 44443-0C010 note |
Bracket, Pump
2004-08 → —
|
UCK35,45 | — | |
| 44443-60100 note |
Bracket, Pump
2004-08 → —
|
UCK35,45 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
