Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

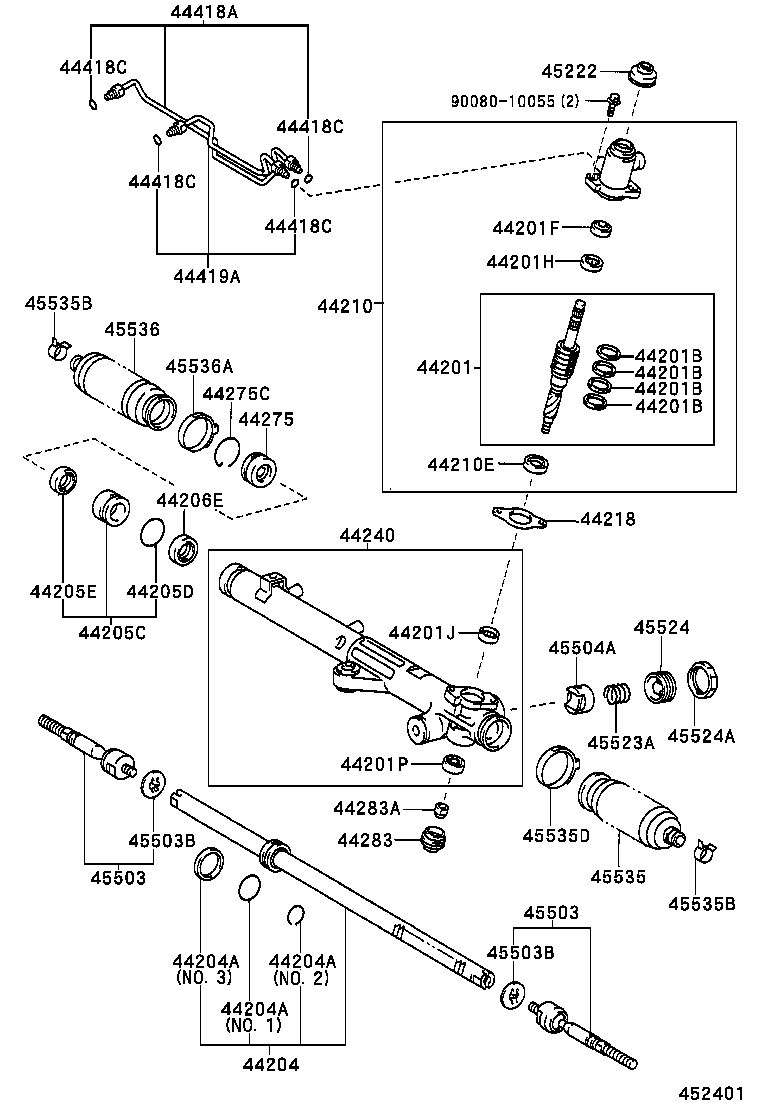

Exploded illustration 452401 44418A — TUBE, STEERING RIGHT TURN PRESSURE (2 parts) 44418C — RING, O(FOR STEERING TURN PRESSURE TUBE) (2 parts) 45222 — COVER, STEERING GEAR DUST (2 parts) 9008010055 — not listed in this catalogue 44418C — RING, O(FOR STEERING TURN PRESSURE TUBE) (2 parts) 44418C — RING, O(FOR STEERING TURN PRESSURE TUBE) (2 parts) 44418C — RING, O(FOR STEERING TURN PRESSURE TUBE) (2 parts) 44201F — SEAL, OIL(FOR POWER STEERING CONTROL VALVE) (2 parts) 44201H — BEARING(FOR POWER STEERING CONTROL VALVE UPPER) (2 parts) 44419A — TUBE, STEERING LEFT TURN PRESSURE (2 parts) 45535B — CLIP(FOR STEERING RACK BOOT) (2 parts) 44210 — VALVE ASSY, POWER STEERING CONTROL (3 parts) 45536 — BOOT, STEERING RACK, NO.2 (2 parts) 44201B — SPACER(FOR POWER STEERING CONTROL VALVE) (2 parts) 45536A — CLAMP(FOR STEERING RACK BOOT NO.2) (2 parts) 44201 — VALVE SUB-ASSY, POWER STEERING CONTROL (3 parts) 44201B — SPACER(FOR POWER STEERING CONTROL VALVE) (2 parts) 44201B — SPACER(FOR POWER STEERING CONTROL VALVE) (2 parts) 44275C — WIRE(FOR CYLINDER END STOPPER) (2 parts) 44201B — SPACER(FOR POWER STEERING CONTROL VALVE) (2 parts) 44275 — STOPPER, CYLINDER END (2 parts) 44210E — SEAL, OIL(FOR POWER STEERING CONTROL VALVE) (2 parts) 44206E — SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE) (2 parts) 44218 — GASKET, VALVE HOUSING (2 parts) 44240 — HOUSING ASSY, POWER STEERING RACK (3 parts) 44205E — SEAL, OIL(FOR POWER STEERING RACK BUSH) (2 parts) 44205D — RING, O(FOR POWER STEERING RACK BUSH) (2 parts) 45524 — CAP, STEERING RACK GUIDE SPRING (2 parts) 44205C — BUSH SUB-ASSY, POWER STEERING RACK (2 parts) 44201J — BEARING(FOR POWER STEERING CONTROL VALVE CENTER) (2 parts) 45504A — GUIDE SUB-ASSY, RACK (2 parts) 45524A — NUT(FOR STEERING RACK GUIDE SPRING CAP) (2 parts) 45523A — SPRING(FOR STEERING GEAR RACK GUIDE) (2 parts) 44201P — BEARING(FOR POWER STEERING CONTROL VALVE LOWER) (2 parts) 44283A — NUT(FOR RACK HOUSING CAP) (2 parts) 45535D — CLAMP(FOR STEERING RACK BOOT NO.1) (2 parts) 45503B — WASHER, CLAW(FOR STEERING RACK END) (2 parts) 44283 — CAP, RACK HOUSING (2 parts) 45535 — BOOT, STEERING RACK, NO.1 (2 parts) 45503 — END SUB-ASSY, STEERING RACK (3 parts) 45535B — CLIP(FOR STEERING RACK BOOT) (2 parts) 45503 — END SUB-ASSY, STEERING RACK (3 parts) 45503B — WASHER, CLAW(FOR STEERING RACK END) (2 parts) 44204A — RING(FOR RACK STEERING PISTON) (6 parts) 44204A — RING(FOR RACK STEERING PISTON) (6 parts) 44204A — RING(FOR RACK STEERING PISTON) (6 parts) 44204 — RACK SUB-ASSY, POWER STEERING (3 parts)
452401 · 46 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
79 parts on this figure
Part number Description Fitment Price
44201 — Valve Sub-assy, Power Steering Control
44201-0C020 Valve Sub-assy, Power Steering Control
2000-09 → 2002-08 ended
UCK35,45 4HC —
44201-0C021 Valve Sub-assy, Power Steering Control
2002-08 → 2004-08 ended
UCK35,45 —
44201-0C021 Valve Sub-assy, Power Steering Control
2004-08 → —
UCK35,45 —
44201B — Spacer(FOR POWER STEERING CONTROL VALVE)
90560-33003 Spacer(FOR POWER STEERING CONTROL VALVE)
2000-09 → 2004-08 ended
UCK35,45 —
90560-33003 Spacer(FOR POWER STEERING CONTROL VALVE)
2004-08 → —
UCK35,45 —
44201F — Seal, Oil(FOR POWER STEERING CONTROL VALVE)
90080-31016 Seal, Oil(FOR POWER STEERING CONTROL VALVE)
2000-09 → 2004-08 ended
UCK35,45 —
90080-31016 Seal, Oil(FOR POWER STEERING CONTROL VALVE)
2004-08 → —
UCK35,45 —
44201H — Bearing(FOR POWER STEERING CONTROL VALVE UPPER)
90080-36031 Bearing(FOR POWER STEERING CONTROL VALVE UPPER)
2000-09 → 2004-08 ended
UCK35,45 —
90080-36031 Bearing(FOR POWER STEERING CONTROL VALVE UPPER)
2004-08 → —
UCK35,45 —
44201J — Bearing(FOR POWER STEERING CONTROL VALVE CENTER)
90080-36044 Bearing(FOR POWER STEERING CONTROL VALVE CENTER)
2000-09 → 2004-08 ended
UCK35,45 —
90080-36044 Bearing(FOR POWER STEERING CONTROL VALVE CENTER)
2004-08 → —
UCK35,45 —
44201P — Bearing(FOR POWER STEERING CONTROL VALVE LOWER)
90363-15020 Bearing(FOR POWER STEERING CONTROL VALVE LOWER)
2000-09 → 2004-08 ended
UCK35,45 —
90363-15020 Bearing(FOR POWER STEERING CONTROL VALVE LOWER)
2004-08 → —
UCK35,45 —
44204 — Rack Sub-assy, Power Steering
44204-0C010 Rack Sub-assy, Power Steering
2000-09 → 2002-09 ended
UCK35,45 4HC —
44204-0C011 Rack Sub-assy, Power Steering
2002-09 → 2004-08 ended
UCK35,45 —
44204-0C011 Rack Sub-assy, Power Steering
2004-08 → —
UCK35,45 —
44204A — Ring(FOR RACK STEERING PISTON)
90080-30044 note Ring(FOR RACK STEERING PISTON)
2000-09 → 2004-08 ended
UCK35,45 —
90080-52103 note Ring(FOR RACK STEERING PISTON)
2000-09 → 2004-08 ended
UCK35,45 —
90080-56069 note Ring(FOR RACK STEERING PISTON)
2000-09 → 2004-08 ended
UCK35,45 —
90080-30044 note Ring(FOR RACK STEERING PISTON)
2004-08 → —
UCK35,45 —
90080-52103 note Ring(FOR RACK STEERING PISTON)
2004-08 → —
UCK35,45 —
90080-56069 note Ring(FOR RACK STEERING PISTON)
2004-08 → —
UCK35,45 —
44205C — Bush Sub-assy, Power Steering Rack
44205-0C010 Bush Sub-assy, Power Steering Rack
2000-09 → 2004-08 ended
UCK35,45 —
44205-0C010 Bush Sub-assy, Power Steering Rack
2004-08 → —
UCK35,45 —
44205D — Ring, O(FOR POWER STEERING RACK BUSH)
90080-30045 Ring, O(FOR POWER STEERING RACK BUSH)
2000-09 → 2004-08 ended
UCK35,45 —
90080-30045 Ring, O(FOR POWER STEERING RACK BUSH)
2004-08 → —
UCK35,45 —
44205E — Seal, Oil(FOR POWER STEERING RACK BUSH)
90080-31051 Seal, Oil(FOR POWER STEERING RACK BUSH)
2000-09 → 2004-08 ended
UCK35,45 —
90080-31051 Seal, Oil(FOR POWER STEERING RACK BUSH)
2004-08 → —
UCK35,45 —
44206E — Seal, Oil, NO.1(FOR POWER STEERING CYLINDER TUBE)
90080-31052 Seal, Oil, NO.1(FOR POWER STEERING CYLINDER TUBE)
2000-09 → 2004-08 ended
UCK35,45 —
90080-31052 Seal, Oil, NO.1(FOR POWER STEERING CYLINDER TUBE)
2004-08 → —
UCK35,45 —
44210 — Valve Assy, Power Steering Control
44210-0C020 Valve Assy, Power Steering Control
2000-09 → 2002-08 ended
UCK35,45 4HC —
44210-0C021 Valve Assy, Power Steering Control
2002-08 → 2004-08 ended
UCK35,45 —
44210-0C021 Valve Assy, Power Steering Control
2004-08 → —
UCK35,45 —
44210E — Seal, Oil(FOR POWER STEERING CONTROL VALVE)
90080-31015 Seal, Oil(FOR POWER STEERING CONTROL VALVE)
2000-09 → 2004-08 ended
UCK35,45 —
90080-31015 Seal, Oil(FOR POWER STEERING CONTROL VALVE)
2004-08 → —
UCK35,45 —
44218 — Gasket, Valve Housing
44218-06010 Gasket, Valve Housing
2000-09 → 2004-08 ended
UCK35,45 —
44218-06010 Gasket, Valve Housing
2004-08 → —
UCK35,45 —
44240 — Housing Assy, Power Steering Rack
44240-0C020 Housing Assy, Power Steering Rack
2000-09 → 2002-09 ended
UCK35,45 4HC —
44240-0C021 Housing Assy, Power Steering Rack
2002-09 → 2004-08 ended
UCK35,45 —
44240-0C021 Housing Assy, Power Steering Rack
2004-08 → —
UCK35,45 —
44275 — Stopper, Cylinder End
44275-0C010 Stopper, Cylinder End
2000-09 → 2004-08 ended
UCK35,45 —
44275-0C010 Stopper, Cylinder End
2004-08 → —
UCK35,45 —
44275C — Wire(FOR CYLINDER END STOPPER)
90080-58124 Wire(FOR CYLINDER END STOPPER)
2000-09 → 2004-08 ended
UCK35,45 —
90080-58124 Wire(FOR CYLINDER END STOPPER)
2004-08 → —
UCK35,45 —
44283 — Cap, Rack Housing
44283-0C010 Cap, Rack Housing
2000-09 → 2004-08 ended
UCK35,45 —
44283-0C010 Cap, Rack Housing
2004-08 → —
UCK35,45 —
44283A — Nut(FOR RACK HOUSING CAP)
90080-18044 Nut(FOR RACK HOUSING CAP)
2000-09 → 2004-08 ended
UCK35,45 —
90080-18044 Nut(FOR RACK HOUSING CAP)
2004-08 → —
UCK35,45 —
44418A — Tube, Steering Right Turn Pressure
44418-0C010 Tube, Steering Right Turn Pressure
2000-09 → 2004-08 ended
UCK35,45 —
44418-0C010 Tube, Steering Right Turn Pressure
2004-08 → —
UCK35,45 —
44418C — Ring, O(FOR STEERING TURN PRESSURE TUBE)
90080-30046 Ring, O(FOR STEERING TURN PRESSURE TUBE)
2000-09 → 2004-08 ended
UCK35,45 —
90080-30046 Ring, O(FOR STEERING TURN PRESSURE TUBE)
2004-08 → —
UCK35,45 —
44419A — Tube, Steering Left Turn Pressure
44419-0C010 Tube, Steering Left Turn Pressure
2000-09 → 2004-08 ended
UCK35,45 —
44419-0C010 Tube, Steering Left Turn Pressure
2004-08 → —
UCK35,45 —
45222 — Cover, Steering Gear Dust
45222-0C010 Cover, Steering Gear Dust
2000-09 → 2004-08 ended
UCK35,45 —
45222-0C010 Cover, Steering Gear Dust
2004-08 → —
UCK35,45 —
45503 — End Sub-assy, Steering Rack
45503-09120 End Sub-assy, Steering Rack
2000-09 → 2002-09 ended
UCK35,45 4HC —
45503-09240 End Sub-assy, Steering Rack
2002-09 → 2004-08 ended
UCK35,45 —
45503-09240 End Sub-assy, Steering Rack
2004-08 → —
UCK35,45 —
45503B — Washer, Claw(FOR STEERING RACK END)
90080-21012 note Washer, Claw(FOR STEERING RACK END)
2000-09 → 2004-08 ended
UCK35,45 —
90080-21012 note Washer, Claw(FOR STEERING RACK END)
2004-08 → —
UCK35,45 —
45504A — Guide Sub-assy, Rack
45504-34030 Guide Sub-assy, Rack
2000-09 → 2004-08 ended
UCK35,45 —
45504-34030 Guide Sub-assy, Rack
2004-08 → —
UCK35,45 —
45523A — Spring(FOR STEERING GEAR RACK GUIDE)
90080-50295 Spring(FOR STEERING GEAR RACK GUIDE)
2000-09 → 2004-08 ended
UCK35,45 —
90080-50295 Spring(FOR STEERING GEAR RACK GUIDE)
2004-08 → —
UCK35,45 —
45524 — Cap, Steering Rack Guide Spring
45524-34020 Cap, Steering Rack Guide Spring
2000-09 → 2004-08 ended
UCK35,45 —
45524-34020 Cap, Steering Rack Guide Spring
2004-08 → —
UCK35,45 —
45524A — Nut(FOR STEERING RACK GUIDE SPRING CAP)
90080-17168 Nut(FOR STEERING RACK GUIDE SPRING CAP)
2000-09 → 2004-08 ended
UCK35,45 —
90080-17168 Nut(FOR STEERING RACK GUIDE SPRING CAP)
2004-08 → —
UCK35,45 —
45535 — Boot, Steering Rack, NO.1
45536-0C010 Boot, Steering Rack, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
45536-0C010 Boot, Steering Rack, NO.1
2004-08 → —
UCK35,45 —
45535B — Clip(FOR STEERING RACK BOOT)
90080-46270 Clip(FOR STEERING RACK BOOT)
2000-09 → 2004-08 ended
UCK35,45 —
90080-46270 Clip(FOR STEERING RACK BOOT)
2004-08 → —
UCK35,45 —
45535D — Clamp(FOR STEERING RACK BOOT NO.1)
90080-46272 Clamp(FOR STEERING RACK BOOT NO.1)
2000-09 → 2004-08 ended
UCK35,45 —
90080-46272 Clamp(FOR STEERING RACK BOOT NO.1)
2004-08 → —
UCK35,45 —
45536 — Boot, Steering Rack, NO.2
45535-0C010 Boot, Steering Rack, NO.2
2000-09 → 2004-08 ended
UCK35,45 —
45535-0C010 Boot, Steering Rack, NO.2
2004-08 → —
UCK35,45 —
45536A — Clamp(FOR STEERING RACK BOOT NO.2)
90080-46271 Clamp(FOR STEERING RACK BOOT NO.2)
2000-09 → 2004-08 ended
UCK35,45 —
90080-46271 Clamp(FOR STEERING RACK BOOT NO.2)
2004-08 → —
UCK35,45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
