Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

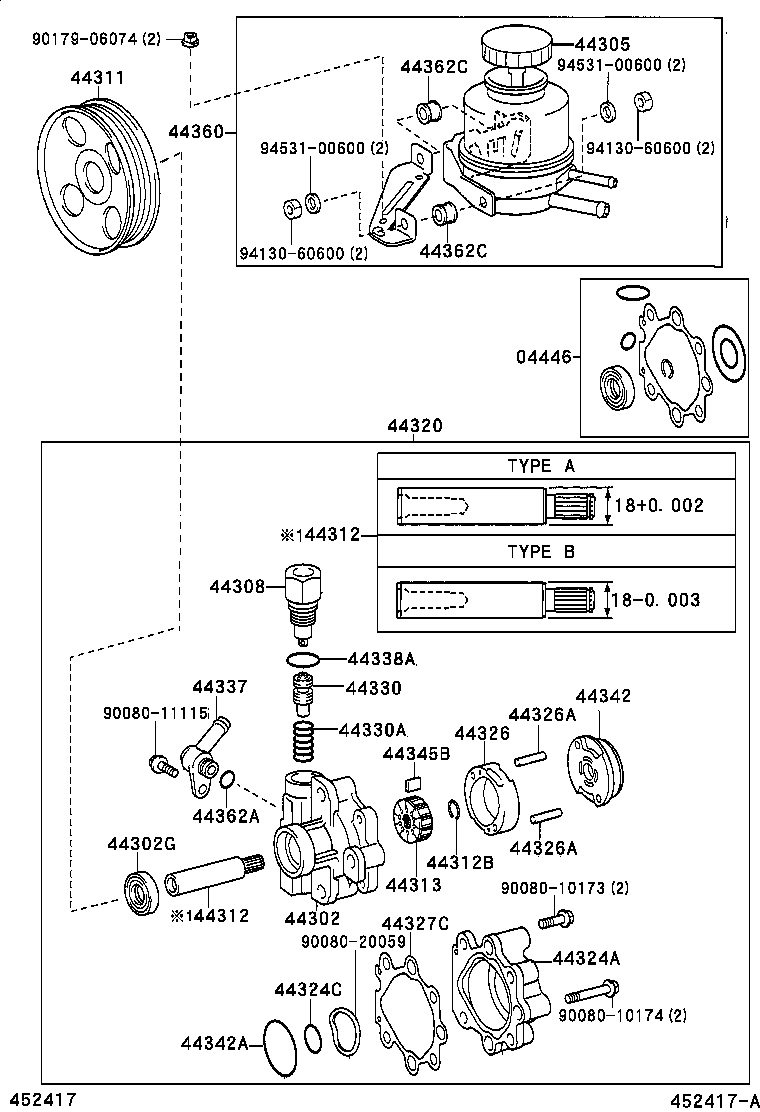

Exploded illustration 452417A 9017906074 — not listed in this catalogue 44305 — CAP SUB-ASSY, VANE PUMP OIL RESERVOIR (3 parts) 9453100600 — not listed in this catalogue 44362C — CUSHION(FOR VANE PUMP OIL RESERVOIR) (1 parts) 44311 — PULLEY, VANE PUMP (2 parts) 44360 — RESERVOIR ASSY, VANE PUMP OIL (2 parts) 9453100600 — not listed in this catalogue 9413060600 — not listed in this catalogue 44362C — CUSHION(FOR VANE PUMP OIL RESERVOIR) (1 parts) 9413060600 — not listed in this catalogue 04446 — GASKET KIT, POWER STEERING PUMP (2 parts) 44320 — PUMP ASSY, VANE (2 parts) 44312 — SHAFT, VANE PUMP (3 parts) 44308 — UNION SUB-ASSY, PRESSURE PORT (1 parts) 44338A — RING, O(FOR PRESSURE PORT UNION) (2 parts) 44337 — UNION, POWER STEERING SUCTION PORT (2 parts) 44330 — VALVE ASSY, FLOW CONTROL (6 parts) 44342 — PLATE, VANE PUMP SIDE, REAR (1 parts) 9008011115 — not listed in this catalogue 44326A — PIN, STRAIGHT(FOR VANE PUMP CAM RING) (1 parts) 44330A — SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) (1 parts) 44326 — RING, CAM(FOR VANE PUMP) (5 parts) 44345B — PLATE, VANE PUMP (5 parts) 44362A — RING, O(FOR VANE PUMP OIL RESERVOIR) (2 parts) 44302G — SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) (2 parts) 44326A — PIN, STRAIGHT(FOR VANE PUMP CAM RING) (1 parts) 44312B — RING, SNAP, NO.1(FOR VANE PUMP SHAFT) (2 parts) 44313 — ROTOR, VANE PUMP (5 parts) 9008010173 — not listed in this catalogue 44312 — SHAFT, VANE PUMP (3 parts) 44302 — HOUSING SUB-ASSY, VANE PUMP, FRONT (1 parts) 44327C — GASKET, VANE PUMP HOUSING (2 parts) 9008020059 — not listed in this catalogue 44324A — HOUSING, PUMP, REAR (1 parts) 44324C — RING, O(FOR PUMP HOUSING REAR) (2 parts) 9008010174 — not listed in this catalogue 44342A — RING, O(FOR VANE PUMP SIDE PLATE REAR) (2 parts)
452417A · 28 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
58 parts on this figure
Part number Description Fitment Price
04446 — Gasket Kit, Power Steering Pump
04446-04010 Gasket Kit, Power Steering Pump
2000-09 → 2004-08 ended
UCK35,45 —
04446-04010 Gasket Kit, Power Steering Pump
2004-08 → —
UCK35,45 —
44302 — Housing Sub-assy, Vane Pump, Front
44302-0C010 Housing Sub-assy, Vane Pump, Front
2000-09 → 2004-08 ended
UCK35,45 —
44302G — Seal, Oil, NO.2(FOR VANE PUMP HOUSING)
90080-31020 Seal, Oil, NO.2(FOR VANE PUMP HOUSING)
2000-09 → 2004-08 ended
UCK35,45 —
90080-31020 Seal, Oil, NO.2(FOR VANE PUMP HOUSING)
2004-08 → —
UCK35,45 —
44305 — Cap Sub-assy, Vane Pump Oil Reservoir
44305-28020 Cap Sub-assy, Vane Pump Oil Reservoir
2000-09 → 2004-08 ended
UCK35,45 —
44305-0C010 Cap Sub-assy, Vane Pump Oil Reservoir
2004-08 → 2007-09 ended
UCK35,45 —
44305-0C030 Cap Sub-assy, Vane Pump Oil Reservoir
2007-10 → —
UCK35,45 —
44308 — Union Sub-assy, Pressure Port
44308-0C020 Union Sub-assy, Pressure Port
2000-09 → 2004-08 ended
UCK35,45 —
44311 — Pulley, Vane Pump
44311-0C020 Pulley, Vane Pump
2000-09 → 2004-08 ended
UCK35,45 —
44311-0C020 Pulley, Vane Pump
2004-08 → —
UCK35,45 —
44312 — Shaft, Vane Pump
44312-0C010 note Shaft, Vane Pump
2000-09 → 2004-08 ended
UCK35,45 —
44312-0C020 note Shaft, Vane Pump
2000-09 → 2001-10 ended
UCK35,45 4HC —
44312-0C010 Shaft, Vane Pump
2004-08 → —
UCK35,45 —
44312B — Ring, Snap, NO.1(FOR VANE PUMP SHAFT)
90080-52033 Ring, Snap, NO.1(FOR VANE PUMP SHAFT)
2000-09 → 2004-08 ended
UCK35,45 —
90080-52033 Ring, Snap, NO.1(FOR VANE PUMP SHAFT)
2004-08 → —
UCK35,45 —
44313 — Rotor, Vane Pump
44313-06010 note Rotor, Vane Pump
2000-09 → 2004-08 ended
UCK35,45 —
44313-06020 note Rotor, Vane Pump
2000-09 → 2004-08 ended
UCK35,45 —
44313-06030 note Rotor, Vane Pump
2000-09 → 2004-08 ended
UCK35,45 —
44313-06040 note Rotor, Vane Pump
2000-09 → 2004-08 ended
UCK35,45 —
44313-06050 note Rotor, Vane Pump
2000-09 → 2004-08 ended
UCK35,45 —
44320 — Pump Assy, Vane
44320-0C030 Pump Assy, Vane
2000-09 → 2004-08 ended
UCK35,45 —
44310-0C030 Pump Assy, Vane
2004-08 → —
UCK35,45 —
44324A — Housing, Pump, Rear
44324-04010 Housing, Pump, Rear
2000-09 → 2004-08 ended
UCK35,45 —
44324C — Ring, O(FOR PUMP HOUSING REAR)
90080-30031 Ring, O(FOR PUMP HOUSING REAR)
2000-09 → 2004-08 ended
UCK35,45 —
90080-30031 Ring, O(FOR PUMP HOUSING REAR)
2004-08 → —
UCK35,45 —
44326 — Ring, Cam(FOR VANE PUMP)
44325-0C010 note Ring, Cam(FOR VANE PUMP)
2000-09 → 2004-08 ended
UCK35,45 —
44325-0C020 note Ring, Cam(FOR VANE PUMP)
2000-09 → 2004-08 ended
UCK35,45 —
44325-0C030 note Ring, Cam(FOR VANE PUMP)
2000-09 → 2004-08 ended
UCK35,45 —
44325-0C040 note Ring, Cam(FOR VANE PUMP)
2000-09 → 2004-08 ended
UCK35,45 —
44325-0C050 note Ring, Cam(FOR VANE PUMP)
2000-09 → 2004-08 ended
UCK35,45 —
44326A — Pin, Straight(FOR VANE PUMP CAM RING)
90080-25024 note Pin, Straight(FOR VANE PUMP CAM RING)
2000-09 → 2004-08 ended
UCK35,45 —
44327C — Gasket, Vane Pump Housing
44327-04010 Gasket, Vane Pump Housing
2000-09 → 2004-08 ended
UCK35,45 —
44327-04010 Gasket, Vane Pump Housing
2004-08 → —
UCK35,45 —
44330 — Valve Assy, Flow Control
44330-06190 note Valve Assy, Flow Control
2000-09 → 2004-08 ended
UCK35,45 —
44330-06200 note Valve Assy, Flow Control
2000-09 → 2004-08 ended
UCK35,45 —
44330-06210 note Valve Assy, Flow Control
2000-09 → 2004-08 ended
UCK35,45 —
44330-06220 note Valve Assy, Flow Control
2000-09 → 2004-08 ended
UCK35,45 —
44330-06230 note Valve Assy, Flow Control
2000-09 → 2004-08 ended
UCK35,45 —
44330-06240 note Valve Assy, Flow Control
2000-09 → 2004-08 ended
UCK35,45 —
44330A — Spring, Compression(FOR FLOW CONTROL VALVE)
90080-50221 Spring, Compression(FOR FLOW CONTROL VALVE)
2000-09 → 2004-08 ended
UCK35,45 —
44337 — Union, Power Steering Suction Port
44337-0C010 Union, Power Steering Suction Port
2000-09 → 2004-08 ended
UCK35,45 —
44337-0C010 Union, Power Steering Suction Port
2004-08 → —
UCK35,45 —
44338A — Ring, O(FOR PRESSURE PORT UNION)
90080-30035 Ring, O(FOR PRESSURE PORT UNION)
2000-09 → 2004-08 ended
UCK35,45 —
90080-30035 Ring, O(FOR PRESSURE PORT UNION)
2004-08 → —
UCK35,45 —
44342 — Plate, Vane Pump Side, Rear
44342-0C010 Plate, Vane Pump Side, Rear
2000-09 → 2004-08 ended
UCK35,45 —
44342A — Ring, O(FOR VANE PUMP SIDE PLATE REAR)
90080-30032 Ring, O(FOR VANE PUMP SIDE PLATE REAR)
2000-09 → 2004-08 ended
UCK35,45 —
90080-30032 Ring, O(FOR VANE PUMP SIDE PLATE REAR)
2004-08 → —
UCK35,45 —
44345B — Plate, Vane Pump
44345-04010 note Plate, Vane Pump
2000-09 → 2004-08 ended
UCK35,45 —
44345-04020 note Plate, Vane Pump
2000-09 → 2004-08 ended
UCK35,45 —
44345-04030 note Plate, Vane Pump
2000-09 → 2004-08 ended
UCK35,45 —
44345-04040 note Plate, Vane Pump
2000-09 → 2004-08 ended
UCK35,45 —
44345-04050 note Plate, Vane Pump
2000-09 → 2004-08 ended
UCK35,45 —
44360 — Reservoir Assy, Vane Pump Oil
44360-34010 Reservoir Assy, Vane Pump Oil
2000-09 → 2004-08 ended
UCK35,45 —
44360-0C030 Reservoir Assy, Vane Pump Oil
2004-08 → —
UCK35,45 —
44362A — Ring, O(FOR VANE PUMP OIL RESERVOIR)
90080-30034 Ring, O(FOR VANE PUMP OIL RESERVOIR)
2000-09 → 2004-08 ended
UCK35,45 —
90080-30034 Ring, O(FOR VANE PUMP OIL RESERVOIR)
2004-08 → —
UCK35,45 —
44362C — Cushion(FOR VANE PUMP OIL RESERVOIR)
44479-34010 Cushion(FOR VANE PUMP OIL RESERVOIR)
2000-09 → 2004-08 ended
UCK35,45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
