Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

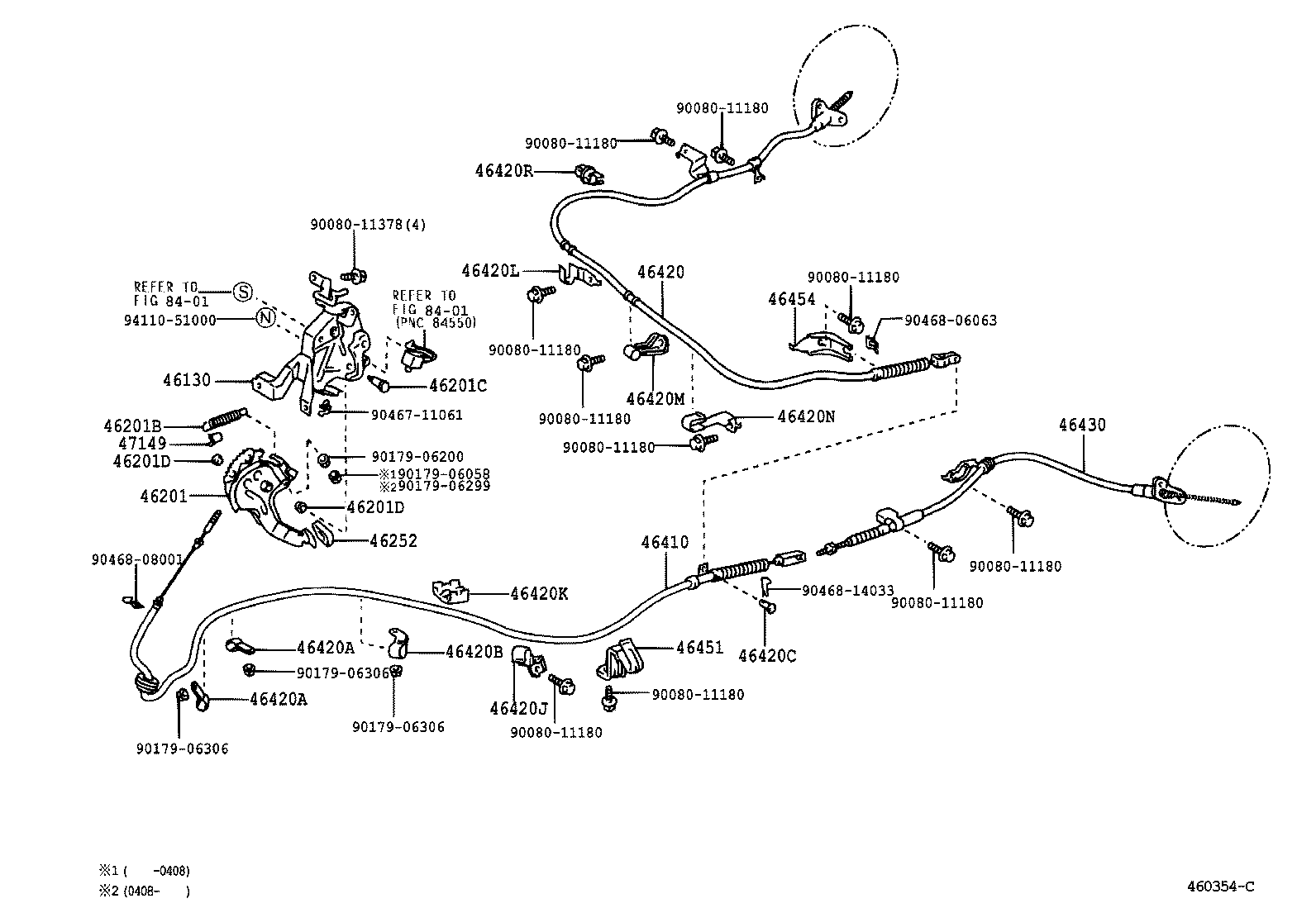

Exploded illustration 460354C 9008011180 — not listed in this catalogue 9008011180 — not listed in this catalogue 9008011378 — not listed in this catalogue 46420R — CLAMP, NO.8(FOR PARKING BRAKE CABLE) (2 parts) 9008011180 — not listed in this catalogue 9411051000 — not listed in this catalogue 9008011180 — not listed in this catalogue 46420L — CLAMP, NO.5(FOR PARKING BRAKE CABLE) (2 parts) 9008011180 — not listed in this catalogue 46420 — CABLE ASSY, PARKING BRAKE, NO.2 (2 parts) 46454 — BRACKET, CABLE RETAINER, FRONT (2 parts) 9008011180 — not listed in this catalogue 9046806063 — not listed in this catalogue 46130 — BRACKET ASSY, PARKING BRAKE PEDAL (2 parts) 46201B — SPRING, TENSION (2 parts) 9046711061 — not listed in this catalogue 46201C — SHAFT, PEDAL (2 parts) 9008011180 — not listed in this catalogue 46420M — CLAMP, NO.6(FOR PARKING BRAKE CABLE) (2 parts) 46420N — CLAMP, NO.7(FOR PARKING BRAKE CABLE) (2 parts) 46430 — CABLE ASSY, PARKING BRAKE, NO.3 (2 parts) 47149 — DAMPER, RETURN SPRING (2 parts) 46201D — BUSH(FOR PARKING BRAKE PEDAL) (2 parts) 46201 — PEDAL SUB-ASSY, PARKING BRAKE (2 parts) 46201D — BUSH(FOR PARKING BRAKE PEDAL) (2 parts) 9017906200 — not listed in this catalogue 9017906058 — not listed in this catalogue 9008011180 — not listed in this catalogue 9046808001 — not listed in this catalogue 46252 — PAD, PARKING PEDAL (2 parts) 46420A — CLAMP, NO.1(FOR PARKING BRAKE CABLE) (2 parts) 9017906306 — not listed in this catalogue 46420B — CLAMP, NO.2(FOR PARKING BRAKE CABLE) (2 parts) 46420K — CLAMP, NO.4(FOR PARKING BRAKE CABLE) (2 parts) 46410 — CABLE ASSY, PARKING BRAKE, NO.1 (2 parts) 46451 — BRACKET, CABLE SUPPORT (2 parts) 46420C — PIN, W/HOLE(FOR PARKING BRAKE CABLE) (2 parts) 9046814033 — not listed in this catalogue 9008011180 — not listed in this catalogue 9008011180 — not listed in this catalogue 9017906306 — not listed in this catalogue 46420A — CLAMP, NO.1(FOR PARKING BRAKE CABLE) (2 parts) 9017906306 — not listed in this catalogue 46420J — CLAMP, NO.3(FOR PARKING BRAKE CABLE) (2 parts) 8401 — not listed in this catalogue 8401 — not listed in this catalogue 9017906299 — not listed in this catalogue
460354C · 23 callouts, 24 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
42 parts on this figure
Part number Description Fitment Price
46130 — Bracket Assy, Parking Brake Pedal
46130-34020 Bracket Assy, Parking Brake Pedal
2000-09 → 2004-08 ended
UCK35,45 —
46130-34020 Bracket Assy, Parking Brake Pedal
2004-08 → —
UCK35,45 —
46201 — Pedal Sub-assy, Parking Brake
46210-34010 Pedal Sub-assy, Parking Brake
2000-09 → 2004-08 ended
UCK35,45 —
46210-34010 Pedal Sub-assy, Parking Brake
2004-08 → —
UCK35,45 —
46201B — Spring, Tension
90506-19005 Spring, Tension
2000-09 → 2004-08 ended
UCK35,45 —
90506-19005 Spring, Tension
2004-08 → —
UCK35,45 —
46201C — Shaft, Pedal
90109-10033 Shaft, Pedal
2000-09 → 2004-08 ended
UCK35,45 —
90109-10033 Shaft, Pedal
2004-08 → —
UCK35,45 —
46201D — Bush(FOR PARKING BRAKE PEDAL)
90386-16022 Bush(FOR PARKING BRAKE PEDAL)
2000-09 → 2004-08 ended
UCK35,45 —
90386-16022 Bush(FOR PARKING BRAKE PEDAL)
2004-08 → —
UCK35,45 —
46252 — Pad, Parking Pedal
46252-33010 Pad, Parking Pedal
2000-09 → 2004-08 ended
UCK35,45 —
46252-33010 Pad, Parking Pedal
2004-08 → —
UCK35,45 —
46410 — Cable Assy, Parking Brake, NO.1
46410-34100 Cable Assy, Parking Brake, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
46410-34150 Cable Assy, Parking Brake, NO.1
2004-08 → —
UCK35,45 —
46420 — Cable Assy, Parking Brake, NO.2
46420-34060 Cable Assy, Parking Brake, NO.2
2000-09 → 2004-08 ended
UCK35,45 —
46420-34080 Cable Assy, Parking Brake, NO.2
2004-08 → —
UCK35,45 —
46420A — Clamp, NO.1(FOR PARKING BRAKE CABLE)
46411-34020 Clamp, NO.1(FOR PARKING BRAKE CABLE)
2000-09 → 2004-08 ended
UCK35,45 —
46411-34020 Clamp, NO.1(FOR PARKING BRAKE CABLE)
2004-08 → —
UCK35,45 —
46420B — Clamp, NO.2(FOR PARKING BRAKE CABLE)
46411-34030 Clamp, NO.2(FOR PARKING BRAKE CABLE)
2000-09 → 2004-08 ended
UCK35,45 —
46411-34030 Clamp, NO.2(FOR PARKING BRAKE CABLE)
2004-08 → —
UCK35,45 —
46420C — Pin, W/Hole(FOR PARKING BRAKE CABLE)
90240-08059 Pin, W/Hole(FOR PARKING BRAKE CABLE)
2000-09 → 2004-08 ended
UCK35,45 —
90240-08059 Pin, W/Hole(FOR PARKING BRAKE CABLE)
2004-08 → —
UCK35,45 —
46420J — Clamp, NO.3(FOR PARKING BRAKE CABLE)
46411-34040 Clamp, NO.3(FOR PARKING BRAKE CABLE)
2000-09 → 2004-08 ended
UCK35,45 —
46411-34040 Clamp, NO.3(FOR PARKING BRAKE CABLE)
2004-08 → —
UCK35,45 —
46420K — Clamp, NO.4(FOR PARKING BRAKE CABLE)
46411-0C010 Clamp, NO.4(FOR PARKING BRAKE CABLE)
2000-09 → 2004-08 ended
UCK35,45 —
46411-0C010 Clamp, NO.4(FOR PARKING BRAKE CABLE)
2004-08 → —
UCK35,45 —
46420L — Clamp, NO.5(FOR PARKING BRAKE CABLE)
46421-34030 Clamp, NO.5(FOR PARKING BRAKE CABLE)
2000-09 → 2004-08 ended
UCK35,45 —
46421-34030 Clamp, NO.5(FOR PARKING BRAKE CABLE)
2004-08 → —
UCK35,45 —
46420M — Clamp, NO.6(FOR PARKING BRAKE CABLE)
46421-34040 Clamp, NO.6(FOR PARKING BRAKE CABLE)
2000-09 → 2004-08 ended
UCK35,45 —
46421-34040 Clamp, NO.6(FOR PARKING BRAKE CABLE)
2004-08 → —
UCK35,45 —
46420N — Clamp, NO.7(FOR PARKING BRAKE CABLE)
46421-34050 Clamp, NO.7(FOR PARKING BRAKE CABLE)
2000-09 → 2004-08 ended
UCK35,45 —
46421-34050 Clamp, NO.7(FOR PARKING BRAKE CABLE)
2004-08 → —
UCK35,45 —
46420R — Clamp, NO.8(FOR PARKING BRAKE CABLE)
46421-34060 Clamp, NO.8(FOR PARKING BRAKE CABLE)
2000-09 → 2004-08 ended
UCK35,45 —
46421-34060 Clamp, NO.8(FOR PARKING BRAKE CABLE)
2004-08 → —
UCK35,45 —
46430 — Cable Assy, Parking Brake, NO.3
46430-34040 Cable Assy, Parking Brake, NO.3
2000-09 → 2004-08 ended
UCK35,45 —
46430-34060 Cable Assy, Parking Brake, NO.3
2004-08 → —
UCK35,45 —
46451 — Bracket, Cable Support
46451-34030 Bracket, Cable Support
2000-09 → 2004-08 ended
UCK35,45 —
46451-34030 Bracket, Cable Support
2004-08 → —
UCK35,45 —
46454 — Bracket, Cable Retainer, Front
46454-34040 Bracket, Cable Retainer, Front
2000-09 → 2004-08 ended
UCK35,45 —
46454-34040 Bracket, Cable Retainer, Front
2004-08 → —
UCK35,45 —
47149 — Damper, Return Spring
47149-22010 Damper, Return Spring
2000-09 → 2004-08 ended
UCK35,45 —
47149-22010 Damper, Return Spring
2004-08 → —
UCK35,45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
