Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

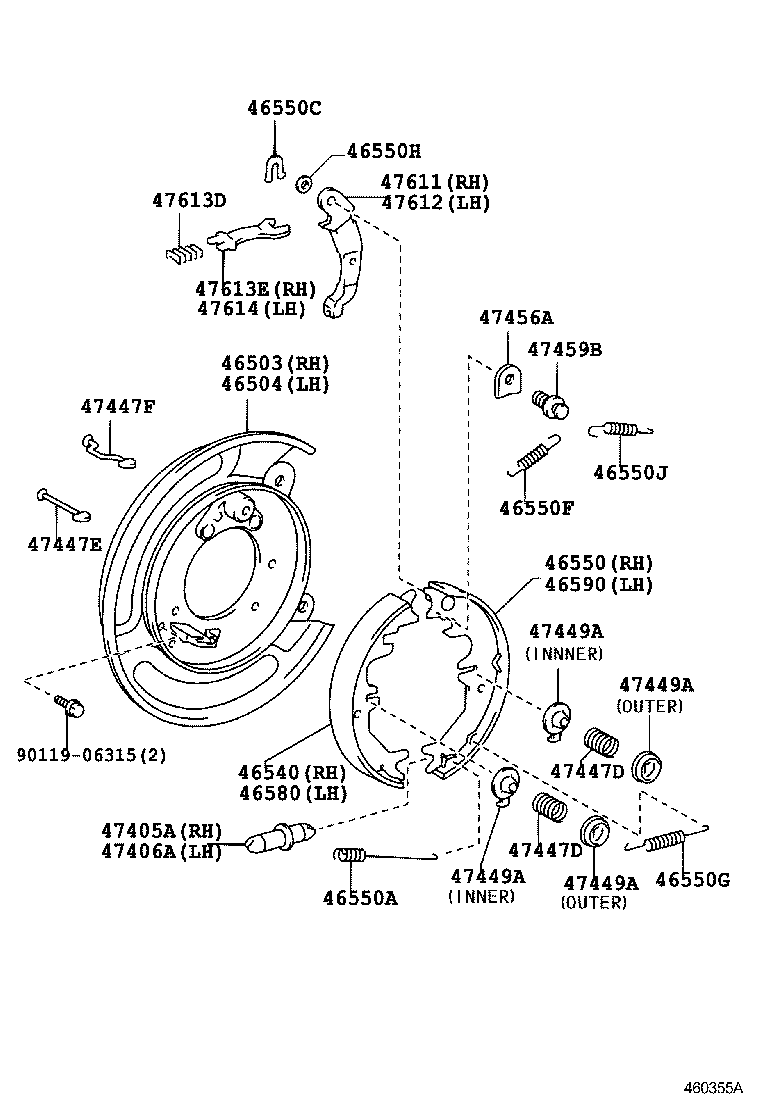

Exploded illustration 460355A 46550C — WASHER, TYPE C(FOR PARKING BRAKE SHOE) (2 parts) 46550H — SHIM(FOR PARKING BRAKE SHOE) (10 parts) 47613D — SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) (2 parts) 47611 — LEVER, PARKING BRAKE SHOE, RH (2 parts) 47612 — LEVER, PARKING BRAKE SHOE, LH (2 parts) 47613E — STRUT, PARKING BRAKE SHOE, RH (2 parts) 47614 — STRUT, PARKING BRAKE SHOE, LH (2 parts) 47456A — PLATE, SHOE GUIDE(FOR PARKING BRAKE) (3 parts) 47459B — BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) (2 parts) 46503 — PLATE SUB-ASSY, PARKING BRAKE, RH (2 parts) 46504 — PLATE SUB-ASSY, PARKING BRAKE, LH (2 parts) 46550J — SPRING, TENSION(FOR PARKING BRAKE SHOE RETURN REAR) (2 parts) 47447F — PIN, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) (2 parts) 47447E — PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) (2 parts) 46550F — SPRING, TENSION(FOR PARKING BRAKE SHOE RETURN, FRONT) (2 parts) 46550 — SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 (2 parts) 46590 — SHOE ASSY, PARKING BRAKE, LH NO.2 (2 parts) 47449A — CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) (4 parts) 47449A — CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) (4 parts) 9011906315 — not listed in this catalogue 46540 — SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 (2 parts) 46580 — SHOE ASSY, PARKING BRAKE, LH NO.1 (2 parts) 47447D — SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) (2 parts) 47405A — SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) (2 parts) 47406A — SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) (2 parts) 46550A — SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) (1 parts) 47449A — CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) (4 parts) 47447D — SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) (2 parts) 47449A — CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) (4 parts) 46550G — SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) (2 parts)
460355A · 29 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
60 parts on this figure
Part number Description Fitment Price
46503 — Plate Sub-assy, Parking Brake, RH
46503-34010 Plate Sub-assy, Parking Brake, RH
2000-09 → 2004-08 ended
UCK35,45 —
46503-34010 Plate Sub-assy, Parking Brake, RH
2004-08 → —
UCK35,45 —
46504 — Plate Sub-assy, Parking Brake, LH
46504-34010 Plate Sub-assy, Parking Brake, LH
2000-09 → 2004-08 ended
UCK35,45 —
46504-34010 Plate Sub-assy, Parking Brake, LH
2004-08 → —
UCK35,45 —
46540 — Shoe Assy, Parking Brake, RH OR Center NO.1
46550-60050 Shoe Assy, Parking Brake, RH OR Center NO.1
2000-09 → 2004-08 ended
UCK35,45 —
46550-60070 Shoe Assy, Parking Brake, RH OR Center NO.1
2004-08 → —
UCK35,45 —
46550 — Shoe Assy, Parking Brake, RH OR Center NO.2
46580-60040 Shoe Assy, Parking Brake, RH OR Center NO.2
2000-09 → 2004-08 ended
UCK35,45 —
46580-60060 Shoe Assy, Parking Brake, RH OR Center NO.2
2004-08 → —
UCK35,45 —
46550A — Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN)
90905-06069 Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN)
2000-09 → 2001-03 ended
UCK35,45 4HC —
46550C — Washer, Type C(FOR PARKING BRAKE SHOE)
90213-07018 Washer, Type C(FOR PARKING BRAKE SHOE)
2000-09 → 2004-08 ended
UCK35,45 —
90213-07018 Washer, Type C(FOR PARKING BRAKE SHOE)
2004-08 → —
UCK35,45 —
46550F — Spring, Tension(FOR PARKING BRAKE SHOE RETURN, FRONT)
90507-20016 Spring, Tension(FOR PARKING BRAKE SHOE RETURN, FRONT)
2000-09 → 2004-08 ended
UCK35,45 —
90507-20016 Spring, Tension(FOR PARKING BRAKE SHOE RETURN, FRONT)
2004-08 → —
UCK35,45 —
46550G — Spring, Tension, NO.3(FOR PARKING BRAKE SHOE RETURN)
90506-12061 Spring, Tension, NO.3(FOR PARKING BRAKE SHOE RETURN)
2000-09 → 2004-08 ended
UCK35,45 —
90506-12061 Spring, Tension, NO.3(FOR PARKING BRAKE SHOE RETURN)
2004-08 → —
UCK35,45 —
46550H — Shim(FOR PARKING BRAKE SHOE)
90564-09002 note Shim(FOR PARKING BRAKE SHOE)
2000-09 → 2004-08 ended
UCK35,45 —
90564-09003 note Shim(FOR PARKING BRAKE SHOE)
2000-09 → 2004-08 ended
UCK35,45 —
90564-09184 note Shim(FOR PARKING BRAKE SHOE)
2000-09 → 2004-08 ended
UCK35,45 —
90564-09185 note Shim(FOR PARKING BRAKE SHOE)
2000-09 → 2004-08 ended
UCK35,45 —
90564-09186 note Shim(FOR PARKING BRAKE SHOE)
2000-09 → 2004-08 ended
UCK35,45 —
90564-09002 note Shim(FOR PARKING BRAKE SHOE)
2004-08 → —
UCK35,45 —
90564-09003 note Shim(FOR PARKING BRAKE SHOE)
2004-08 → —
UCK35,45 —
90564-09184 note Shim(FOR PARKING BRAKE SHOE)
2004-08 → —
UCK35,45 —
90564-09185 note Shim(FOR PARKING BRAKE SHOE)
2004-08 → —
UCK35,45 —
90564-09186 note Shim(FOR PARKING BRAKE SHOE)
2004-08 → —
UCK35,45 —
46550J — Spring, Tension(FOR PARKING BRAKE SHOE RETURN REAR)
90507-23014 Spring, Tension(FOR PARKING BRAKE SHOE RETURN REAR)
2000-09 → 2004-08 ended
UCK35,45 —
90507-23014 Spring, Tension(FOR PARKING BRAKE SHOE RETURN REAR)
2004-08 → —
UCK35,45 —
46580 — Shoe Assy, Parking Brake, LH NO.1
46540-60040 Shoe Assy, Parking Brake, LH NO.1
2000-09 → 2004-08 ended
UCK35,45 —
46540-60060 Shoe Assy, Parking Brake, LH NO.1
2004-08 → —
UCK35,45 —
46590 — Shoe Assy, Parking Brake, LH NO.2
46550-60050 Shoe Assy, Parking Brake, LH NO.2
2000-09 → 2004-08 ended
UCK35,45 —
46550-60070 Shoe Assy, Parking Brake, LH NO.2
2004-08 → —
UCK35,45 —
47405A — Screw Set, Shoe Adjusting, RH(FOR PARKING BRAKE)
47405-60010 Screw Set, Shoe Adjusting, RH(FOR PARKING BRAKE)
2000-09 → 2004-08 ended
UCK35,45 —
47405-60010 Screw Set, Shoe Adjusting, RH(FOR PARKING BRAKE)
2004-08 → —
UCK35,45 —
47406A — Screw Set, Shoe Adjusting, LH(FOR PARKING BRAKE)
47406-60010 Screw Set, Shoe Adjusting, LH(FOR PARKING BRAKE)
2000-09 → 2004-08 ended
UCK35,45 —
47406-60010 Screw Set, Shoe Adjusting, LH(FOR PARKING BRAKE)
2004-08 → —
UCK35,45 —
47447D — Spring, Compression(FOR PARKING BRAKE SHOE HOLD DOWN)
90501-16053 Spring, Compression(FOR PARKING BRAKE SHOE HOLD DOWN)
2000-09 → 2004-08 ended
UCK35,45 —
90501-16053 Spring, Compression(FOR PARKING BRAKE SHOE HOLD DOWN)
2004-08 → —
UCK35,45 —
47447E — Pin, Shoe Hold Down Spring, NO.1(FOR PARKING BRAKE)
47447-30020 Pin, Shoe Hold Down Spring, NO.1(FOR PARKING BRAKE)
2000-09 → 2004-08 ended
UCK35,45 —
47447-30020 Pin, Shoe Hold Down Spring, NO.1(FOR PARKING BRAKE)
2004-08 → —
UCK35,45 —
47447F — Pin, Shoe Hold Down Spring, NO.2(FOR PARKING BRAKE)
47447-50010 Pin, Shoe Hold Down Spring, NO.2(FOR PARKING BRAKE)
2000-09 → 2004-08 ended
UCK35,45 —
47447-50010 Pin, Shoe Hold Down Spring, NO.2(FOR PARKING BRAKE)
2004-08 → —
UCK35,45 —
47449A — Cup, Shoe Hold Down Spring, NO.1(FOR PARKING BRAKE)
47449-30030 note Cup, Shoe Hold Down Spring, NO.1(FOR PARKING BRAKE)
2000-09 → 2004-08 ended
UCK35,45 —
47449-40010 note Cup, Shoe Hold Down Spring, NO.1(FOR PARKING BRAKE)
2000-09 → 2004-08 ended
UCK35,45 —
47449-30030 note Cup, Shoe Hold Down Spring, NO.1(FOR PARKING BRAKE)
2004-08 → —
UCK35,45 —
47449-40010 note Cup, Shoe Hold Down Spring, NO.1(FOR PARKING BRAKE)
2004-08 → —
UCK35,45 —
47456A — Plate, Shoe Guide(FOR PARKING BRAKE)
47456-20030 Plate, Shoe Guide(FOR PARKING BRAKE)
2000-09 → 2002-05 ended
UCK35,45 4HC —
47456-35010 Plate, Shoe Guide(FOR PARKING BRAKE)
2002-05 → 2004-08 ended
UCK35,45 —
47456-35010 Plate, Shoe Guide(FOR PARKING BRAKE)
2004-08 → —
UCK35,45 —
47459B — Bolt, Shoe Guide Plate Set(FOR PARKING BRAKE)
47459-30010 Bolt, Shoe Guide Plate Set(FOR PARKING BRAKE)
2000-09 → 2004-08 ended
UCK35,45 —
47459-30010 Bolt, Shoe Guide Plate Set(FOR PARKING BRAKE)
2004-08 → —
UCK35,45 —
47611 — Lever, Parking Brake Shoe, RH
47612-60020 Lever, Parking Brake Shoe, RH
2000-09 → 2004-08 ended
UCK35,45 —
47612-60020 Lever, Parking Brake Shoe, RH
2004-08 → —
UCK35,45 —
47612 — Lever, Parking Brake Shoe, LH
47611-60020 Lever, Parking Brake Shoe, LH
2000-09 → 2004-08 ended
UCK35,45 —
47611-60020 Lever, Parking Brake Shoe, LH
2004-08 → —
UCK35,45 —
47613D — Spring, Compression(FOR PARKING BRAKE SHOE STRUT)
90504-14002 Spring, Compression(FOR PARKING BRAKE SHOE STRUT)
2000-09 → 2004-08 ended
UCK35,45 —
90504-14002 Spring, Compression(FOR PARKING BRAKE SHOE STRUT)
2004-08 → —
UCK35,45 —
47613E — Strut, Parking Brake Shoe, RH
47613-60020 Strut, Parking Brake Shoe, RH
2000-09 → 2004-08 ended
UCK35,45 —
47613-60020 Strut, Parking Brake Shoe, RH
2004-08 → —
UCK35,45 —
47614 — Strut, Parking Brake Shoe, LH
47613-60020 Strut, Parking Brake Shoe, LH
2000-09 → 2004-08 ended
UCK35,45 —
47613-60020 Strut, Parking Brake Shoe, LH
2004-08 → —
UCK35,45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
