Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

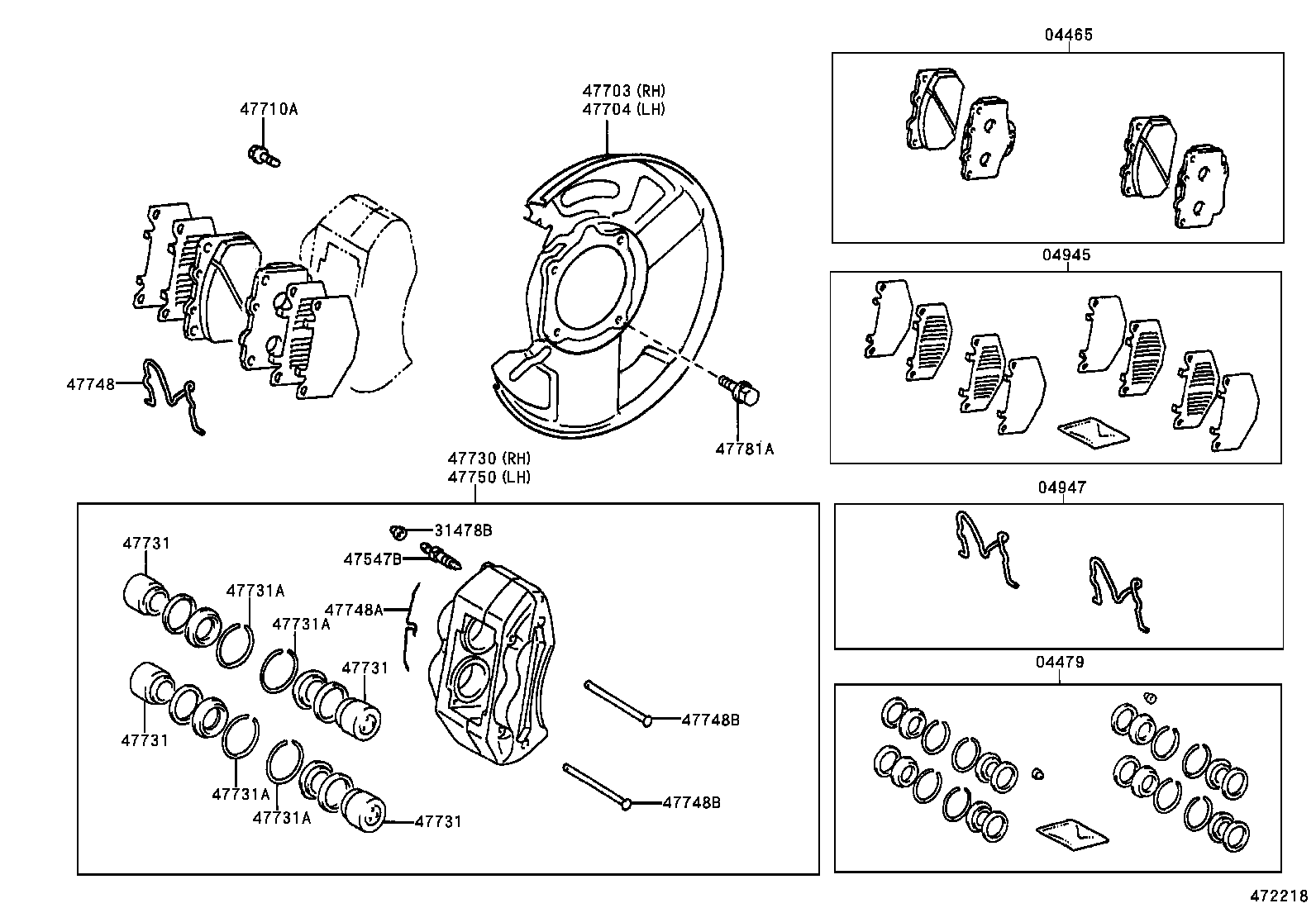

Exploded illustration 472218 04465 — PAD KIT, DISC BRAKE, FRONT (3 parts) 47703 — COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH (6 parts) 47710A — BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) (3 parts) 47704 — COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH (6 parts) 04945 — SHIM KIT, ANTI SQUEAL, FRONT (4 parts) 47748 — SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE) (2 parts) 47781A — BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) (2 parts) 47730 — CYLINDER ASSY, FRONT DISC BRAKE, RH (6 parts) 47750 — CYLINDER ASSY, DISC BRAKE, LH (6 parts) 04947 — FITTING KIT, DISC BRAKE, FRONT (2 parts) 31478B — CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) (1 parts) 47731 — PISTON, FRONT DISC BRAKE (4 parts) 47547B — PLUG, BLEEDER(FOR FRONT DISC BRAKE) (3 parts) 47731A — RING, SET(FOR FRONT DISC BRAKE PISTON) (1 parts) 47748A — CLIP(FOR FRONT DISC BRAKE ANTI-RATTLE) (1 parts) 47731A — RING, SET(FOR FRONT DISC BRAKE PISTON) (1 parts) 04479 — CYLINDER KIT, DISC BRAKE, FRONT (4 parts) 47731 — PISTON, FRONT DISC BRAKE (4 parts) 47748B — PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE) (3 parts) 47731 — PISTON, FRONT DISC BRAKE (4 parts) 47731A — RING, SET(FOR FRONT DISC BRAKE PISTON) (1 parts) 47748B — PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE) (3 parts) 47731A — RING, SET(FOR FRONT DISC BRAKE PISTON) (1 parts) 47731 — PISTON, FRONT DISC BRAKE (4 parts)
472218 · 24 callouts Full size ↗
57 parts on this figure
Part number Description Fitment Price
04465 — Pad Kit, Disc Brake, Front
04465-0C012 note Pad Kit, Disc Brake, Front
2000-09 → 2002-09 ended
UCK35,45 —
04465-35290 note Pad Kit, Disc Brake, Front
2002-09 → 2004-08 ended
UCK35,45 —
04465-35290 note Pad Kit, Disc Brake, Front
2004-08 → —
UCK35,45 —
04479 — Cylinder Kit, Disc Brake, Front
04479-0C010 Cylinder Kit, Disc Brake, Front
2000-09 → 2001-12 ended
UCK35,45 —
04479-0C020 Cylinder Kit, Disc Brake, Front
2001-12 → 2002-09 ended
UCK35,45 —
04479-60080 Cylinder Kit, Disc Brake, Front
2002-09 → 2004-08 ended
UCK35,45 —
04479-60080 Cylinder Kit, Disc Brake, Front
2004-08 → —
UCK35,45 —
04945 — Shim Kit, Anti Squeal, Front
04945-04010 Shim Kit, Anti Squeal, Front
2000-09 → 2002-09 ended
UCK35,45 —
04945-35080 Shim Kit, Anti Squeal, Front
2002-09 → 2004-08 ended
UCK35,45 —
04945-0C030 Shim Kit, Anti Squeal, Front
2004-10 → —
UCK35,45 —
04945-35080 Shim Kit, Anti Squeal, Front
2004-08 → 2004-10 ended
UCK35,45 —
04947 — Fitting Kit, Disc Brake, Front
04947-0C010 Fitting Kit, Disc Brake, Front
2000-09 → 2002-09 ended
UCK35,45 —
04947-0C010 Fitting Kit, Disc Brake, Front
2004-08 → —
UCK35,45 —
31478B — Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
31478-30010 Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
2000-09 → 2002-09 ended
UCK35,45 —
47547B — Plug, Bleeder(FOR FRONT DISC BRAKE)
47547-04010 Plug, Bleeder(FOR FRONT DISC BRAKE)
2002-09 → 2004-08 ended
UCK35,45 —
90080-93012 Plug, Bleeder(FOR FRONT DISC BRAKE)
2000-09 → 2002-09 ended
UCK35,45 4HC —
47547-04010 Plug, Bleeder(FOR FRONT DISC BRAKE)
2004-08 → —
UCK35,45 —
47703 — Cover Sub-assy, Disc Brake Dust, Front RH
47703-0C010 Cover Sub-assy, Disc Brake Dust, Front RH
2000-09 → 2002-01 ended
UCK35,45 —
47703-0C011 Cover Sub-assy, Disc Brake Dust, Front RH
2002-01 → 2002-09 ended
UCK35,45 —
47703-0C020 note Cover Sub-assy, Disc Brake Dust, Front RH
2002-09 → 2003-11 ended
UCK35,45 —
47703-34030 note Cover Sub-assy, Disc Brake Dust, Front RH
2002-09 → 2003-11 ended
UCK35,45 —
47703-34031 Cover Sub-assy, Disc Brake Dust, Front RH
2003-11 → 2004-08 ended
UCK35,45 —
47703-34031 Cover Sub-assy, Disc Brake Dust, Front RH
2004-08 → —
UCK35,45 —
47704 — Cover Sub-assy, Disc Brake Dust, Front LH
47704-0C010 Cover Sub-assy, Disc Brake Dust, Front LH
2000-09 → 2002-01 ended
UCK35,45 —
47704-0C011 Cover Sub-assy, Disc Brake Dust, Front LH
2002-01 → 2002-09 ended
UCK35,45 —
47704-0C020 note Cover Sub-assy, Disc Brake Dust, Front LH
2002-09 → 2003-11 ended
UCK35,45 —
47704-34030 note Cover Sub-assy, Disc Brake Dust, Front LH
2002-09 → 2003-11 ended
UCK35,45 —
47704-34031 Cover Sub-assy, Disc Brake Dust, Front LH
2003-11 → 2004-08 ended
UCK35,45 —
47704-34031 Cover Sub-assy, Disc Brake Dust, Front LH
2004-08 → —
UCK35,45 —
47710A — Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
90080-10129 note Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
2000-09 → 2002-09 ended
UCK35,45 —
90080-10298 note Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
2002-09 → 2004-08 ended
UCK35,45 —
90080-10298 note Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
2004-08 → —
UCK35,45 —
47730 — Cylinder Assy, Front Disc Brake, RH
47730-0C010 Cylinder Assy, Front Disc Brake, RH
2000-09 → 2001-12 ended
UCK35,45 —
47730-0C011 Cylinder Assy, Front Disc Brake, RH
2001-12 → 2002-09 ended
UCK35,45 —
47730-0C020 Cylinder Assy, Front Disc Brake, RH
2002-09 → 2004-08 ended
UCK35,45 —
47730-0C020 Cylinder Assy, Front Disc Brake, RH
2004-08 → 2004-10 ended
UCK35,45 —
47730-0C021 Cylinder Assy, Front Disc Brake, RH
2004-10 → 2006-02 ended
UCK35,45 —
47730-0C022 Cylinder Assy, Front Disc Brake, RH
2006-03 → —
UCK35,45 —
47731 — Piston, Front Disc Brake
47731-0C010 Piston, Front Disc Brake
2000-09 → 2001-12 ended
UCK35,45 4HC —
47731-0C020 Piston, Front Disc Brake
2002-09 → 2004-08 ended
UCK35,45 —
47731-35040 Piston, Front Disc Brake
2001-12 → 2002-09 ended
UCK35,45 4HC —
47731-0C020 Piston, Front Disc Brake
2004-08 → —
UCK35,45 —
47731A — Ring, Set(FOR FRONT DISC BRAKE PISTON)
90080-52102 Ring, Set(FOR FRONT DISC BRAKE PISTON)
2000-09 → 2002-09 ended
UCK35,45 4HC —
47748 — Spring, Anti-rattle, NO.1(FOR FRONT DISC BRAKE)
47748-0C010 Spring, Anti-rattle, NO.1(FOR FRONT DISC BRAKE)
2000-09 → 2004-08 ended
UCK35,45 —
47748-0C010 Spring, Anti-rattle, NO.1(FOR FRONT DISC BRAKE)
2004-08 → —
UCK35,45 —
47748A — Clip(FOR FRONT DISC BRAKE ANTI-RATTLE)
90080-46209 Clip(FOR FRONT DISC BRAKE ANTI-RATTLE)
2000-09 → 2002-09 ended
UCK35,45 4HC —
47748B — Pin, W/Hole(FOR FRONT DISC BRAKE ANTI-RATTLE)
90080-24077 Pin, W/Hole(FOR FRONT DISC BRAKE ANTI-RATTLE)
2000-09 → 2002-09 ended
UCK35,45 4HC —
90240-06158 Pin, W/Hole(FOR FRONT DISC BRAKE ANTI-RATTLE)
2002-09 → 2004-08 ended
UCK35,45 —
90240-06158 Pin, W/Hole(FOR FRONT DISC BRAKE ANTI-RATTLE)
2004-08 → —
UCK35,45 —
47750 — Cylinder Assy, Disc Brake, LH
47750-0C010 Cylinder Assy, Disc Brake, LH
2000-09 → 2001-12 ended
UCK35,45 —
47750-0C011 Cylinder Assy, Disc Brake, LH
2001-12 → 2002-09 ended
UCK35,45 —
47750-0C020 Cylinder Assy, Disc Brake, LH
2002-09 → 2004-08 ended
UCK35,45 —
47750-0C020 Cylinder Assy, Disc Brake, LH
2004-08 → 2004-10 ended
UCK35,45 —
47750-0C021 Cylinder Assy, Disc Brake, LH
2004-10 → 2006-02 ended
UCK35,45 —
47750-0C022 Cylinder Assy, Disc Brake, LH
2006-03 → —
UCK35,45 —
47781A — Bolt(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90080-11370 Bolt(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
2000-09 → 2004-08 ended
UCK35,45 —
90080-11370 Bolt(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
2004-08 → —
UCK35,45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
