Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

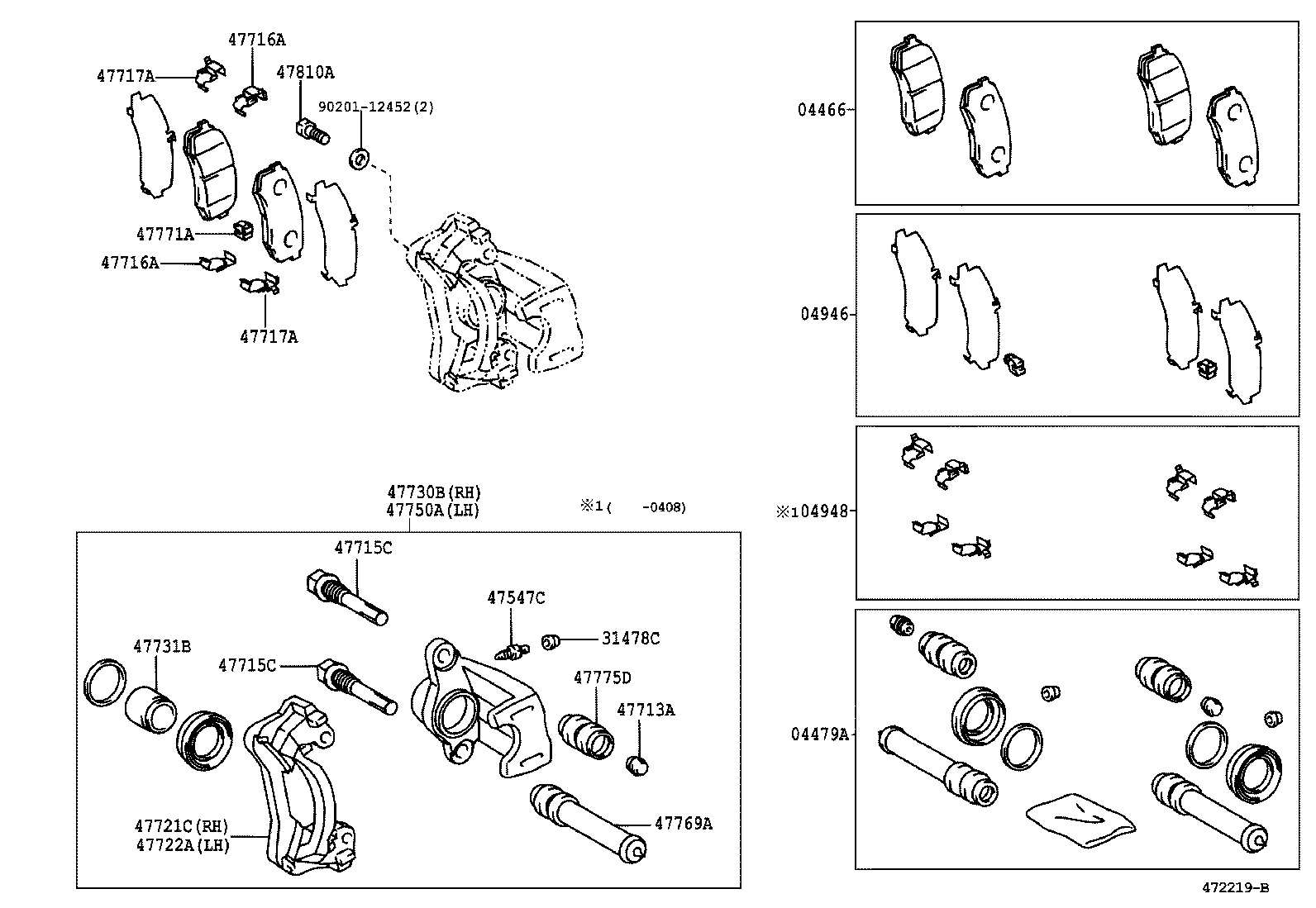

Exploded illustration 472219B 47716A — PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) (2 parts) 47717A — PLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE) (2 parts) 47810A — BOLT, HEXAGON(FOR REAR CALIPER) (2 parts) 9020112452 — not listed in this catalogue 47771A — PLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE) (2 parts) 47716A — PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) (2 parts) 47717A — PLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE) (2 parts) 47731B — PISTON, REAR DISC BRAKE (2 parts) 47715C — PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE) (2 parts) 47715C — PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE) (2 parts) 47547C — PLUG, BLEEDER(FOR REAR DISC BRAKE) (2 parts) 47722A — MOUNTING, REAR DISC BRAKE CYLINDER, LH (2 parts) 47721C — MOUNTING, REAR DISC BRAKE CYLINDER, RH (2 parts) 31478C — CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) (2 parts) 47775D — BOOT, BUSH DUST(FOR REAR DISC BRAKE) (2 parts) 47713A — PLUG, HOLE(FOR REAR DISC BRAKE CYLINDER) (2 parts) 47769A — BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) (2 parts) 47730B — CYLINDER ASSY, REAR DISC BRAKE, RH (2 parts) 47750A — CYLINDER ASSY, DISC BRAKE, REAR LH (2 parts) 04479A — CYLINDER KIT, DISC BRAKE, REAR (2 parts) 04948 — FITTING KIT, DISC BRAKE, REAR (2 parts) 04946 — SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) (2 parts) 04466 — PAD KIT, DISC BRAKE, REAR (2 parts)
472219B · 22 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
38 parts on this figure
Part number Description Fitment Price
04466 — Pad Kit, Disc Brake, Rear
04466-60080 note Pad Kit, Disc Brake, Rear
2000-09 → 2004-08 ended
UCK35,45 —
04466-60080 note Pad Kit, Disc Brake, Rear
2004-08 → —
UCK35,45 —
04479A — Cylinder Kit, Disc Brake, Rear
04479-60030 Cylinder Kit, Disc Brake, Rear
2000-09 → 2004-08 ended
UCK35,45 —
04479-60030 Cylinder Kit, Disc Brake, Rear
2004-08 → —
UCK35,45 —
04946 — Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
04946-30100 Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
2000-09 → 2004-08 ended
UCK35,45 —
04946-30100 Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
2004-08 → —
UCK35,45 —
04948 — Fitting Kit, Disc Brake, Rear
04947-22050 Fitting Kit, Disc Brake, Rear
2000-09 → 2004-08 ended
UCK35,45 —
04947-22050 Fitting Kit, Disc Brake, Rear
2004-08 → —
UCK35,45 —
31478C — Cap, Bleeder Plug(FOR REAR DISC BRAKE)
31478-30010 Cap, Bleeder Plug(FOR REAR DISC BRAKE)
2000-09 → 2004-08 ended
UCK35,45 —
31478-30010 Cap, Bleeder Plug(FOR REAR DISC BRAKE)
2004-08 → —
UCK35,45 —
47547C — Plug, Bleeder(FOR REAR DISC BRAKE)
47547-12030 Plug, Bleeder(FOR REAR DISC BRAKE)
2000-09 → 2004-08 ended
UCK35,45 —
47547-12030 Plug, Bleeder(FOR REAR DISC BRAKE)
2004-08 → —
UCK35,45 —
47713A — Plug, Hole(FOR REAR DISC BRAKE CYLINDER)
90950-01301 Plug, Hole(FOR REAR DISC BRAKE CYLINDER)
2000-09 → 2004-08 ended
UCK35,45 —
90950-01301 Plug, Hole(FOR REAR DISC BRAKE CYLINDER)
2004-08 → —
UCK35,45 —
47715C — Pin, Cylinder Slide(FOR REAR DISC BRAKE)
47715-22010 Pin, Cylinder Slide(FOR REAR DISC BRAKE)
2000-09 → 2004-08 ended
UCK35,45 —
47715-22010 Pin, Cylinder Slide(FOR REAR DISC BRAKE)
2004-08 → —
UCK35,45 —
47716A — Plate, Pad Support, NO.1(FOR REAR DISC BRAKE)
47716-22010 Plate, Pad Support, NO.1(FOR REAR DISC BRAKE)
2000-09 → 2004-08 ended
UCK35,45 —
47716-22010 Plate, Pad Support, NO.1(FOR REAR DISC BRAKE)
2004-08 → —
UCK35,45 —
47717A — Plate, Pad Support, NO.2(FOR REAR DISC BRAKE)
47717-22010 Plate, Pad Support, NO.2(FOR REAR DISC BRAKE)
2000-09 → 2004-08 ended
UCK35,45 —
47717-22010 Plate, Pad Support, NO.2(FOR REAR DISC BRAKE)
2004-08 → —
UCK35,45 —
47721C — Mounting, Rear Disc Brake Cylinder, RH
47721-60020 Mounting, Rear Disc Brake Cylinder, RH
2000-09 → 2004-08 ended
UCK35,45 —
47721-60020 Mounting, Rear Disc Brake Cylinder, RH
2004-08 → —
UCK35,45 —
47722A — Mounting, Rear Disc Brake Cylinder, LH
47722-60020 Mounting, Rear Disc Brake Cylinder, LH
2000-09 → 2004-08 ended
UCK35,45 —
47722-60020 Mounting, Rear Disc Brake Cylinder, LH
2004-08 → —
UCK35,45 —
47730B — Cylinder Assy, Rear Disc Brake, RH
47730-34030 Cylinder Assy, Rear Disc Brake, RH
2000-09 → 2004-08 ended
UCK35,45 —
47730-34030 Cylinder Assy, Rear Disc Brake, RH
2004-08 → —
UCK35,45 —
47731B — Piston, Rear Disc Brake
47731-60020 Piston, Rear Disc Brake
2000-09 → 2004-08 ended
UCK35,45 —
47731-60020 Piston, Rear Disc Brake
2004-08 → —
UCK35,45 —
47750A — Cylinder Assy, Disc Brake, Rear LH
47750-34030 Cylinder Assy, Disc Brake, Rear LH
2000-09 → 2004-08 ended
UCK35,45 —
47750-34030 Cylinder Assy, Disc Brake, Rear LH
2004-08 → —
UCK35,45 —
47769A — Bush, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
47769-22010 Bush, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
2000-09 → 2004-08 ended
UCK35,45 —
47769-22010 Bush, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
2004-08 → —
UCK35,45 —
47771A — Plate, Pad Wear Indicator(FOR REAR DISC BRAKE)
47771-22030 Plate, Pad Wear Indicator(FOR REAR DISC BRAKE)
2000-09 → 2004-08 ended
UCK35,45 —
47771-22030 Plate, Pad Wear Indicator(FOR REAR DISC BRAKE)
2004-08 → —
UCK35,45 —
47775D — Boot, Bush Dust(FOR REAR DISC BRAKE)
47775-22010 Boot, Bush Dust(FOR REAR DISC BRAKE)
2000-09 → 2004-08 ended
UCK35,45 —
47775-22010 Boot, Bush Dust(FOR REAR DISC BRAKE)
2004-08 → —
UCK35,45 —
47810A — Bolt, Hexagon(FOR REAR CALIPER)
90101-12167 Bolt, Hexagon(FOR REAR CALIPER)
2000-09 → 2004-08 ended
UCK35,45 —
90101-12167 Bolt, Hexagon(FOR REAR CALIPER)
2004-08 → —
UCK35,45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
