Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

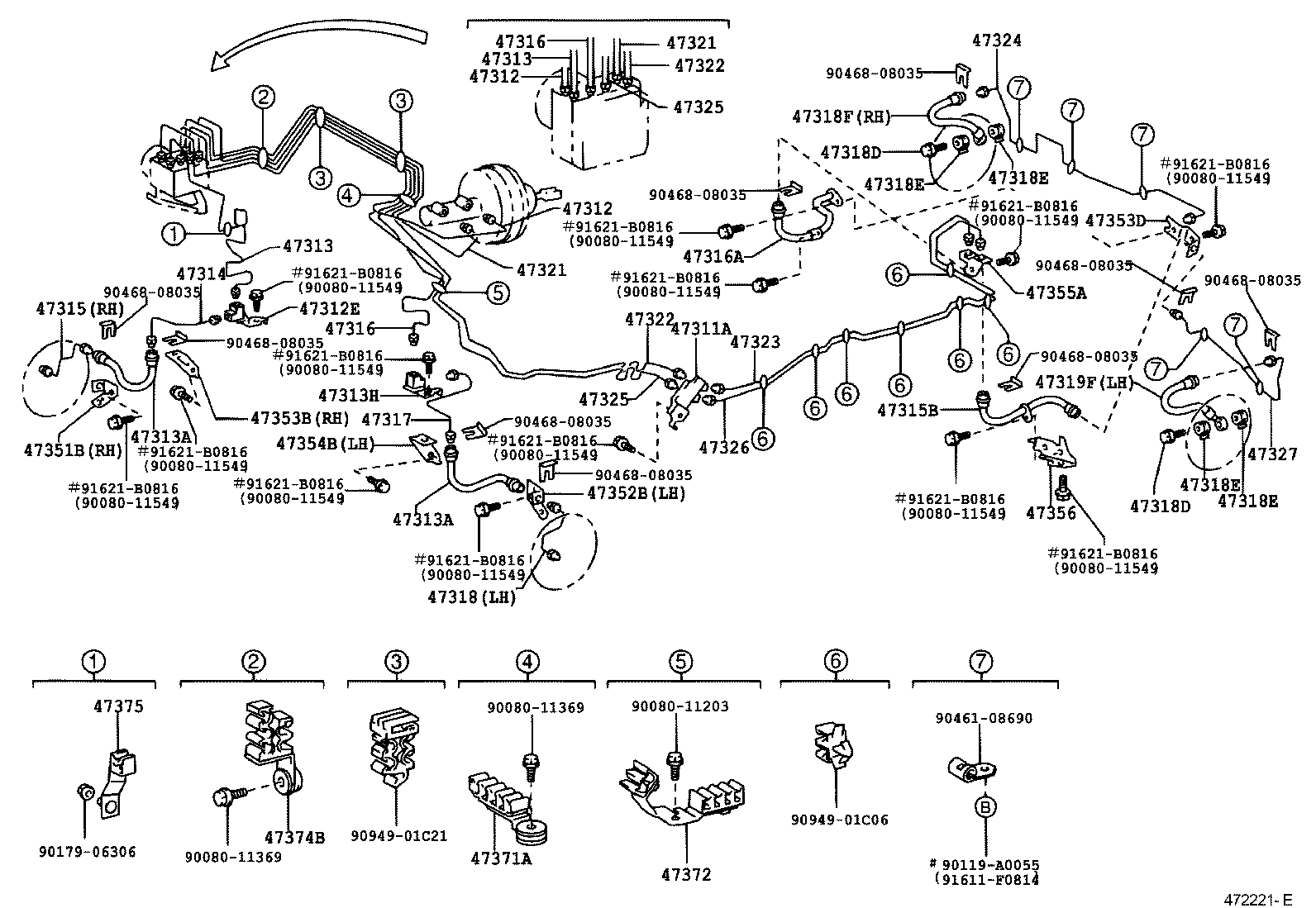

Exploded illustration 472221E 47316 — TUBE, FRONT BRAKE, NO.6 (2 parts) 47313 — TUBE, FRONT BRAKE, NO.3 (2 parts) 47312 — TUBE, FRONT BRAKE, NO.2 (2 parts) 47321 — TUBE, REAR BRAKE, NO.1 (2 parts) 47322 — TUBE, REAR BRAKE, NO.2 (2 parts) 47325 — TUBE, REAR BRAKE, NO.5 (2 parts) 9046808035 — not listed in this catalogue 47318F — HOSE, FLEXIBLE(FOR REAR RH) (2 parts) 47318D — BOLT, UNION(FOR REAR FLEXIBLE HOSE) (2 parts) 47324 — TUBE, REAR BRAKE, NO.4 (2 parts) 47312 — TUBE, FRONT BRAKE, NO.2 (2 parts) 9046808035 — not listed in this catalogue 47318E — GASKET(FOR REAR FLEXIBLE HOSE) (3 parts) 47318E — GASKET(FOR REAR FLEXIBLE HOSE) (3 parts) 47353D — BRACKET, FLEXIBLE HOSE, NO.7 (2 parts) 47316A — HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) (2 parts) 47321 — TUBE, REAR BRAKE, NO.1 (2 parts) 9046808035 — not listed in this catalogue 9046808035 — not listed in this catalogue 47355A — BRACKET, FLEXIBLE HOSE, NO.5 (2 parts) 47322 — TUBE, REAR BRAKE, NO.2 (2 parts) 47313 — TUBE, FRONT BRAKE, NO.3 (2 parts) 47312E — WAY, NO.2(FOR FRONT BRAKE TUBE) (2 parts) 47314 — TUBE, FRONT BRAKE, NO.4 (2 parts) 9046808035 — not listed in this catalogue 47315 — TUBE, FRONT BRAKE, NO.5 (3 parts) 9046808035 — not listed in this catalogue 47316 — TUBE, FRONT BRAKE, NO.6 (2 parts) 47353B — BRACKET, FLEXIBLE HOSE, NO.3 (2 parts) 47313H — WAY, NO.3(FOR FRONT BRAKE TUBE) (2 parts) 47317 — TUBE, FRONT BRAKE, NO.7 (2 parts) 47313A — HOSE, FLEXIBLE, NO.1(FOR FRONT) (2 parts) 47325 — TUBE, REAR BRAKE, NO.5 (2 parts) 47311A — WAY(FOR FRONT BRAKE TUBE) (2 parts) 47323 — TUBE, REAR BRAKE, NO.3 (2 parts) 47315B — HOSE, FLEXIBLE(FOR BRAKE TUBE) (2 parts) 9046808035 — not listed in this catalogue 47319F — HOSE, FLEXIBLE(FOR REAR LH) (2 parts) 47351B — BRACKET, FLEXIBLE HOSE, NO.1 (2 parts) 47354B — BRACKET, FLEXIBLE HOSE, NO.4 (2 parts) 9046808035 — not listed in this catalogue 9046808035 — not listed in this catalogue 47326 — TUBE, REAR BRAKE, NO.6 (2 parts) 47313A — HOSE, FLEXIBLE, NO.1(FOR FRONT) (2 parts) 47352B — BRACKET, FLEXIBLE HOSE, NO.2 (2 parts) 47356 — BRACKET, FLEXIBLE HOSE, NO.6 (2 parts) 47318D — BOLT, UNION(FOR REAR FLEXIBLE HOSE) (2 parts) 47318E — GASKET(FOR REAR FLEXIBLE HOSE) (3 parts) 47318E — GASKET(FOR REAR FLEXIBLE HOSE) (3 parts) 47327 — TUBE, REAR BRAKE, NO.7 (2 parts) 47318 — TUBE, FRONT BRAKE, NO.8 (3 parts) 47375 — CLAMP, BRAKE TUBE, NO.5 (2 parts) 9008011369 — not listed in this catalogue 9008011203 — not listed in this catalogue 9046108690 — not listed in this catalogue 9094901C06 — not listed in this catalogue 9017906306 — not listed in this catalogue 9008011369 — not listed in this catalogue 47374B — CLAMP, BRAKE TUBE, NO.4 (2 parts) 9094901C21 — not listed in this catalogue 47371A — CLAMP, BRAKE TUBE, NO.1 (2 parts) 47372 — CLAMP, BRAKE TUBE, NO.2 (2 parts) 91611F0814 — not listed in this catalogue 90119A0055 — not listed in this catalogue 91621B0816 — not listed in this catalogue 9008011549 — not listed in this catalogue 91621B0816 — not listed in this catalogue 9008011549 — not listed in this catalogue 91621B0816 — not listed in this catalogue 9008011549 — not listed in this catalogue 91621B0816 — not listed in this catalogue 9008011549 — not listed in this catalogue 91621B0816 — not listed in this catalogue 9008011549 — not listed in this catalogue 91621B0816 — not listed in this catalogue 9008011549 — not listed in this catalogue 91621B0816 — not listed in this catalogue 9008011549 — not listed in this catalogue 91621B0816 — not listed in this catalogue 9008011549 — not listed in this catalogue 91621B0816 — not listed in this catalogue 9008011549 — not listed in this catalogue 91621B0816 — not listed in this catalogue 9008011549 — not listed in this catalogue 91621B0816 — not listed in this catalogue 9008011549 — not listed in this catalogue 91621B0816 — not listed in this catalogue 9008011549 — not listed in this catalogue 91621B0816 — not listed in this catalogue 9008011549 — not listed in this catalogue
472221E · 46 callouts, 44 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
73 parts on this figure
Part number Description Fitment Price
47311A — Way(FOR FRONT BRAKE TUBE)
90904-12068 Way(FOR FRONT BRAKE TUBE)
2000-09 → 2004-08 ended
UCK35,45 —
90904-12068 Way(FOR FRONT BRAKE TUBE)
2004-08 → —
UCK35,45 —
47312 — Tube, Front Brake, NO.2
47312-0C040 Tube, Front Brake, NO.2
2000-09 → 2004-08 ended
UCK35,45 —
47312-0C040 Tube, Front Brake, NO.2
2004-08 → —
UCK35,45 —
47312E — Way, NO.2(FOR FRONT BRAKE TUBE)
90904-12066 Way, NO.2(FOR FRONT BRAKE TUBE)
2000-09 → 2004-08 ended
UCK35,45 —
90904-12066 Way, NO.2(FOR FRONT BRAKE TUBE)
2004-08 → —
UCK35,45 —
47313 — Tube, Front Brake, NO.3
47313-0C012 Tube, Front Brake, NO.3
2000-09 → 2004-08 ended
UCK35,45 —
47313-0C012 Tube, Front Brake, NO.3
2004-08 → —
UCK35,45 —
47313A — Hose, Flexible, NO.1(FOR FRONT)
90080-94073 Hose, Flexible, NO.1(FOR FRONT)
2000-09 → 2004-08 ended
UCK35,45 —
90080-94073 Hose, Flexible, NO.1(FOR FRONT)
2004-08 → —
UCK35,45 —
47313H — Way, NO.3(FOR FRONT BRAKE TUBE)
90904-12067 Way, NO.3(FOR FRONT BRAKE TUBE)
2000-09 → 2004-08 ended
UCK35,45 —
90904-12067 Way, NO.3(FOR FRONT BRAKE TUBE)
2004-08 → —
UCK35,45 —
47314 — Tube, Front Brake, NO.4
47314-0C011 Tube, Front Brake, NO.4
2000-09 → 2004-08 ended
UCK35,45 —
47314-0C011 Tube, Front Brake, NO.4
2004-08 → —
UCK35,45 —
47315 — Tube, Front Brake, NO.5
47315-0C010 Tube, Front Brake, NO.5
2000-09 → 2002-09 ended
UCK35,45 4HC —
47315-0C020 Tube, Front Brake, NO.5
2002-09 → 2004-08 ended
UCK35,45 —
47315-0C020 Tube, Front Brake, NO.5
2004-08 → —
UCK35,45 —
47315B — Hose, Flexible(FOR BRAKE TUBE)
90080-94102 Hose, Flexible(FOR BRAKE TUBE)
2000-09 → 2004-08 ended
UCK35,45 —
90080-94102 Hose, Flexible(FOR BRAKE TUBE)
2004-08 → —
UCK35,45 —
47316 — Tube, Front Brake, NO.6
47316-0C040 Tube, Front Brake, NO.6
2000-09 → 2004-08 ended
UCK35,45 —
47316-0C040 Tube, Front Brake, NO.6
2004-08 → —
UCK35,45 —
47316A — Hose, Flexible(FOR REAR BRAKE TUBE)
90080-94101 Hose, Flexible(FOR REAR BRAKE TUBE)
2000-09 → 2004-08 ended
UCK35,45 —
90080-94101 Hose, Flexible(FOR REAR BRAKE TUBE)
2004-08 → —
UCK35,45 —
47317 — Tube, Front Brake, NO.7
47317-0C011 Tube, Front Brake, NO.7
2000-09 → 2004-08 ended
UCK35,45 —
47317-0C020 Tube, Front Brake, NO.7
2004-08 → —
UCK35,45 —
47318 — Tube, Front Brake, NO.8
47318-0C010 Tube, Front Brake, NO.8
2000-09 → 2002-09 ended
UCK35,45 4HC —
47318-0C020 Tube, Front Brake, NO.8
2002-09 → 2004-08 ended
UCK35,45 —
47318-0C020 Tube, Front Brake, NO.8
2004-08 → —
UCK35,45 —
47318D — Bolt, Union(FOR REAR FLEXIBLE HOSE)
90401-10058 Bolt, Union(FOR REAR FLEXIBLE HOSE)
2000-09 → 2004-08 ended
UCK35,45 —
90401-10058 Bolt, Union(FOR REAR FLEXIBLE HOSE)
2004-08 → —
UCK35,45 —
47318E — Gasket(FOR REAR FLEXIBLE HOSE)
47389-50020 Gasket(FOR REAR FLEXIBLE HOSE)
2000-09 → 2004-08 ended
UCK35,45 —
47389-50020 Gasket(FOR REAR FLEXIBLE HOSE)
2004-08 → 2007-05 ended
UCK35,45 —
47389-50021 Gasket(FOR REAR FLEXIBLE HOSE)
2007-06 → —
UCK35,45 —
47318F — Hose, Flexible(FOR REAR RH)
90947-02C43 Hose, Flexible(FOR REAR RH)
2000-09 → 2004-08 ended
UCK35,45 —
90947-02C43 Hose, Flexible(FOR REAR RH)
2004-08 → —
UCK35,45 —
47319F — Hose, Flexible(FOR REAR LH)
90947-02C44 Hose, Flexible(FOR REAR LH)
2000-09 → 2004-08 ended
UCK35,45 —
90947-02C44 Hose, Flexible(FOR REAR LH)
2004-08 → —
UCK35,45 —
47321 — Tube, Rear Brake, NO.1
47321-0C040 Tube, Rear Brake, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
47321-0C040 Tube, Rear Brake, NO.1
2004-08 → —
UCK35,45 —
47322 — Tube, Rear Brake, NO.2
47322-0C030 Tube, Rear Brake, NO.2
2000-09 → 2004-08 ended
UCK35,45 —
47322-0C070 Tube, Rear Brake, NO.2
2004-08 → —
UCK35,45 —
47323 — Tube, Rear Brake, NO.3
47323-0C020 Tube, Rear Brake, NO.3
2000-09 → 2004-08 ended
UCK35,45 —
47323-0C060 Tube, Rear Brake, NO.3
2004-08 → —
UCK35,45 —
47324 — Tube, Rear Brake, NO.4
47324-0C030 Tube, Rear Brake, NO.4
2000-09 → 2004-08 ended
UCK35,45 —
47324-0C070 Tube, Rear Brake, NO.4
2004-08 → —
UCK35,45 —
47325 — Tube, Rear Brake, NO.5
47325-0C020 Tube, Rear Brake, NO.5
2000-09 → 2004-08 ended
UCK35,45 —
47325-0C060 Tube, Rear Brake, NO.5
2004-08 → —
UCK35,45 —
47326 — Tube, Rear Brake, NO.6
47326-0C020 Tube, Rear Brake, NO.6
2000-09 → 2004-08 ended
UCK35,45 —
47326-0C030 Tube, Rear Brake, NO.6
2004-08 → —
UCK35,45 —
47327 — Tube, Rear Brake, NO.7
47327-0C010 Tube, Rear Brake, NO.7
2000-09 → 2004-08 ended
UCK35,45 —
47327-0C040 Tube, Rear Brake, NO.7
2004-08 → —
UCK35,45 —
47351B — Bracket, Flexible Hose, NO.1
47351-35270 Bracket, Flexible Hose, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
47351-35270 Bracket, Flexible Hose, NO.1
2004-08 → —
UCK35,45 —
47352B — Bracket, Flexible Hose, NO.2
47352-35310 Bracket, Flexible Hose, NO.2
2000-09 → 2004-08 ended
UCK35,45 —
47352-35310 Bracket, Flexible Hose, NO.2
2004-08 → —
UCK35,45 —
47353B — Bracket, Flexible Hose, NO.3
47353-35110 Bracket, Flexible Hose, NO.3
2000-09 → 2004-08 ended
UCK35,45 —
47353-35110 Bracket, Flexible Hose, NO.3
2004-08 → —
UCK35,45 —
47353D — Bracket, Flexible Hose, NO.7
47353-34030 Bracket, Flexible Hose, NO.7
2000-09 → 2004-08 ended
UCK35,45 —
47353-34030 Bracket, Flexible Hose, NO.7
2004-08 → —
UCK35,45 —
47354B — Bracket, Flexible Hose, NO.4
47354-35100 Bracket, Flexible Hose, NO.4
2000-09 → 2004-08 ended
UCK35,45 —
47354-35100 Bracket, Flexible Hose, NO.4
2004-08 → —
UCK35,45 —
47355A — Bracket, Flexible Hose, NO.5
47351-34040 Bracket, Flexible Hose, NO.5
2000-09 → 2004-08 ended
UCK35,45 —
47351-34040 Bracket, Flexible Hose, NO.5
2004-08 → —
UCK35,45 —
47356 — Bracket, Flexible Hose, NO.6
47352-34050 Bracket, Flexible Hose, NO.6
2000-09 → 2004-08 ended
UCK35,45 —
47352-34050 Bracket, Flexible Hose, NO.6
2004-08 → —
UCK35,45 —
47371A — Clamp, Brake Tube, NO.1
47371-34040 Clamp, Brake Tube, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
47371-34040 Clamp, Brake Tube, NO.1
2004-08 → —
UCK35,45 —
47372 — Clamp, Brake Tube, NO.2
47372-34050 Clamp, Brake Tube, NO.2
2000-09 → 2004-08 ended
UCK35,45 —
47372-34050 Clamp, Brake Tube, NO.2
2004-08 → —
UCK35,45 —
47374B — Clamp, Brake Tube, NO.4
47374-34020 Clamp, Brake Tube, NO.4
2000-09 → 2004-08 ended
UCK35,45 —
47374-34020 Clamp, Brake Tube, NO.4
2004-08 → —
UCK35,45 —
47375 — Clamp, Brake Tube, NO.5
47375-34010 Clamp, Brake Tube, NO.5
2000-09 → 2004-08 ended
UCK35,45 —
47375-34010 Clamp, Brake Tube, NO.5
2004-08 → —
UCK35,45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
