Toyota Sequoia
2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States
Discontinued model
Data version 2008-05

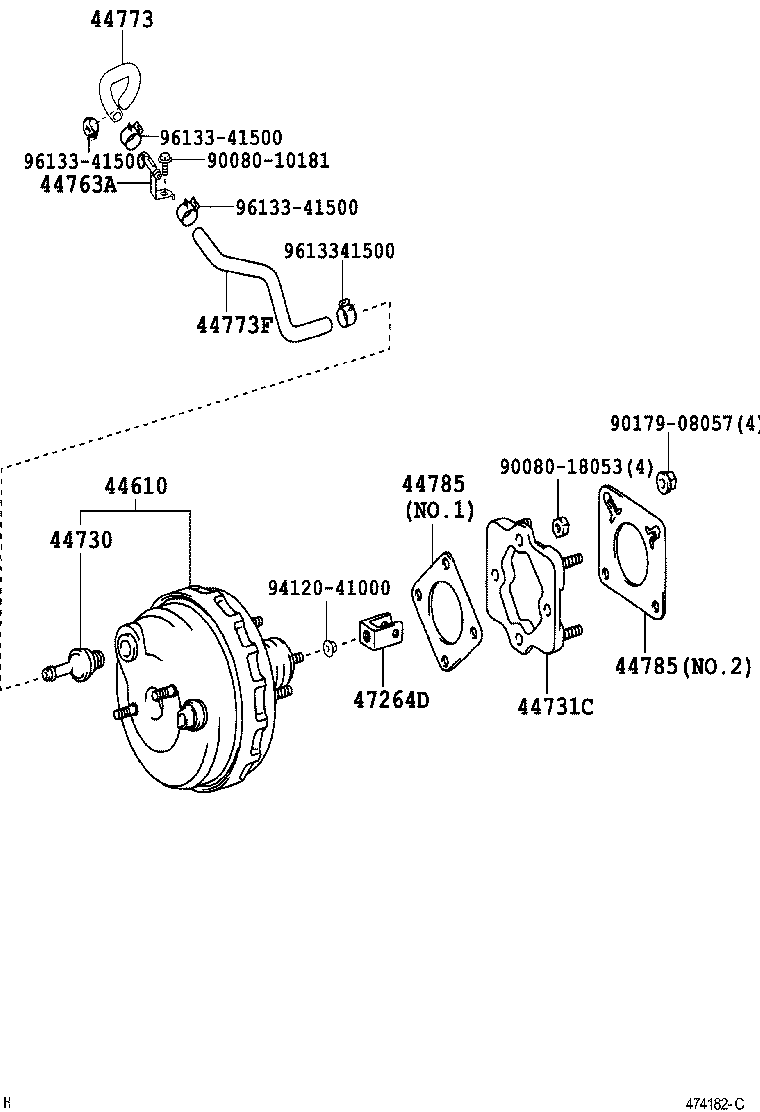

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44610 — Booster Assy, Brake | ||||
| 44610-0C030 |
Booster Assy, Brake
2000-09 → 2002-09
ended
|
UCK35,45 4HC | — | |
| 44610-0C040 |
Booster Assy, Brake
2002-09 → 2004-08
ended
|
UCK35,45 | — | |
| 44610-0C040 |
Booster Assy, Brake
2004-08 → 2005-07
ended
|
UCK35,45 | — | |
| 44610-0C041 |
Booster Assy, Brake
2005-08 → —
|
UCK35,45 | — | |
| 44730 — Valve Assy, Vacuum Check(FOR BRAKE) | ||||
| 44730-0C010 |
Valve Assy, Vacuum Check(FOR BRAKE)
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 44730-0C010 |
Valve Assy, Vacuum Check(FOR BRAKE)
2004-08 → 2005-07
ended
|
UCK35,45 | — | |
| 44730-0C010 |
Valve Assy, Vacuum Check(FOR BRAKE)
2005-08 → —
|
UCK35,45 | — | |
| 44731C — Bracket, Brake Booster | ||||
| 44731-34010 |
Bracket, Brake Booster
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 44731-34010 |
Bracket, Brake Booster
2004-08 → 2005-07
ended
|
UCK35,45 | — | |
| 44731-34010 |
Bracket, Brake Booster
2005-08 → —
|
UCK35,45 | — | |
| 44763A — Tube, Hose TO Hose, NO.1 | ||||
| 44763-0C011 |
Tube, Hose TO Hose, NO.1
2004-08 → —
|
UCK35,45 | — | |
| 44773 — Hose, Vacuum, NO.2 | ||||
| 44774-0C010 |
Hose, Vacuum, NO.2
2004-08 → —
|
UCK35,45 | — | |
| 44773F — Hose, Union TO Check Valve | ||||
| 44773-0C030 |
Hose, Union TO Check Valve
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 44773-0C060 |
Hose, Union TO Check Valve
2004-08 → —
|
UCK35,45 | — | |
| 44785 — Gasket, Brake Booster | ||||
| 44785-0C010 note |
Gasket, Brake Booster
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 44785-35030 note |
Gasket, Brake Booster
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 44785-0C010 note |
Gasket, Brake Booster
2004-08 → 2005-07
ended
|
UCK35,45 | — | |
| 44785-0C010 note |
Gasket, Brake Booster
2005-08 → —
|
UCK35,45 | — | |
| 44785-35030 note |
Gasket, Brake Booster
2004-08 → 2005-07
ended
|
UCK35,45 | — | |
| 44785-35030 note |
Gasket, Brake Booster
2005-08 → —
|
UCK35,45 | — | |
| 47264D — Clevis, Brake Master Cylinder Push Rod | ||||
| 47264-60020 |
Clevis, Brake Master Cylinder Push Rod
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 47264-60020 |
Clevis, Brake Master Cylinder Push Rod
2004-08 → 2005-07
ended
|
UCK35,45 | — | |
| 47264-60020 |
Clevis, Brake Master Cylinder Push Rod
2005-08 → —
|
UCK35,45 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
