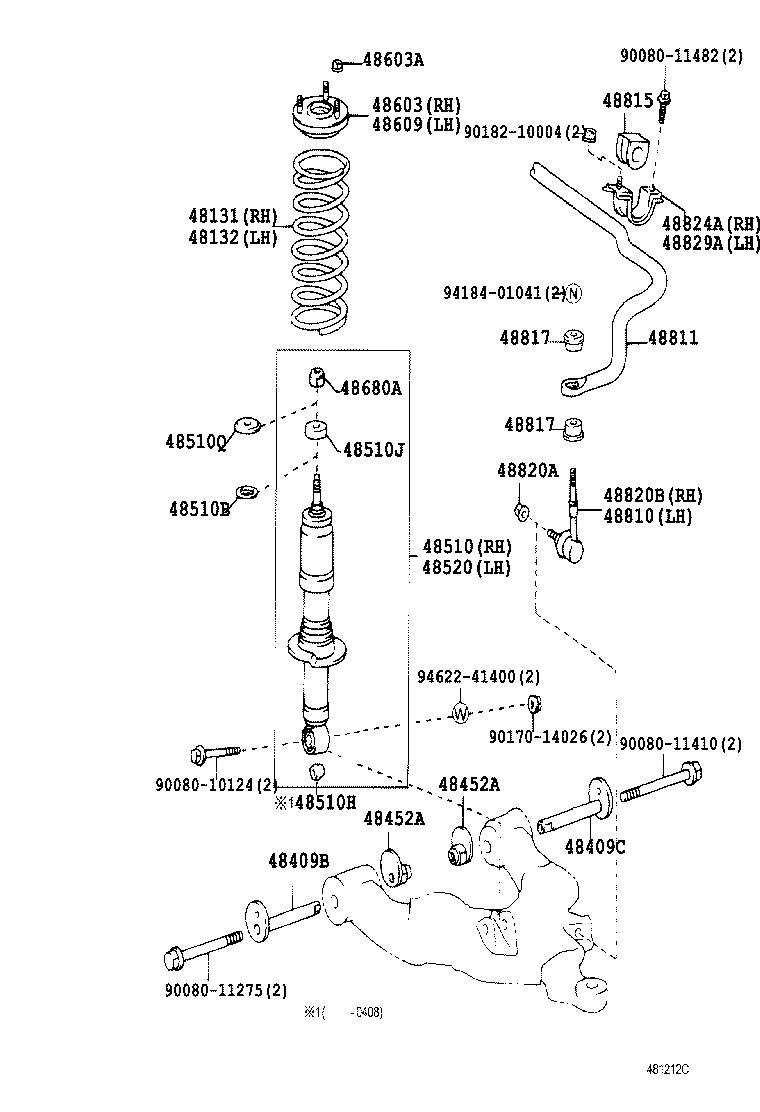

Exploded illustration 481212C 48131 — SPRING, FRONT COIL, RH (6 parts) 48132 — SPRING, FRONT COIL, LH (6 parts) 48603A — NUT(FOR FRONT SUSPENSION SUPPORT) (3 parts) 48603 — SUPPORT SUB-ASSY, FRONT SUSPENSION, RH (3 parts) 48609 — SUPPORT SUB-ASSY, FRONT SUSPENSION, LH (3 parts) 9018210004 — not listed in this catalogue 48815 — BUSH, FRONT STABILIZER BAR, NO.1 (3 parts) 9008011482 — not listed in this catalogue 48824A — BRACKET, FRONT STABILIZER, NO.1 RH (2 parts) 48829A — BRACKET, FRONT STABILIZER, NO.1 LH (2 parts) 48811 — BAR, STABILIZER, FRONT (3 parts) 48817 — CUSHION, FRONT STABILIZER (2 parts) 48817 — CUSHION, FRONT STABILIZER (2 parts) 48820A — NUT(FOR FRONT STABILIZER LINK) (2 parts) 9418401041 — not listed in this catalogue 48680A — NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) (2 parts) 48510J — CUSHION, FRONT SHOCK ABSORBER, NO.1 (2 parts) 48520 — ABSORBER ASSY, SHOCK, FRONT LH (6 parts) 48510 — ABSORBER ASSY, SHOCK, FRONT RH (6 parts) 9462241400 — not listed in this catalogue 48510Q — RETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER) (2 parts) 48510B — RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) (2 parts) 48409B — CAM SUB-ASSY, FRONT SUSPENSION TOE ADJUST (2 parts) 9008010124 — not listed in this catalogue 9008011275 — not listed in this catalogue 48452A — PLATE, FRONT SUSPENSION TOE ADJUST, NO.2 (2 parts) 48452A — PLATE, FRONT SUSPENSION TOE ADJUST, NO.2 (2 parts) 9017014026 — not listed in this catalogue 48409C — CAM SUB-ASSY, FRONT SUSPENSION TOE ADJUST, NO.2 (2 parts) 9008011410 — not listed in this catalogue 48820B — LINK ASSY, FRONT STABILIZER, RH (2 parts) 48810 — LINK ASSY, FRONT STABILIZER, LH (2 parts) 48510H — BUSH(FOR FRONT SHOCK ABSORBER) (1 parts)
481212C · 25 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
66 parts on this figure
Part number Description Fitment Price
48131 — Spring, Front Coil, RH
48131-AF110 Spring, Front Coil, RH
2000-09 → 2004-08 ended
UCK35 —
48131-AF130 Spring, Front Coil, RH
2000-09 → 2004-08 ended
UCK45 —
48131-AF330 Spring, Front Coil, RH
2004-08 → 2007-11 ended
UCK35 —
48131-AF350 note Spring, Front Coil, RH
2004-08 → 2007-11 ended
UCK35 —
48131-AF370 Spring, Front Coil, RH
2004-08 → 2007-11 ended
UCK45 —
48131-AF390 note Spring, Front Coil, RH
2004-08 → 2007-11 ended
UCK45 —
48132 — Spring, Front Coil, LH
48131-AF120 Spring, Front Coil, LH
2000-09 → 2004-08 ended
UCK35 —
48131-AF140 Spring, Front Coil, LH
2000-09 → 2004-08 ended
UCK45 —
48131-AF340 Spring, Front Coil, LH
2004-08 → 2007-11 ended
UCK35 —
48131-AF360 note Spring, Front Coil, LH
2004-08 → 2007-11 ended
UCK35 —
48131-AF380 Spring, Front Coil, LH
2004-08 → 2007-11 ended
UCK45 —
48131-AF400 note Spring, Front Coil, LH
2004-08 → 2007-11 ended
UCK45 —
48409B — Cam Sub-assy, Front Suspension Toe Adjust
48409-34020 Cam Sub-assy, Front Suspension Toe Adjust
2000-09 → 2004-08 ended
UCK35,45 —
48409-34020 Cam Sub-assy, Front Suspension Toe Adjust
2004-08 → —
UCK35,45 —
48409C — Cam Sub-assy, Front Suspension Toe Adjust, NO.2
48409-34030 Cam Sub-assy, Front Suspension Toe Adjust, NO.2
2000-09 → 2004-08 ended
UCK35,45 —
48409-34030 Cam Sub-assy, Front Suspension Toe Adjust, NO.2
2004-08 → —
UCK35,45 —
48452A — Plate, Front Suspension Toe Adjust, NO.2
48452-35020 Plate, Front Suspension Toe Adjust, NO.2
2000-09 → 2004-08 ended
UCK35,45 —
48452-35020 Plate, Front Suspension Toe Adjust, NO.2
2004-08 → —
UCK35,45 —
48510 — Absorber Assy, Shock, Front RH
48510-A9170 note Absorber Assy, Shock, Front RH
2000-09 → 2004-08 ended
UCK35 —
48510-A9180 note Absorber Assy, Shock, Front RH
2000-09 → 2004-08 ended
UCK45 —
48510-A9570 note Absorber Assy, Shock, Front RH
2004-08 → —
UCK35 —
48510-A9580 note Absorber Assy, Shock, Front RH
2004-08 → —
UCK35 —
48510-A9590 note Absorber Assy, Shock, Front RH
2004-08 → —
UCK45 —
48510-A9600 note Absorber Assy, Shock, Front RH
2004-08 → —
UCK45 —
48510B — Retainer, Cushion, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02159 Retainer, Cushion, NO.1(FOR FRONT SHOCK ABSORBER)
2000-09 → 2004-08 ended
UCK35,45 —
90948-02159 Retainer, Cushion, NO.1(FOR FRONT SHOCK ABSORBER)
2004-08 → —
UCK35,45 —
48510H — Bush(FOR FRONT SHOCK ABSORBER)
90080-38142 Bush(FOR FRONT SHOCK ABSORBER)
2003-05 → 2004-08 ended
UCK35,45 —
48510J — Cushion, Front Shock Absorber, NO.1
90080-94105 Cushion, Front Shock Absorber, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
90080-94105 Cushion, Front Shock Absorber, NO.1
2004-08 → —
UCK35,45 —
48510Q — Retainer, Cushion, NO.3(FOR FRONT SHOCK ABSORBER)
90948-02161 Retainer, Cushion, NO.3(FOR FRONT SHOCK ABSORBER)
2000-09 → 2004-08 ended
UCK35,45 —
90948-02161 Retainer, Cushion, NO.3(FOR FRONT SHOCK ABSORBER)
2004-08 → —
UCK35,45 —
48520 — Absorber Assy, Shock, Front LH
48510-A9170 note Absorber Assy, Shock, Front LH
2000-09 → 2004-08 ended
UCK35 —
48510-A9180 note Absorber Assy, Shock, Front LH
2000-09 → 2004-08 ended
UCK45 —
48510-A9570 note Absorber Assy, Shock, Front LH
2004-08 → —
UCK35 —
48510-A9580 note Absorber Assy, Shock, Front LH
2004-08 → —
UCK35 —
48510-A9590 note Absorber Assy, Shock, Front LH
2004-08 → —
UCK45 —
48510-A9600 note Absorber Assy, Shock, Front LH
2004-08 → —
UCK45 —
48603 — Support Sub-assy, Front Suspension, RH
48609-0C020 Support Sub-assy, Front Suspension, RH
2000-09 → 2002-02 ended
UCK35,45 4HC —
48609-0C021 Support Sub-assy, Front Suspension, RH
2002-02 → 2004-08 ended
UCK35,45 —
48609-0C021 Support Sub-assy, Front Suspension, RH
2004-08 → —
UCK35,45 —
48603A — Nut(FOR FRONT SUSPENSION SUPPORT)
90178-10015 Nut(FOR FRONT SUSPENSION SUPPORT)
2002-02 → 2004-08 ended
UCK35,45 —
90179-10212 Nut(FOR FRONT SUSPENSION SUPPORT)
2000-09 → 2002-02 ended
UCK35,45 4HC —
90178-10015 Nut(FOR FRONT SUSPENSION SUPPORT)
2004-08 → —
UCK35,45 —
48609 — Support Sub-assy, Front Suspension, LH
48609-0C020 Support Sub-assy, Front Suspension, LH
2000-09 → 2002-02 ended
UCK35,45 4HC —
48609-0C021 Support Sub-assy, Front Suspension, LH
2002-02 → 2004-08 ended
UCK35,45 —
48609-0C021 Support Sub-assy, Front Suspension, LH
2004-08 → —
UCK35,45 —
48680A — Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
94184-01241 Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
2000-09 → 2004-08 ended
UCK35,45 —
94184-01241 Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
2004-08 → —
UCK35,45 —
48810 — Link Assy, Front Stabilizer, LH
48820-34010 Link Assy, Front Stabilizer, LH
2000-09 → 2004-08 ended
UCK35,45 —
48820-34010 Link Assy, Front Stabilizer, LH
2004-08 → —
UCK35,45 —
48811 — Bar, Stabilizer, Front
48811-AF030 Bar, Stabilizer, Front
2000-09 → 2004-08 ended
UCK35,45 —
48811-AF030 Bar, Stabilizer, Front
2004-08 → —
UCK35,45 —
48811-AF040 note Bar, Stabilizer, Front
2004-08 → —
UCK35,45 —
48815 — Bush, Front Stabilizer Bar, NO.1
48815-AF030 Bush, Front Stabilizer Bar, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
48815-AF030 Bush, Front Stabilizer Bar, NO.1
2004-08 → —
UCK35,45 —
48815-AF040 note Bush, Front Stabilizer Bar, NO.1
2004-08 → —
UCK35,45 —
48817 — Cushion, Front Stabilizer
48817-0C010 Cushion, Front Stabilizer
2000-09 → 2004-08 ended
UCK35,45 —
48817-0C010 Cushion, Front Stabilizer
2004-08 → —
UCK35,45 —
48820A — Nut(FOR FRONT STABILIZER LINK)
90179-12144 Nut(FOR FRONT STABILIZER LINK)
2000-09 → 2004-08 ended
UCK35,45 —
90179-12144 Nut(FOR FRONT STABILIZER LINK)
2004-08 → —
UCK35,45 —
48820B — Link Assy, Front Stabilizer, RH
48820-34010 Link Assy, Front Stabilizer, RH
2000-09 → 2004-08 ended
UCK35,45 —
48820-34010 Link Assy, Front Stabilizer, RH
2004-08 → —
UCK35,45 —
48824A — Bracket, Front Stabilizer, NO.1 RH
48824-34030 Bracket, Front Stabilizer, NO.1 RH
2000-09 → 2004-08 ended
UCK35,45 —
48824-34030 Bracket, Front Stabilizer, NO.1 RH
2004-08 → —
UCK35,45 —
48829A — Bracket, Front Stabilizer, NO.1 LH
48829-34020 Bracket, Front Stabilizer, NO.1 LH
2000-09 → 2004-08 ended
UCK35,45 —
48829-34020 Bracket, Front Stabilizer, NO.1 LH
2004-08 → —
UCK35,45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
