Toyota Sequoia
2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States
Discontinued model
Data version 2008-05

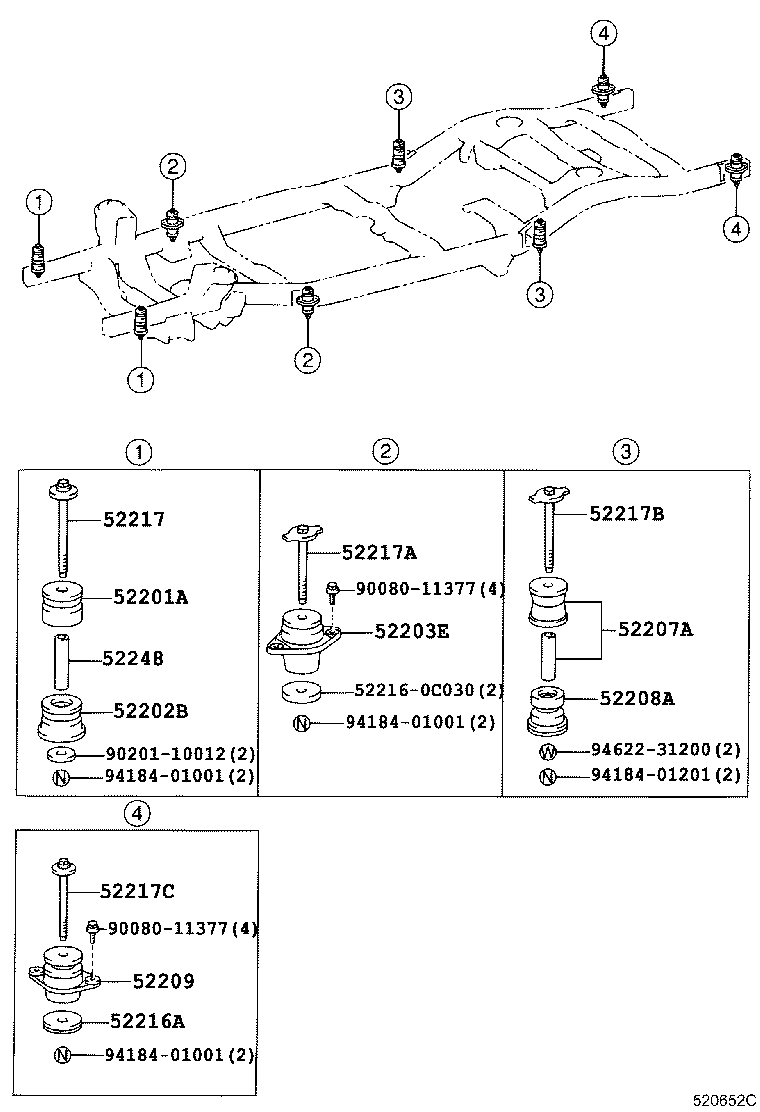

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52201A — Cushion Sub-assy, Cab Front Mounting | ||||
| 52201-0C010 |
Cushion Sub-assy, Cab Front Mounting
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 52201-0C010 |
Cushion Sub-assy, Cab Front Mounting
2004-08 → —
|
UCK35,45 | — | |
| 52202B — Cushiion Sub-assy, Cab Mounting, NO.1 Lower | ||||
| 52202-0C010 |
Cushiion Sub-assy, Cab Mounting, NO.1 Lower
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 52202-0C010 |
Cushiion Sub-assy, Cab Mounting, NO.1 Lower
2004-08 → —
|
UCK35,45 | — | |
| 52203E — Cushion Sub-assy, Cab Mounting, NO.2 | ||||
| 52203-0C030 |
Cushion Sub-assy, Cab Mounting, NO.2
2000-09 → 2002-08
ended
|
UCK35,45 4HC | — | |
| 52203-0C040 |
Cushion Sub-assy, Cab Mounting, NO.2
2002-08 → 2004-08
ended
|
UCK35,45 | — | |
| 52203-0C040 |
Cushion Sub-assy, Cab Mounting, NO.2
2004-08 → —
|
UCK35,45 | — | |
| 52207A — Cushion Sub-assy, Cab Mounting, NO.4 Upper | ||||
| 52207-0C010 |
Cushion Sub-assy, Cab Mounting, NO.4 Upper
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 52207-0C010 |
Cushion Sub-assy, Cab Mounting, NO.4 Upper
2004-08 → —
|
UCK35,45 | — | |
| 52208A — Cushion Sub-assy, Cab Mounting, NO.4 Lower | ||||
| 52208-0C010 |
Cushion Sub-assy, Cab Mounting, NO.4 Lower
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 52208-0C011 |
Cushion Sub-assy, Cab Mounting, NO.4 Lower
2004-08 → —
|
UCK35,45 | — | |
| 52209 — Cushion Sub-assy, Rear End Body Mounting, Upper | ||||
| 52209-0C010 |
Cushion Sub-assy, Rear End Body Mounting, Upper
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 52209-0C010 |
Cushion Sub-assy, Rear End Body Mounting, Upper
2004-08 → —
|
UCK35,45 | — | |
| 52216A — Stopper, Cab Mounting Cushion | ||||
| 52216-34050 |
Stopper, Cab Mounting Cushion
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 52216-34060 |
Stopper, Cab Mounting Cushion
2004-08 → —
|
UCK35,45 | — | |
| 52217 — Bolt, Body Mounting | ||||
| 52217-0C060 |
Bolt, Body Mounting
2001-12 → 2004-08
ended
|
UCK35,45 | — | |
| 52217-34030 |
Bolt, Body Mounting
2000-09 → 2001-12
ended
|
UCK35,45 4HC | — | |
| 52217-0C060 |
Bolt, Body Mounting
2004-08 → —
|
UCK35,45 | — | |
| 52217A — Bolt, Body Mounting | ||||
| 52217-0C040 |
Bolt, Body Mounting
2001-12 → 2004-08
ended
|
UCK35,45 | — | |
| 52217-34040 |
Bolt, Body Mounting
2000-09 → 2001-12
ended
|
UCK35,45 4HC | — | |
| 52217-0C070 |
Bolt, Body Mounting
2004-08 → —
|
UCK35,45 | — | |
| 52217B — Bolt, Body Mounting | ||||
| 52217-0C010 |
Bolt, Body Mounting
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 52217-0C110 |
Bolt, Body Mounting
2004-08 → —
|
UCK35,45 | — | |
| 52217C — Bolt, Body Mounting | ||||
| 52217-0C020 |
Bolt, Body Mounting
2000-09 → 2001-12
ended
|
UCK35,45 4HC | — | |
| 52217-0C080 |
Bolt, Body Mounting
2001-12 → 2004-08
ended
|
UCK35,45 | — | |
| 52217-0C080 |
Bolt, Body Mounting
2004-08 → —
|
UCK35,45 | — | |
| 52248 — Collar, Body Mounting, Rear | ||||
| 52248-34010 |
Collar, Body Mounting, Rear
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 52248-34010 |
Collar, Body Mounting, Rear
2004-08 → —
|
UCK35,45 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
