Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

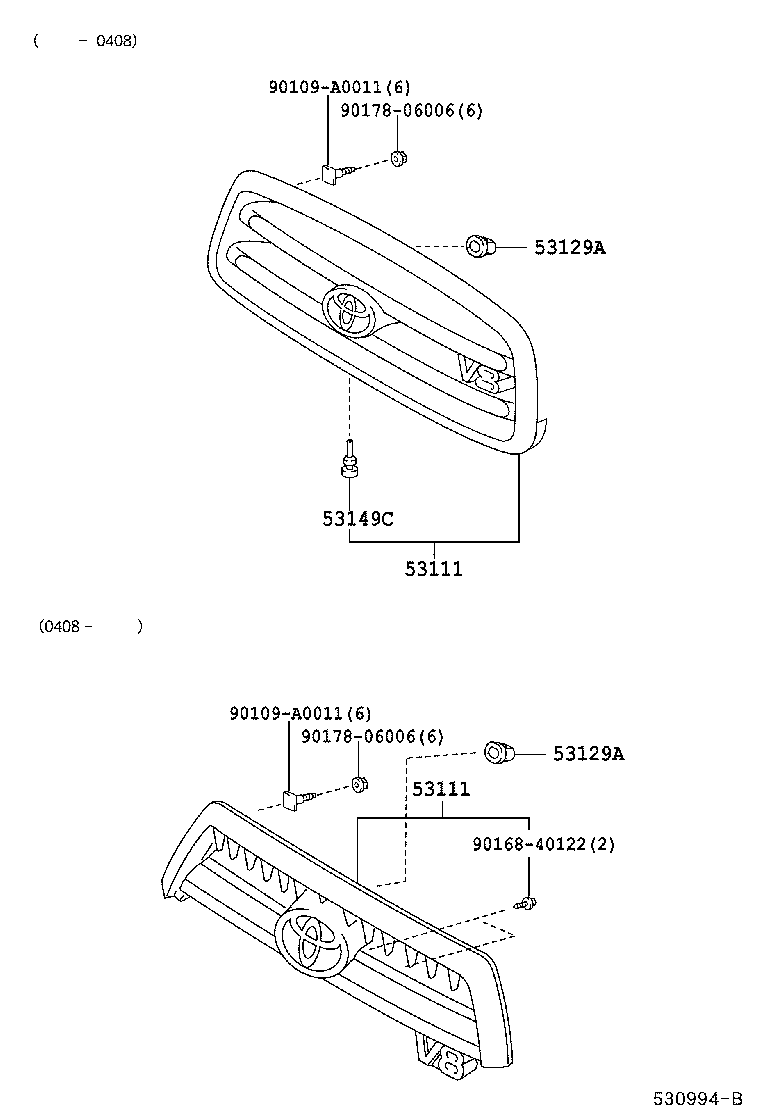

Exploded illustration 530994B 53129A — PIPE, RADIATOR GRILLE (2 parts) 53129A — PIPE, RADIATOR GRILLE (2 parts) 53149C — PROTECTOR, RADIATOR GRILLE, NO.2 (2 parts) 53111 — GRILLE, RADIATOR (55 parts) 53111 — GRILLE, RADIATOR (55 parts) 9017806006 — not listed in this catalogue 90109A0011 — not listed in this catalogue 9017806006 — not listed in this catalogue 90109A0011 — not listed in this catalogue 9016840122 — not listed in this catalogue
530994B · 5 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
59 parts on this figure
Part number Description Fitment Price
53111 — Grille, Radiator
53100-0C030-A0 note Grille, Radiator
2000-09 → 2004-08 ended
UCK35,45 SR5 —
53100-0C030-B0 note Grille, Radiator
2000-09 → 2002-09 ended
UCK35,45 SR5 —
53100-0C030-B1 note Grille, Radiator
2000-09 → 2004-08 ended
UCK35,45 SR5 —
53100-0C030-B2 note Grille, Radiator
2002-09 → 2004-08 ended
UCK35,45 SR5 —
53100-0C030-C0 note Grille, Radiator
2000-09 → 2004-08 ended
UCK35,45 SR5 —
53100-0C030-D0 note Grille, Radiator
2000-09 → 2002-09 ended
UCK35,45 SR5 —
53100-0C030-D1 note Grille, Radiator
2002-09 → 2004-08 ended
UCK35,45 SR5 —
53100-0C030-E0 note Grille, Radiator
2000-09 → 2004-08 ended
UCK35,45 SR5 —
53100-0C030-E1 note Grille, Radiator
2000-09 → 2001-08 ended
UCK35,45 SR5 —
53100-0C030-G0 note Grille, Radiator
2000-09 → 2004-08 ended
UCK35,45 SR5 —
53100-0C030-J0 note Grille, Radiator
2000-09 → 2004-08 ended
UCK35,45 SR5 —
53100-0C040-A0 note Grille, Radiator
2000-09 → 2004-08 ended
UCK35,45 LIMD —
53100-0C040-B0 note Grille, Radiator
2000-09 → 2002-09 ended
UCK35,45 LIMD —
53100-0C040-B1 note Grille, Radiator
2000-09 → 2004-08 ended
UCK35,45 LIMD —
53100-0C040-B2 note Grille, Radiator
2002-09 → 2004-08 ended
UCK35,45 LIMD —
53100-0C040-C0 note Grille, Radiator
2000-09 → 2004-08 ended
UCK35,45 LIMD —
53100-0C040-G0 note Grille, Radiator
2000-09 → 2004-08 ended
UCK35,45 LIMD —
53100-0C060-A1 note Grille, Radiator
2006-08 → 2007-01 ended
UCK35,45 SR5 —
53100-0C060-A2 note Grille, Radiator
2007-01 → —
UCK35,45 SR5 —
53100-0C060-B2 note Grille, Radiator
2006-08 → —
UCK35,45 SR5 —
53100-0C060-B3 note Grille, Radiator
2006-08 → —
UCK35,45 SR5 —
53100-0C060-B4 note Grille, Radiator
2006-08 → —
UCK35,45 SR5 —
53100-0C060-B5 note Grille, Radiator
2006-08 → —
UCK35,45 SR5 —
53100-0C060-C1 note Grille, Radiator
2006-08 → —
UCK35,45 SR5 —
53100-0C060-D1 note Grille, Radiator
2006-08 → —
UCK35,45 SR5 —
53100-0C060-E1 note Grille, Radiator
2006-08 → —
UCK35,45 SR5 —
53100-0C060-G1 note Grille, Radiator
2006-08 → —
UCK35,45 SR5 —
53100-0C060-J1 note Grille, Radiator
2006-08 → —
UCK35,45 SR5 —
53100-0C070-A1 note Grille, Radiator
2004-08 → —
UCK35,45 LIMD —
53100-0C070-A2 note Grille, Radiator
2004-08 → —
UCK35,45 LIMD —
53100-0C070-A2 note Grille, Radiator
2004-08 → 2006-08 ended
UCK35,45 SR5 —
53100-0C070-A3 note Grille, Radiator
2007-01 → —
UCK35,45 LIMD —
53100-0C070-B2 note Grille, Radiator
2004-08 → 2006-08 ended
UCK35,45 SR5 —
53100-0C070-B2 note Grille, Radiator
2004-08 → —
UCK35,45 LIMD —
53100-0C070-B3 note Grille, Radiator
2004-08 → 2006-08 ended
UCK35,45 SR5 —
53100-0C070-B3 note Grille, Radiator
2004-08 → —
UCK35,45 LIMD —
53100-0C070-C1 note Grille, Radiator
2004-08 → 2006-08 ended
UCK35,45 SR5 —
53100-0C070-C1 note Grille, Radiator
2004-08 → —
UCK35,45 LIMD —
53100-0C070-D0 note Grille, Radiator
2005-08 → 2006-08 ended
UCK35,45 SR5 —
53100-0C070-D0 note Grille, Radiator
2005-08 → —
UCK35,45 LIMD —
53100-0C070-E1 note Grille, Radiator
2004-08 → —
UCK35,45 LIMD —
53100-0C070-E1 note Grille, Radiator
2004-08 → 2006-08 ended
UCK35,45 SR5 —
53100-0C070-G0 note Grille, Radiator
2005-08 → —
UCK35,45 LIMD —
53100-0C070-G0 note Grille, Radiator
2005-08 → 2006-08 ended
UCK35,45 SR5 —
53100-0C070-J1 note Grille, Radiator
2004-08 → 2006-08 ended
UCK35,45 SR5 —
53100-0C070-J1 note Grille, Radiator
2004-08 → —
UCK35,45 LIMD —
53100-0C140-A0 note Grille, Radiator
2004-08 → 2006-08 ended
UCK35,45 LIMD —
53100-0C140-A1 note Grille, Radiator
2004-08 → 2006-08 ended
UCK35,45 —
53100-0C140-B0 note Grille, Radiator
2004-08 → 2006-08 ended
UCK35,45 —
53100-0C140-B1 note Grille, Radiator
2004-08 → 2006-08 ended
UCK35,45 —
53100-0C140-C0 note Grille, Radiator
2004-08 → 2006-08 ended
UCK35,45 —
53100-0C140-D0 note Grille, Radiator
2005-08 → 2006-08 ended
UCK35,45 —
53100-0C140-E0 note Grille, Radiator
2004-08 → 2006-08 ended
UCK35,45 —
53100-0C140-G0 note Grille, Radiator
2005-08 → 2006-08 ended
UCK35,45 —
53100-0C140-J0 note Grille, Radiator
2004-08 → 2006-08 ended
UCK35,45 —
53129A — Pipe, Radiator Grille
53129-50010 Pipe, Radiator Grille
2000-09 → 2004-08 ended
UCK35,45 —
53129-50010 Pipe, Radiator Grille
2004-08 → —
UCK35,45 —
53149C — Protector, Radiator Grille, NO.2
53149-0C010 Protector, Radiator Grille, NO.2
2000-09 → 2000-12 ended
UCK35,45 4HC —
53149-0C020 Protector, Radiator Grille, NO.2
2000-12 → 2004-08 ended
UCK35,45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
