Toyota Sequoia
2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States
Discontinued model
Data version 2008-05

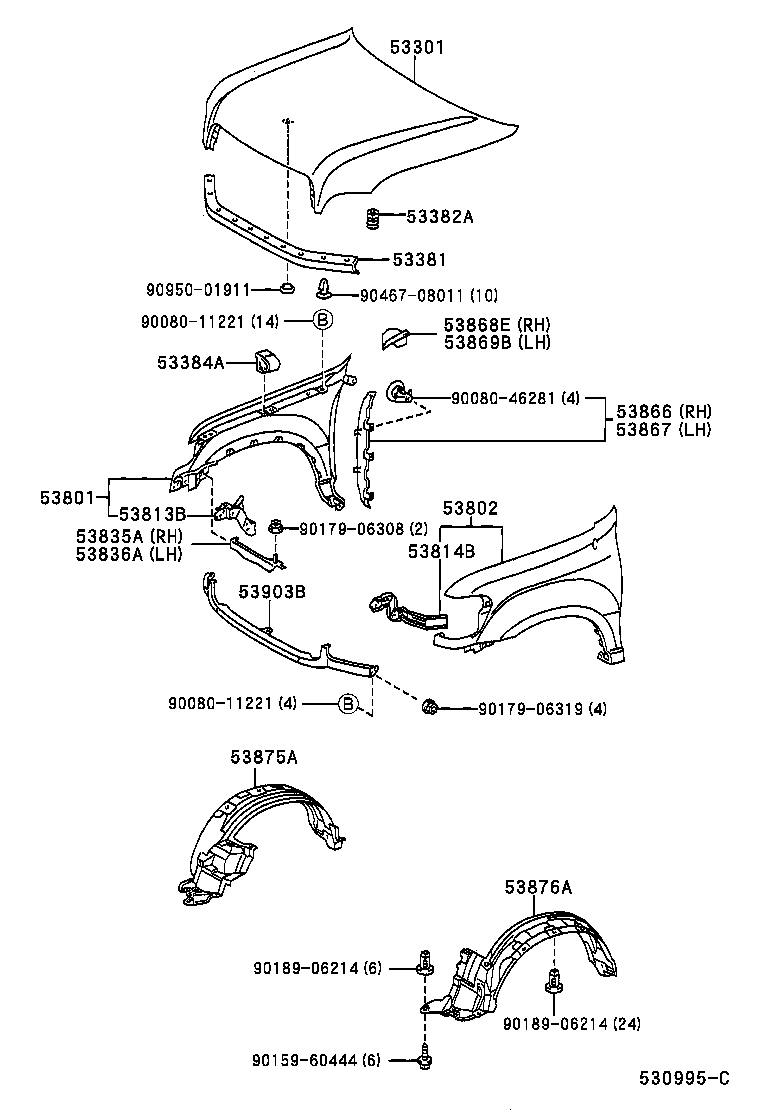

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53301 — Hood Sub-assy | ||||
| 53301-0C020 |
Hood Sub-assy
2000-09 → 2003-04
ended
|
UCK35,45 4HC | — | |
| 53301-0C021 |
Hood Sub-assy
2003-04 → 2004-08
ended
|
UCK35,45 | — | |
| 53301-0C021 |
Hood Sub-assy
2004-08 → —
|
UCK35,45 | — | |
| 53381 — Seal, Hood TO Radiator Support | ||||
| 53381-0C010 |
Seal, Hood TO Radiator Support
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 53381-0C010 |
Seal, Hood TO Radiator Support
2004-08 → —
|
UCK35,45 | — | |
| 53382A — Bumper, Hood, Rear | ||||
| 53382-89102 |
Bumper, Hood, Rear
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 53382-89102 |
Bumper, Hood, Rear
2004-08 → —
|
UCK35,45 | — | |
| 53384A — Bumper, Fender TO Hood | ||||
| 53384-0C010 |
Bumper, Fender TO Hood
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 53384-0C010 |
Bumper, Fender TO Hood
2004-08 → —
|
UCK35,45 | — | |
| 53801 — Fender Sub-assy, Front RH | ||||
| 53801-0C070 |
Fender Sub-assy, Front RH
2000-09 → 2004-08
ended
|
UCK35 SR5 | — | |
| 53801-0C080 note |
Fender Sub-assy, Front RH
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 53801-0C100 |
Fender Sub-assy, Front RH
2004-08 → —
|
UCK35,45 | — | |
| 53802 — Fender Sub-assy, Front LH | ||||
| 53802-0C070 |
Fender Sub-assy, Front LH
2000-09 → 2004-08
ended
|
UCK35 SR5 | — | |
| 53802-0C080 note |
Fender Sub-assy, Front LH
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 53802-0C100 |
Fender Sub-assy, Front LH
2004-08 → —
|
UCK35,45 | — | |
| 53813B — Extension, Front Fender, RH | ||||
| 53813-34020 |
Extension, Front Fender, RH
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 53813-0C040 |
Extension, Front Fender, RH
2004-08 → —
|
UCK35,45 | — | |
| 53814B — Extension, Front Fender, LH | ||||
| 53814-34020 |
Extension, Front Fender, LH
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 53814-0C040 |
Extension, Front Fender, LH
2004-08 → —
|
UCK35,45 | — | |
| 53835A — Brace, Front Fender TO Apron, RH | ||||
| 53835-34030 |
Brace, Front Fender TO Apron, RH
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 53835-34030 |
Brace, Front Fender TO Apron, RH
2004-08 → —
|
UCK35,45 | — | |
| 53836A — Brace, Front Fender TO Apron, LH | ||||
| 53836-34030 |
Brace, Front Fender TO Apron, LH
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 53836-34030 |
Brace, Front Fender TO Apron, LH
2004-08 → —
|
UCK35,45 | — | |
| 53866 — Seal, Front Fender TO Cowl Side, RH | ||||
| 53866-0C020 |
Seal, Front Fender TO Cowl Side, RH
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 53866-0C020 |
Seal, Front Fender TO Cowl Side, RH
2004-08 → —
|
UCK35,45 | — | |
| 53867 — Seal, Front Fender TO Cowl Side, LH | ||||
| 53867-0C020 |
Seal, Front Fender TO Cowl Side, LH
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 53867-0C020 |
Seal, Front Fender TO Cowl Side, LH
2004-08 → —
|
UCK35,45 | — | |
| 53868E — Seal, Front Fender TO Cowl Side, NO.2 RH | ||||
| 53868-0C020 |
Seal, Front Fender TO Cowl Side, NO.2 RH
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 53868-0C020 |
Seal, Front Fender TO Cowl Side, NO.2 RH
2004-08 → —
|
UCK35,45 | — | |
| 53869B — Seal, Front Fender TO Cowl Side, NO.2 LH | ||||
| 53869-0C020 |
Seal, Front Fender TO Cowl Side, NO.2 LH
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 53869-0C020 |
Seal, Front Fender TO Cowl Side, NO.2 LH
2004-08 → —
|
UCK35,45 | — | |
| 53875A — Liner, Front Fender, RH | ||||
| 53875-0C020 |
Liner, Front Fender, RH
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 53875-0C040 |
Liner, Front Fender, RH
2004-08 → —
|
UCK35,45 | — | |
| 53876A — Liner, Front Fender, LH | ||||
| 53876-0C020 |
Liner, Front Fender, LH
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 53876-0C040 |
Liner, Front Fender, LH
2004-08 → —
|
UCK35,45 | — | |
| 53903B — Panel Sub-assy, Front End | ||||
| 53903-0C020 |
Panel Sub-assy, Front End
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
