Toyota Sequoia
2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States
Discontinued model
Data version 2008-05

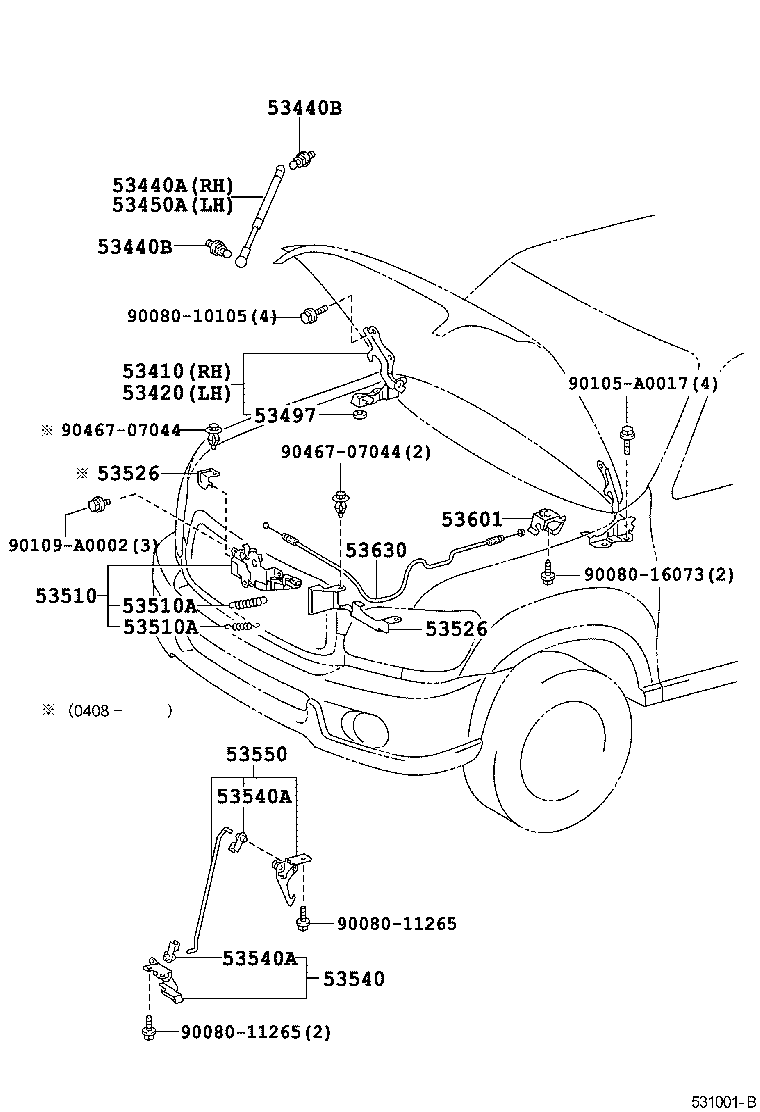

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53410 — Hinge Assy, Hood, RH | ||||
| 53410-0C010 |
Hinge Assy, Hood, RH
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 53410-0C010 |
Hinge Assy, Hood, RH
2004-08 → —
|
UCK35,45 | — | |
| 53420 — Hinge Assy, Hood, LH | ||||
| 53420-0C010 |
Hinge Assy, Hood, LH
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 53420-0C010 |
Hinge Assy, Hood, LH
2004-08 → —
|
UCK35,45 | — | |
| 53440A — Support Assy, Hood, RH | ||||
| 53440-0C011 |
Support Assy, Hood, RH
2000-09 → 2003-01
ended
|
UCK35,45 4HC | — | |
| 53440-0C012 |
Support Assy, Hood, RH
2003-01 → 2004-08
ended
|
UCK35,45 | — | |
| 53440-0C012 |
Support Assy, Hood, RH
2004-08 → —
|
UCK35,45 | — | |
| 53440B — Bolt, Hood Support, NO.1 | ||||
| 68961-34010 |
Bolt, Hood Support, NO.1
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 68961-34010 |
Bolt, Hood Support, NO.1
2004-08 → —
|
UCK35,45 | — | |
| 53450A — Support Assy, Hood, LH | ||||
| 53450-0C011 |
Support Assy, Hood, LH
2000-09 → 2003-01
ended
|
UCK35,45 4HC | — | |
| 53450-0C012 |
Support Assy, Hood, LH
2003-01 → 2004-08
ended
|
UCK35,45 | — | |
| 53450-0C012 |
Support Assy, Hood, LH
2004-08 → —
|
UCK35,45 | — | |
| 53497 — Pad, Hood Hinge, NO.1 | ||||
| 53497-0C010 |
Pad, Hood Hinge, NO.1
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 53497-0C010 |
Pad, Hood Hinge, NO.1
2004-08 → —
|
UCK35,45 | — | |
| 53510 — Lock Assy, Hood | ||||
| 53510-0C020 |
Lock Assy, Hood
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 53510-0C020 |
Lock Assy, Hood
2004-08 → —
|
UCK35,45 | — | |
| 53510A — Spring, Tension(FOR HOOD LOCK) | ||||
| 90080-50100 note |
Spring, Tension(FOR HOOD LOCK)
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 90080-50175 note |
Spring, Tension(FOR HOOD LOCK)
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 90080-50100 note |
Spring, Tension(FOR HOOD LOCK)
2004-08 → —
|
UCK35,45 | — | |
| 90080-50175 note |
Spring, Tension(FOR HOOD LOCK)
2004-08 → —
|
UCK35,45 | — | |
| 53526 — Protector, Hood Lock Release Lever, NO.2 | ||||
| 53526-0C010 |
Protector, Hood Lock Release Lever, NO.2
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 53526-0C010 note |
Protector, Hood Lock Release Lever, NO.2
2004-08 → —
|
UCK35,45 | — | |
| 53526-0C020 note |
Protector, Hood Lock Release Lever, NO.2
2004-08 → —
|
UCK35,45 | — | |
| 53540 — Lever Assy, Auxiliary Catch Release | ||||
| 53540-0C020 |
Lever Assy, Auxiliary Catch Release
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 53540-0C020 |
Lever Assy, Auxiliary Catch Release
2004-08 → —
|
UCK35,45 | — | |
| 53540A — Snap, Auxiliary Catch Release Lever Control Link | ||||
| 69759-0C010 |
Snap, Auxiliary Catch Release Lever Control Link
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 69759-0C010 |
Snap, Auxiliary Catch Release Lever Control Link
2004-08 → —
|
UCK35,45 | — | |
| 53550 — Hook Assy, Hood Auxiliary Catch | ||||
| 53550-0C020 |
Hook Assy, Hood Auxiliary Catch
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 53550-0C030 |
Hook Assy, Hood Auxiliary Catch
2004-08 → —
|
UCK35,45 | — | |
| 53601 — Lever Sub-assy, Hood Lock Control | ||||
| 53601-01020-B4 note |
Lever Sub-assy, Hood Lock Control
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 53601-01020-E3 note |
Lever Sub-assy, Hood Lock Control
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 53601-01020-B4 note |
Lever Sub-assy, Hood Lock Control
2004-08 → —
|
UCK35,45 | — | |
| 53601-01020-E4 note |
Lever Sub-assy, Hood Lock Control
2004-08 → —
|
UCK35,45 | — | |
| 53630 — Cable Assy, Hood Lock Control | ||||
| 53630-0C010 |
Cable Assy, Hood Lock Control
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 53630-0C010 |
Cable Assy, Hood Lock Control
2004-08 → —
|
UCK35,45 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
