Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

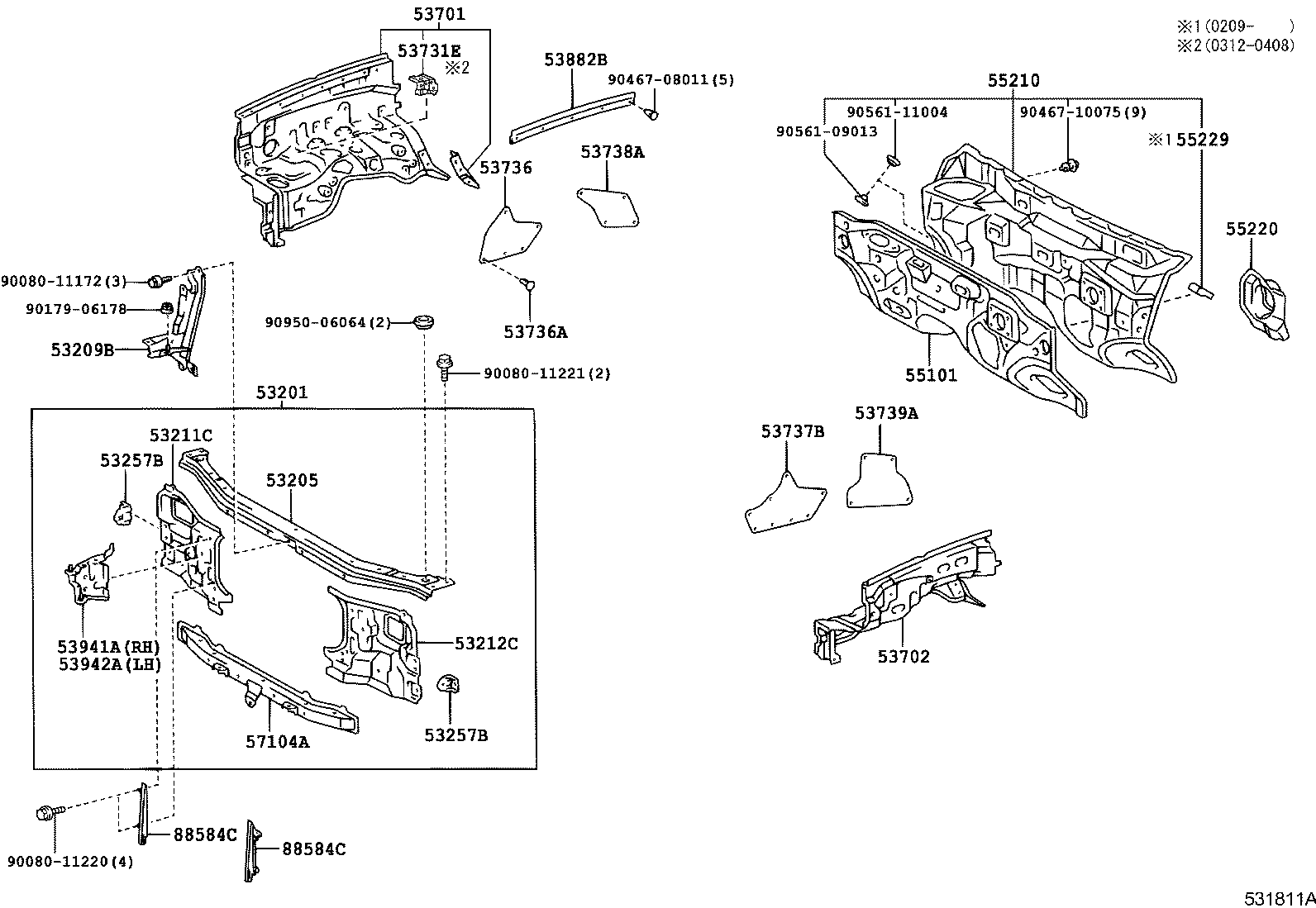

Exploded illustration 531811A 53701 — APRON SUB-ASSY, FRONT FENDER, RH (4 parts) 9008011172 — not listed in this catalogue 9017906178 — not listed in this catalogue 53209B — BRACE SUB-ASSY, HOOD LOCK SUPPORT (2 parts) 53211C — SUPPORT, RADIATOR, RH (2 parts) 53257B — BRACKET, RADIATOR SUPPORT TO FRONT FENDER (2 parts) 9095006064 — not listed in this catalogue 53201 — SUPPORT SUB-ASSY, RADIATOR (2 parts) 53205 — SUPPORT SUB-ASSY, RADIATOR, UPPER (4 parts) 53736A — CLIP(FOR FRONT FENDER APRON SEAL) (4 parts) 53736 — SEAL, FRONT FENDER APRON, RH (3 parts) 9008011221 — not listed in this catalogue 53738A — SEAL, FRONT FENDER APRON, REAR RH (2 parts) 53737B — SEAL, FRONT FENDER APRON, LH (3 parts) 9056109013 — not listed in this catalogue 55101 — PANEL SUB-ASSY, DASH (4 parts) 53739A — SEAL, FRONT FENDER APRON, REAR LH (2 parts) 55220 — INSULATOR ASSY, DASH PANEL, NO.2 (2 parts) 55210 — INSULATOR ASSY, DASH PANEL (3 parts) 55229 — PLATE, DASH PANEL INSULATOR, NO.4 (3 parts) 9046710075 — not listed in this catalogue 9056111004 — not listed in this catalogue 53882B — SEAL, FRONT FENDER, RH (2 parts) 9046708011 — not listed in this catalogue 53702 — APRON SUB-ASSY, FRONT FENDER, LH (6 parts) 9008011220 — not listed in this catalogue 53941A — BRACKET, FRONT END PANEL, NO.1 RH (2 parts) 53942A — BRACKET, FRONT END PANEL, NO.1 LH (2 parts) 88584C — GUIDE, COOLER AIR (4 parts) 88584C — GUIDE, COOLER AIR (4 parts) 57104A — MEMBER SUB-ASSY, FRONT CROSS (2 parts) 53257B — BRACKET, RADIATOR SUPPORT TO FRONT FENDER (2 parts) 53212C — SUPPORT, RADIATOR, LH (2 parts) 53731E — PATCH, FRONT FENDER APRON (1 parts)
531811A · 25 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
63 parts on this figure
Part number Description Fitment Price
53201 — Support Sub-assy, Radiator
53201-0C020 Support Sub-assy, Radiator
2000-09 → 2004-08 ended
UCK35,45 —
53201-0C040 Support Sub-assy, Radiator
2004-08 → —
UCK35,45 —
53205 — Support Sub-assy, Radiator, Upper
53205-0C010 Support Sub-assy, Radiator, Upper
2004-03 → 2004-08 ended
UCK35,45 —
53205-0C010 Support Sub-assy, Radiator, Upper
2000-09 → 2004-01 ended
UCK35,45 —
53205-0C011 Support Sub-assy, Radiator, Upper
2004-01 → 2004-03 ended
UCK35,45 —
53205-0C010 Support Sub-assy, Radiator, Upper
2004-08 → —
UCK35,45 —
53209B — Brace Sub-assy, Hood Lock Support
53209-0C020 Brace Sub-assy, Hood Lock Support
2000-09 → 2004-08 ended
UCK35,45 —
53209-0C050 Brace Sub-assy, Hood Lock Support
2004-08 → —
UCK35,45 —
53211C — Support, Radiator, RH
53211-0C020 Support, Radiator, RH
2000-09 → 2004-08 ended
UCK35,45 —
53211-0C030 Support, Radiator, RH
2004-08 → —
UCK35,45 —
53212C — Support, Radiator, LH
53212-0C020 Support, Radiator, LH
2000-09 → 2004-08 ended
UCK35,45 —
53212-0C030 Support, Radiator, LH
2004-08 → —
UCK35,45 —
53257B — Bracket, Radiator Support TO Front Fender
53257-0C010 Bracket, Radiator Support TO Front Fender
2000-09 → 2004-08 ended
UCK35,45 —
53257-0C010 Bracket, Radiator Support TO Front Fender
2004-08 → —
UCK35,45 —
53701 — Apron Sub-assy, Front Fender, RH
53701-0C070 Apron Sub-assy, Front Fender, RH
2000-09 → 2003-07 ended
UCK35,45 —
53701-0C071 Apron Sub-assy, Front Fender, RH
2003-07 → 2003-12 ended
UCK35,45 —
53701-0C072 Apron Sub-assy, Front Fender, RH
2003-12 → 2004-08 ended
UCK35,45 —
53701-0C080 Apron Sub-assy, Front Fender, RH
2004-08 → —
UCK35,45 —
53702 — Apron Sub-assy, Front Fender, LH
53702-0C090 Apron Sub-assy, Front Fender, LH
2000-09 → 2003-07 ended
UCK45 —
53702-0C091 Apron Sub-assy, Front Fender, LH
2003-07 → 2004-08 ended
UCK45 —
53702-0C091 Apron Sub-assy, Front Fender, LH
2003-12 → 2004-08 ended
UCK35 —
53702-0C100 Apron Sub-assy, Front Fender, LH
2000-09 → 2003-07 ended
UCK35 —
53702-0C101 Apron Sub-assy, Front Fender, LH
2003-07 → 2003-12 ended
UCK35 —
53702-0C190 Apron Sub-assy, Front Fender, LH
2004-08 → —
UCK35,45 —
53731E — Patch, Front Fender Apron
53731-34010 Patch, Front Fender Apron
2003-12 → 2004-08 ended
UCK35,45 —
53736 — Seal, Front Fender Apron, RH
53736-0C010 Seal, Front Fender Apron, RH
2000-09 → 2002-09 ended
UCK35,45 —
53736-0C020 Seal, Front Fender Apron, RH
2002-09 → 2004-08 ended
UCK35,45 —
53736-0C020 Seal, Front Fender Apron, RH
2004-08 → —
UCK35,45 —
53736A — Clip(FOR FRONT FENDER APRON SEAL)
90080-46219 note Clip(FOR FRONT FENDER APRON SEAL)
2000-09 → 2002-09 ended
UCK35,45 —
90080-46327 Clip(FOR FRONT FENDER APRON SEAL)
2002-09 → 2004-08 ended
UCK35,45 —
90467-10186 note Clip(FOR FRONT FENDER APRON SEAL)
2000-09 → 2002-09 ended
UCK35,45 —
90080-46327 Clip(FOR FRONT FENDER APRON SEAL)
2004-08 → —
UCK35,45 —
53737B — Seal, Front Fender Apron, LH
53737-0C010 Seal, Front Fender Apron, LH
2000-09 → 2002-09 ended
UCK35,45 —
53737-0C020 Seal, Front Fender Apron, LH
2002-09 → 2004-08 ended
UCK35,45 —
53737-0C020 Seal, Front Fender Apron, LH
2004-08 → —
UCK35,45 —
53738A — Seal, Front Fender Apron, Rear RH
53738-0C010 Seal, Front Fender Apron, Rear RH
2000-09 → 2004-08 ended
UCK35,45 —
53738-0C010 Seal, Front Fender Apron, Rear RH
2004-08 → —
UCK35,45 —
53739A — Seal, Front Fender Apron, Rear LH
53739-0C010 Seal, Front Fender Apron, Rear LH
2000-09 → 2004-08 ended
UCK35,45 —
53739-0C010 Seal, Front Fender Apron, Rear LH
2004-08 → —
UCK35,45 —
53882B — Seal, Front Fender, RH
53882-0C010 Seal, Front Fender, RH
2000-09 → 2004-08 ended
UCK35,45 —
53882-0C010 Seal, Front Fender, RH
2004-08 → —
UCK35,45 —
53941A — Bracket, Front End Panel, NO.1 RH
53941-0C020 Bracket, Front End Panel, NO.1 RH
2000-09 → 2004-08 ended
UCK35,45 —
53941-0C040 Bracket, Front End Panel, NO.1 RH
2004-08 → —
UCK35,45 —
53942A — Bracket, Front End Panel, NO.1 LH
53942-0C020 Bracket, Front End Panel, NO.1 LH
2000-09 → 2004-08 ended
UCK35,45 —
53942-0C040 Bracket, Front End Panel, NO.1 LH
2004-08 → —
UCK35,45 —
55101 — Panel Sub-assy, Dash
55101-0C903 Panel Sub-assy, Dash
2000-09 → 2002-01 ended
UCK35,45 4HC —
55101-0C910 Panel Sub-assy, Dash
2002-01 → 2002-09 ended
UCK35,45 4HC —
55101-0C918 Panel Sub-assy, Dash
2002-09 → 2004-08 ended
UCK35,45 —
55101-0C929 Panel Sub-assy, Dash
2004-08 → —
UCK35,45 —
55210 — Insulator Assy, Dash Panel
55210-0C022 Insulator Assy, Dash Panel
2002-09 → 2004-08 ended
UCK35,45 —
55210-0C022 Insulator Assy, Dash Panel
2004-08 → 2005-05 ended
UCK35,45 —
55210-0C050 Insulator Assy, Dash Panel
2005-06 → —
UCK35,45 —
55220 — Insulator Assy, Dash Panel, NO.2
55220-0C010 Insulator Assy, Dash Panel, NO.2
2000-09 → 2004-08 ended
UCK35,45 —
55220-0C010 Insulator Assy, Dash Panel, NO.2
2004-08 → —
UCK35,45 —
55229 — Plate, Dash Panel Insulator, NO.4
55229-34010 Plate, Dash Panel Insulator, NO.4
2002-09 → 2004-08 ended
UCK35,45 —
55229-34010 Plate, Dash Panel Insulator, NO.4
2004-08 → 2005-05 ended
UCK35,45 —
55229-34010 Plate, Dash Panel Insulator, NO.4
2005-06 → —
UCK35,45 —
57104A — Member Sub-assy, Front Cross
57104-0C020 Member Sub-assy, Front Cross
2000-09 → 2004-08 ended
UCK35,45 —
57104-0C020 Member Sub-assy, Front Cross
2004-08 → —
UCK35,45 —
88584C — Guide, Cooler Air
88584-0C010 note Guide, Cooler Air
2000-09 → 2004-08 ended
UCK35,45 —
88584-0C020 note Guide, Cooler Air
2000-09 → 2004-08 ended
UCK35,45 —
88584-0C010 note Guide, Cooler Air
2004-08 → —
UCK35,45 —
88584-0C020 note Guide, Cooler Air
2004-08 → —
UCK35,45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
