Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

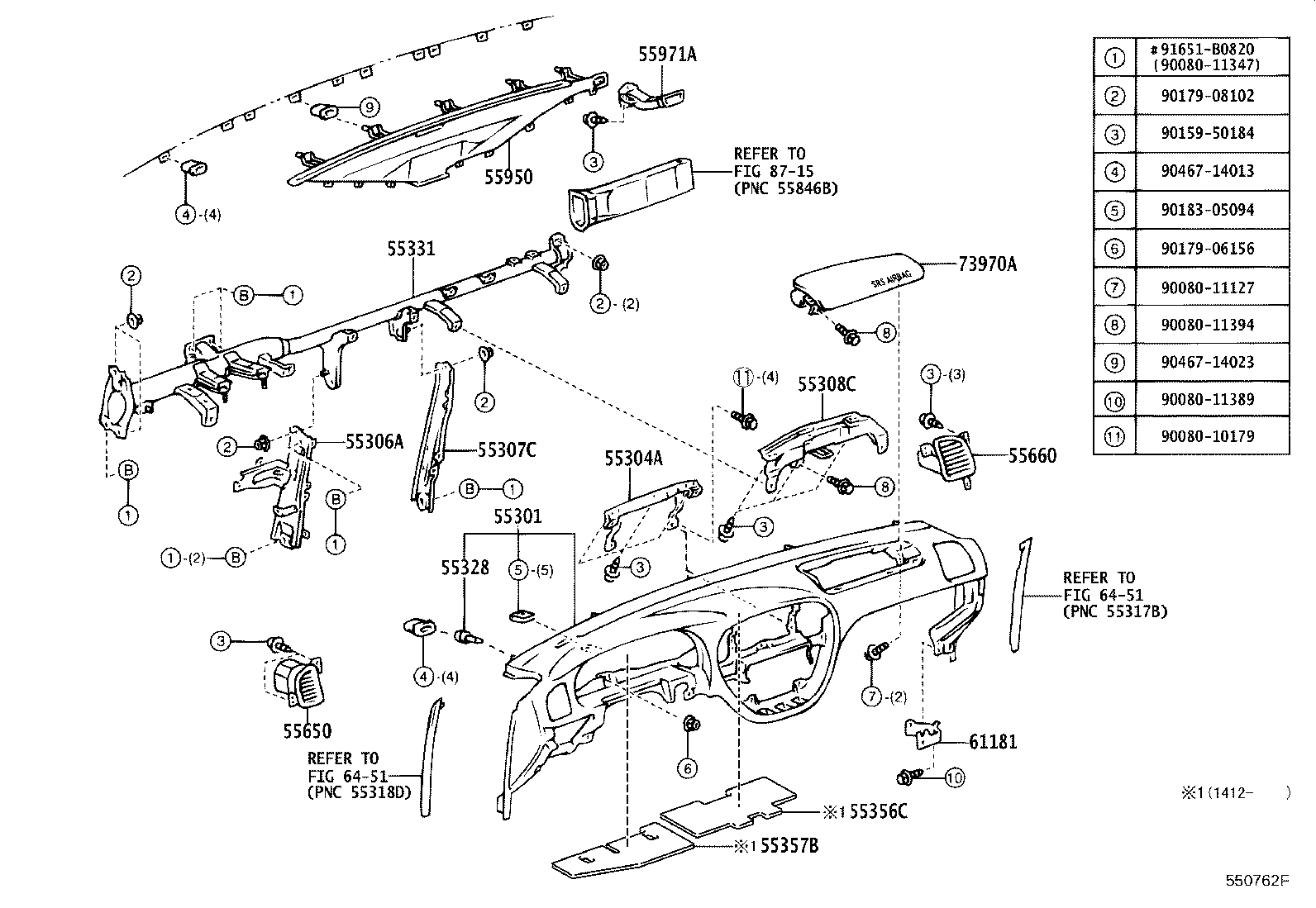

Exploded illustration 550762F 55357B — CUSHION, INSTRUMENT PANEL, NO.3 (1 parts) 55356C — CUSHION, INSTRUMENT PANEL, NO.2 (1 parts) 8715 — not listed in this catalogue 6451 — not listed in this catalogue 6451 — not listed in this catalogue 55331 — REINFORCEMENT, INSTRUMENT PANEL (2 parts) 55950 — NOZZLE ASSY, DEFROSTER (2 parts) 55971A — DUCT, SIDE DEFROSTER NOZZLE, NO.1 (2 parts) 55304A — STAY SUB-ASSY, INSTRUMENT PANEL, CENTER (3 parts) 55307C — BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 (2 parts) 55301 — PANEL SUB-ASSY, INSTRUMENT (4 parts) 55328 — PIN, INSTRUMENT PANEL, NO.1 (2 parts) 55306A — BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 (2 parts) 55650 — REGISTER ASSY, INSTRUMENT PANEL, NO.1 (2 parts) 61181 — BRACKET, INSTRUMENT PANEL SIDE (2 parts) 55660 — REGISTER ASSY, INSTRUMENT PANEL, NO.2 (2 parts) 73970A — AIRBAG ASSY, INSTRUMENT PANEL PASSENGER (6 parts) 9008011389 — not listed in this catalogue 9046714023 — not listed in this catalogue 9008011394 — not listed in this catalogue 9008011127 — not listed in this catalogue 9017906156 — not listed in this catalogue 9018305094 — not listed in this catalogue 9046714013 — not listed in this catalogue 9015950184 — not listed in this catalogue 9017908102 — not listed in this catalogue 91651B0820 — not listed in this catalogue 55308C — BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER (3 parts) 9008011347 — not listed in this catalogue 9008010179 — not listed in this catalogue
550762F · 15 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
36 parts on this figure
Part number Description Fitment Price
55301 — Panel Sub-assy, Instrument
55301-0C020-B0 note Panel Sub-assy, Instrument
2000-09 → 2004-08 ended
UCK35,45 —
55301-0C020-E0 note Panel Sub-assy, Instrument
2000-09 → 2004-08 ended
UCK35,45 —
55301-0C020-B0 note Panel Sub-assy, Instrument
2004-08 → —
UCK35,45 —
55301-0C020-E1 note Panel Sub-assy, Instrument
2004-08 → —
UCK35,45 —
55304A — Stay Sub-assy, Instrument Panel, Center
55304-0C010 Stay Sub-assy, Instrument Panel, Center
2000-09 → 2002-08 ended
UCK35,45 4HC —
55304-0C020 Stay Sub-assy, Instrument Panel, Center
2002-08 → 2004-08 ended
UCK35,45 —
55304-0C020 Stay Sub-assy, Instrument Panel, Center
2004-08 → —
UCK35,45 —
55306A — Brace Sub-assy, Instrument Panel, NO.1
55306-0C021 Brace Sub-assy, Instrument Panel, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
55306-0C021 Brace Sub-assy, Instrument Panel, NO.1
2004-08 → —
UCK35,45 —
55307C — Brace Sub-assy, Instrument Panel, NO.2
55307-0C020 Brace Sub-assy, Instrument Panel, NO.2
2000-09 → 2004-08 ended
UCK35,45 —
55307-0C020 Brace Sub-assy, Instrument Panel, NO.2
2004-08 → —
UCK35,45 —
55308C — Bracket Sub-assy, Instrument Panel, Center
55308-0C010 Bracket Sub-assy, Instrument Panel, Center
2000-09 → 2002-08 ended
UCK35,45 4HC —
55308-0C011 Bracket Sub-assy, Instrument Panel, Center
2002-08 → 2004-08 ended
UCK35,45 —
55308-0C012 Bracket Sub-assy, Instrument Panel, Center
2004-08 → —
UCK35,45 —
55328 — Pin, Instrument Panel, NO.1
90249-04057 Pin, Instrument Panel, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
90249-04057 Pin, Instrument Panel, NO.1
2004-08 → —
UCK35,45 —
55331 — Reinforcement, Instrument Panel
55330-0C020 Reinforcement, Instrument Panel
2000-09 → 2004-08 ended
UCK35,45 —
55330-0C021 Reinforcement, Instrument Panel
2004-08 → —
UCK35,45 —
55356C — Cushion, Instrument Panel, NO.2
55356-0C010 Cushion, Instrument Panel, NO.2
2004-12 → 2007-11 ended
UCK35,45 —
55357B — Cushion, Instrument Panel, NO.3
55357-0C010 Cushion, Instrument Panel, NO.3
2004-12 → 2007-11 ended
UCK35,45 —
55650 — Register Assy, Instrument Panel, NO.1
55650-0C010 Register Assy, Instrument Panel, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
55650-0C010 Register Assy, Instrument Panel, NO.1
2004-08 → —
UCK35,45 —
55660 — Register Assy, Instrument Panel, NO.2
55660-0C010 Register Assy, Instrument Panel, NO.2
2000-09 → 2004-08 ended
UCK35,45 —
55660-0C010 Register Assy, Instrument Panel, NO.2
2004-08 → —
UCK35,45 —
55950 — Nozzle Assy, Defroster
55950-0C010 Nozzle Assy, Defroster
2000-09 → 2004-08 ended
UCK35,45 —
55950-0C010 Nozzle Assy, Defroster
2004-08 → —
UCK35,45 —
55971A — Duct, Side Defroster Nozzle, NO.1
55971-0C010 Duct, Side Defroster Nozzle, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
55971-0C010 Duct, Side Defroster Nozzle, NO.1
2004-08 → —
UCK35,45 —
61181 — Bracket, Instrument Panel Side
61187-0C010 Bracket, Instrument Panel Side
2000-09 → 2004-08 ended
UCK35,45 —
61187-0C010 Bracket, Instrument Panel Side
2004-08 → —
UCK35,45 —
73970A — Airbag Assy, Instrument Panel Passenger
73970-0C010-B0 note Airbag Assy, Instrument Panel Passenger
2000-09 → 2002-08 ended
UCK35,45 —
73970-0C010-E0 note Airbag Assy, Instrument Panel Passenger
2000-09 → 2002-08 ended
UCK35,45 —
73970-0C020-B0 note Airbag Assy, Instrument Panel Passenger
2002-08 → 2004-08 ended
UCK35,45 —
73970-0C020-E0 note Airbag Assy, Instrument Panel Passenger
2002-08 → 2004-08 ended
UCK35,45 —
73970-0C021-B0 note Airbag Assy, Instrument Panel Passenger
2004-08 → —
UCK35,45 —
73970-0C021-E1 note Airbag Assy, Instrument Panel Passenger
2004-08 → —
UCK35,45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
