Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

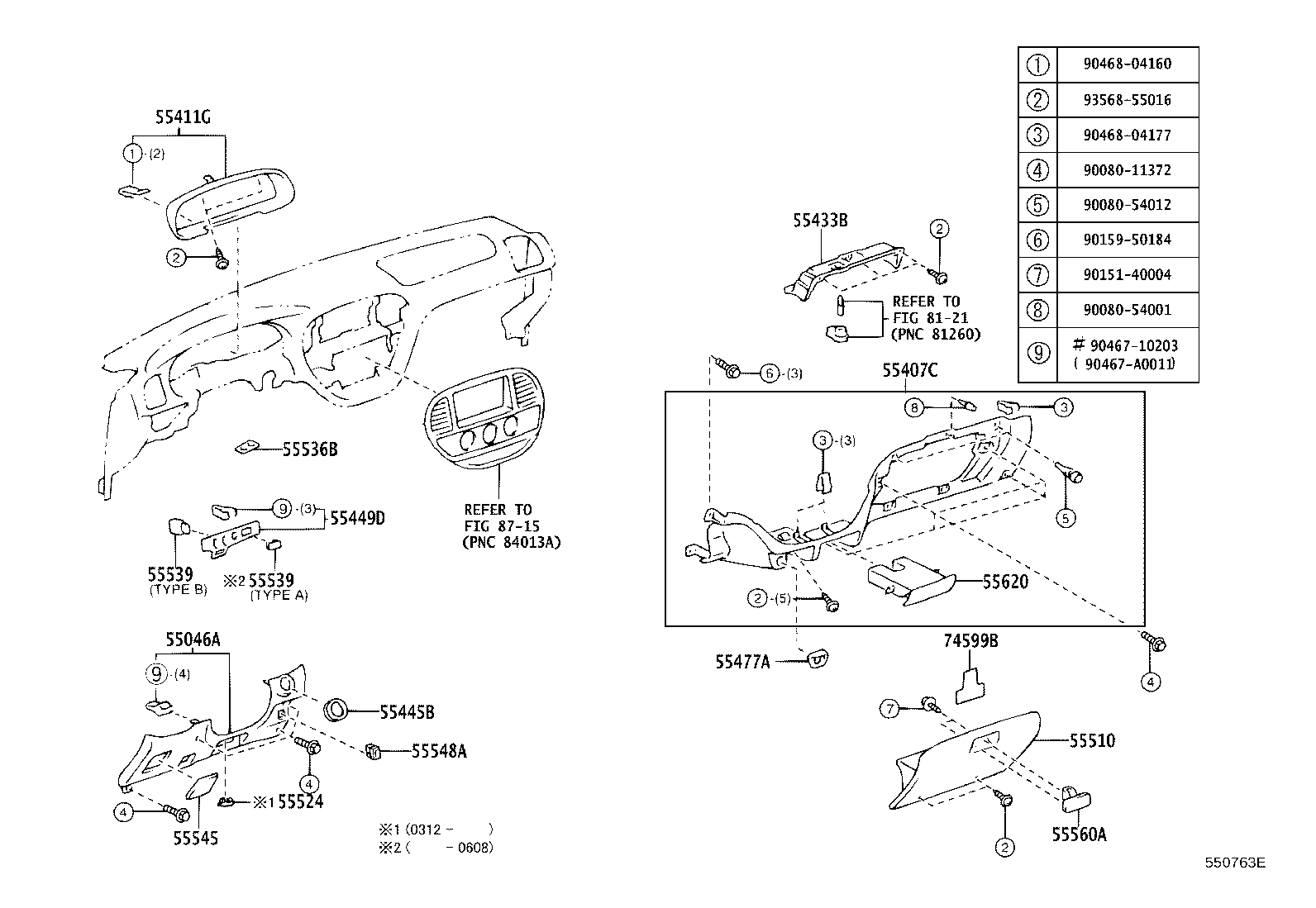

Exploded illustration 550763E 55411G — PANEL, INSTRUMENT CLUSTER FINISH, NO.1 (2 parts) 55536B — COVER, LIGHT CONTROL SWITCH HOLE (8 parts) 55449D — BASE, SWITCH (4 parts) 55539 — COVER, SPARE SWITCH HOLE (5 parts) 55539 — COVER, SPARE SWITCH HOLE (5 parts) 55445B — PLATE, INSTRUMENT PANEL FINISH (2 parts) 55046A — PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER LH (6 parts) 55548A — COVER, INSTRUMENT PANEL HOLE (4 parts) 55545 — COVER, FUSE BOX OPENING (4 parts) 55477A — BEZEL, CIGARETTE LIGHTER HOLE (2 parts) 74599B — LABEL, DRIVER & PASSENGER AIRBAG INFORMATION (2 parts) 55510 — DOOR ASSY, GLOVE COMPARTMENT (4 parts) 55560A — LOCK ASSY, GLOVE COMPARTMENT DOOR (4 parts) 55620 — HOLDER ASSY, INSTRUMENT PANEL CUP (4 parts) 55407C — COVER SUB-ASSY, INSTRUMENT, LOWER (4 parts) 55433B — PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 (2 parts) 9008054001 — not listed in this catalogue 9015140004 — not listed in this catalogue 9015950184 — not listed in this catalogue 9008054012 — not listed in this catalogue 9008011372 — not listed in this catalogue 9046710203 — not listed in this catalogue 9356855016 — not listed in this catalogue 9046804160 — not listed in this catalogue 55524 — COVER, SWITCH BACE HOLE (1 parts) 90467A0011 — not listed in this catalogue 9046804177 — not listed in this catalogue 8715 — not listed in this catalogue 8121 — not listed in this catalogue
550763E · 17 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
58 parts on this figure
Part number Description Fitment Price
55046A — Panel Sub-assy, Instrument Panel Finish, Lower LH
55046-0C030-B0 note Panel Sub-assy, Instrument Panel Finish, Lower LH
2000-09 → 2003-12 ended
UCK35,45 —
55046-0C030-E0 note Panel Sub-assy, Instrument Panel Finish, Lower LH
2000-09 → 2003-12 ended
UCK35,45 —
55046-0C060-B0 note Panel Sub-assy, Instrument Panel Finish, Lower LH
2003-12 → 2004-08 ended
UCK35,45 —
55046-0C060-E0 note Panel Sub-assy, Instrument Panel Finish, Lower LH
2003-12 → 2004-08 ended
UCK35,45 —
55046-0C061-B0 note Panel Sub-assy, Instrument Panel Finish, Lower LH
2004-08 → —
UCK35,45 —
55046-0C061-E1 note Panel Sub-assy, Instrument Panel Finish, Lower LH
2004-08 → —
UCK35,45 —
55407C — Cover Sub-assy, Instrument, Lower
55407-0C010-B0 note Cover Sub-assy, Instrument, Lower
2000-09 → 2004-08 ended
UCK35,45 —
55407-0C010-E0 note Cover Sub-assy, Instrument, Lower
2000-09 → 2004-08 ended
UCK35,45 —
55407-0C010-B0 note Cover Sub-assy, Instrument, Lower
2004-08 → —
UCK35,45 —
55407-0C010-E1 note Cover Sub-assy, Instrument, Lower
2004-08 → —
UCK35,45 —
55411G — Panel, Instrument Cluster Finish, NO.1
55410-0C010 Panel, Instrument Cluster Finish, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
55410-0C010 Panel, Instrument Cluster Finish, NO.1
2004-08 → —
UCK35,45 —
55433B — Panel, Instrument Panel Finish, Lower NO.2
55433-0C010 Panel, Instrument Panel Finish, Lower NO.2
2000-09 → 2004-08 ended
UCK35,45 —
55433-0C010 Panel, Instrument Panel Finish, Lower NO.2
2004-08 → —
UCK35,45 —
55445B — Plate, Instrument Panel Finish
55445-0C010 Plate, Instrument Panel Finish
2000-09 → 2004-08 ended
UCK35,45 —
55445-0C010 Plate, Instrument Panel Finish
2004-08 → —
UCK35,45 —
55449D — Base, Switch
55449-0C010-B0 note Base, Switch
2000-09 → 2004-08 ended
UCK35,45 —
55449-0C010-E0 note Base, Switch
2000-09 → 2004-08 ended
UCK35,45 —
55449-0C011-B0 note Base, Switch
2004-08 → —
UCK35,45 —
55449-0C011-E1 note Base, Switch
2004-08 → —
UCK35,45 —
55477A — Bezel, Cigarette Lighter Hole
55477-0C010 Bezel, Cigarette Lighter Hole
2000-09 → 2004-08 ended
UCK35,45 —
55477-0C010 Bezel, Cigarette Lighter Hole
2004-08 → —
UCK35,45 —
55510 — Door Assy, Glove Compartment
55550-0C010-B0 note Door Assy, Glove Compartment
2000-09 → 2004-08 ended
UCK35,45 —
55550-0C010-E0 note Door Assy, Glove Compartment
2000-09 → 2004-08 ended
UCK35,45 —
55550-0C010-B0 note Door Assy, Glove Compartment
2004-08 → —
UCK35,45 —
55550-0C010-E1 note Door Assy, Glove Compartment
2004-08 → —
UCK35,45 —
55524 — Cover, Switch Bace Hole
55524-30030 Cover, Switch Bace Hole
2003-12 → 2004-08 ended
UCK35,45 —
55536B — Cover, Light Control Switch Hole
55536-0C010-B0 note Cover, Light Control Switch Hole
2000-09 → 2004-08 ended
UCK35,45 SR5 —
55536-0C010-E0 note Cover, Light Control Switch Hole
2000-09 → 2004-08 ended
UCK35,45 SR5 —
55536-0C020-B0 note Cover, Light Control Switch Hole
2000-09 → 2004-08 ended
UCK35,45 LIMD —
55536-0C020-E0 note Cover, Light Control Switch Hole
2000-09 → 2004-08 ended
UCK35,45 LIMD —
55536-0C010-B0 note Cover, Light Control Switch Hole
2004-08 → —
UCK35,45 SR5 —
55536-0C010-E1 note Cover, Light Control Switch Hole
2004-08 → —
UCK35,45 SR5 —
55536-0C020-B0 note Cover, Light Control Switch Hole
2004-08 → —
UCK35,45 LIMD —
55536-0C020-E1 note Cover, Light Control Switch Hole
2004-08 → —
UCK35,45 LIMD —
55539 — Cover, Spare Switch Hole
55539-06010-B2 note Cover, Spare Switch Hole
2000-09 → 2004-08 ended
UCK35,45 —
55539-06010-E0 note Cover, Spare Switch Hole
2000-09 → 2004-08 ended
UCK35,45 —
55539-0C010 note Cover, Spare Switch Hole
2000-09 → 2004-08 ended
UCK35,45 —
55539-0C030 note Cover, Spare Switch Hole
2004-08 → —
UCK35,45 —
55539-AE010-C0 note Cover, Spare Switch Hole
2004-08 → 2006-08 ended
UCK35,45 —
55545 — Cover, Fuse Box Opening
55545-0C010-B0 note Cover, Fuse Box Opening
2000-09 → 2004-08 ended
UCK35,45 —
55545-0C010-E0 note Cover, Fuse Box Opening
2000-09 → 2004-08 ended
UCK35,45 —
55545-0C010-B0 note Cover, Fuse Box Opening
2004-08 → —
UCK35,45 —
55545-0C010-E1 note Cover, Fuse Box Opening
2004-08 → —
UCK35,45 —
55548A — Cover, Instrument Panel Hole
55549-0C010-B0 note Cover, Instrument Panel Hole
2000-09 → 2004-08 ended
UCK35,45 —
55549-0C010-E0 note Cover, Instrument Panel Hole
2000-09 → 2004-08 ended
UCK35,45 —
55549-0C010-B0 note Cover, Instrument Panel Hole
2004-08 → —
UCK35,45 —
55549-0C010-E1 note Cover, Instrument Panel Hole
2004-08 → —
UCK35,45 —
55560A — Lock Assy, Glove Compartment Door
55560-34030-B0 note Lock Assy, Glove Compartment Door
2000-09 → 2004-08 ended
UCK35,45 —
55560-34030-E0 note Lock Assy, Glove Compartment Door
2000-09 → 2004-08 ended
UCK35,45 —
55560-0C010-B0 note Lock Assy, Glove Compartment Door
2004-08 → —
UCK35,45 —
55560-0C010-E0 note Lock Assy, Glove Compartment Door
2004-08 → —
UCK35,45 —
55620 — Holder Assy, Instrument Panel Cup
55620-0C010-B0 note Holder Assy, Instrument Panel Cup
2000-09 → 2004-08 ended
UCK35,45 —
55620-0C010-E0 note Holder Assy, Instrument Panel Cup
2000-09 → 2004-08 ended
UCK35,45 —
55620-0C010-B0 note Holder Assy, Instrument Panel Cup
2004-08 → —
UCK35,45 —
55620-0C010-E1 note Holder Assy, Instrument Panel Cup
2004-08 → —
UCK35,45 —
74599B — Label, Driver & Passenger Airbag Information
74599-06010 Label, Driver & Passenger Airbag Information
2000-09 → 2004-08 ended
UCK35,45 —
74599-0E020 Label, Driver & Passenger Airbag Information
2004-08 → —
UCK35,45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
