Toyota Sequoia
2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States
Discontinued model
Data version 2008-05

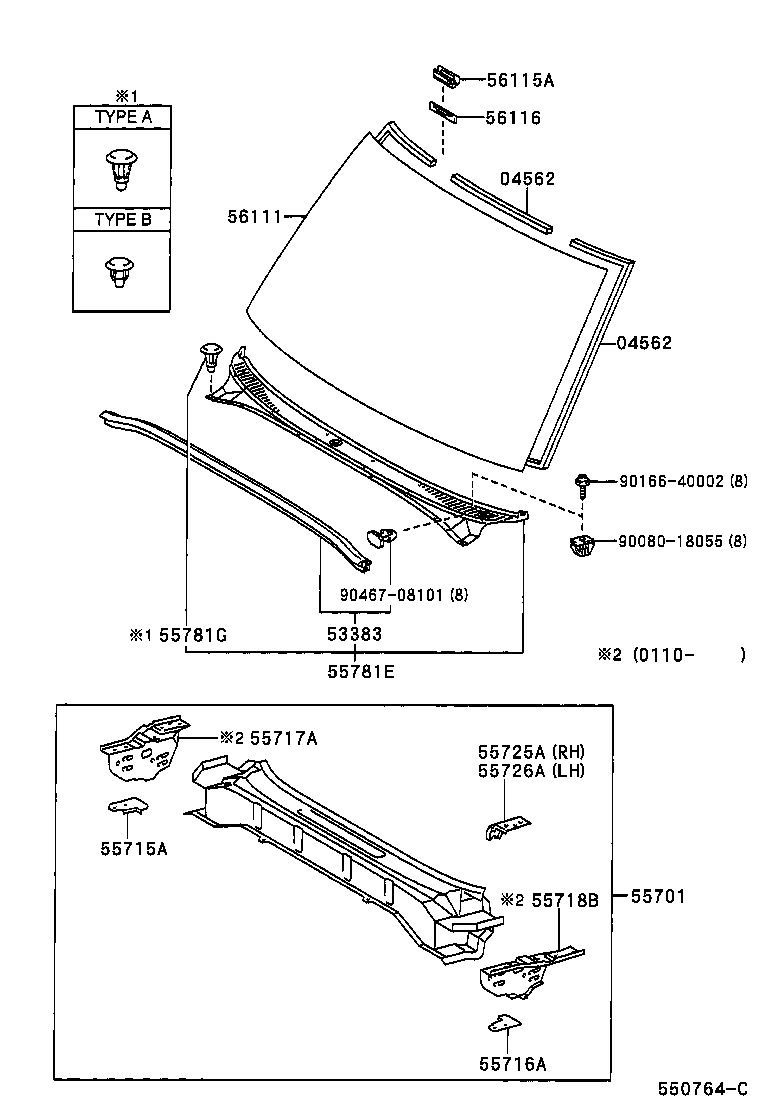

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04562 — Dam Kit, Windshield Glass | ||||
| 90998-91001 note |
Dam Kit, Windshield Glass
2001-02 → 2002-04
ended
|
UCK35,45 | — | |
| 90998-91002 note |
Dam Kit, Windshield Glass
2001-02 → 2002-04
ended
|
UCK35,45 | — | |
| 90998-91003 note |
Dam Kit, Windshield Glass
2002-04 → 2004-08
ended
|
UCK35,45 | — | |
| 90998-91004 note |
Dam Kit, Windshield Glass
2002-04 → 2004-08
ended
|
UCK35,45 | — | |
| 90998-91003 note |
Dam Kit, Windshield Glass
2004-08 → —
|
UCK35,45 | — | |
| 90998-91004 note |
Dam Kit, Windshield Glass
2004-08 → —
|
UCK35,45 | — | |
| 53383 — Seal, Hood TO Cowl Top | ||||
| 53383-0C010 |
Seal, Hood TO Cowl Top
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 53383-0C010 |
Seal, Hood TO Cowl Top
2004-08 → —
|
UCK35,45 | — | |
| 55701 — Panel Sub-assy, Cowl | ||||
| 55700-0C010 |
Panel Sub-assy, Cowl
2000-09 → 2003-07
ended
|
UCK35,45 | — | |
| 55700-0C011 |
Panel Sub-assy, Cowl
2003-07 → 2003-11
ended
|
UCK35,45 | — | |
| 55700-0C012 |
Panel Sub-assy, Cowl
2003-11 → 2004-08
ended
|
UCK35,45 | — | |
| 55700-0C012 |
Panel Sub-assy, Cowl
2004-08 → —
|
UCK35,45 | — | |
| 55715A — Brace, Cowl Top TO Apron, RH | ||||
| 55715-0C010 |
Brace, Cowl Top TO Apron, RH
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 55715-0C010 |
Brace, Cowl Top TO Apron, RH
2004-08 → —
|
UCK35,45 | — | |
| 55716A — Brace, Cowl Top TO Apron, LH | ||||
| 55716-0C010 |
Brace, Cowl Top TO Apron, LH
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 55716-0C010 |
Brace, Cowl Top TO Apron, LH
2004-08 → —
|
UCK35,45 | — | |
| 55717A — Panel, Cowl Top Side, Inner RH | ||||
| 55717-0C020 |
Panel, Cowl Top Side, Inner RH
2001-10 → 2004-08
ended
|
UCK35,45 | — | |
| 55717-0C020 |
Panel, Cowl Top Side, Inner RH
2004-08 → —
|
UCK35,45 | — | |
| 55718B — Panel, Cowl Top Side, Inner LH | ||||
| 55718-0C020 |
Panel, Cowl Top Side, Inner LH
2001-10 → 2004-08
ended
|
UCK35,45 | — | |
| 55718-0C020 |
Panel, Cowl Top Side, Inner LH
2004-08 → —
|
UCK35,45 | — | |
| 55725A — Reinforcement, Hood Hinge Mounting, RH | ||||
| 55725-0C020 |
Reinforcement, Hood Hinge Mounting, RH
2002-04 → 2003-04
ended
|
UCK35,45 | — | |
| 55725-34020 |
Reinforcement, Hood Hinge Mounting, RH
2003-04 → 2004-08
ended
|
UCK35,45 | — | |
| 55725-34020 |
Reinforcement, Hood Hinge Mounting, RH
2004-08 → —
|
UCK35,45 | — | |
| 55726A — Reinforcement, Hood Hinge Mounting, LH | ||||
| 55726-0C020 |
Reinforcement, Hood Hinge Mounting, LH
2002-04 → 2003-04
ended
|
UCK35,45 | — | |
| 55726-34020 |
Reinforcement, Hood Hinge Mounting, LH
2003-04 → 2004-08
ended
|
UCK35,45 | — | |
| 55726-34020 |
Reinforcement, Hood Hinge Mounting, LH
2004-08 → —
|
UCK35,45 | — | |
| 55781E — Louver Sub-assy, Cowl Top Ventilator | ||||
| 55708-0C030 |
Louver Sub-assy, Cowl Top Ventilator
2000-09 → 2001-08
ended
|
UCK35,45 | — | |
| 55708-0C040 note |
Louver Sub-assy, Cowl Top Ventilator
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 55708-0C040 |
Louver Sub-assy, Cowl Top Ventilator
2004-08 → —
|
UCK35,45 | — | |
| 55781G — Clip, Cowl Top Ventilator Louver | ||||
| 90467-07045-22 note |
Clip, Cowl Top Ventilator Louver
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 90467-08184 note |
Clip, Cowl Top Ventilator Louver
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 90467-07045-22 note |
Clip, Cowl Top Ventilator Louver
2004-08 → —
|
UCK35,45 | — | |
| 90467-08184 note |
Clip, Cowl Top Ventilator Louver
2004-08 → —
|
UCK35,45 | — | |
| 56111 — Glass, Windshield | ||||
| 56101-0C030 note |
Glass, Windshield
2000-09 → 2002-09
ended
|
UCK35,45 | — | |
| 56101-0C031 note |
Glass, Windshield
2002-09 → 2004-08
ended
|
UCK35,45 | — | |
| 56101-0C040 note |
Glass, Windshield
2004-08 → —
|
UCK35,45 | — | |
| 56115A — Stopper, Windshield Glass, NO.1 | ||||
| 56115-30100 |
Stopper, Windshield Glass, NO.1
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 56115-30100 |
Stopper, Windshield Glass, NO.1
2004-08 → —
|
UCK35,45 | — | |
| 56116 — Spacer, Windshield Glass | ||||
| 56116-22050 |
Spacer, Windshield Glass
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 56116-22050 |
Spacer, Windshield Glass
2004-08 → —
|
UCK35,45 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
