Toyota Sequoia
2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States
Discontinued model
Data version 2008-05

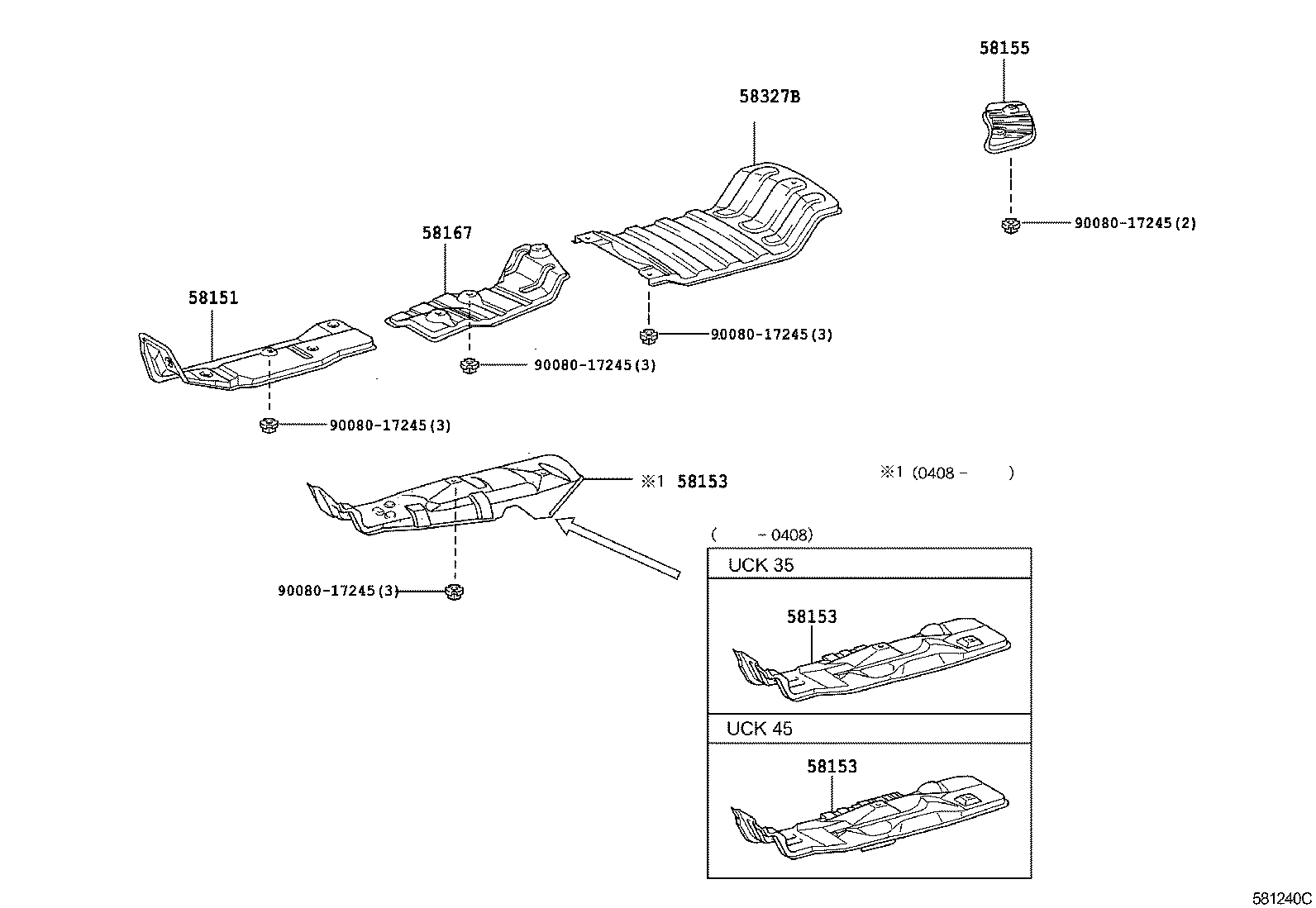

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 58151 — Insulator, Front Floor Heat, NO.1 | ||||
| 58151-0C010 |
Insulator, Front Floor Heat, NO.1
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 58151-0C020 |
Insulator, Front Floor Heat, NO.1
2004-08 → —
|
UCK35,45 | — | |
| 58153 — Insulator, Front Floor Heat, NO.2 | ||||
| 58042-0C010 |
Insulator, Front Floor Heat, NO.2
2000-09 → 2004-08
ended
|
UCK45 | — | |
| 58153-0C010 |
Insulator, Front Floor Heat, NO.2
2000-09 → 2004-08
ended
|
UCK35 | — | |
| 58153-0C030 |
Insulator, Front Floor Heat, NO.2
2004-08 → —
|
UCK35,45 | — | |
| 58155 — Insulator, Front Floor Heat, NO.3 | ||||
| 58155-0C010 |
Insulator, Front Floor Heat, NO.3
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 58155-0C010 |
Insulator, Front Floor Heat, NO.3
2004-08 → —
|
UCK35,45 | — | |
| 58167 — Insulator, Front Floor Heat, NO.1 Sub | ||||
| 58167-0C020 |
Insulator, Front Floor Heat, NO.1 Sub
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 58167-0C020 |
Insulator, Front Floor Heat, NO.1 Sub
2004-08 → —
|
UCK35,45 | — | |
| 58327B — Insulator, Main Muffler Heat | ||||
| 58327-0C030 |
Insulator, Main Muffler Heat
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 58327-0C030 |
Insulator, Main Muffler Heat
2004-08 → —
|
UCK35,45 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
