Toyota Sequoia
2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States
Discontinued model
Data version 2008-05

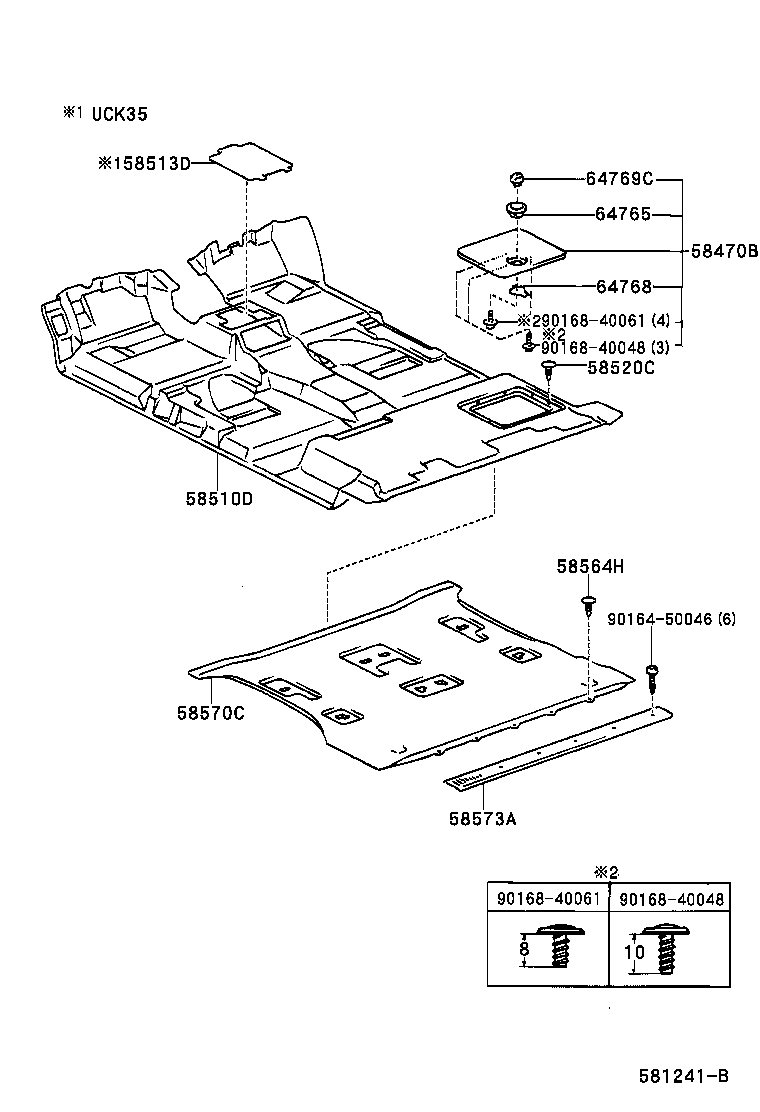

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 58470B — Cover Assy, Seat Floor Service Hole, RH | ||||
| 58470-0C020-B0 note |
Cover Assy, Seat Floor Service Hole, RH
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 58470-0C020-E0 note |
Cover Assy, Seat Floor Service Hole, RH
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 58470-0C020-B0 note |
Cover Assy, Seat Floor Service Hole, RH
2004-08 → —
|
UCK35,45 | — | |
| 58470-0C020-E2 note |
Cover Assy, Seat Floor Service Hole, RH
2004-08 → —
|
UCK35,45 | — | |
| 58510D — Carpet Assy, Floor, Front | ||||
| 58510-0C070-B0 note |
Carpet Assy, Floor, Front
2000-09 → 2001-10
ended
|
UCK35,45 | — | |
| 58510-0C070-E0 note |
Carpet Assy, Floor, Front
2000-09 → 2001-10
ended
|
UCK35,45 | — | |
| 58510-0C071-B0 note |
Carpet Assy, Floor, Front
2001-10 → 2002-09
ended
|
UCK35,45 | — | |
| 58510-0C071-E0 note |
Carpet Assy, Floor, Front
2001-10 → 2002-09
ended
|
UCK35,45 | — | |
| 58510-0C073-B0 note |
Carpet Assy, Floor, Front
2002-09 → 2004-08
ended
|
UCK35,45 | — | |
| 58510-0C073-E0 note |
Carpet Assy, Floor, Front
2002-09 → 2004-08
ended
|
UCK35,45 | — | |
| 58510-0C090-B0 note |
Carpet Assy, Floor, Front
2004-08 → —
|
UCK35,45 | — | |
| 58510-0C090-E0 note |
Carpet Assy, Floor, Front
2004-08 → —
|
UCK35,45 | — | |
| 58510-0C230-B0 note |
Carpet Assy, Floor, Front
2004-08 → —
|
UCK35,45 LIMD | — | |
| 58510-0C230-B0 note |
Carpet Assy, Floor, Front
2005-08 → —
|
UCK35,45 SR5 | — | |
| 58510-0C230-E0 note |
Carpet Assy, Floor, Front
2004-08 → —
|
UCK35,45 LIMD | — | |
| 58510-0C230-E0 note |
Carpet Assy, Floor, Front
2005-08 → —
|
UCK35,45 SR5 | — | |
| 58513D — Carpet, Floor, Front Center | ||||
| 58513-0C010-B0 note |
Carpet, Floor, Front Center
2000-09 → 2004-08
ended
|
UCK35 | — | |
| 58513-0C010-E0 note |
Carpet, Floor, Front Center
2000-09 → 2004-08
ended
|
UCK35 | — | |
| 58513-0C010-B0 note |
Carpet, Floor, Front Center
2004-08 → —
|
UCK35,45 | — | |
| 58520C — Clip(FOR FRONT FLOOR CARPET) | ||||
| 90467-06020-B3 note |
Clip(FOR FRONT FLOOR CARPET)
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 90467-06020-E4 note |
Clip(FOR FRONT FLOOR CARPET)
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 90467-06020-B3 note |
Clip(FOR FRONT FLOOR CARPET)
2004-08 → —
|
UCK35,45 | — | |
| 90467-06020-E2 note |
Clip(FOR FRONT FLOOR CARPET)
2004-08 → —
|
UCK35,45 | — | |
| 58564H — Clip(FOR REAR FLOOR CARPET) | ||||
| 90467-06077 |
Clip(FOR REAR FLOOR CARPET)
2000-09 → 2003-09
ended
|
UCK35,45 4HC | — | |
| 90467-06077 |
Clip(FOR REAR FLOOR CARPET)
2003-09 → 2004-08
ended
|
UCK35,45 | — | |
| 90467-06077 |
Clip(FOR REAR FLOOR CARPET)
2004-08 → —
|
UCK35,45 | — | |
| 58570C — Carpet Assy, Rear Floor | ||||
| 58570-0C010-B0 note |
Carpet Assy, Rear Floor
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 58570-0C010-E0 note |
Carpet Assy, Rear Floor
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 58570-0C020-B0 note |
Carpet Assy, Rear Floor
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 58570-0C020-E0 note |
Carpet Assy, Rear Floor
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 58570-0C020-B0 note |
Carpet Assy, Rear Floor
2004-08 → —
|
UCK35,45 | — | |
| 58570-0C020-E1 note |
Carpet Assy, Rear Floor
2004-08 → —
|
UCK35,45 | — | |
| 58573A — Plate, Rear Floor Mat Support | ||||
| 58573-0C010-B0 note |
Plate, Rear Floor Mat Support
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 58573-0C010-E0 note |
Plate, Rear Floor Mat Support
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 58573-0C010-B0 note |
Plate, Rear Floor Mat Support
2004-08 → —
|
UCK35,45 | — | |
| 58573-0C010-E1 note |
Plate, Rear Floor Mat Support
2004-08 → —
|
UCK35,45 | — | |
| 64765 — Bezel, Jack Cover, Upper | ||||
| 64765-0C010-B1 note |
Bezel, Jack Cover, Upper
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 64765-0C010-E1 note |
Bezel, Jack Cover, Upper
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 64765-0C010-B1 note |
Bezel, Jack Cover, Upper
2004-08 → —
|
UCK35,45 | — | |
| 64765-0C010-E4 note |
Bezel, Jack Cover, Upper
2004-08 → —
|
UCK35,45 | — | |
| 64768 — Stopper, Jack Cover | ||||
| 64768-04010 |
Stopper, Jack Cover
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 64768-04010 |
Stopper, Jack Cover
2004-08 → —
|
UCK35,45 | — | |
| 64769C — Knob, Jack Cover | ||||
| 64769-04010-B2 note |
Knob, Jack Cover
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 64769-04010-E0 note |
Knob, Jack Cover
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 64769-04010-B2 note |
Knob, Jack Cover
2004-08 → —
|
UCK35,45 | — | |
| 64769-04010-E4 note |
Knob, Jack Cover
2004-08 → —
|
UCK35,45 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
