Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

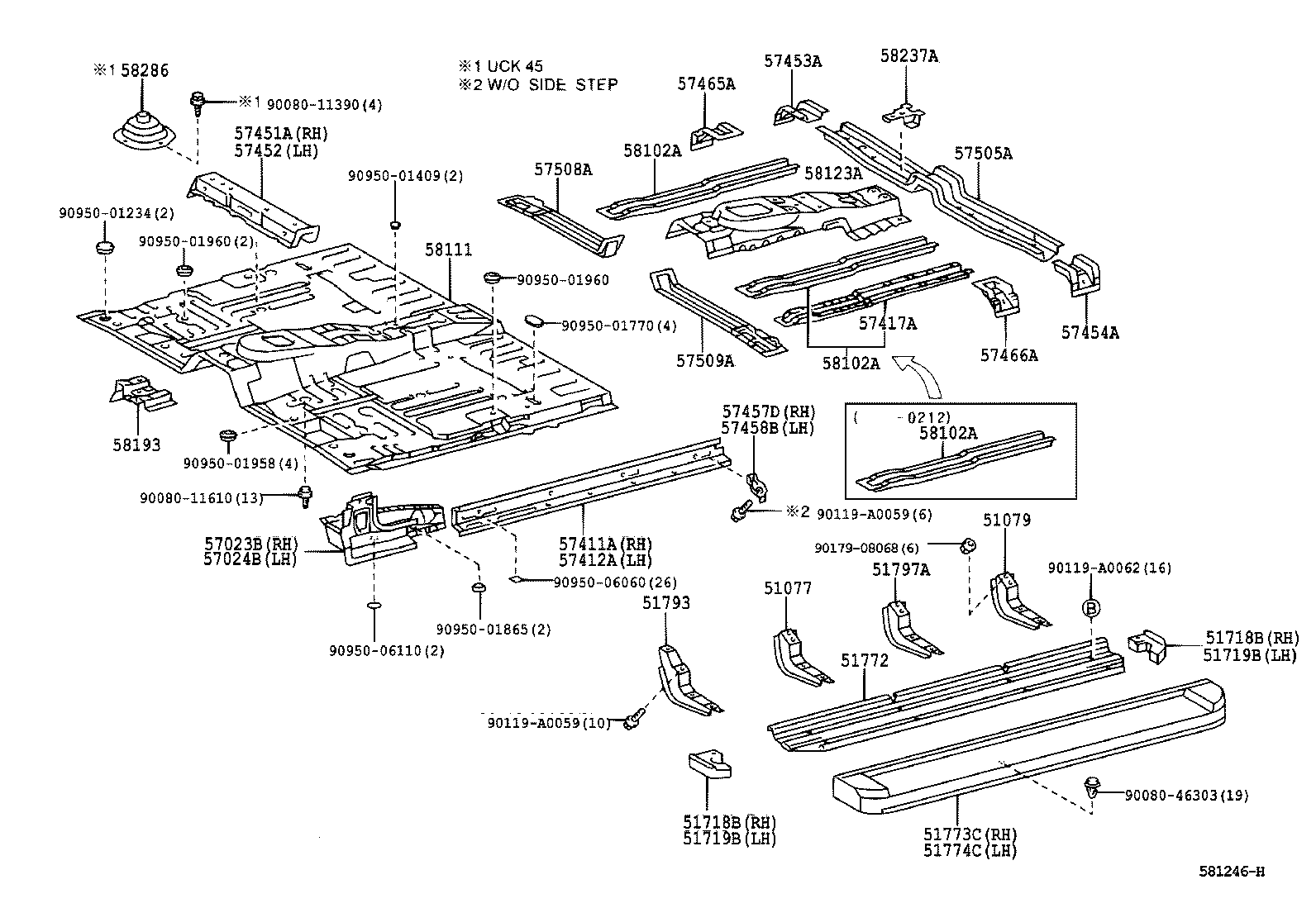

Exploded illustration 581246H 58286 — BOOT, SHIFT & SELECT LEVER, NO.1 (1 parts) 57451A — MEMBER, FRONT FLOOR CROSS, RH (4 parts) 57452 — MEMBER, FRONT FLOOR CROSS, LH (2 parts) 9008011390 — not listed in this catalogue 9095001234 — not listed in this catalogue 9095001409 — not listed in this catalogue 58111 — PAN, FRONT FLOOR (7 parts) 58193 — BRACKET, INSTRUMENT PANEL BRACE MOUNTING (2 parts) 57417A — REINFORCEMENT, FRONT FLOOR UNDER (2 parts) 9095001960 — not listed in this catalogue 9008011610 — not listed in this catalogue 57023B — BRACKET SUB-ASSY, BODY MOUNTING, NO.2 RH (3 parts) 57024B — BRACKET SUB-ASSY, BODY MOUNTING, NO.2 LH (3 parts) 9095006110 — not listed in this catalogue 9095001865 — not listed in this catalogue 57411A — MEMBER, FLOOR SIDE, INNER RH (2 parts) 57412A — MEMBER, FLOOR SIDE, INNER LH (2 parts) 9095006060 — not listed in this catalogue 51793 — BRACKET, SIDE STEP, NO.1 (2 parts) 51077 — BRACKET SUB-ASSY, SIDE STEP, NO.2 (2 parts) 90119A0059 — not listed in this catalogue 51718B — PROTECTOR, STEP COVER, RH (4 parts) 51719B — PROTECTOR, STEP COVER, RH (4 parts) 51772 — PLATE, STEP (2 parts) 51773C — COVER, STEP PLATE, RH (2 parts) 51774C — COVER, STEP PLATE, LH (2 parts) 51718B — PROTECTOR, STEP COVER, RH (4 parts) 51719B — PROTECTOR, STEP COVER, RH (4 parts) 9008046303 — not listed in this catalogue 90119A0062 — not listed in this catalogue 51079 — BRACKET SUB-ASSY, SIDE STEP (2 parts) 51797A — BRACKET, SIDE STEP, NO.3 (2 parts) 9017908068 — not listed in this catalogue 90119A0059 — not listed in this catalogue 57457D — PATCH, FLOOR SIDE MEMBER, REAR RH (2 parts) 57458B — PATCH, FLOOR SIDE MEMBER, REAR LH (2 parts) 57509A — REINFORCEMENT SUB-ASSY, FRONT FLOOR, LH (3 parts) 58102A — REINFORCEMENT SUB-ASSY, FRONT FLOOR (2 parts) 58102A — REINFORCEMENT SUB-ASSY, FRONT FLOOR (2 parts) 57508A — REINFORCEMENT SUB-ASSY, FRONT FLOOR, RH (3 parts) 58102A — REINFORCEMENT SUB-ASSY, FRONT FLOOR (2 parts) 9095001770 — not listed in this catalogue 58123A — SUPPORT, SHIFT & SELECT LEVER (4 parts) 57466A — GUSSET, CENTER FLOOR CROSSMEMBER, LH (2 parts) 57454A — REINFORCEMENT, FRONT FLOOR CROSSMEMBER, LH (2 parts) 57505A — REINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER (3 parts) 58237A — BRACKET, FRONT SEAT (2 parts) 57453A — REINFORCEMENT, FRONT FLOOR CROSSMEMBER, RH (2 parts) 57465A — GUSSET, CENTER FLOOR CROSSMEMBER, RH (2 parts) 9095001960 — not listed in this catalogue 9095001958 — not listed in this catalogue
581246H · 35 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
79 parts on this figure
Part number Description Fitment Price
51077 — Bracket Sub-assy, Side Step, NO.2
51077-0C010 Bracket Sub-assy, Side Step, NO.2
2000-09 → 2004-08 ended
UCK35,45 —
51077-0C010 Bracket Sub-assy, Side Step, NO.2
2004-08 → —
UCK35,45 —
51079 — Bracket Sub-assy, Side Step
51079-0C010 Bracket Sub-assy, Side Step
2000-09 → 2004-08 ended
UCK35,45 —
51079-0C010 Bracket Sub-assy, Side Step
2004-08 → —
UCK35,45 —
51718B — Protector, Step Cover, RH
51718-0C010 note Protector, Step Cover, RH
2000-09 → 2004-08 ended
UCK35,45 —
51719-0C010 note Protector, Step Cover, RH
2000-09 → 2004-08 ended
UCK35,45 —
51718-0C010 note Protector, Step Cover, RH
2004-08 → —
UCK35,45 —
51719-0C010 note Protector, Step Cover, RH
2004-08 → —
UCK35,45 —
51719B — Protector, Step Cover, RH
51718-0C010 note Protector, Step Cover, RH
2000-09 → 2004-08 ended
UCK35,45 —
51719-0C010 note Protector, Step Cover, RH
2000-09 → 2004-08 ended
UCK35,45 —
51718-0C010 note Protector, Step Cover, RH
2004-08 → —
UCK35,45 —
51719-0C010 note Protector, Step Cover, RH
2004-08 → —
UCK35,45 —
51772 — Plate, Step
51771-0C010 Plate, Step
2000-09 → 2004-08 ended
UCK35,45 —
51771-0C010 Plate, Step
2004-08 → —
UCK35,45 —
51773C — Cover, Step Plate, RH
51773-0C900 Cover, Step Plate, RH
2000-09 → 2004-08 ended
UCK35,45 —
51773-0C900 Cover, Step Plate, RH
2004-08 → —
UCK35,45 —
51774C — Cover, Step Plate, LH
51773-0C900 Cover, Step Plate, LH
2000-09 → 2004-08 ended
UCK35,45 —
51773-0C900 Cover, Step Plate, LH
2004-08 → —
UCK35,45 —
51793 — Bracket, Side Step, NO.1
51793-0C010 Bracket, Side Step, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
51793-0C010 Bracket, Side Step, NO.1
2004-08 → —
UCK35,45 —
51797A — Bracket, Side Step, NO.3
51797-0C010 Bracket, Side Step, NO.3
2000-09 → 2004-08 ended
UCK35,45 —
51797-0C010 Bracket, Side Step, NO.3
2004-08 → —
UCK35,45 —
57023B — Bracket Sub-assy, Body Mounting, NO.2 RH
57023-0C011 Bracket Sub-assy, Body Mounting, NO.2 RH
2000-09 → 2002-12 ended
UCK35,45 —
57023-0C012 Bracket Sub-assy, Body Mounting, NO.2 RH
2002-12 → 2004-08 ended
UCK35,45 —
57023-0C012 Bracket Sub-assy, Body Mounting, NO.2 RH
2004-08 → —
UCK35,45 —
57024B — Bracket Sub-assy, Body Mounting, NO.2 LH
57024-0C011 Bracket Sub-assy, Body Mounting, NO.2 LH
2000-09 → 2002-12 ended
UCK35,45 —
57024-0C012 Bracket Sub-assy, Body Mounting, NO.2 LH
2002-12 → 2004-08 ended
UCK35,45 —
57024-0C012 Bracket Sub-assy, Body Mounting, NO.2 LH
2004-08 → —
UCK35,45 —
57411A — Member, Floor Side, Inner RH
57411-0C020 Member, Floor Side, Inner RH
2000-09 → 2004-08 ended
UCK35,45 —
57411-0C020 Member, Floor Side, Inner RH
2004-08 → —
UCK35,45 —
57412A — Member, Floor Side, Inner LH
57412-0C020 Member, Floor Side, Inner LH
2000-09 → 2004-08 ended
UCK35,45 —
57412-0C020 Member, Floor Side, Inner LH
2004-08 → —
UCK35,45 —
57417A — Reinforcement, Front Floor Under
57417-0C010 Reinforcement, Front Floor Under
2002-12 → 2004-08 ended
UCK35,45 —
57417-0C010 Reinforcement, Front Floor Under
2004-08 → —
UCK35,45 —
57451A — Member, Front Floor Cross, RH
57450-0C040 Member, Front Floor Cross, RH
2003-11 → 2004-08 ended
UCK35,45 —
57451-0C010 Member, Front Floor Cross, RH
2000-09 → 2001-09 ended
UCK35,45 —
57451-0C011 Member, Front Floor Cross, RH
2001-09 → 2003-11 ended
UCK35,45 —
57450-0C040 Member, Front Floor Cross, RH
2004-08 → —
UCK35,45 —
57452 — Member, Front Floor Cross, LH
57452-0C010 Member, Front Floor Cross, LH
2000-09 → 2004-08 ended
UCK35,45 —
57452-0C010 Member, Front Floor Cross, LH
2004-08 → —
UCK35,45 —
57453A — Reinforcement, Front Floor Crossmember, RH
57453-0C010 Reinforcement, Front Floor Crossmember, RH
2000-09 → 2004-08 ended
UCK35,45 —
57453-0C010 Reinforcement, Front Floor Crossmember, RH
2004-08 → —
UCK35,45 —
57454A — Reinforcement, Front Floor Crossmember, LH
57454-0C010 Reinforcement, Front Floor Crossmember, LH
2000-09 → 2004-08 ended
UCK35,45 —
57454-0C010 Reinforcement, Front Floor Crossmember, LH
2004-08 → —
UCK35,45 —
57457D — Patch, Floor Side Member, Rear RH
57457-0C010 Patch, Floor Side Member, Rear RH
2000-09 → 2004-08 ended
UCK35,45 —
57457-0C010 Patch, Floor Side Member, Rear RH
2004-08 → —
UCK35,45 —
57458B — Patch, Floor Side Member, Rear LH
57457-0C010 Patch, Floor Side Member, Rear LH
2000-09 → 2004-08 ended
UCK35,45 —
57457-0C010 Patch, Floor Side Member, Rear LH
2004-08 → —
UCK35,45 —
57465A — Gusset, Center Floor Crossmember, RH
57465-0C010 Gusset, Center Floor Crossmember, RH
2000-09 → 2004-08 ended
UCK35,45 —
57465-0C010 Gusset, Center Floor Crossmember, RH
2004-08 → —
UCK35,45 —
57466A — Gusset, Center Floor Crossmember, LH
57465-0C010 Gusset, Center Floor Crossmember, LH
2000-09 → 2004-08 ended
UCK35,45 —
57465-0C010 Gusset, Center Floor Crossmember, LH
2004-08 → —
UCK35,45 —
57505A — Reinforcement Sub-assy, Front Floor Under
57505-0C010 Reinforcement Sub-assy, Front Floor Under
2000-09 → 2002-09 ended
UCK35,45 —
57505-0C011 Reinforcement Sub-assy, Front Floor Under
2002-09 → 2004-08 ended
UCK35,45 —
57505-0C011 Reinforcement Sub-assy, Front Floor Under
2004-08 → —
UCK35,45 —
57508A — Reinforcement Sub-assy, Front Floor, RH
57508-0C010 Reinforcement Sub-assy, Front Floor, RH
2000-09 → 2002-12 ended
UCK35,45 —
57508-0C011 Reinforcement Sub-assy, Front Floor, RH
2002-12 → 2004-08 ended
UCK35,45 —
57508-0C011 Reinforcement Sub-assy, Front Floor, RH
2004-08 → —
UCK35,45 —
57509A — Reinforcement Sub-assy, Front Floor, LH
57509-0C010 Reinforcement Sub-assy, Front Floor, LH
2000-09 → 2002-12 ended
UCK35,45 —
57509-0C011 Reinforcement Sub-assy, Front Floor, LH
2002-12 → 2004-08 ended
UCK35 —
57509-0C011 Reinforcement Sub-assy, Front Floor, LH
2004-08 → —
UCK35,45 —
58102A — Reinforcement Sub-assy, Front Floor
58102-0C010 Reinforcement Sub-assy, Front Floor
2000-09 → 2004-08 ended
UCK35,45 —
58102-0C010 Reinforcement Sub-assy, Front Floor
2004-08 → —
UCK35,45 —
58111 — Pan, Front Floor
58111-0C070 Pan, Front Floor
2000-09 → 2002-12 ended
UCK45 —
58111-0C071 Pan, Front Floor
2002-12 → 2003-06 ended
UCK45 —
58111-0C072 Pan, Front Floor
2003-06 → 2004-08 ended
UCK45 —
58111-0C080 Pan, Front Floor
2000-09 → 2002-12 ended
UCK35 —
58111-0C081 Pan, Front Floor
2002-12 → 2003-06 ended
UCK35 —
58111-0C082 Pan, Front Floor
2003-06 → 2004-08 ended
UCK35 —
58111-0C110 Pan, Front Floor
2004-08 → —
UCK35,45 —
58123A — Support, Shift & Select Lever
58123-0C010 Support, Shift & Select Lever
2000-09 → 2002-08 ended
UCK35,45 —
58123-0C012 Support, Shift & Select Lever
2002-08 → 2003-06 ended
UCK35,45 —
58123-0C013 Support, Shift & Select Lever
2003-06 → 2004-08 ended
UCK35,45 —
58123-0C013 Support, Shift & Select Lever
2004-08 → —
UCK35,45 —
58193 — Bracket, Instrument Panel Brace Mounting
58193-0C020 Bracket, Instrument Panel Brace Mounting
2000-09 → 2004-08 ended
UCK35,45 —
58193-0C020 Bracket, Instrument Panel Brace Mounting
2004-08 → —
UCK35,45 —
58237A — Bracket, Front Seat
58237-0C010 Bracket, Front Seat
2000-09 → 2004-08 ended
UCK35,45 —
58237-0C010 Bracket, Front Seat
2004-08 → —
UCK35,45 —
58286 — Boot, Shift & Select Lever, NO.1
58280-0C040 Boot, Shift & Select Lever, NO.1
2000-09 → 2004-08 ended
UCK45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
