Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

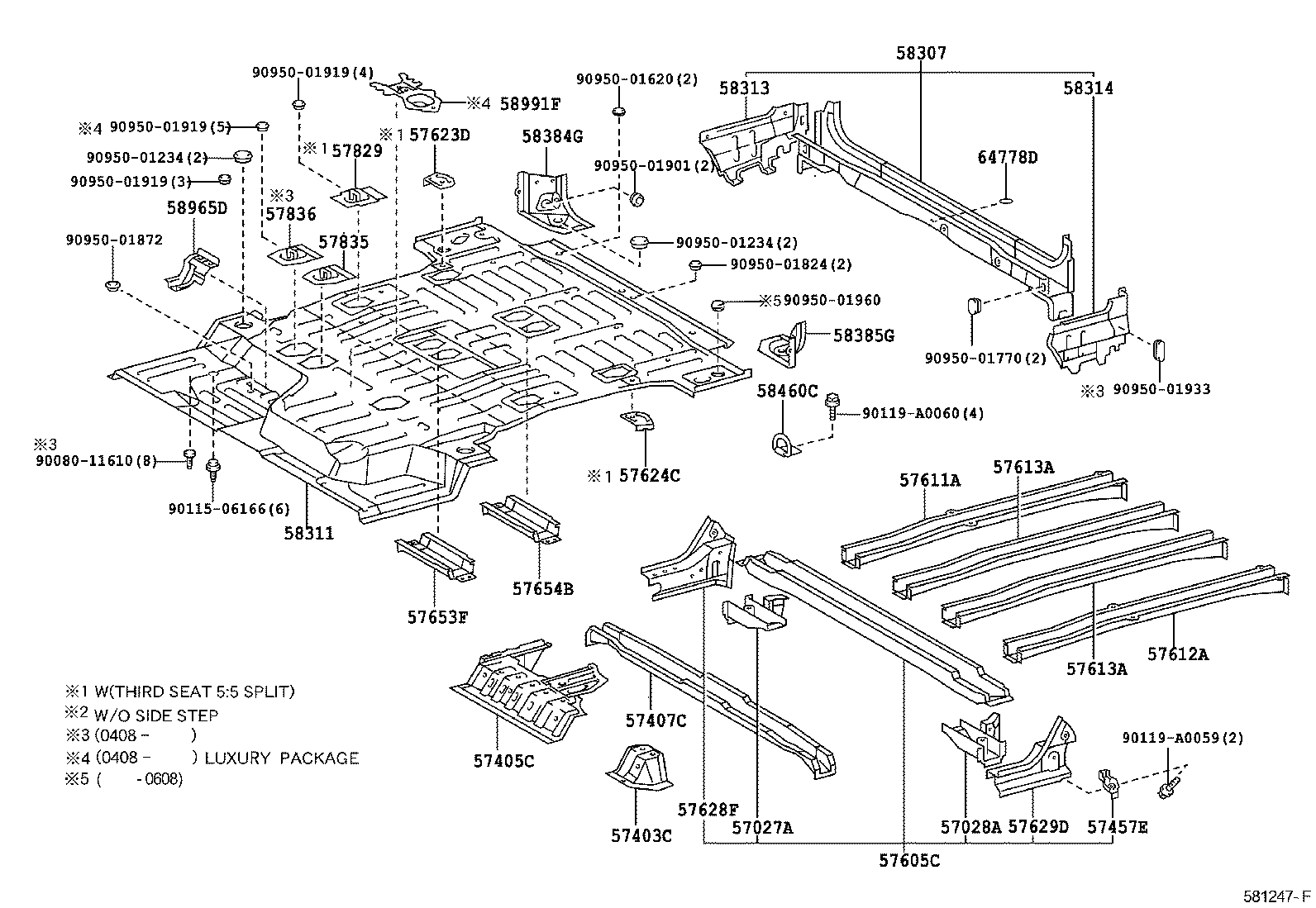

Exploded illustration 581247F 57829 — REINFORCEMENT, SEAT LEG (3 parts) 58991F — BRACKET, CONSOLE BOX MOUNTING, FRONT (2 parts) 57835 — REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1 (5 parts) 57836 — REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2 (4 parts) 58965D — BRACKET, JACK SUPPORT (3 parts) 57623D — PLATE, REAR FLOOR SIDE MEMBER, RR RH (3 parts) 58311 — PAN, REAR FLOOR (15 parts) 57653F — MEMBER, REAR FLOOR CROSS, NO.2 (3 parts) 57654B — MEMBER, REAR FLOOR CROSS, NO.3 (3 parts) 9095001919 — not listed in this catalogue 58384G — GUSSET, LOWER BACK, UPPER RH (3 parts) 9095001919 — not listed in this catalogue 9095001919 — not listed in this catalogue 9095001234 — not listed in this catalogue 9095001872 — not listed in this catalogue 9011506166 — not listed in this catalogue 9008011610 — not listed in this catalogue 57624C — PLATE, REAR FLOOR SIDE MEMBER, RR LH (3 parts) 9095001620 — not listed in this catalogue 9095001933 — not listed in this catalogue 9095001901 — not listed in this catalogue 9095001234 — not listed in this catalogue 9095001824 — not listed in this catalogue 58385G — GUSSET, LOWER BACK, UPPER LH (3 parts) 58460C — STRIKER ASSY, LUGGAGE HOLD BELT (2 parts) 57611A — MEMBER, REAR FLOOR SIDE, RH (3 parts) 57612A — MEMBER, REAR FLOOR SIDE, LH (3 parts) 57613A — MEMBER, REAR FLOOR SIDE CENTER (3 parts) 57613A — MEMBER, REAR FLOOR SIDE CENTER (3 parts) 58307 — PANEL SUB-ASSY, BODY LOWER BACK (4 parts) 58313 — PANEL, REAR FLOOR SIDE, RH (2 parts) 58314 — PANEL, REAR FLOOR SIDE, LH (3 parts) 64778D — PROTECTOR, SPARE WHEEL (2 parts) 90119A0060 — not listed in this catalogue 9095001770 — not listed in this catalogue 90119A0059 — not listed in this catalogue 57457E — PATCH, FLOOR SIDE MEMBER, RR RH (2 parts) 57629D — PLATE, REAR FLOOR SIDE MEMBER, LH (2 parts) 57028A — BRACKET SUB-ASSY, BODY MOUNTING, NO.4 LH (2 parts) 57027A — BRACKET SUB-ASSY, BODY MOUNTING, NO.4 RH (2 parts) 57628F — PLATE, REAR FLOOR SIDE MEMBER, RH (2 parts) 57407C — MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1 (3 parts) 57403C — REINFORCE SUB-ASSY, FLOOR SIDE, INNER RH (3 parts) 57405C — MEMBER SUB-ASSY, CENTER FLOOR CROSS, REAR (3 parts) 57605C — MEMBER SUB-ASSY, REAR FLOOR CROSS (2 parts) 9095001960 — not listed in this catalogue
581247F · 30 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
93 parts on this figure
Part number Description Fitment Price
57027A — Bracket Sub-assy, Body Mounting, NO.4 RH
57027-0C010 Bracket Sub-assy, Body Mounting, NO.4 RH
2000-09 → 2004-08 ended
UCK35,45 —
57027-0C010 Bracket Sub-assy, Body Mounting, NO.4 RH
2004-08 → —
UCK35,45 —
57028A — Bracket Sub-assy, Body Mounting, NO.4 LH
57028-0C010 Bracket Sub-assy, Body Mounting, NO.4 LH
2000-09 → 2004-08 ended
UCK35,45 —
57028-0C010 Bracket Sub-assy, Body Mounting, NO.4 LH
2004-08 → —
UCK35,45 —
57403C — Reinforce Sub-assy, Floor Side, Inner RH
57403-0C010 Reinforce Sub-assy, Floor Side, Inner RH
2004-07 → 2004-08 ended
UCK35,45 —
57403-0C010 Reinforce Sub-assy, Floor Side, Inner RH
2000-09 → 2004-06 ended
UCK35,45 —
57403-0C030 Reinforce Sub-assy, Floor Side, Inner RH
2004-08 → —
UCK35,45 —
57405C — Member Sub-assy, Center Floor Cross, Rear
57405-0C010 Member Sub-assy, Center Floor Cross, Rear
2000-09 → 2004-06 ended
UCK35,45 —
57405-0C010 Member Sub-assy, Center Floor Cross, Rear
2004-07 → 2004-08 ended
UCK35,45 —
57405-0C010 Member Sub-assy, Center Floor Cross, Rear
2004-08 → —
UCK35,45 —
57407C — Member Sub-assy, Center Floor Cross, NO.1
57407-0C010 Member Sub-assy, Center Floor Cross, NO.1
2000-09 → 2004-06 ended
UCK35,45 —
57407-0C010 Member Sub-assy, Center Floor Cross, NO.1
2004-07 → 2004-08 ended
UCK35,45 —
57407-0C010 Member Sub-assy, Center Floor Cross, NO.1
2004-08 → —
UCK35,45 —
57457E — Patch, Floor Side Member, RR RH
57457-0C010 Patch, Floor Side Member, RR RH
2000-09 → 2004-08 ended
UCK35,45 —
57457-0C010 Patch, Floor Side Member, RR RH
2004-08 → —
UCK35,45 —
57605C — Member Sub-assy, Rear Floor Cross
57605-0C040 Member Sub-assy, Rear Floor Cross
2000-09 → 2003-12 ended
UCK35,45 —
57605-0C041 Member Sub-assy, Rear Floor Cross
2004-08 → —
UCK35,45 —
57611A — Member, Rear Floor Side, RH
57611-0C010 Member, Rear Floor Side, RH
2000-09 → 2004-06 ended
UCK35,45 —
57611-0C010 Member, Rear Floor Side, RH
2004-07 → 2004-08 ended
UCK35,45 —
57611-0C010 Member, Rear Floor Side, RH
2004-08 → —
UCK35,45 —
57612A — Member, Rear Floor Side, LH
57612-0C010 Member, Rear Floor Side, LH
2000-09 → 2004-06 ended
UCK35,45 —
57612-0C010 Member, Rear Floor Side, LH
2004-07 → 2004-08 ended
UCK35,45 —
57612-0C020 Member, Rear Floor Side, LH
2004-08 → —
UCK35,45 —
57613A — Member, Rear Floor Side Center
57613-0C010 Member, Rear Floor Side Center
2004-07 → 2004-08 ended
UCK35,45 —
57613-0C010 Member, Rear Floor Side Center
2000-09 → 2004-06 ended
UCK35,45 —
57613-0C010 Member, Rear Floor Side Center
2004-08 → —
UCK35,45 —
57623D — Plate, Rear Floor Side Member, RR RH
57623-0C010 Plate, Rear Floor Side Member, RR RH
2000-09 → 2004-06 ended
UCK35,45 —
57623-0C010 Plate, Rear Floor Side Member, RR RH
2004-07 → 2004-08 ended
UCK35,45 —
57623-0C010 Plate, Rear Floor Side Member, RR RH
2004-08 → —
UCK35,45 —
57624C — Plate, Rear Floor Side Member, RR LH
57624-0C010 Plate, Rear Floor Side Member, RR LH
2000-09 → 2004-06 ended
UCK35,45 —
57624-0C010 Plate, Rear Floor Side Member, RR LH
2004-07 → 2004-08 ended
UCK35,45 —
57624-0C010 Plate, Rear Floor Side Member, RR LH
2004-08 → —
UCK35,45 —
57628F — Plate, Rear Floor Side Member, RH
57628-0C030 Plate, Rear Floor Side Member, RH
2000-09 → 2004-08 ended
UCK35,45 —
57628-0C030 Plate, Rear Floor Side Member, RH
2004-08 → —
UCK35,45 —
57629D — Plate, Rear Floor Side Member, LH
57629-0C030 Plate, Rear Floor Side Member, LH
2000-09 → 2004-08 ended
UCK35,45 —
57629-0C030 Plate, Rear Floor Side Member, LH
2004-08 → —
UCK35,45 —
57653F — Member, Rear Floor Cross, NO.2
57653-0C020 Member, Rear Floor Cross, NO.2
2000-09 → 2004-06 ended
UCK35,45 —
57653-0C020 Member, Rear Floor Cross, NO.2
2004-07 → 2004-08 ended
UCK35,45 —
57653-0C020 Member, Rear Floor Cross, NO.2
2004-08 → —
UCK35,45 —
57654B — Member, Rear Floor Cross, NO.3
57654-0C010 Member, Rear Floor Cross, NO.3
2000-09 → 2004-06 ended
UCK35,45 —
57654-0C010 Member, Rear Floor Cross, NO.3
2004-07 → 2004-08 ended
UCK35,45 —
57654-0C010 Member, Rear Floor Cross, NO.3
2004-08 → —
UCK35,45 —
57829 — Reinforcement, Seat Leg
57829-0C010 Reinforcement, Seat Leg
2000-09 → 2004-06 ended
UCK35,45 —
57829-0C010 Reinforcement, Seat Leg
2004-07 → 2004-08 ended
UCK35,45 —
57829-0C010 Reinforcement, Seat Leg
2004-08 → —
UCK35,45 —
57835 — Reinforcement, Rear NO.1 Seat Leg, Rear NO.1
57835-0C010 Reinforcement, Rear NO.1 Seat Leg, Rear NO.1
2004-07 → 2004-08 ended
UCK35,45 —
57835-0C010 Reinforcement, Rear NO.1 Seat Leg, Rear NO.1
2000-09 → 2004-06 ended
UCK35,45 —
57835-0C010 note Reinforcement, Rear NO.1 Seat Leg, Rear NO.1
2004-08 → —
UCK35,45 LIMD —
57835-0C010 Reinforcement, Rear NO.1 Seat Leg, Rear NO.1
2004-08 → —
UCK35,45 —
57835-0C010 note Reinforcement, Rear NO.1 Seat Leg, Rear NO.1
2005-08 → —
UCK35,45 SR5 —
57836 — Reinforcement, Rear NO.1 Seat Leg, Rear NO.2
57836-34040 Reinforcement, Rear NO.1 Seat Leg, Rear NO.2
2004-07 → 2004-08 ended
UCK35,45 —
57836-34030 note Reinforcement, Rear NO.1 Seat Leg, Rear NO.2
2004-08 → —
UCK35,45 LIMD —
57836-34030 note Reinforcement, Rear NO.1 Seat Leg, Rear NO.2
2005-08 → —
UCK35,45 SR5 —
57836-34040 Reinforcement, Rear NO.1 Seat Leg, Rear NO.2
2004-08 → —
UCK35,45 —
58307 — Panel Sub-assy, Body Lower Back
58302-0C010 Panel Sub-assy, Body Lower Back
2000-09 → 2003-07 ended
UCK35,45 —
58302-0C011 Panel Sub-assy, Body Lower Back
2003-07 → 2004-06 ended
UCK35,45 —
58302-0C011 Panel Sub-assy, Body Lower Back
2004-07 → 2004-08 ended
UCK35,45 —
58302-0C011 Panel Sub-assy, Body Lower Back
2004-08 → —
UCK35,45 —
58311 — Pan, Rear Floor
58311-0C010 note Pan, Rear Floor
2000-09 → 2004-01 ended
UCK35,45 SR5 —
58311-0C010 note Pan, Rear Floor
2000-09 → 2004-05 ended
UCK35,45 LIMD —
58311-0C012 note Pan, Rear Floor
2004-01 → 2004-06 ended
UCK35,45 SR5 —
58311-0C012 note Pan, Rear Floor
2004-05 → 2004-06 ended
UCK35,45 LIMD —
58311-0C020 Pan, Rear Floor
2000-09 → 2004-05 ended
UCK35,45 LIMD —
58311-0C020 note Pan, Rear Floor
2000-09 → 2004-05 ended
UCK35,45 SR5 —
58311-0C022 Pan, Rear Floor
2004-05 → 2004-06 ended
UCK35,45 —
58311-0C070 Pan, Rear Floor
2004-07 → 2004-08 ended
UCK35,45 SR5 —
58311-0C080 Pan, Rear Floor
2004-07 → 2004-08 ended
UCK35,45 LIMD —
58311-0C080 note Pan, Rear Floor
2004-07 → 2004-08 ended
UCK35,45 SR5 —
58311-0C060 note Pan, Rear Floor
2004-08 → —
UCK35,45 LIMD —
58311-0C060 note Pan, Rear Floor
2005-08 → —
UCK35,45 SR5 —
58311-0C070 Pan, Rear Floor
2004-08 → —
UCK35,45 SR5 —
58311-0C080 note Pan, Rear Floor
2004-08 → —
UCK35,45 —
58311-0C120 note Pan, Rear Floor
2005-08 → —
UCK35,45 SR5 —
58313 — Panel, Rear Floor Side, RH
58313-0C010 Panel, Rear Floor Side, RH
2000-09 → 2004-07 ended
UCK35,45 —
58313-0C010 Panel, Rear Floor Side, RH
2004-08 → —
UCK35,45 —
58314 — Panel, Rear Floor Side, LH
58314-0C010 Panel, Rear Floor Side, LH
2000-09 → 2003-07 ended
UCK35,45 —
58314-0C011 Panel, Rear Floor Side, LH
2003-07 → 2004-07 ended
UCK35,45 —
58314-0C011 Panel, Rear Floor Side, LH
2004-08 → —
UCK35,45 —
58384G — Gusset, Lower Back, Upper RH
58384-34010 Gusset, Lower Back, Upper RH
2000-09 → 2004-06 ended
UCK35,45 —
58384-34010 Gusset, Lower Back, Upper RH
2004-07 → 2004-08 ended
UCK35,45 —
58384-34010 Gusset, Lower Back, Upper RH
2004-08 → —
UCK35,45 —
58385G — Gusset, Lower Back, Upper LH
58385-34010 Gusset, Lower Back, Upper LH
2004-07 → 2004-08 ended
UCK35,45 —
58385-34010 Gusset, Lower Back, Upper LH
2000-09 → 2004-06 ended
UCK35,45 —
58385-34010 Gusset, Lower Back, Upper LH
2004-08 → —
UCK35,45 —
58460C — Striker Assy, Luggage Hold Belt
58460-35012 Striker Assy, Luggage Hold Belt
2000-09 → 2004-08 ended
UCK35,45 —
58460-35012 Striker Assy, Luggage Hold Belt
2004-08 → —
UCK35,45 —
58965D — Bracket, Jack Support
58965-0C030 Bracket, Jack Support
2000-09 → 2004-06 ended
UCK35,45 —
58965-0C030 Bracket, Jack Support
2004-07 → 2004-08 ended
UCK35,45 —
58965-0C030 Bracket, Jack Support
2004-08 → —
UCK35,45 —
58991F — Bracket, Console Box Mounting, Front
58991-0C010 note Bracket, Console Box Mounting, Front
2004-08 → —
UCK35,45 LIMD —
58991-0C010 Bracket, Console Box Mounting, Front
2005-08 → —
UCK35,45 SR5 —
64778D — Protector, Spare Wheel
64778-35010 Protector, Spare Wheel
2000-09 → 2004-08 ended
UCK35,45 —
64778-35010 Protector, Spare Wheel
2004-08 → —
UCK35,45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
