Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

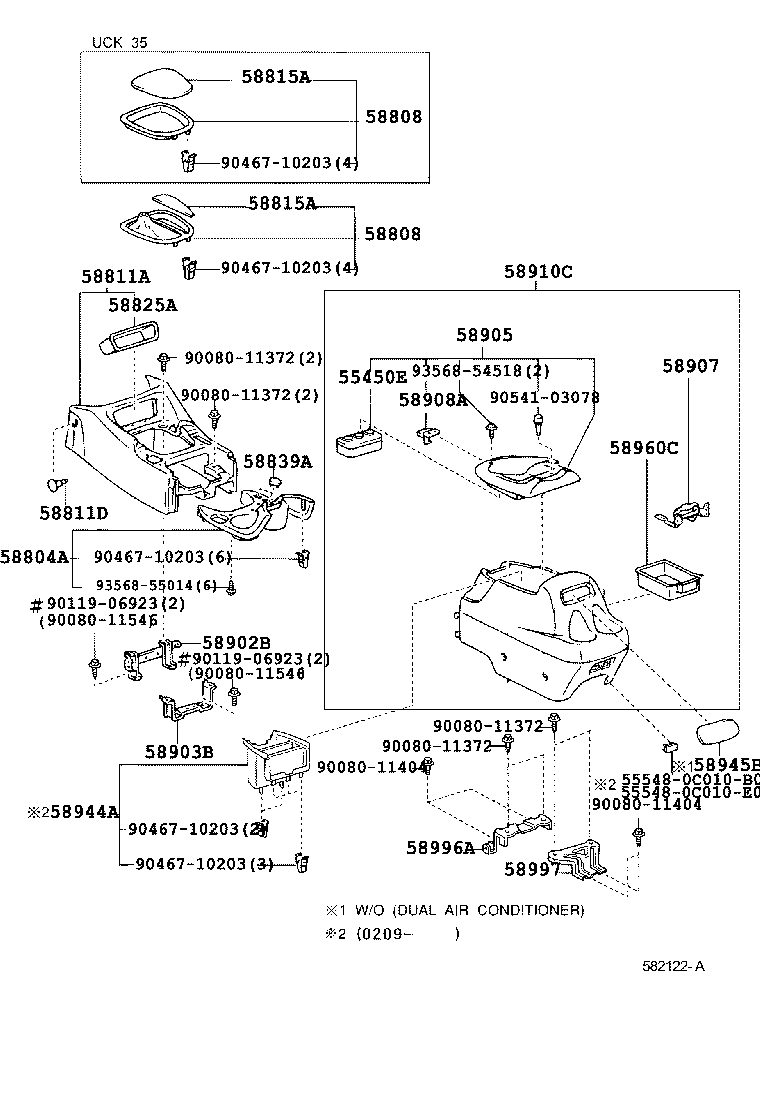

Exploded illustration 582122A 58815A — CARPET, CONSOLE BOX (3 parts) 9046710203 — not listed in this catalogue 58808 — COVER SUB-ASSY, SHIFTING HOLE (3 parts) 58808 — COVER SUB-ASSY, SHIFTING HOLE (3 parts) 58815A — CARPET, CONSOLE BOX (3 parts) 9046710203 — not listed in this catalogue 58811A — BOX, CONSOLE, FRONT (8 parts) 58825A — POCKET, CONSOLE BOX (2 parts) 9008011372 — not listed in this catalogue 55450E — BOX ASSY, COIN (3 parts) 9008011372 — not listed in this catalogue 58839A — COVER, CONSOLE BOX HOLE (2 parts) 9046710203 — not listed in this catalogue 9356855014 — not listed in this catalogue 58811D — CLIP(FOR CONSOLE BOX) (4 parts) 58804A — PANEL SUB-ASSY, CONSOLE, UPPER (7 parts) 58902B — BRACKET SUB-ASSY, CONSOLE BOX HINGE, NO.1 (3 parts) 9008011546 — not listed in this catalogue 58905 — DOOR SUB-ASSY, CONSOLE COMPARTMENT (6 parts) 58908A — LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR (2 parts) 9356854518 — not listed in this catalogue 9054103078 — not listed in this catalogue 9008011372 — not listed in this catalogue 9008011372 — not listed in this catalogue 58945B — GARNISH, CONSOLE, REAR (2 parts) 555480C010B0 — not listed in this catalogue 9008011404 — not listed in this catalogue 58907 — HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR (5 parts) 58960C — HOLDER ASSY, CASSETTE CASE (3 parts) 58910C — BOX ASSY, CONSOLE, REAR (18 parts) 9011906923 — not listed in this catalogue 58903B — BRACKET SUB-ASSY, CONSOLE BOX HINGE, NO.2 (3 parts) 9046710203 — not listed in this catalogue 9046710203 — not listed in this catalogue 58944A — COVER, CONSOLE, REAR (2 parts) 9008011404 — not listed in this catalogue 58996A — BRACKET, CONSOLE BOX MOUNTING, NO.2 (2 parts) 58997 — BRACKET, CONSOLE BOX MOUNTING, NO.3 (4 parts) 9008011546 — not listed in this catalogue 9011906923 — not listed in this catalogue 555480C010E0 — not listed in this catalogue
582122A · 21 callouts, 20 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
82 parts on this figure
Part number Description Fitment Price
55450E — Box Assy, Coin
55450-0C010 Box Assy, Coin
2000-09 → 2004-08 ended
UCK35,45 —
55450-0C010 Box Assy, Coin
2004-08 → 2006-05 ended
UCK35,45 —
55450-0C010 Box Assy, Coin
2006-06 → —
UCK35,45 —
58804A — Panel Sub-assy, Console, Upper
58804-0C010 Panel Sub-assy, Console, Upper
2000-09 → 2004-08 ended
UCK35,45 SR5 —
58804-0C021 Panel Sub-assy, Console, Upper
2000-09 → 2001-08 ended
UCK35,45 LIMD —
58804-0C022-B0 note Panel Sub-assy, Console, Upper
2001-08 → 2004-08 ended
UCK35,45 LIMD —
58804-0C022-E0 note Panel Sub-assy, Console, Upper
2001-08 → 2004-08 ended
UCK35,45 LIMD —
58804-0C010 Panel Sub-assy, Console, Upper
2004-08 → —
UCK35,45 SR5 —
58804-0C022-B0 note Panel Sub-assy, Console, Upper
2004-08 → —
UCK35,45 LIMD —
58804-0C023 Panel Sub-assy, Console, Upper
2004-08 → —
UCK35,45 LIMD —
58808 — Cover Sub-assy, Shifting Hole
58808-0C010 Cover Sub-assy, Shifting Hole
2000-09 → 2004-08 ended
UCK45 —
58808-0C020 Cover Sub-assy, Shifting Hole
2000-09 → 2004-08 ended
UCK35 —
58808-0C020 Cover Sub-assy, Shifting Hole
2004-08 → —
UCK35,45 —
58811A — Box, Console, Front
58810-0C010-B0 note Box, Console, Front
2000-09 → 2002-09 ended
UCK35,45 —
58810-0C010-B0 note Box, Console, Front
2003-10 → 2004-08 ended
UCK35,45 —
58810-0C010-E0 note Box, Console, Front
2000-09 → 2002-09 ended
UCK35,45 —
58810-0C010-E0 note Box, Console, Front
2003-10 → 2004-08 ended
UCK35,45 —
58810-0C011-B0 note Box, Console, Front
2002-09 → 2003-10 ended
UCK35,45 —
58810-0C011-E0 note Box, Console, Front
2002-09 → 2003-10 ended
UCK35,45 —
58810-0C040-B0 note Box, Console, Front
2004-08 → —
UCK35,45 —
58810-0C040-E1 note Box, Console, Front
2004-08 → —
UCK35,45 —
58811D — Clip(FOR CONSOLE BOX)
55346-34010-B0 note Clip(FOR CONSOLE BOX)
2000-09 → 2004-08 ended
UCK35,45 —
55346-34010-E0 note Clip(FOR CONSOLE BOX)
2000-09 → 2004-08 ended
UCK35,45 —
55346-04020-B0 note Clip(FOR CONSOLE BOX)
2004-08 → —
UCK35,45 —
55346-04020-E0 note Clip(FOR CONSOLE BOX)
2004-08 → —
UCK35,45 —
58815A — Carpet, Console Box
58815-0C010 Carpet, Console Box
2000-09 → 2004-08 ended
UCK45 —
58815-0C020 Carpet, Console Box
2000-09 → 2004-08 ended
UCK35 —
58815-0C020 Carpet, Console Box
2004-08 → —
UCK35,45 —
58825A — Pocket, Console Box
58825-0C010-B0 note Pocket, Console Box
2000-09 → 2004-08 ended
UCK35,45 —
58825-0C010-E0 note Pocket, Console Box
2000-09 → 2004-08 ended
UCK35,45 —
58839A — Cover, Console Box Hole
58839-0C010 Cover, Console Box Hole
2000-09 → 2004-08 ended
UCK35,45 SR5 —
58839-0C010 Cover, Console Box Hole
2004-08 → —
UCK35,45 SR5 —
58902B — Bracket Sub-assy, Console Box Hinge, NO.1
58902-0C010 Bracket Sub-assy, Console Box Hinge, NO.1
2000-09 → 2003-10 ended
UCK35,45 4HC —
58902-0C020 Bracket Sub-assy, Console Box Hinge, NO.1
2003-10 → 2004-08 ended
UCK35,45 —
58902-0C021 Bracket Sub-assy, Console Box Hinge, NO.1
2004-08 → —
UCK35,45 —
58903B — Bracket Sub-assy, Console Box Hinge, NO.2
58903-0C010 Bracket Sub-assy, Console Box Hinge, NO.2
2000-09 → 2002-09 ended
UCK35,45 —
58903-0C011 Bracket Sub-assy, Console Box Hinge, NO.2
2002-09 → 2004-08 ended
UCK35,45 —
58903-0C011 Bracket Sub-assy, Console Box Hinge, NO.2
2004-08 → —
UCK35,45 —
58905 — Door Sub-assy, Console Compartment
58905-0C020-B0 note Door Sub-assy, Console Compartment
2000-09 → 2004-08 ended
UCK35,45 —
58905-0C020-E0 note Door Sub-assy, Console Compartment
2000-09 → 2004-08 ended
UCK35,45 —
58905-0C020-B0 note Door Sub-assy, Console Compartment
2004-08 → 2006-05 ended
UCK35,45 —
58905-0C020-E1 note Door Sub-assy, Console Compartment
2004-08 → 2006-05 ended
UCK35,45 —
58905-0C021-B0 note Door Sub-assy, Console Compartment
2006-06 → —
UCK35,45 —
58905-0C021-E1 note Door Sub-assy, Console Compartment
2006-06 → —
UCK35,45 —
58907 — Hinge Sub-assy, Console Compartment Door
58907-0C010 Hinge Sub-assy, Console Compartment Door
2000-09 → 2004-08 ended
UCK35,45 —
58907-0C010 note Hinge Sub-assy, Console Compartment Door
2004-08 → 2006-05 ended
UCK35,45 —
58907-0C010 note Hinge Sub-assy, Console Compartment Door
2006-06 → —
UCK35,45 —
58907-0C020 note Hinge Sub-assy, Console Compartment Door
2004-08 → —
UCK35,45 LIMD —
58907-0C020 note Hinge Sub-assy, Console Compartment Door
2005-08 → —
UCK35,45 SR5 —
58908A — Lock Sub-assy, Console Compartment Door
58908-32050 Lock Sub-assy, Console Compartment Door
2000-09 → 2004-08 ended
UCK35,45 —
58908-32050 Lock Sub-assy, Console Compartment Door
2004-08 → —
UCK35,45 —
58910C — Box Assy, Console, Rear
58910-0C010-B0 note Box Assy, Console, Rear
2000-09 → 2004-08 ended
UCK35,45 —
58910-0C010-E0 note Box Assy, Console, Rear
2000-09 → 2004-08 ended
UCK35,45 —
58910-0C030-B0 note Box Assy, Console, Rear
2002-09 → 2004-08 ended
UCK35,45 —
58910-0C030-E0 note Box Assy, Console, Rear
2002-09 → 2004-08 ended
UCK35,45 —
58910-0C040-B0 note Box Assy, Console, Rear
2002-09 → 2004-08 ended
UCK35,45 —
58910-0C040-E0 note Box Assy, Console, Rear
2002-09 → 2004-08 ended
UCK35,45 —
58910-0C010-B0 note Box Assy, Console, Rear
2004-08 → 2006-05 ended
UCK35,45 —
58910-0C010-E1 note Box Assy, Console, Rear
2004-08 → 2006-05 ended
UCK35,45 —
58910-0C011-B0 note Box Assy, Console, Rear
2006-06 → —
UCK35,45 —
58910-0C011-E1 note Box Assy, Console, Rear
2006-06 → —
UCK35,45 —
58910-0C030-B0 note Box Assy, Console, Rear
2004-08 → 2006-05 ended
UCK35,45 —
58910-0C030-E1 note Box Assy, Console, Rear
2004-08 → 2006-05 ended
UCK35,45 —
58910-0C031-B0 note Box Assy, Console, Rear
2006-06 → —
UCK35,45 —
58910-0C031-E1 note Box Assy, Console, Rear
2006-06 → —
UCK35,45 —
58910-0C040-B0 note Box Assy, Console, Rear
2004-08 → 2006-05 ended
UCK35,45 —
58910-0C040-E1 note Box Assy, Console, Rear
2004-08 → 2006-05 ended
UCK35,45 —
58910-0C041-B0 note Box Assy, Console, Rear
2006-06 → —
UCK35,45 —
58910-0C041-E1 note Box Assy, Console, Rear
2006-06 → —
UCK35,45 —
58944A — Cover, Console, Rear
58944-0C010 Cover, Console, Rear
2002-09 → 2004-08 ended
UCK35,45 —
58944-0C010 Cover, Console, Rear
2004-08 → —
UCK35,45 —
58945B — Garnish, Console, Rear
58945-0C010-B0 note Garnish, Console, Rear
2000-09 → 2004-08 ended
UCK35,45 SR5 —
58945-0C010-E0 note Garnish, Console, Rear
2000-09 → 2004-08 ended
UCK35,45 SR5 —
58960C — Holder Assy, Cassette Case
58960-0C010 Holder Assy, Cassette Case
2000-09 → 2004-08 ended
UCK35,45 —
58960-0C010 Holder Assy, Cassette Case
2004-08 → 2006-05 ended
UCK35,45 —
58960-0C010 Holder Assy, Cassette Case
2006-06 → —
UCK35,45 —
58996A — Bracket, Console Box Mounting, NO.2
58996-0C010 Bracket, Console Box Mounting, NO.2
2000-09 → 2004-08 ended
UCK35,45 —
58996-0C010 Bracket, Console Box Mounting, NO.2
2004-08 → —
UCK35,45 —
58997 — Bracket, Console Box Mounting, NO.3
58997-0C010 Bracket, Console Box Mounting, NO.3
2000-09 → 2004-08 ended
UCK35,45 —
58997-0C010 note Bracket, Console Box Mounting, NO.3
2004-08 → —
UCK35,45 —
58997-0C030 note Bracket, Console Box Mounting, NO.3
2004-08 → —
UCK35,45 LIMD —
58997-0C030 note Bracket, Console Box Mounting, NO.3
2005-08 → —
UCK35,45 SR5 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
